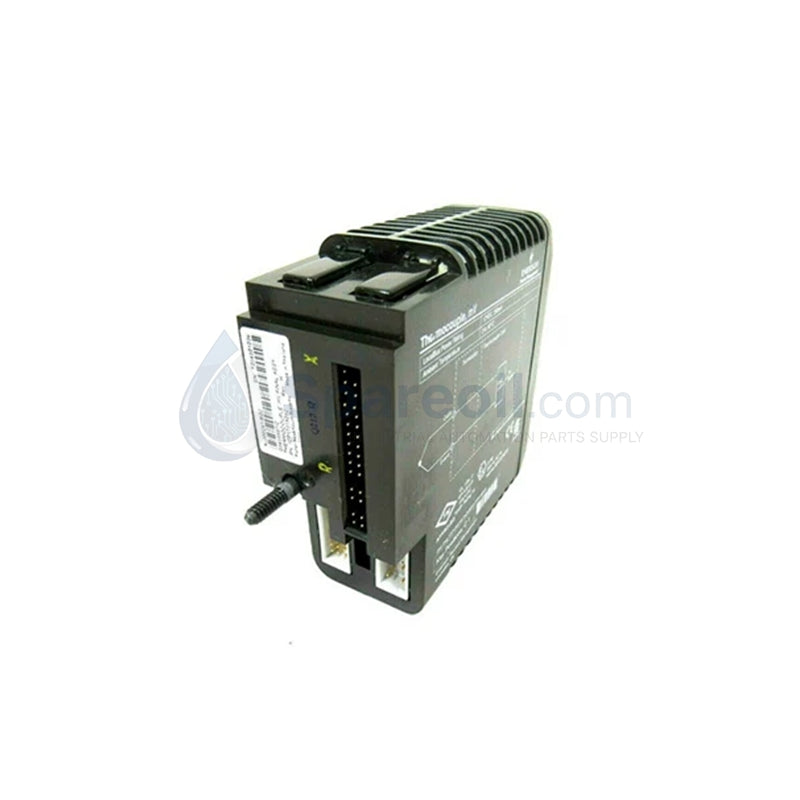

Emerson DeltaV KJ3002X1-BG1 8-Channel Thermocouple AI Card

Availability: 99 left in stock

Product Description High-Precision Temperature and Millivolt Acquisition The Emerson DeltaV KJ3002X1-BG1 (Model VE4003S5) is a specialized 8-channel Analog Input card designed for high-resolution...

SKU: KJ3002X1-BG1

Manufacturer: Emerson
Product No.: KJ3002X1-BG1
Product Type: 8-Channel Thermocouple AI Card
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

High-Precision Temperature and Millivolt Acquisition

The Emerson DeltaV KJ3002X1-BG1 (Model VE4003S5) is a specialized 8-channel Analog Input card designed for high-resolution temperature measurement and low-voltage signal monitoring within the DeltaV Distributed Control System (DCS). Specifically engineered for Thermocouple and Millivolt (mV) inputs, this Series 2 card is essential for process industries where precise thermal monitoring is critical for safety and efficiency. It converts sensitive field signals into 16-bit digital data, ensuring that even minor temperature fluctuations are accurately captured by the DeltaV controller.

Robust Industrial Design and Safety

Built for the most demanding environments, the KJ3002X1-BG1 features galvanic isolation to prevent signal interference and ground loops. The module includes automatic Cold Junction Compensation (CJC) when paired with the appropriate terminal block, maintaining accuracy across varying ambient conditions. Its rugged construction is rated for Class G3 airborne contaminants and operates reliably in temperatures ranging from –40 °C to +70 °C. The card also features a rotary keying system to prevent incorrect module insertion into the I/O carrier, enhancing overall system reliability.

Detailed Technical Specifications

Feature	Specification Details
Manufacturer	Emerson (DeltaV Series)
Model Number	KJ3002X1-BG1
Part Number	VE4003S5 (12P1731)
Input Channels	8 Isolated Channels
Input Signal Types	Thermocouples (J, K, T, E, R, S, B, C) and Millivolt (mV)
Signal Range	–100 mV to +100 mV (Supports –200 to 2000 °C range)
Resolution	16-bit A/D Conversion
Accuracy	±0.1% of span typical
Local Bus Power	12 VDC at 150 mA maximum
Field Circuit Power	30 VDC at 3 A (Total per card)
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Isolation	Channel-to-system isolation provided
Diagnostics	On-board self-test and cold junction monitoring
Mounting	DeltaV M-series / S-series Horizontal I/O Carrier
