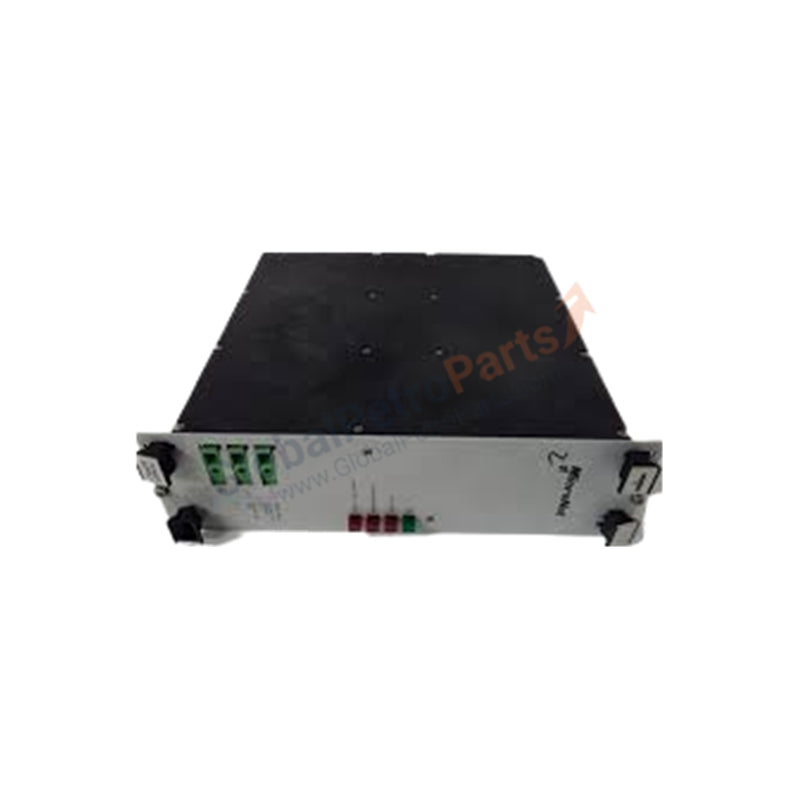

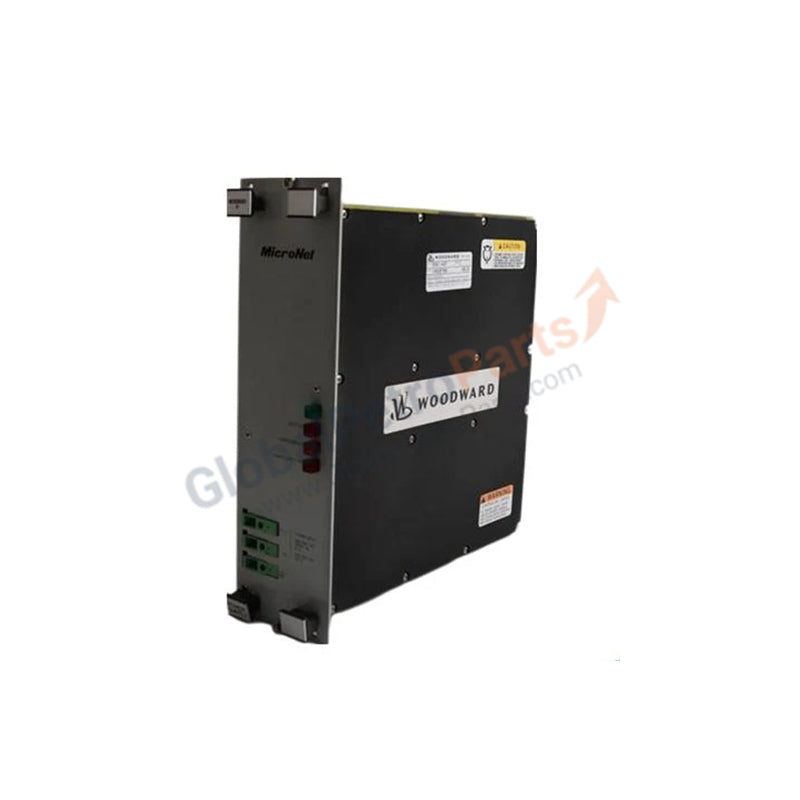

5401-467 | Woodward MicroNet Main Power Supply 24V/120V

Availability: 99 left in stock

Woodward 5501-467 MicroNet Simplex Main Power Supply Module The 5501-467 (Model: 5501-467) is a high-performance Main Power Supply (PS) module designed for...

SKU: 5501-467

Manufacturer: Woodward
Product No.: 5501-467
Product Type: MicroNet Simplex Power Supply
Product Origin: USA
Payment:T/T, Western Union
Weight: 2300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Woodward 5501-467 MicroNet Simplex Main Power Supply Module

The 5501-467 (Model: 5501-467) is a high-performance Main Power Supply (PS) module designed for the Woodward MicroNet™ Simplex control platform. This module is engineered to provide stable, regulated DC power to the MicroNet chassis, supporting critical processing and I/O functions for gas turbines, steam turbines, and large industrial compressors. The 5501-467 (Part Number: 5501-467) is distinguished by its versatile input capabilities, accommodating both low-voltage DC environments (24 Vdc) and high-voltage AC/DC configurations (120 Vac/Vdc), making it a flexible solution for global industrial power standards.

In high-stakes turbine environments, power integrity is non-negotiable. The 5501-467 (Main PS: 5501-467) incorporates advanced holdup circuitry—providing 1 cycle at 120 Vac—to ensure the control system "rides through" momentary power dips without triggering a processor reset. While this specific module is a Simplex (non-redundant) version, it maintains the same industrial-grade durability and fault-monitoring LEDs found in Woodward's TMR systems, including status indicators for Input Fault, Power Supply Fault, and Overtemperature.

Detailed Technical Specifications

The 5501-467 (5501-467) provides robust energy conversion across a wide range of input conditions.

Parameter	24 Vdc Input Specification	120 Vac/dc Input Specification
Operating Range	18 to 36 Vdc	AC: 88–132 Vac / DC: 100–150 Vdc
Nominal Voltage	20 to 32 Vdc	98 to 120 Vac / 111 to 136 Vdc
Maximum Current	29.5 A	12.1 A (AC) / 5.3 A (DC)
Maximum Power	531 W	1062 VA (AC) / 531 W (DC)
Fuse/Breaker Rating	50 A Time Delay	20 A (AC) / 10 A (DC) Time Delay
Holdup Time	5 ms @ 24 Vdc	1 Cycle @ 120 Vac
Manufacturer	Woodward	Woodward
Dimensions	7.5 cm x 24.6 cm x 26.1 cm	7.5 cm x 24.6 cm x 26.1 cm
Weight	2.32 kg (5.11 lbs)	2.32 kg (5.11 lbs)
Operating Temp	0 °C to +60 °C	0 °C to +60 °C
