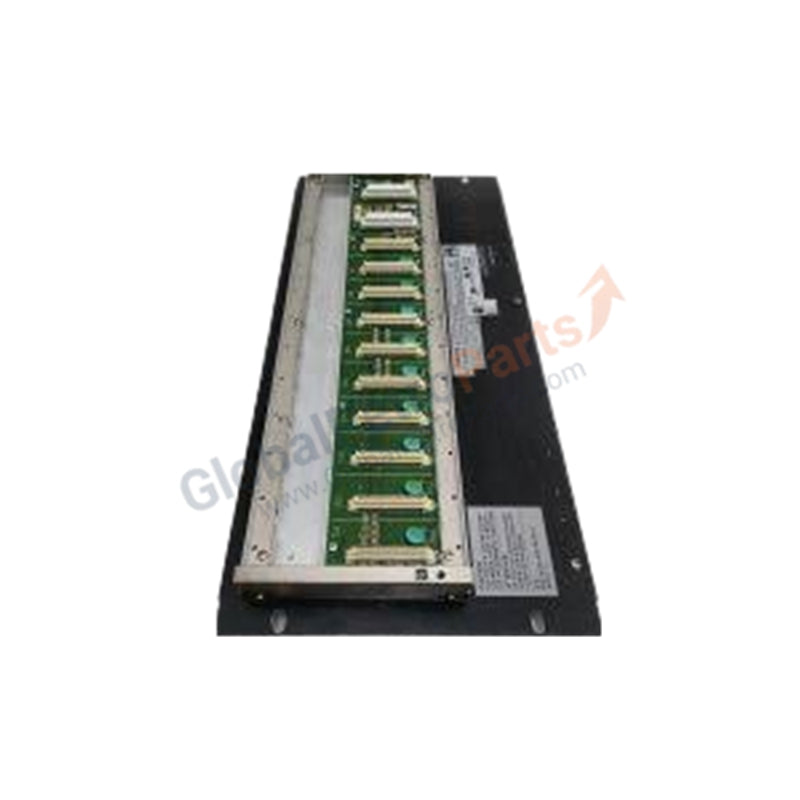

Yokogawa ANB10D-223 S2 Module | Dual Node ESB Bus Controller

Availability: 99 left in stock

Yokogawa ANB10D-223 S2 Dual ESB Bus Node Unit The ANB10D-223 S2 (Model: ANB10D-223 S2) is a high-performance Dual ESB Bus Node Unit...

SKU: ANB10D-223 S2

Manufacturer: Yokogawa
Product No.: ANB10D-223 S2
Product Type: Dual Node ESB Bus Controller
Product Origin: 日本
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

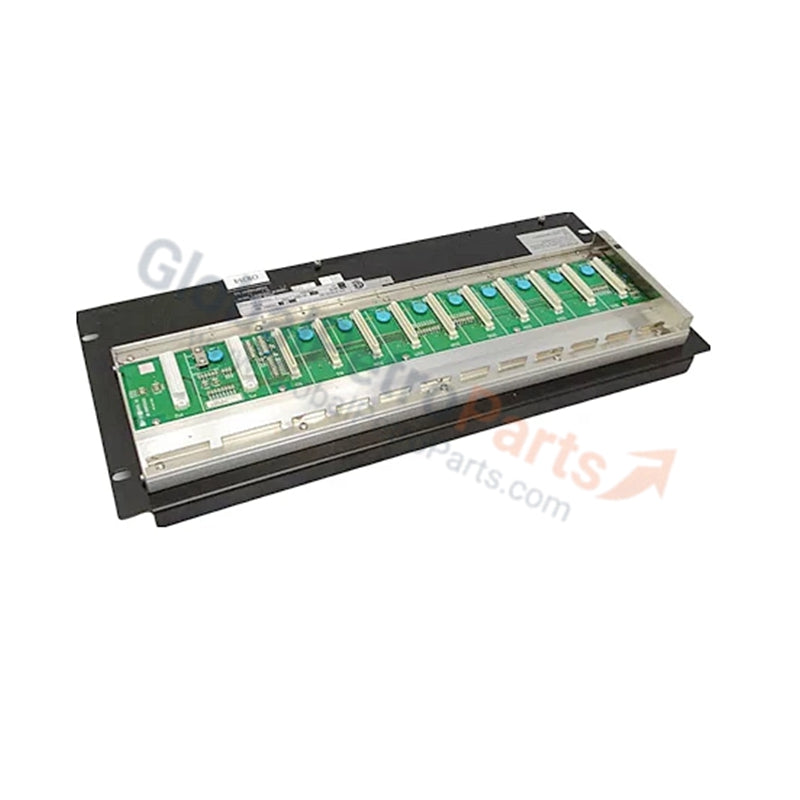

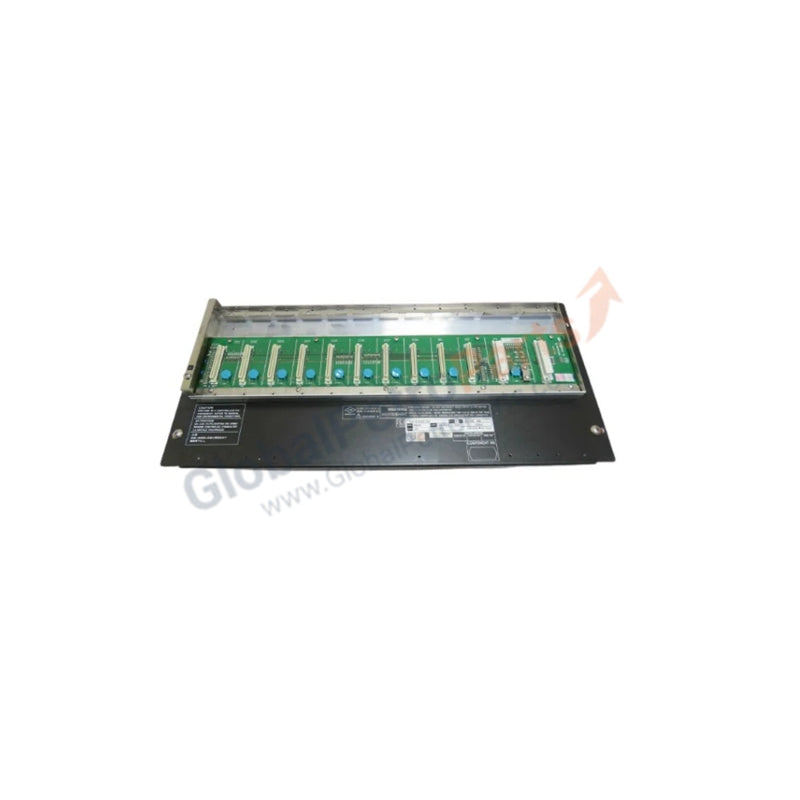

Yokogawa ANB10D-223 S2 Dual ESB Bus Node Unit

The ANB10D-223 S2 (Model: ANB10D-223 S2) is a high-performance Dual ESB Bus Node Unit designed for Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This unit functions as the mission-critical interface between the Field Control Unit (FCU) and various I/O modules. The ANB10D-223 S2 (Part Number: ANB10D-223 S2) facilitates deterministic, high-speed data transmission over an Ethernet-based Serial Bus (ESB), ensuring real-time monitoring and control of complex process parameters.

As a "Dual Node" type, the ANB10D-223 S2 (Node Unit: ANB10D-223 S2) is engineered for maximum availability and fault tolerance. It can host two independent ESB nodes within a single chassis, providing the redundancy required for Tier-1 industrial applications. This architecture allows for continuous operation even during partial hardware failures or maintenance intervals. The unit not only manages the data flow but also distributes regulated power to the installed I/O modules, making it a foundational element in oil & gas, petrochemical, and power generation facilities.

Detailed Technical Specifications

The ANB10D-223 S2 (ANB10D-223 S2) provides high-density I/O support and robust electrical isolation.

Parameter	Specification
Manufacturer	Yokogawa
Model Number	ANB10D-223 S2
Series Compatibility	CENTUM VP / CENTUM CS 3000 / STARDOM
Node Configuration	Dual Node (Redundant Architecture)
Bus Type	ESB (Ethernet-based Serial Bus)
Data Transmission Rate	10 Mbps
Minimum Cycle Time	10 ms
Power Supply Voltage	24 V DC (Maintains I/O power supply)
Power Consumption	≤ 6 W (Logic base)
I/O Capacity	Supports up to 10 digital I/O points (Base) + Analog support
Operating Temperature	0 °C to +60 °C (32 °F to 140 °F)
Mounting	19-inch Rack or Panel Mount
Dimensions	482.6 × 221.5 × 205 mm
Weight	1500g (Base unit) / Up to 12kg (Fully loaded)
