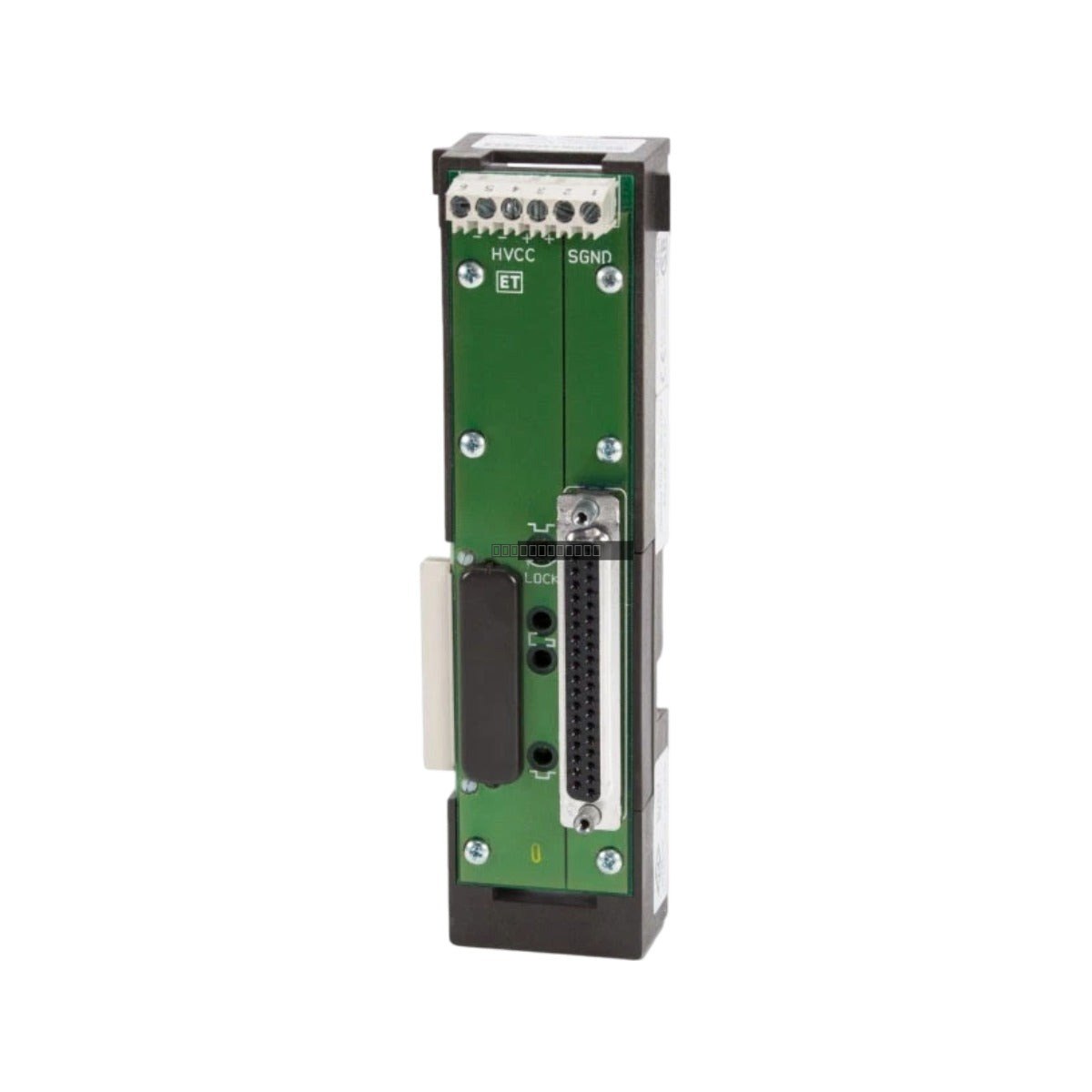

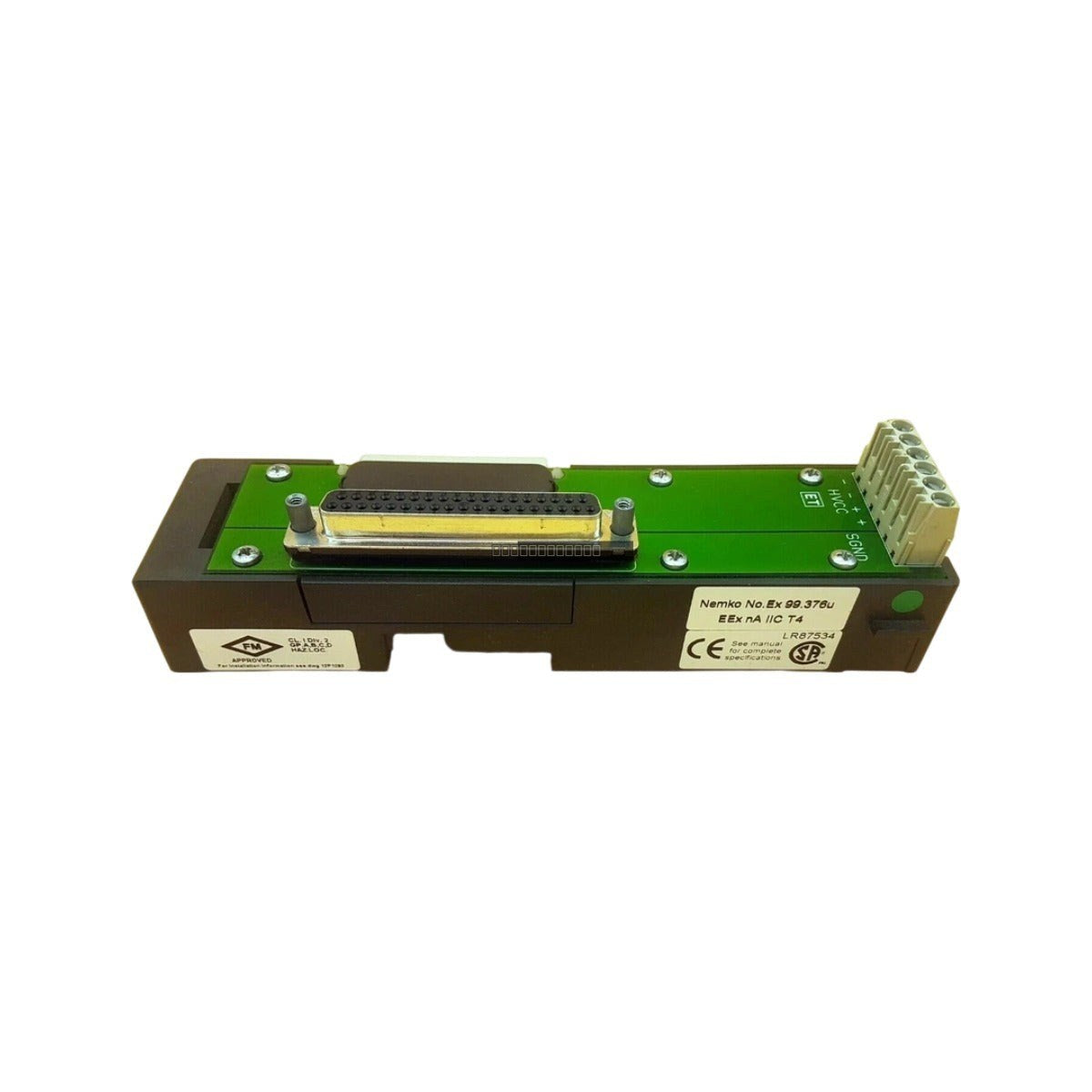

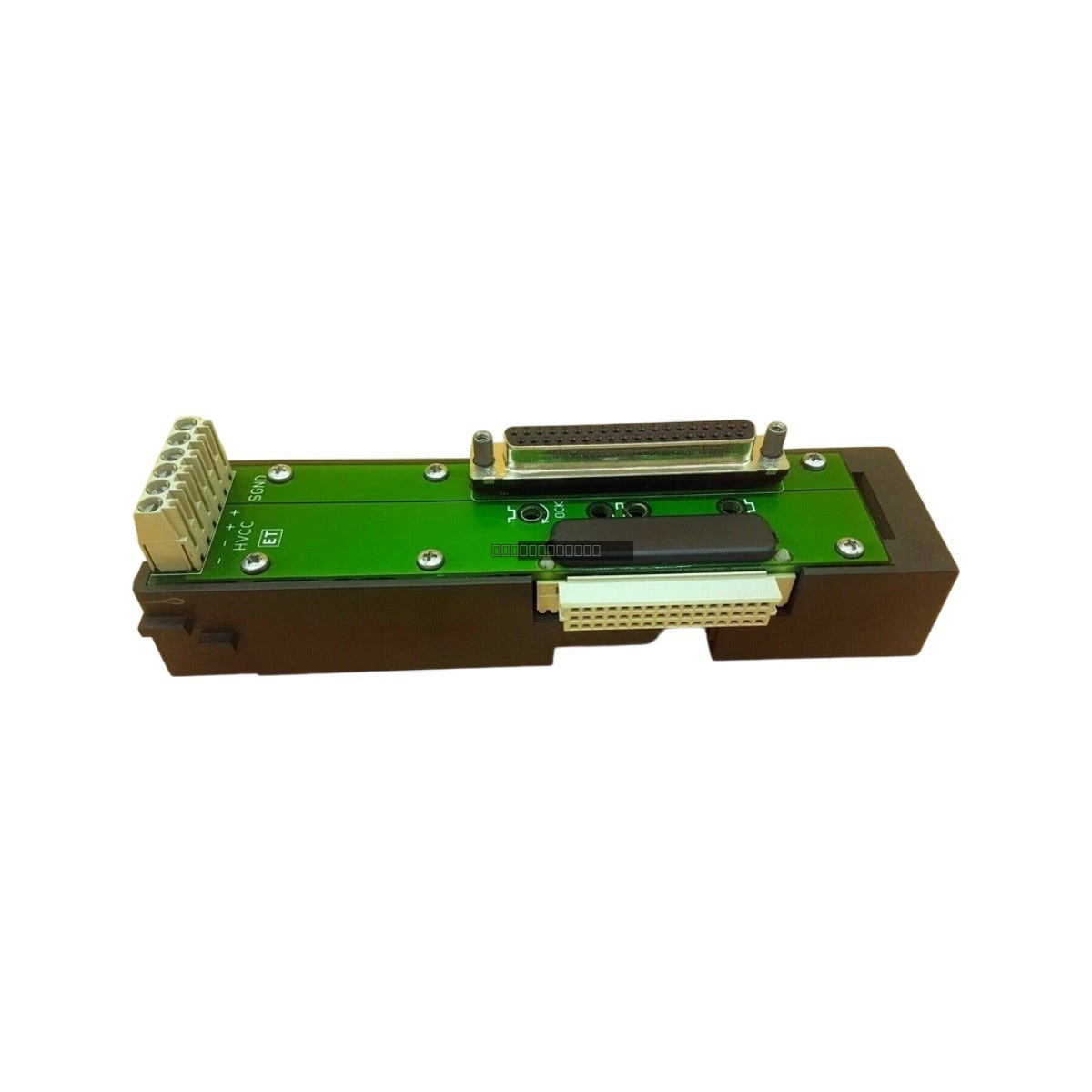

Emerson DeltaV KJ4010X1-BG1 Right LocalBus Extender Cable Assembly

Emerson DeltaV KJ4010X1-BG1 12P0830X062 Right LocalBus Extender Cable Assembly

Disponibilidad: 1 Quedan en stock

DescriptionThe Emerson DeltaV KJ4010X1-BG1 (12P0830X062) is a specialized Right LocalBus Extender Cable Assembly engineered for the DeltaV Scalable Process System....

Código: KJ4010X1-BG1 12P0830X062

Manufacturer: Emerson
Product No.: KJ4010X1-BG1 12P0830X062
Product Type: LocalBus Extender Cable Assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Emerson DeltaV KJ4010X1-BG1 (12P0830X062) is a specialized Right LocalBus Extender Cable Assembly engineered for the DeltaV Scalable Process System. This component is essential for extending the LocalBus across multiple I/O carriers, providing the flexibility required for distributed control architectures in complex industrial environments such as chemical processing, oil and gas, and mining. It ensures reliable, high-speed communication between hardware segments while maintaining signal integrity across the extended bus length.

Features

Facilitates seamless expansion of the DeltaV LocalBus across distributed I/O carriers.
Robust construction designed for high-reliability communication in demanding industrial conditions.
Supports system scalability while minimizing signal degradation.
Rated for hazardous location operation (Zone 2).
Maintenance-free design with no user-serviceable parts or calibration requirements.

Applications

This cable assembly is primarily used in Emerson DeltaV distributed control systems (DCS) to bridge I/O carrier segments within control cabinets or across adjacent enclosures, supporting large-scale automation deployments that require physical separation of I/O hardware.

Technical Specifications

Model	KJ4010X1-BG1 (12P0830X062)
Brand	Emerson (DeltaV)
LocalBus Power	12.6 VDC at 8 A
Operating Temperature	-40 to 70 deg C
Relative Humidity	5 to 95 percent (Non-Condensing)
Ingress Protection	IP 20
Max System Length	6.5 meters (Combined Carriers and Extenders)
Shock Resistance	10g 1/2 Sinewave for 11 msec
Vibration Resistance	1mm P-P (5-16Hz); 0.5g (16-150Hz)
Contaminant Rating	ISA-S71.04-1985 Class G3

Installation Guidelines

Power Down Required: This unit is not hot-swappable. The system must be completely de-energized before connecting or disconnecting the cable assembly to prevent electrical damage or hazardous sparking.
Hazardous Area Safety: Rated for Zone 2 (II 3 G, EEx nA IIC T4). Do not disconnect in hazardous areas unless the area is verified as non-hazardous or power is removed.
Cable Routing: Interconnecting cables between separate enclosures must be installed within protective conduit to ensure mechanical protection and signal integrity.
System Limits: The total combined length of all I/O carriers and LocalBus Extenders must not exceed 6.5 meters.

Compliance and Certifications

This module complies with hazardous area requirements including Nemko No. 02ATEX431U (II 3 G, EEx nA IIC T4). Always verify the specific site requirements against the latest Emerson DeltaV documentation.

FAQ

Is this cable assembly hot-swappable?

No, the KJ4010X1-BG1 is not hot-swappable. You must completely de-energize the system power before attempting to connect or disconnect the cable assembly from the I/O carriers.

What is the maximum allowable length for the LocalBus?

The total combined length of all I/O carriers and LocalBus Extenders in the system must not exceed 6.5 meters to ensure proper communication performance.
