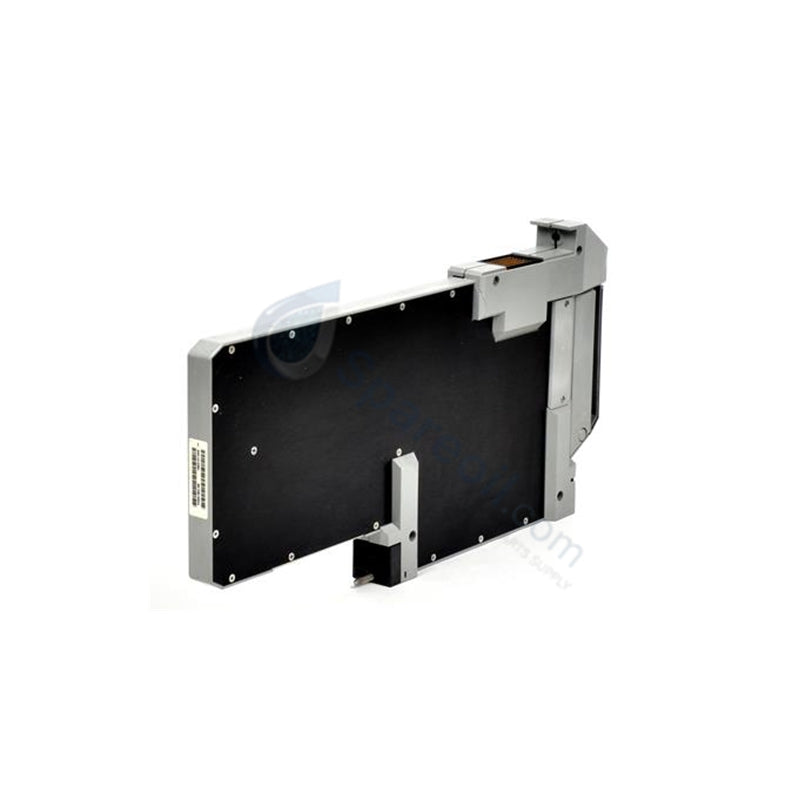

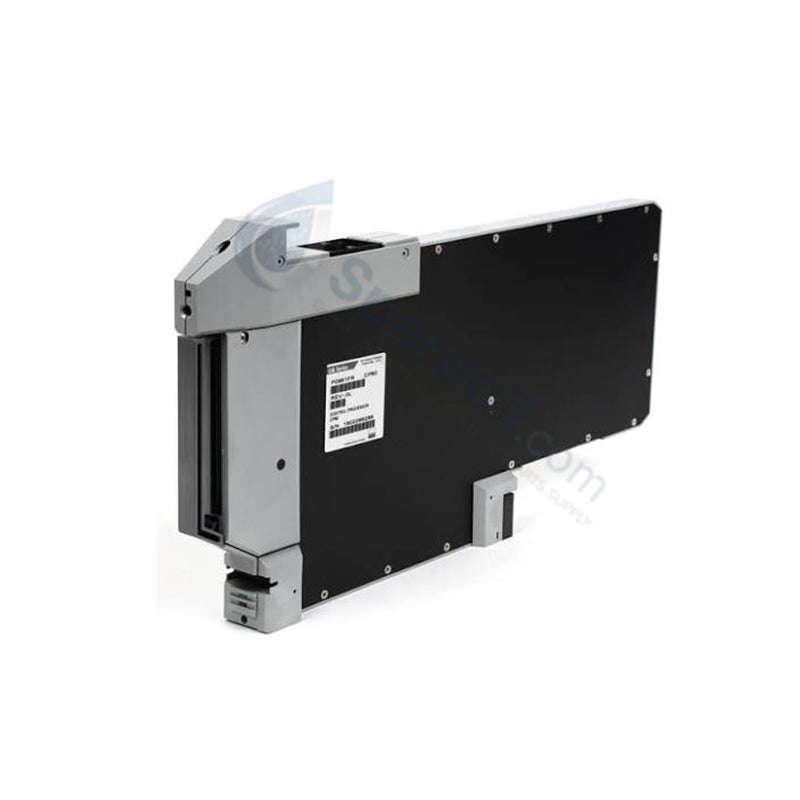

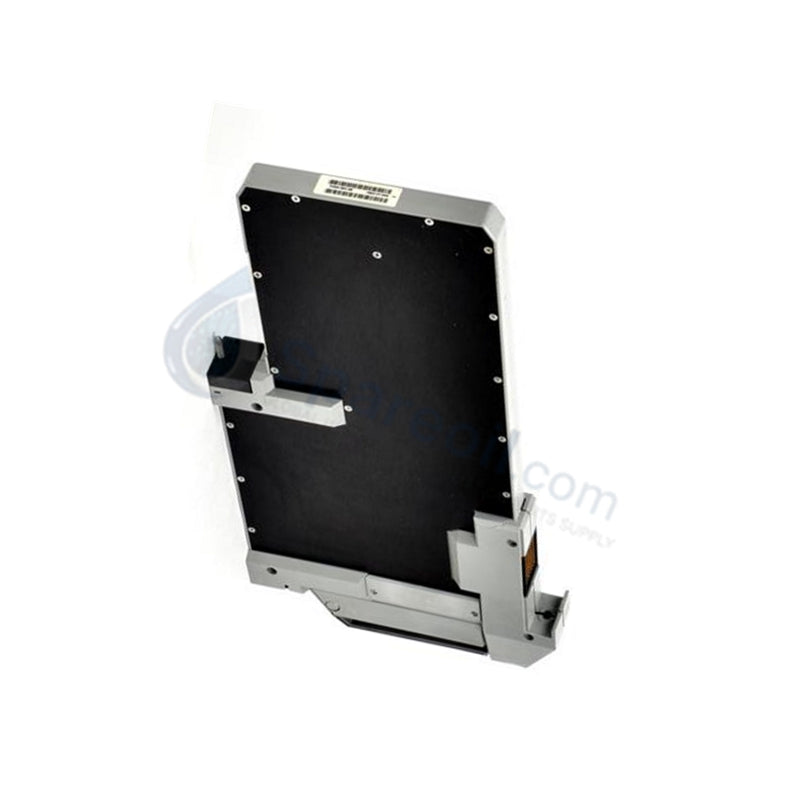

Foxboro GW30B P0961BD Communication Gateway Modules

The Foxboro GW30B P0961BD, also cataloged as the GW30B Communication Gateway Modules, operates as a dedicated hardware component for bridging field I/O subsystems and system controllers within Foxboro I/A Series DCS platforms. The rack-mounted assembly processes real-time data packets across Foxboro proprietary Fieldbus, Ethernet TCP/IP, and Modbus networks using an onboard microprocessor and non-volatile configuration memory. Designed with 1500 V RMS galvanic isolation between field and logic circuits, the hot-swappable unit routes deterministic control telemetry while supporting dual-gateway redundant topologies.

Hardware Specifications

Parameter Specification
Model GW30B P0961BD (GW30B)
Brand Foxboro
Origin USA
Weight Standard FBM carrier module weight profile
Dimensions Standard FBM rack module dimensions
Operating Temp 0 deg C to +60 deg C
Power Consumption 24 VDC nominal backplane power supply
Product Type Communication Gateway Modules
Function Gateway communication between FBMs, controllers, and supervisory networks
Protocols Supported Foxboro proprietary Fieldbus, Ethernet TCP/IP, Modbus
Processor & Memory High-performance microprocessor with non-volatile memory
Redundancy Dual gateway redundant configuration
Isolation 1500 V RMS isolation between field and logic
System Connectivity Carrier backplane bus interface
Diagnostics Built-in self-test, watchdog timer, and LED status indicators
Storage Temp -40 deg C to +85 deg C
Operating Humidity 5% to 95% non-condensing

Process Control & DCS Instrument Integration

The communication gateway module coordinates data exchange between fieldbus modules (FBMs) and upper-level control processors. While analog I/O modules interface 4-20 mA HART loop protocol instruments at the field level, the gateway digitizes and serializes these data points for transmission across Ethernet TCP/IP and Modbus networks. Integrated 1500 V RMS galvanic isolation barriers protect internal microprocessors from high-voltage field spikes. Onboard diagnostic algorithms continuously evaluate network frame traffic, execution timers, and backplane health, driving visual status LEDs to flag communication errors without disrupting deterministic scan routines.

Frequently Asked Questions

Q: How does the dual gateway redundancy mechanism manage network switchovers during communication faults?

A: Secondary gateway modules maintain synchronized memory tables via the backplane. Upon primary channel failure, the backup unit assumes control bus communication without dropped packet frames or controller timeouts.

Q: Can maintenance personnel hot-swap the module without shutting down the baseplate power bus?

A: Yes, the physical connector design utilizes power-sequencing pins that ground logic lines prior to bus data line engagement, permitting live insertion and removal on an active carrier backplane.

Field Installation Guidelines

  • Baseplate Carrier Insertion: Align the module rear edge connectors with card guides on the system carrier and push firmly until side retention mechanisms lock into the backplane frame.
  • Network Shield Line Earthing: Connect external Ethernet and Modbus serial cable shields to a single-point earth ground bar in the control panel to minimize electromagnetic interference.
  • Cable Channel Isolation: Route high-speed communication lines through dedicated wiring channels separate from high-voltage AC distribution circuits and motor power leads.
  • Redundant Power Input: Wire primary and secondary 24 VDC feeds to the baseplate terminal blocks to prevent gateway offline events during power supply switchovers.
  • Panel Air Flow Space: Maintain a minimum of 50 mm clearance above and below the carrier assembly to allow natural convection airflow across internal heat dissipation paths.
