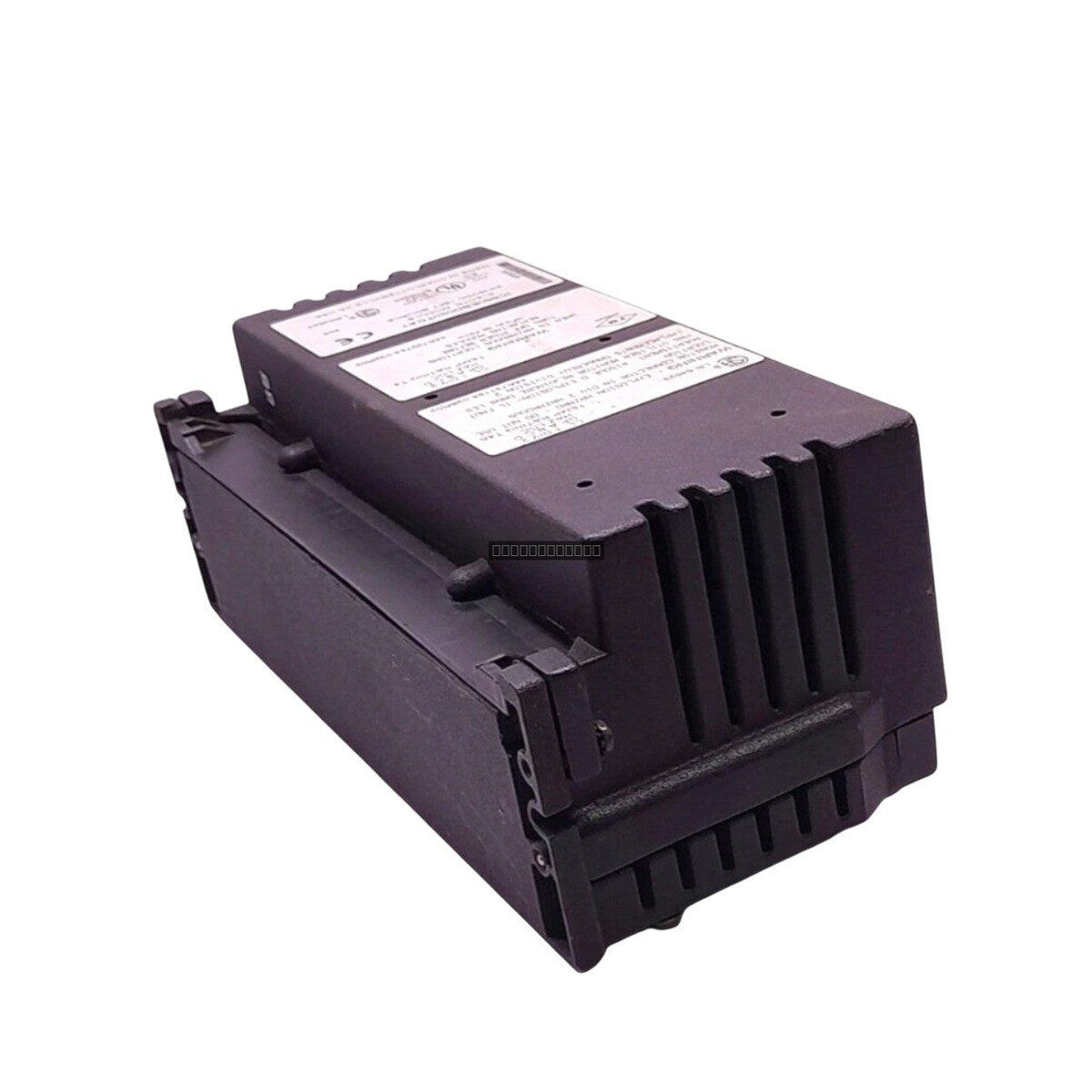

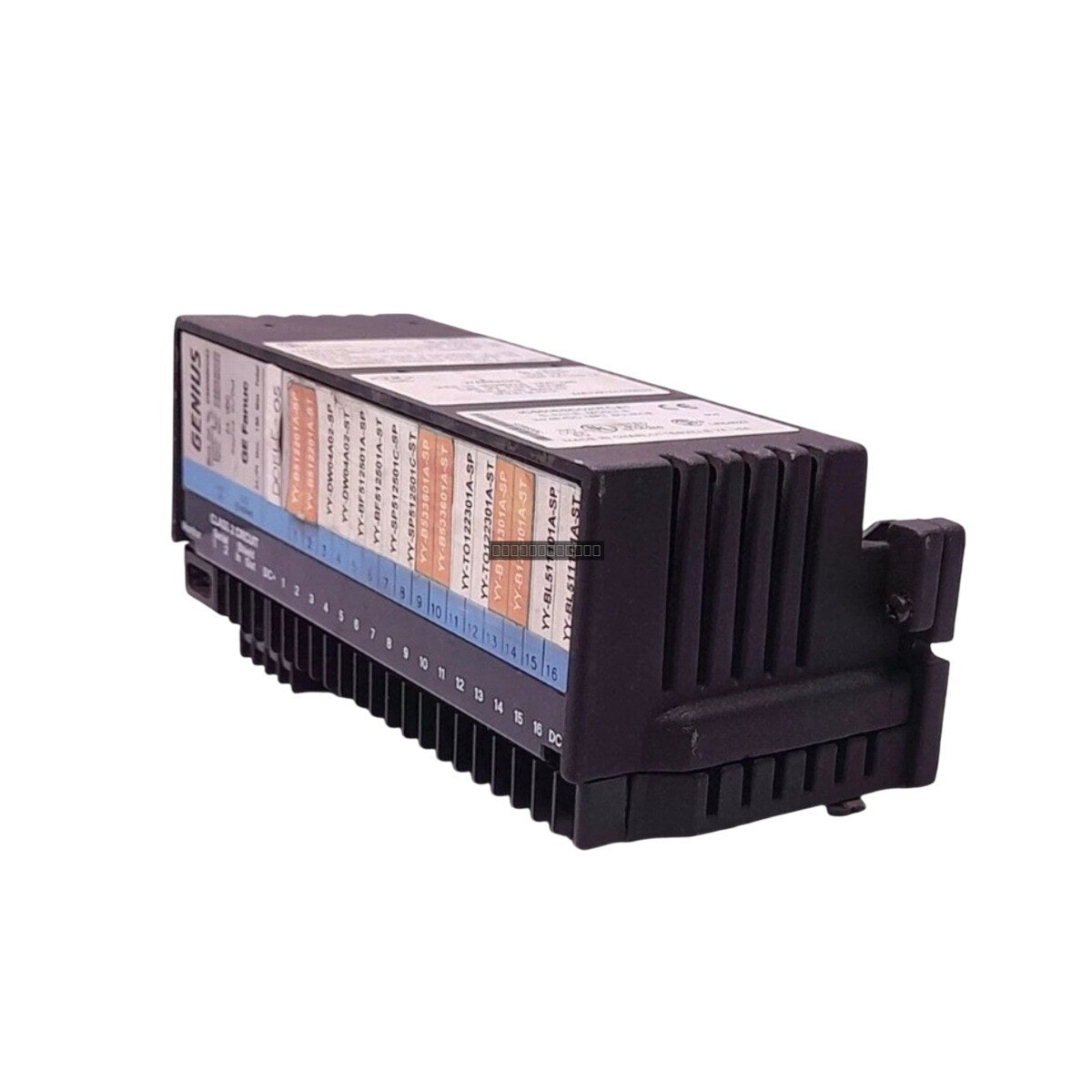

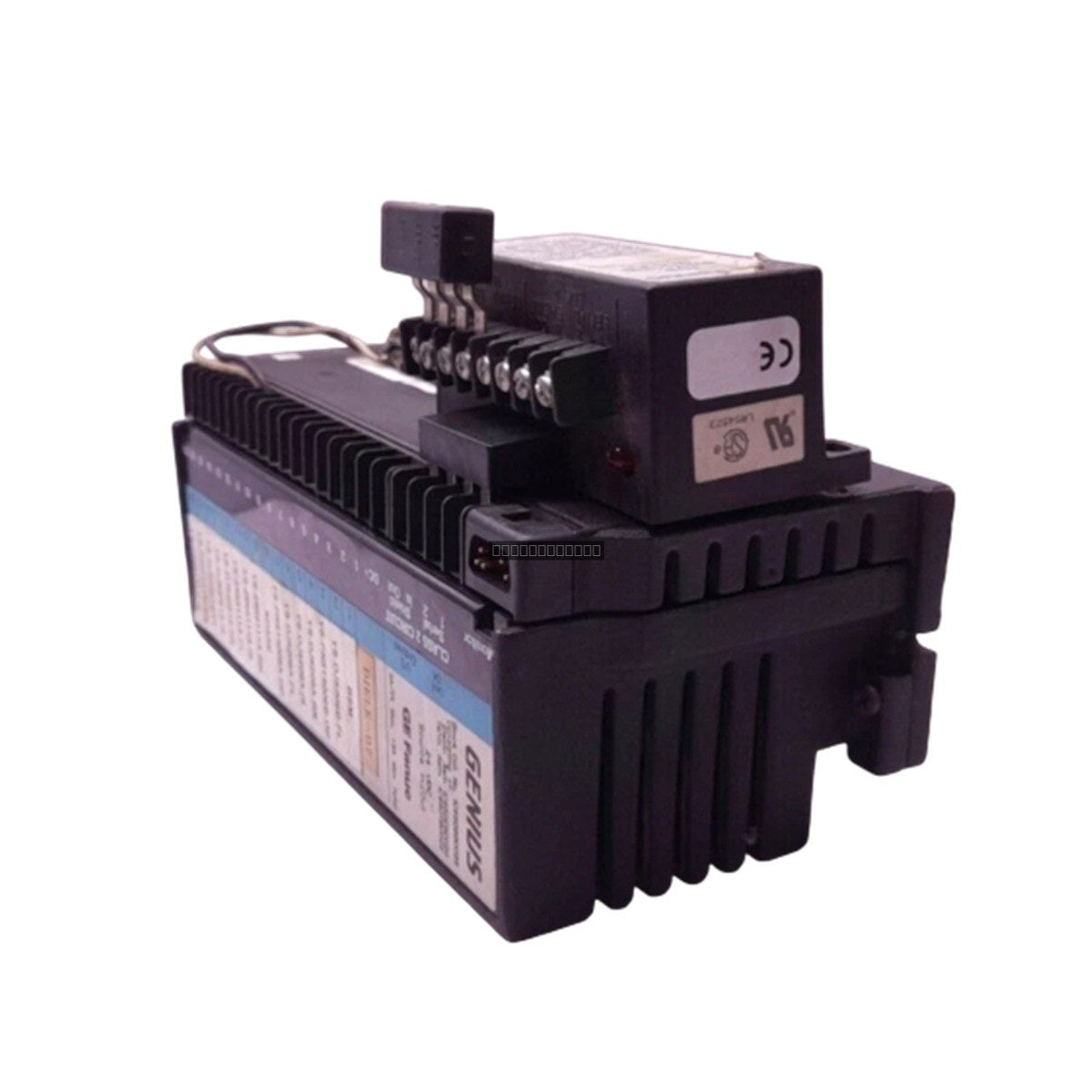

General Electric IC660BBD022 Genius Block I/O Module

General Electric IC660BBD022 Genius I/O Block Module

Disponibilidad: 5 Quedan en stock

The General Electric IC660BBD022 is a high-performance Genius I/O block module designed for reliable industrial automation and distributed control applications....

Código: IC660BBD022

Manufacturer: General Electric
Product No.: IC660BBD022
Product Type: I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1440g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The General Electric IC660BBD022 is a high-performance Genius I/O block module designed for reliable industrial automation and distributed control applications. This module features 16 source I/O circuits, providing robust interface capabilities for 24/48 VDC signaling environments. It is engineered to support efficient data exchange within the Genius I/O network architecture.

Features

16-circuit source I/O configuration with a single common group.
Integrated diagnostics for both inputs (Open wire, Overtemperature, Failed Switch) and outputs (Short Circuit, Overload, No Load, Failed Switch, Overtemperature).
Configurable input filter times ranging from 5 to 100 ms.
High-visibility LED status indicators for Unit OK and I/O Enabled states.
Robust electrical isolation rated at 1500V for one minute between blocks.

Applications

This module is widely utilized in distributed control systems where remote I/O processing is required. It is suitable for process control, manufacturing automation, and machine monitoring systems that rely on the Genius protocol for communication.

Technical Specifications

Model Number	IC660BBD022
Operating Voltage	18-30 VDC
Load Current	2 Amperes per circuit
Max Inrush Current	10 Amperes (up to 10 ms)
Input Response Time	1.7 ms + configurable filter
Output Turn-on Delay	1 ms
Heat Dissipation	68.8 Watts (at 2A)
Operating Temperature	0 to 60 degC
Storage Temperature	-40 to 100 degC
Humidity	5-95% non-condensing

Installation Guidelines

Ensure the module is mounted in an environment that meets the specified operating temperature range of 0 to 60 degC.
Verify that the power supply is disconnected before performing any wiring or module installation to prevent electrical damage.
Maintain proper clearance for cooling, as the module dissipates up to 68.8 Watts under full load conditions.
Use shielded cabling for I/O signals to minimize interference in high-EMI industrial environments.
Always adhere to ESD safety protocols when handling the module to protect internal circuitry.

FAQ

What is the primary communication protocol for this module?
The IC660BBD022 utilizes the standard Genius Protocol for communication within the GE Genius I/O network.

Does this module support diagnostic feedback?
Yes, it provides comprehensive diagnostics for both input and output circuits, including detection for open wires, short circuits, overloads, and overtemperature conditions.
