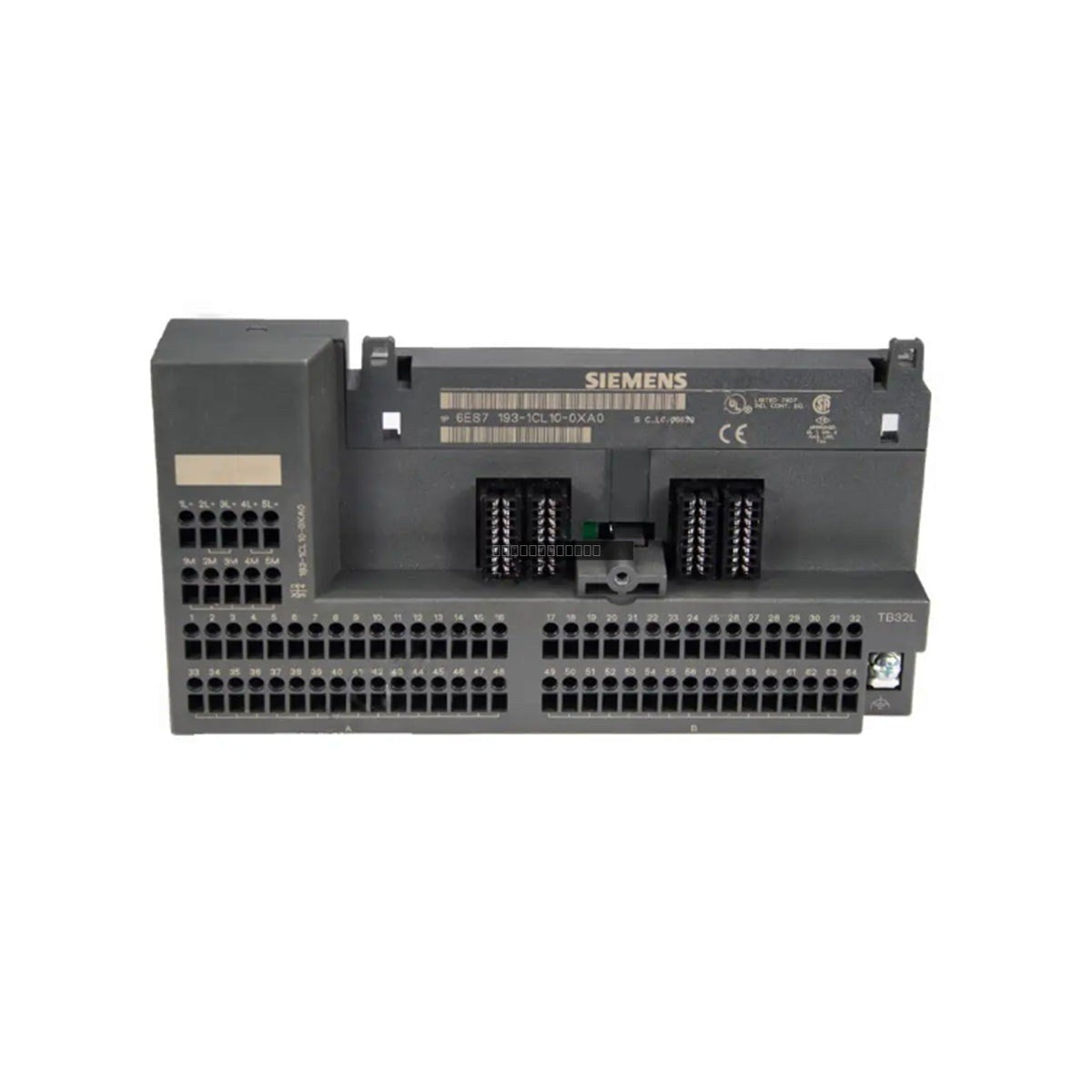

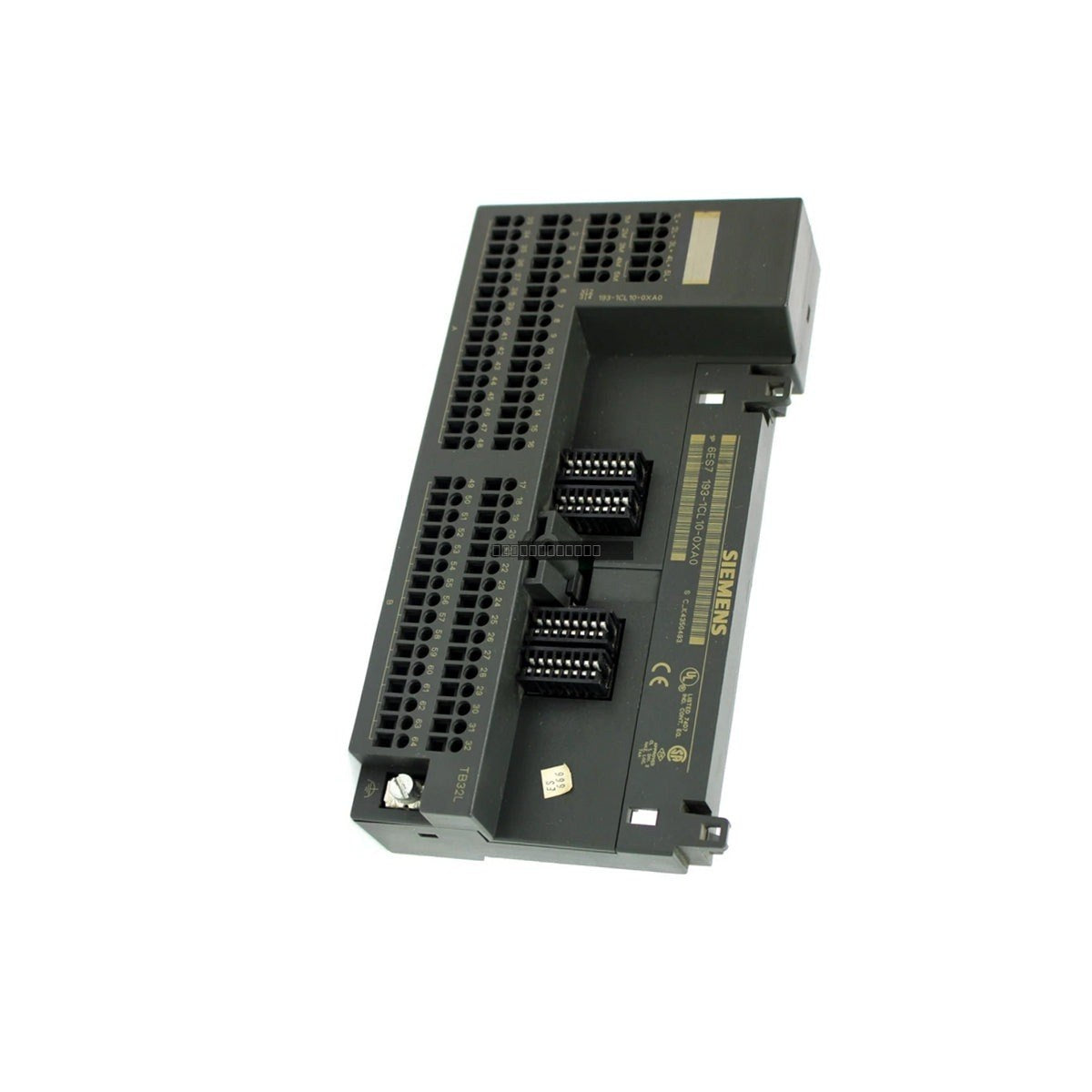

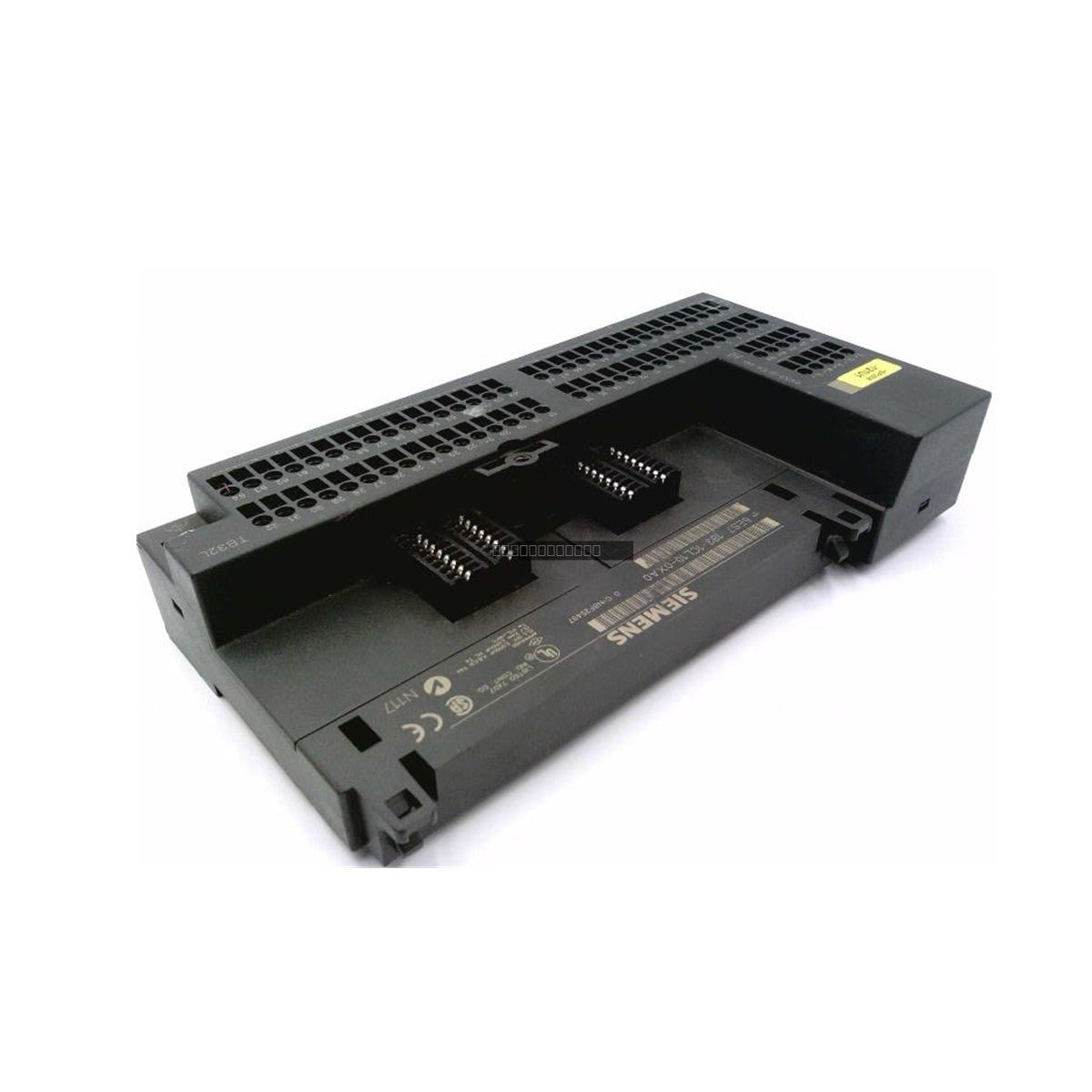

Siemens 6ES7193-1CL10-0XA0 TB32L Terminal Block for ET 200L

Siemens 6ES7193-1CL10-0XA0 SIMATIC DP Terminal Block TB32L

Disponibilidad: 5 Quedan en stock

The Siemens 6ES7193-1CL10-0XA0 is a TB32L terminal block designed for integration within the SIMATIC ET 200L distributed I/O system. This...

Código: 6ES7193-1CL10-0XA0

Manufacturer: Siemens
Product No.: 6ES7193-1CL10-0XA0
Product Type: Terminal Block
Product Origin: USA
Payment:T/T, Western Union
Weight: 50g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Siemens 6ES7193-1CL10-0XA0 is a TB32L terminal block designed for integration within the SIMATIC ET 200L distributed I/O system. This component provides the necessary physical connection interface for 32 channels, facilitating reliable signal distribution in PROFIBUS DP slave configurations.

Features

Designed specifically for the ET 200L series distributed I/O system.
Provides 32 connection channels for high-density I/O wiring requirements.
Utilizes robust screw-type terminals with integrated clamping units for secure wire retention.
Supports a wide range of wire cross-sections from 0.25 mm² to 2.5 mm² (24-12 AWG).
Engineered for industrial environments with an operating temperature range of -20 degC to +60 degC.

Technical Specifications

Model	6ES7193-1CL10-0XA0
Type	TB32L Terminal Block
Channel Count	32
Connection Type	Screw-type with clamping units
Rated Voltage	250V AC/DC
Rated Current	4A per channel
Operating Temperature	-20 degC to +60 degC
Storage Temperature	-40 degC to +85 degC

Installation Guidelines

Ensure the power supply to the ET 200L station is fully disconnected before installing or removing the terminal block to prevent electrical shock or damage to the module.
Verify that all wiring is properly stripped to the manufacturer's specification and fully seated within the clamping unit before tightening the screw.
Maintain proper cable routing to prevent excessive mechanical stress on the terminal block connections.
Ensure the installation environment meets the specified thermal limits to prevent premature failure of the connection interface.
Always adhere to local electrical codes regarding grounding and shielding when wiring I/O signals to the terminal block.

FAQ

What is the primary function of the 6ES7193-1CL10-0XA0?
This is a terminal block module for the Siemens ET 200L system, specifically designated as the TB32L, which acts as the physical wiring interface for 32 I/O channels.

Can this terminal block be used with other ET 200 series modules?
The TB32L is specifically designed for the ET 200L series. Compatibility with other ET 200 families should be verified against the specific Siemens system manual for your hardware configuration.

What is the maximum wire gauge supported?
The terminal block supports wire sizes up to 2.5 mm² (12 AWG).
