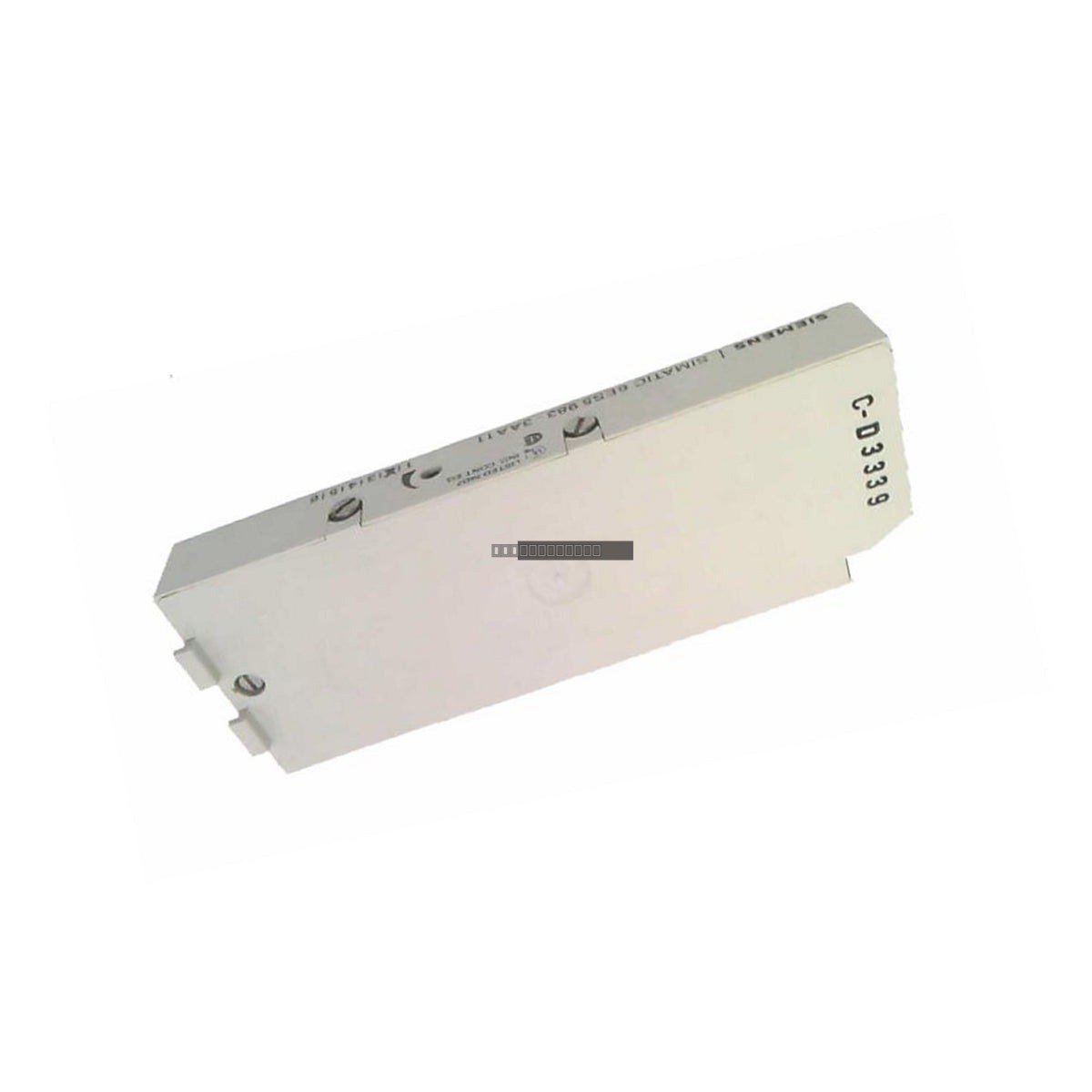

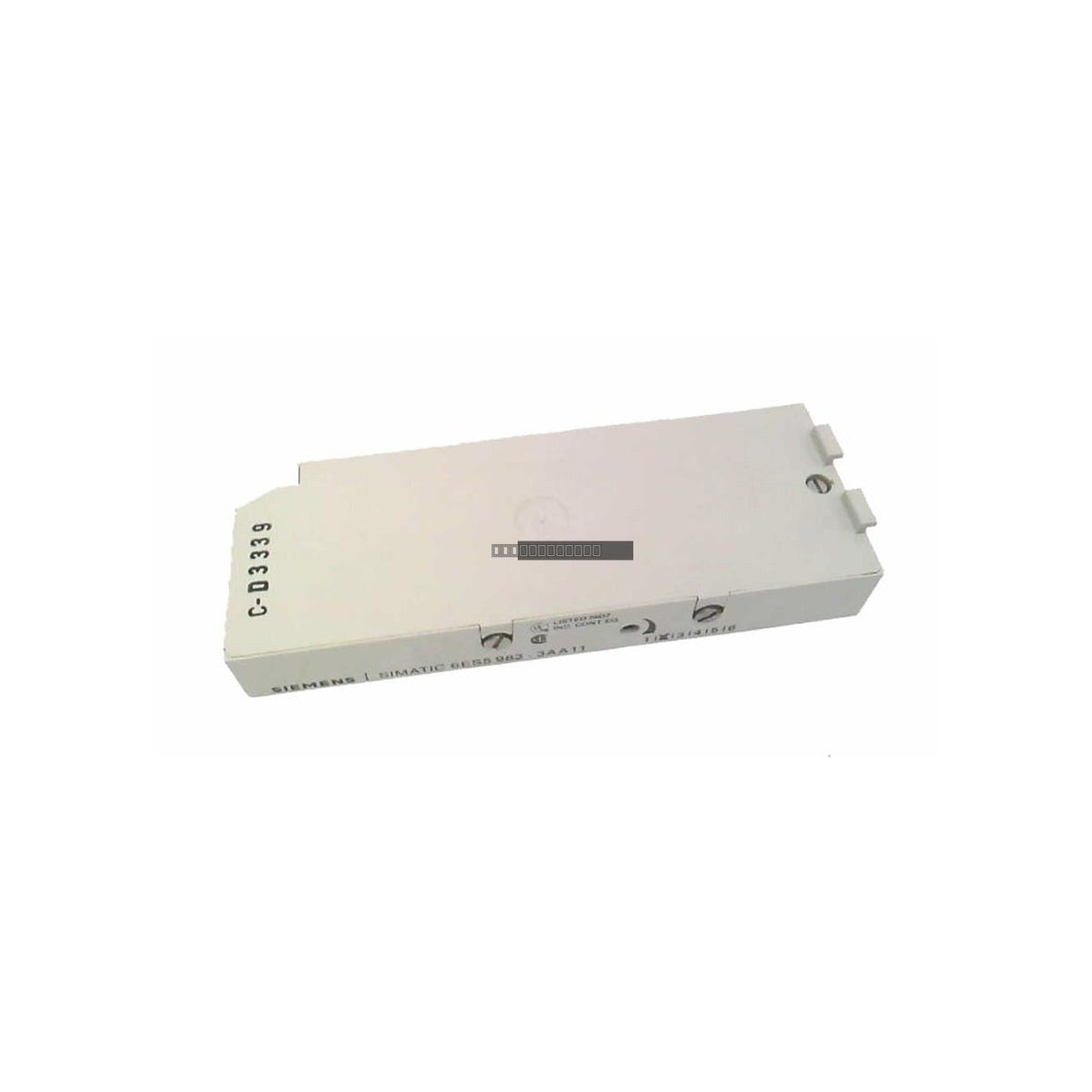

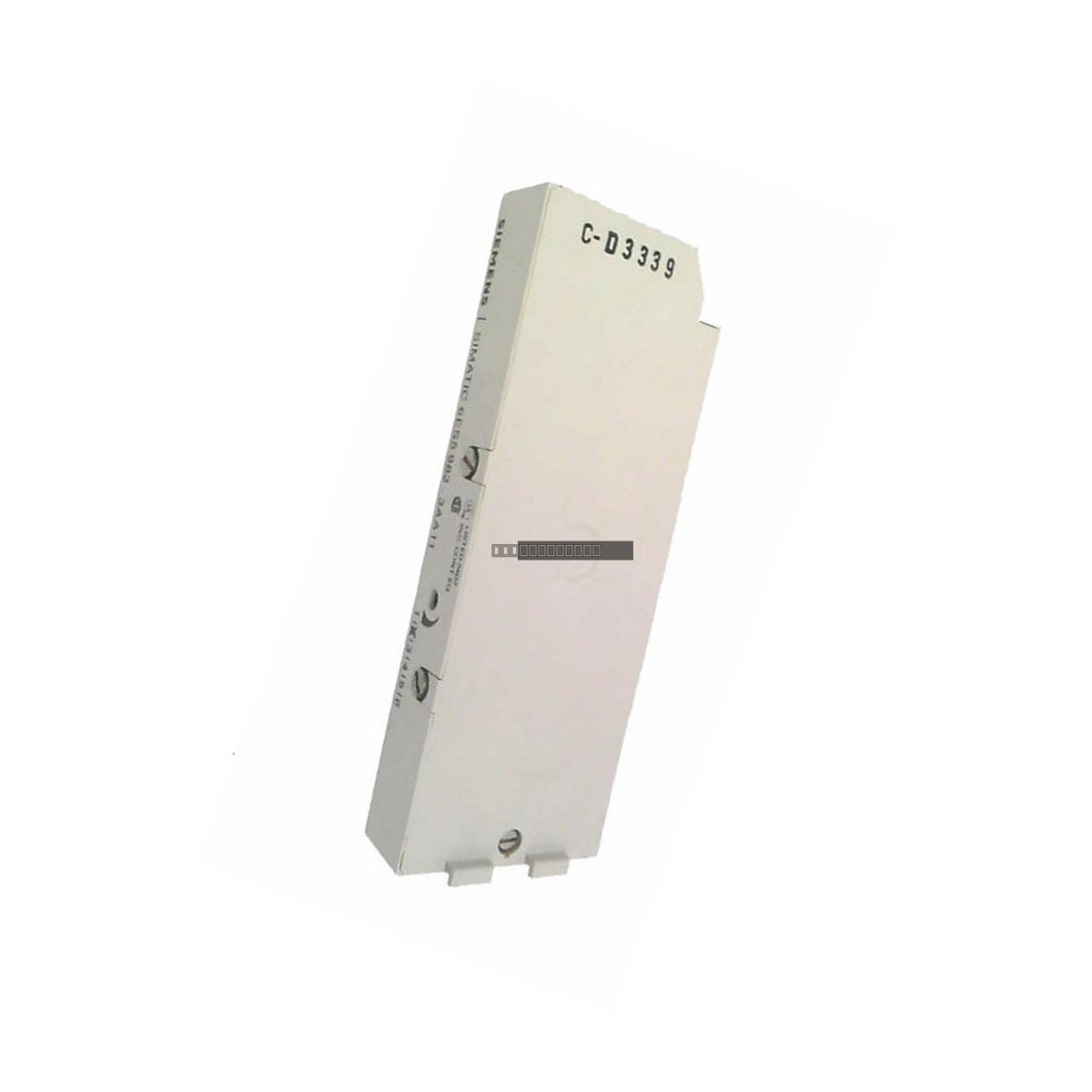

Siemens 6ES5983-3AA11 Simatic S5 25-Pin Connector

Siemens 6ES5983-3AA11 Simatic S5 Cable Connector

Disponibilidad: 5 Quedan en stock

DescriptionThe Siemens 6ES5983-3AA11 is a robust cable connector assembly engineered for the Simatic S5 automation series. Featuring a 25-pin female...

Código: 6ES5983-3AA11

Manufacturer: Siemens
Product No.: 6ES5983-3AA11
Product Type: Cable Connector
Product Origin: Germany
Payment:T/T, Western Union
Weight: 190g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Siemens 6ES5983-3AA11 is a robust cable connector assembly engineered for the Simatic S5 automation series. Featuring a 25-pin female D-Sub interface, this component serves as a critical link for feedback loops, programming interfaces, and peripheral communication within legacy control rack environments. Designed to maintain signal integrity in demanding industrial settings, this connector is widely utilized in sectors such as steel production, maritime automation, and heavy manufacturing where reliable, long-term connectivity is essential for system uptime.

Features

Interface: Standard D-Sub 25-pin female configuration for secure signal transmission.
Signal Integrity: High-quality contact plating reduces insertion loss and prevents oxidation.
EMI Protection: The housing design supports shielding against electromagnetic interference common in industrial switchgear environments.
Diagnostic Capability: Supports closed-loop configurations to facilitate line monitoring and fault detection.
Compatibility: Specifically engineered for seamless integration with Simatic S5 hardware architectures.

Installation Guidelines

Ensure all power is disconnected from the control rack before inserting or removing the connector to prevent electrical arcing or pin damage.
Align the 25-pin interface carefully to avoid bending pins; secure the housing using the integrated locking mechanism.
For optimal EMI suppression, ensure that the cable shield is properly terminated to the connector housing.
Maintain a clean, dry environment during installation to prevent debris or moisture from entering the contact pins.
Avoid excessive mechanical strain on the cable assembly; provide adequate cable support or strain relief near the connection point.

Technical Specifications

Model	6ES5983-3AA11
Brand	Siemens
Series	Simatic S5
Connector Type	25-Pin Female D-Sub
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C
Current Capacity	1 A per pin
Max Voltage	60 VDC / 42 VAC

FAQ

Is this connector compatible with modern S7 systems?

The 6ES5983-3AA11 is specifically designed for the Simatic S5 legacy range. While it uses a standard D-Sub footprint, it is optimized for S5 communication protocols and electrical characteristics.

Does this connector include the housing shell?

Yes, this part is supplied as a complete assembly including the connector block and housing, ready for integration into your existing cable harness.
