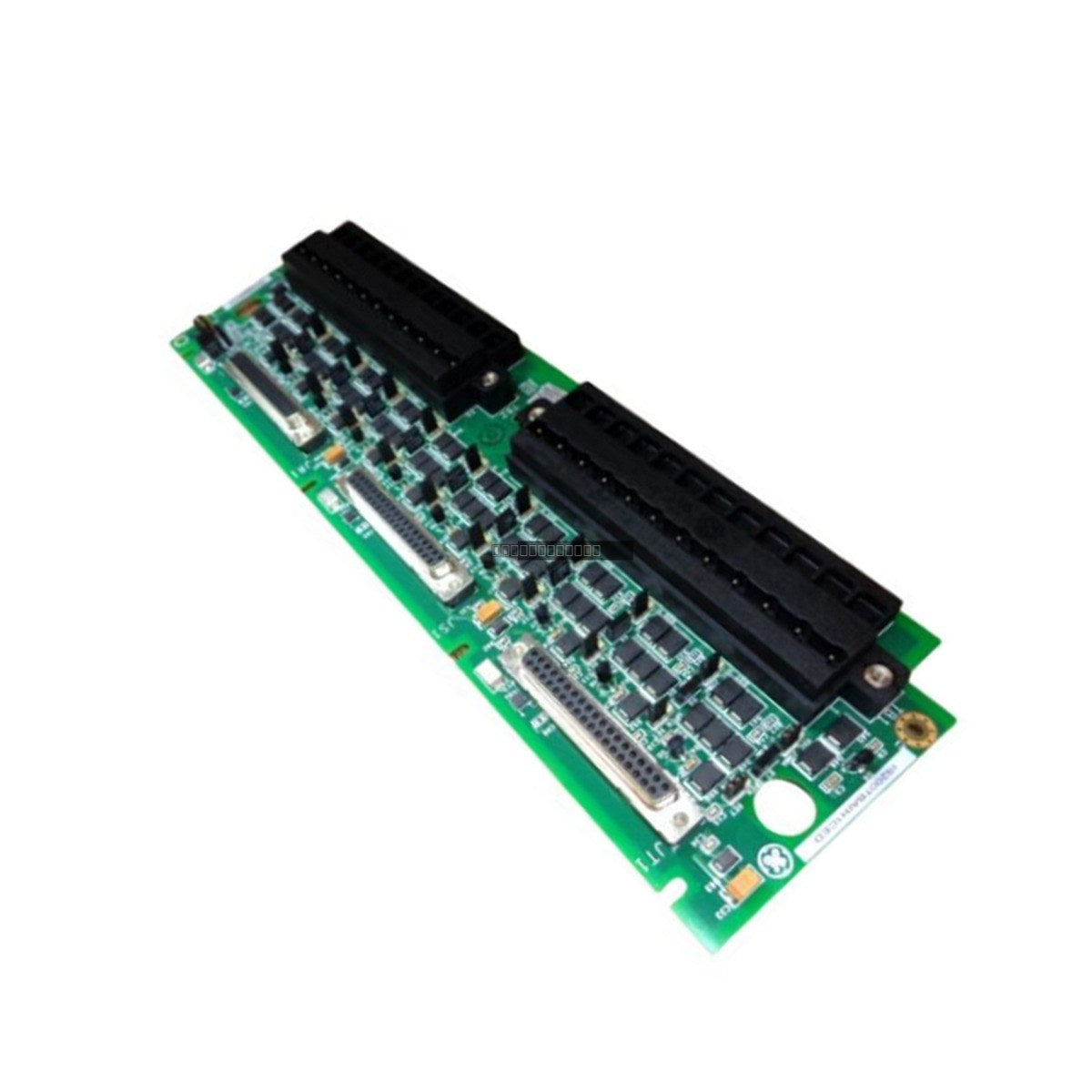

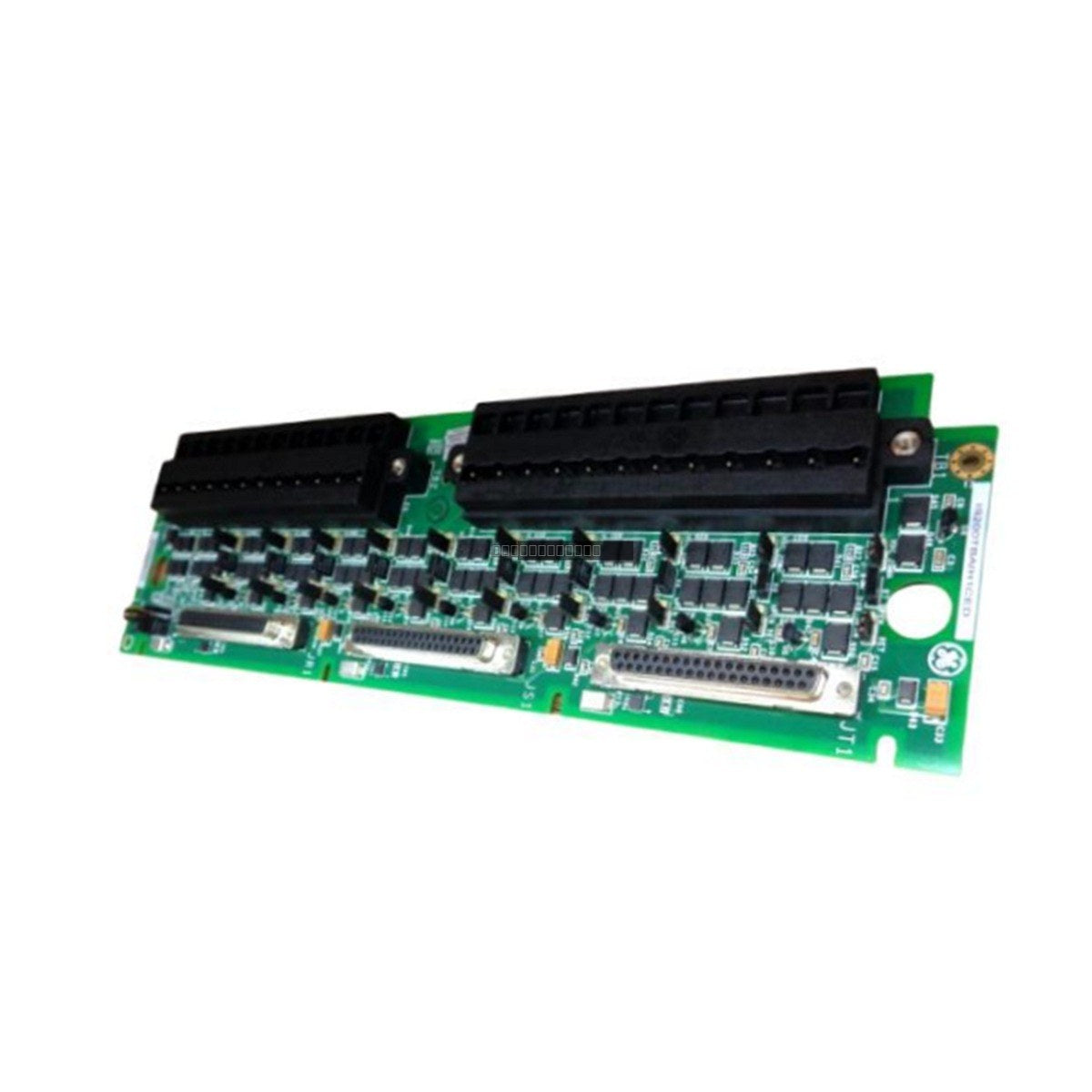

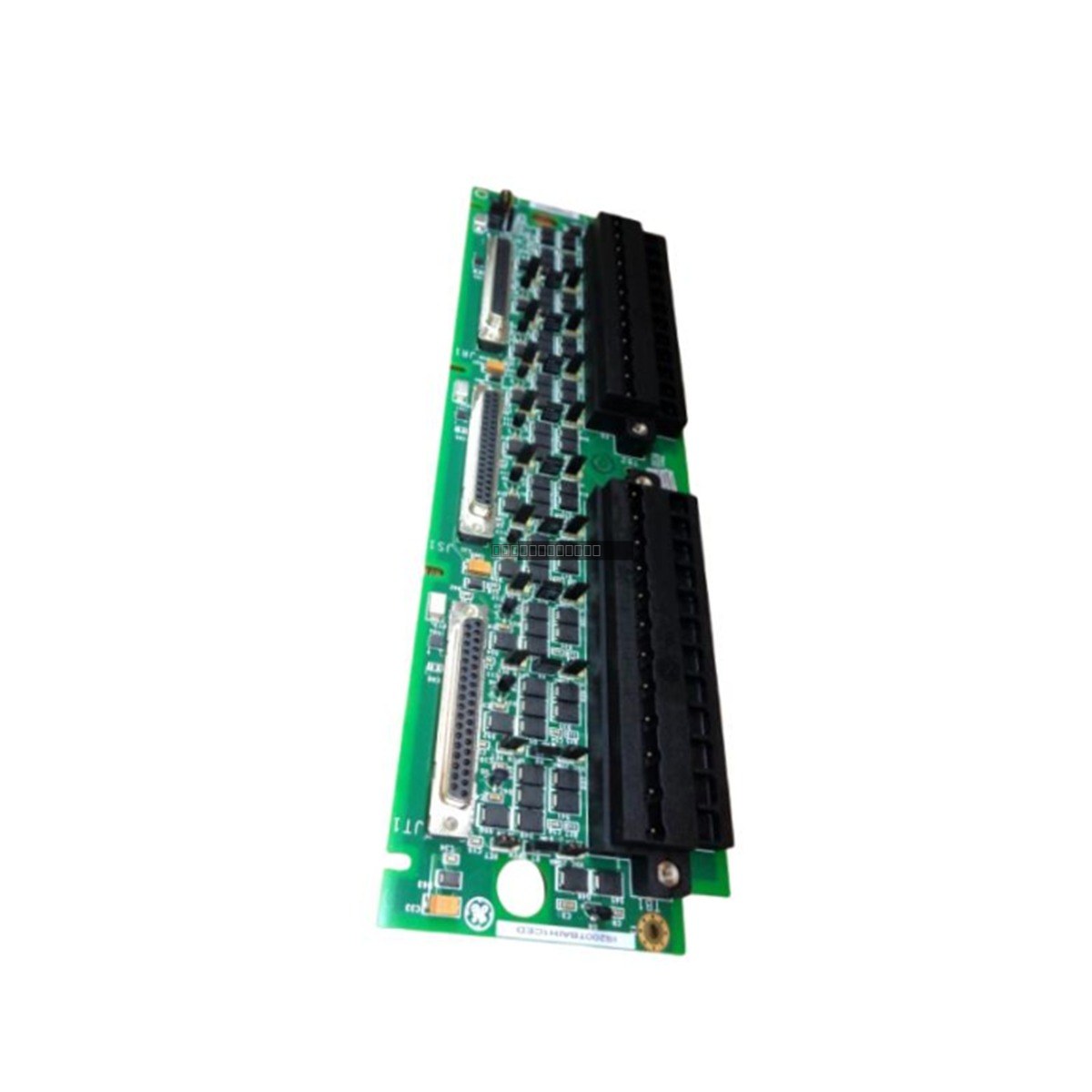

GE IS200TBAIH1C Mark VIe Analog Input Terminal Board

General Electric IS200TBAIH1C Mark VIe Analog Input Terminal Board

Disponibilidad: 5 Quedan en stock

DescriptionThe IS200TBAIH1C is an Analog Input Terminal Board engineered for use within the General Electric Mark VIe control system. This...

Código: IS200TBAIH1C

Manufacturer: General Electric
Product No.: IS200TBAIH1C
Product Type: Analog Input Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The IS200TBAIH1C is an Analog Input Terminal Board engineered for use within the General Electric Mark VIe control system. This terminal board facilitates the connection and signal processing of analog inputs, serving as a critical interface component for field instrumentation and the main control processor. It is designed to handle precision measurement tasks, ensuring reliable data acquisition for industrial automation environments.

Features

Designed for seamless integration with GE Mark VIe control platforms.
Supports standard analog input voltage ranges of +/- 5 V and +/- 10 V.
Features high-precision 16-bit ADC conversion for accurate signal processing.
Maintains a high level of measurement accuracy at +/- 0.1 % of span.
Robust construction suitable for standard industrial operating temperature ranges.

Technical Specifications

Model	IS200TBAIH1C
Manufacturer	General Electric
Input Voltage Range	+/- 5 V, +/- 10 V
ADC Resolution	16-bit
Accuracy	+/- 0.1 % of span
Operating Temperature	0 degC to +55 degC
Storage Temperature	-30 degC to +70 degC
Humidity	5 % to 95 % RH (non-condensing)

Installation Guidelines

Ensure the control system is powered down before attempting to install or remove the terminal board to prevent electrical damage.
Verify that all field wiring is properly secured to the terminal blocks to avoid intermittent signal issues.
Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
Avoid installation in locations subject to extreme vibration or corrosive atmospheres.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive electronic components.

FAQ

What is the primary function of the IS200TBAIH1C?
The IS200TBAIH1C acts as an analog input terminal board for the Mark VIe system, providing the necessary interface to translate field analog signals into a format processed by the controller.

What are the supported input ranges for this board?
This board is configured to support analog input signals in the ranges of +/- 5 V and +/- 10 V.
