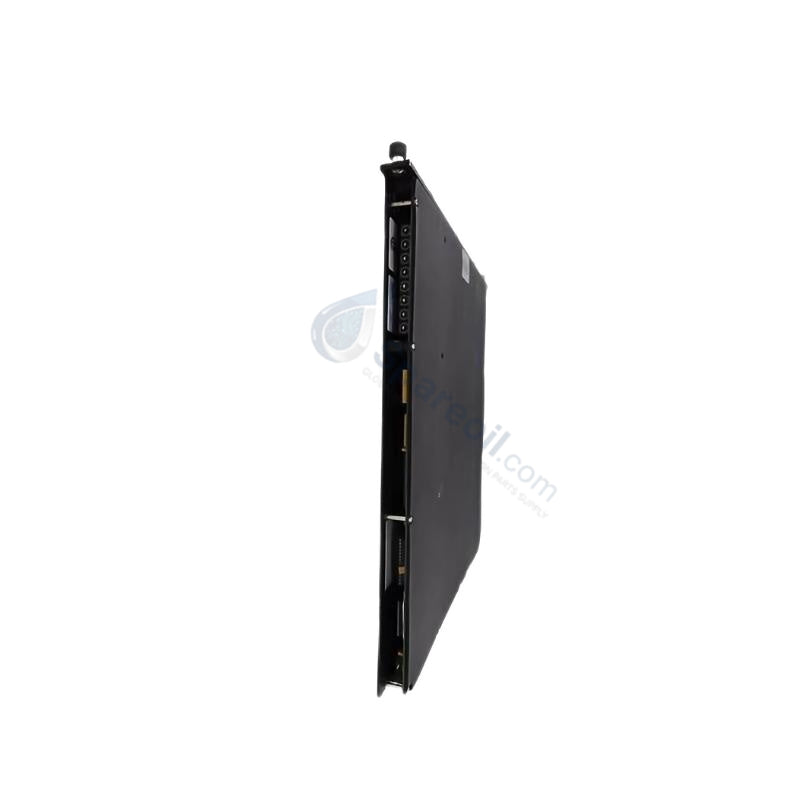

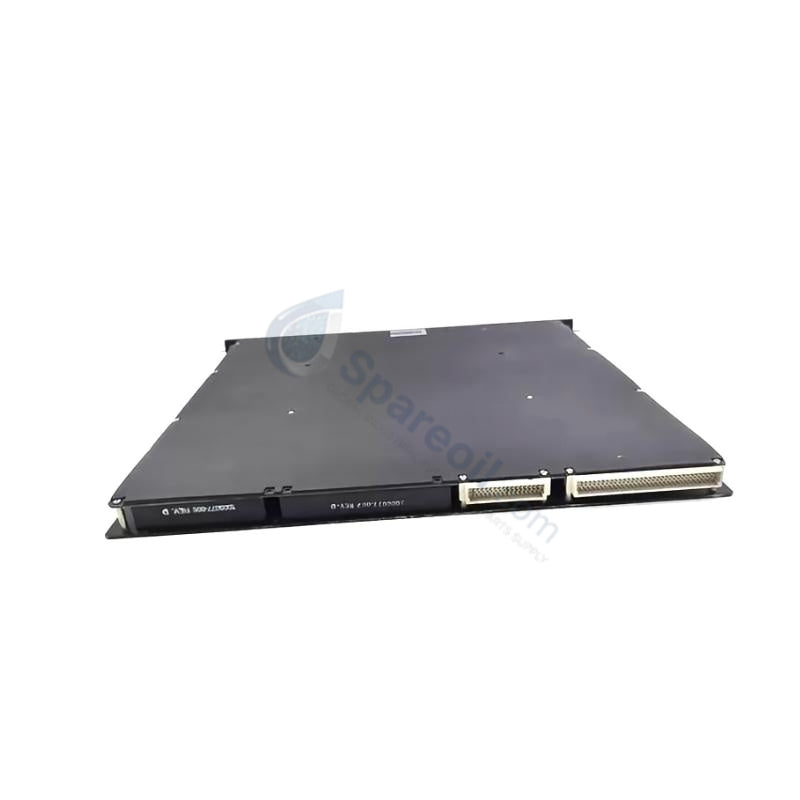

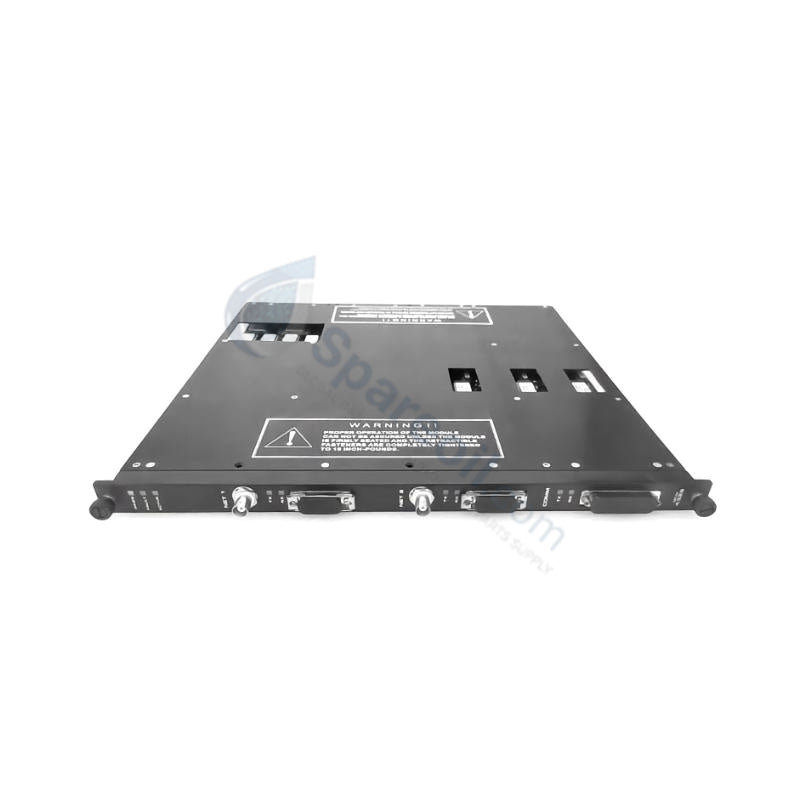

Triconex 4329 Network Communication Module

Configured for high-speed network integration and field wiring termination in Tricon 3000 Series SIS platforms, the Triconex 4329 (4329 Termination/Communication Module) provides direct physical/electrical execution. The hardware establishes dedicated routing pathways across Net 1 and Net 2 connection nodes, linking system I/O processors directly to external communication buses.

Hardware Specifications

Parameter Specification
Model 4329
Brand Triconex
Origin United States
Weight 1.5 kg (5.25 lbs)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 to +60 deg C
Power Consumption Not specified / 24 VDC nominal loop power distribution
Interface Ports 2 communication ports (Net 1 and Net 2 connections)
Channel Capacity 32 channels per module
Termination Style Screw-clamp terminals, accepts 12-22 AWG wire
Module Compatibility Triconex analog and digital I/O modules (e.g., 8300, 8311, 3604E)
Storage Temp -40 to +85 deg C
Humidity Range 5% to 95% non-condensing
Certifications IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Galvanic Isolation

The structural design implements a fault-tolerant interface architecture compliant with triple modular redundancy (TMR) 2oo3 systems. Complete galvanic isolation divides the field wiring terminals from the primary controller backplane bus to suppress transient electrical cross-talk and ground loop interference. Built-in diagnostic arrays and dedicated external LED indicators continuously evaluate loop continuity, reporting field circuit faults directly to the core logic processors to trigger immediate fail-safe state execution under IEC 61508 SIL3 safety parameters.

Frequently Asked Questions

Q: What are the specific procedural limitations regarding hot-swap actions for this hardware component?

A: The hardware supports online hot-swap capabilities, allowing structural replacement within the rack slot while the backplane remains energized. Technicians can execute the mechanical exchange without shutting down adjacent control loops or disturbing the logic solver execution.

Q: How do the screw-clamp terminations handle distinct wire gauge sizes across the 32 channels?

A: The physical termination blocks accept solid or stranded conductors ranging from 12 to 22 AWG. Terminal screws must maintain specific torque profiles to prevent compression degradation or intermittent open-loop conditions on critical safety lines.

Field Installation Guidelines

Mount the unit vertically into its assigned slot within the standard Tricon rack chassis. Ensure complete physical engagement with the rear backplane connector matrix before securing the module retention hardware. When terminating field loops at the screw-clamp blocks, verify that all signal lines possess continuous cable shielding and link directly to a dedicated low-impedance instrument ground plane to eliminate electromagnetic interference (EMI). Route Net 1 and Net 2 network links through separated cable paths away from high-voltage AC distribution circuits to prevent signal induction errors.
