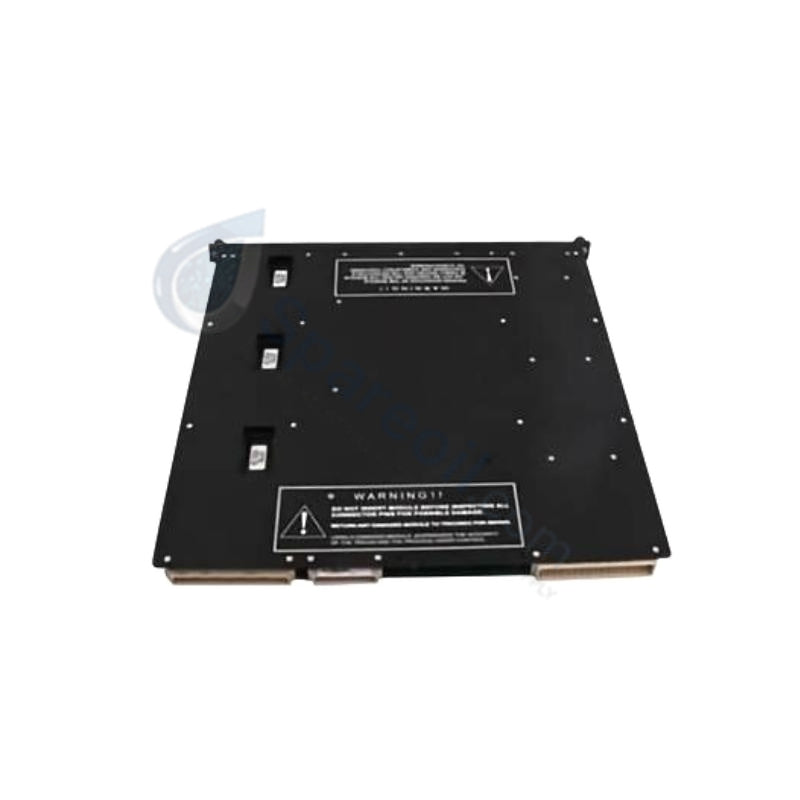

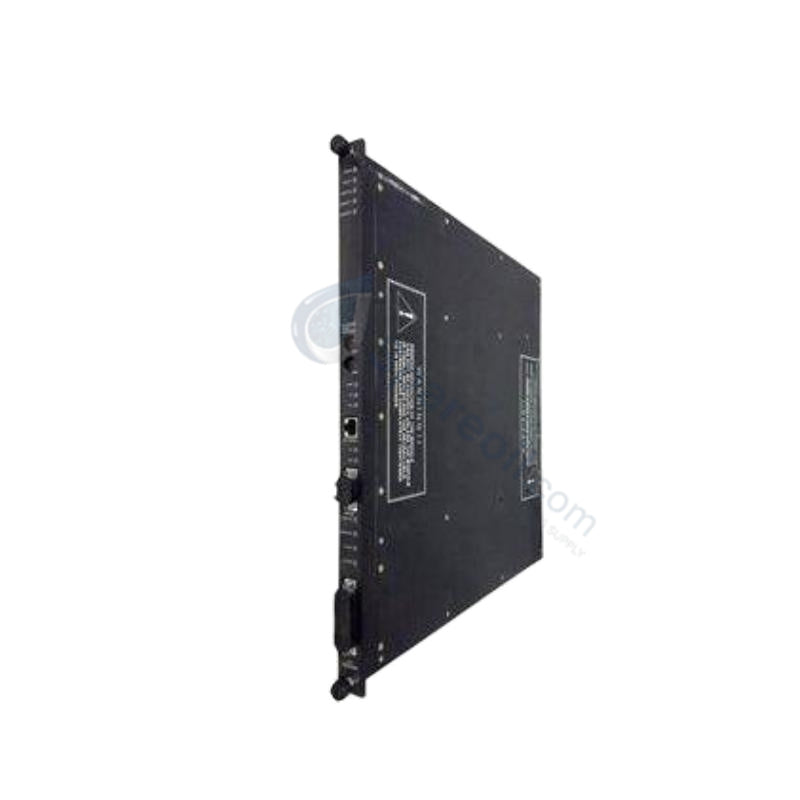

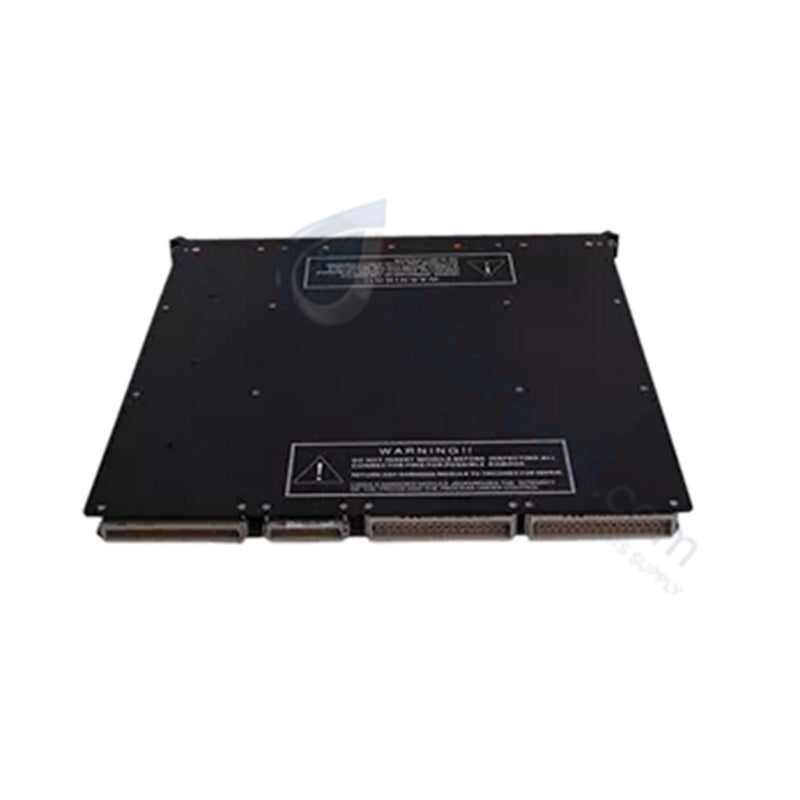

Triconex 9832 Communication Module Interface

The Triconex 9832, also cataloged as the 9832 Communication Module Interface (TCMI), operates as a dedicated hardware component for fault-tolerant Ethernet and serial data exchange within Triconex TRICON Safety Manager System networks.

Hardware Specifications

Parameter Specification
Model 9832
Brand Triconex
Origin United States
Weight 1.2 kg
Dimensions Standard Tricon chassis module slot width
Operating Temp 0 to 60 deg C
Storage Temp -40 to +85 deg C
Relative Humidity 5 to 95%, non-condensing
Power Consumption 8 W (typical)
Operating Voltage 24 VDC (18 to 32 VDC input range)
System Architecture Triple Modular Redundant (TMR) 2oo3
Safety Certification IEC 61508 SIL 3
Communication Protocols Modbus RTU, Modbus TCP/IP, Peer-to-Peer Triconex, FTE
Physical Interfaces RS-232, RS-485, Ethernet (10/100 Mbps)
Maximum Serial Baud Rate 115.2 kbps
Hot-Swap Capability Supported via online chassis backplane insertion

High-Reliability Safety Control Execution

The hardware incorporates a native triple modular redundancy (TMR) 2oo3 architecture to execute continuous fault isolation and communication path verification. Three isolated internal sub-channels process incoming data frames concurrently, checking voting results prior to frame execution on the main system bus. This design complies fully with IEC 61508 SIL 3 safety standards, executing internal fail-safe state logic upon detection of hardware errors or transceiver failure modes. Internal diagnostic circuits sample communication line voltages and check crc blocks continuously to detect transient network corruption before it interrupts host controller activity.

Frequently Asked Questions

Q: Does replacing the module online require a complete safety shutdown or sequence interruption?

A: No. The hardware supports online hot-swap capabilities. A degraded or faulted module can be extracted from the active chassis slot and a new module inserted while the partner modules sustain safety communication without introducing down-time.

Q: What are the backplane power supply tolerances for this communication interface?

A: The module operates from a nominal 24 VDC backplane bus. It maintains stable operation across an absolute physical range of 18 to 32 VDC. Dropping below 18 VDC triggers an internal undervoltage fault log entry.

Q: How does the interface handle protocol translation latency across varying ports?

A: Internal processors maintain deterministic scheduling for serial-to-Ethernet translation. Ethernet links handle 10/100 Mbps throughput directly, while serial loops scale down to 115.2 kbps without impacting internal backplane bus bandwidth.

Field Installation Guidelines

  • Chassis Positioning: Verify chassis slot alignment keys match the module backplane connector. Slide the module smoothly into the guide rails until the faceplate latching mechanism engages completely.
  • Shield Grounding and Wiring: All RS-232 and RS-485 serial communication links require high-density shielded twisted-pair cabling. Terminate the cable shields directly to the chassis grounding bar to suppress electro-magnetic interference. Do not ground both ends of a single shield loop to avoid ground currents.
  • Ethernet Connections: Connect Fault Tolerant Ethernet (FTE) infrastructure utilizing Category 5e or Category 6 industrial-grade shielded cables. Ensure the cable bend radius does not exceed the manufacturer limits to prevent high-frequency signal attenuation.
  • Firmware Verification: Prior to replacing an active unit, verify that the replacement module hardware revision and internal firmware build exactly match the active configuration files compiled in the Triconex safety application environment.
