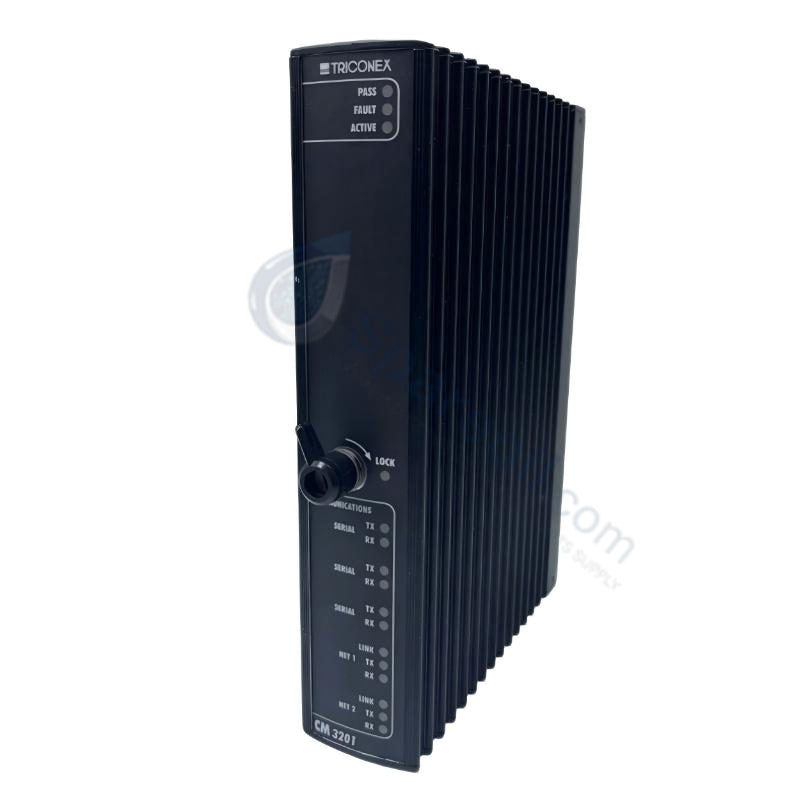

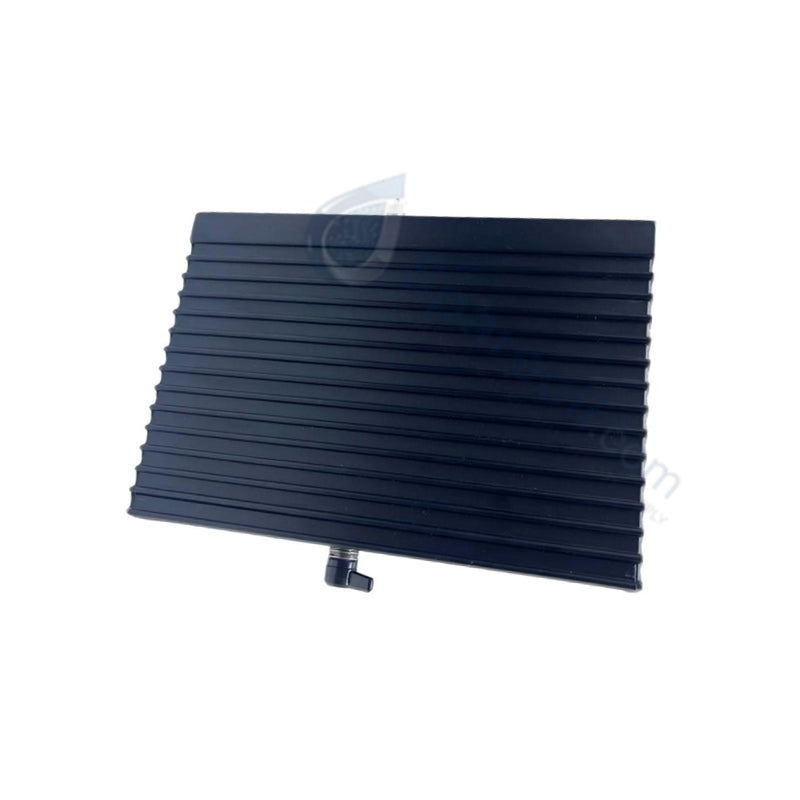

TRICONEX CM3201 Tricon 3000 Series Communication Module

Designed for deterministic and fault-tolerant data exchange within Tricon 3000 Series SIS racks, the TRICONEX CM3201 (CM3201 Communication Module) provides real-time interfacing between safety controllers and external host networks. The hardware facilitates secure communication with distributed control systems (DCS), SCADA environments, and peer safety controllers using both Ethernet and serial physical layers.

Hardware Specifications

Parameter	Specification
Model	CM3201
Brand	TRICONEX (Schneider Electric)
Origin	United States
Weight	1.5 - 2.0 kg (Alternative shipping weight: 5-6 kg)
Dimensions	177.8 mm x 101.6 mm x 228.6 mm (Alternative package spec: ~22 cm x 16.90 cm x 4.40 cm)
Operating Temp	-20 to +60 deg C
Power Consumption	10 W typical
Communication Ports	Dual Ethernet (10/100 Mbps), RS-232/RS-485 serial ports
Protocols Supported	Modbus TCP/IP, Modbus RTU/ASCII, TriStation, Peer-to-Peer
Isolation	500 VDC galvanic isolation
Serial Data Rate	Up to 115.2 Kbps per port
Operating Voltage	24 VDC supplied directly via the system backplane
Architecture	Integrated with Triple Modular Redundant (TMR) safety architectures
Safety Integrity Level	SIL3 (IEC 61508 / IEC 61511 compliant)

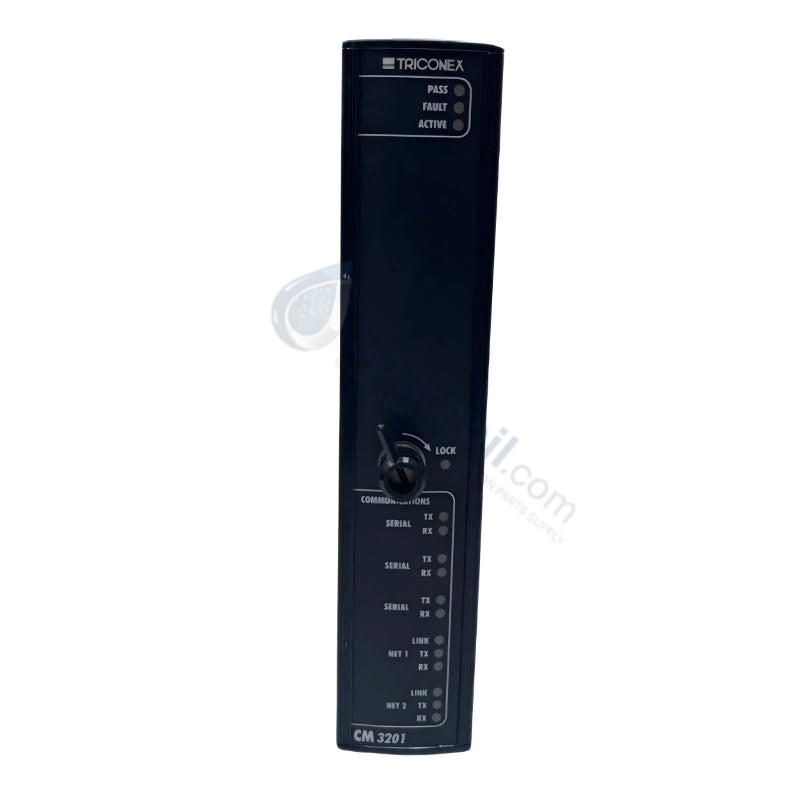

Diagnostics	Dedicated LEDs (PASS, FAIL, ACTIVE, LINK, TX, RX) and TriStation monitoring
Storage Temp	-40 to +85 deg C
Humidity Range	5% to 95% non-condensing
Certifications	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

System Integration and Protocol Architecture

The CM3201 acts as a network buffer that protects the safety-critical execution layer of the Tricon controller from external network loads. By supporting simultaneous connections over Modbus TCP/IP and Modbus RTU, the module allows non-safety instrumentation networks to ingest diagnostic information without risking execution jitter in the main processing loops. For inter-rack safety coordination, its high-speed Peer-to-Peer protocol allows multiple independent Tricon chassis nodes to exchange safety interlock states across a dedicated network while preserving an overall system rating of IEC 61508 SIL3.

Frequently Asked Questions

Q: What compatibility requirements must be checked before installing a CM3201 module?

A: The module must be matched with a corresponding firmware version that aligns with the active Tricon main processor cards. All port mapping, network routing parameters, and protocol registers must be configured via TriStation software prior to online commissioning.

Q: Is hot-swap replacement supported for the CM3201 if a port failure occurs?

A: Yes. The module fully supports online hot-swap replacement without interrupting the execution of active safety logic or causing a controller trip. For applications requiring high network availability, dual CM3201 modules are typically deployed in a redundant configuration.

Field Installation Guidelines

Insert the CM3201 module exclusively into the designated communication slots of the Tricon 3000 Series backplane. Ensure the top and bottom mechanical ejector levers seat completely, locking the module's backplane pins into the chassis network. When terminating the RS-232 or RS-485 serial connections, verify that all external cables utilize twisted-pair shielded media with the drain wires bonded directly to the low-impedance master instrument ground bus. This grounding practice prevents ground loops and blocks electromagnetic interference (EMI) from corrupting industrial communications.
