SCP461-51 S2 YOKOGAWA Series Datasheet & Technical Manual

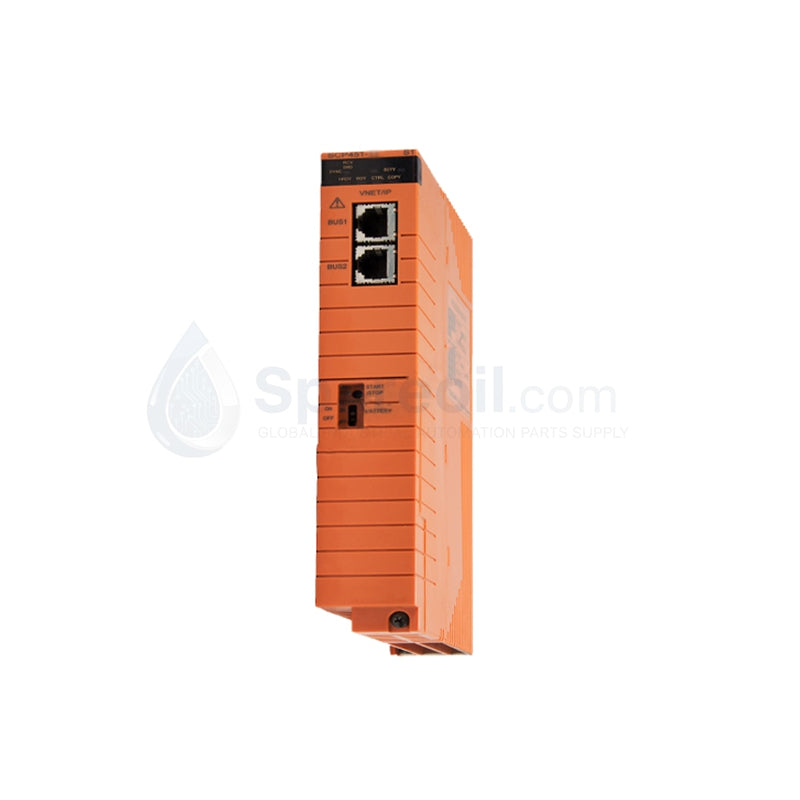

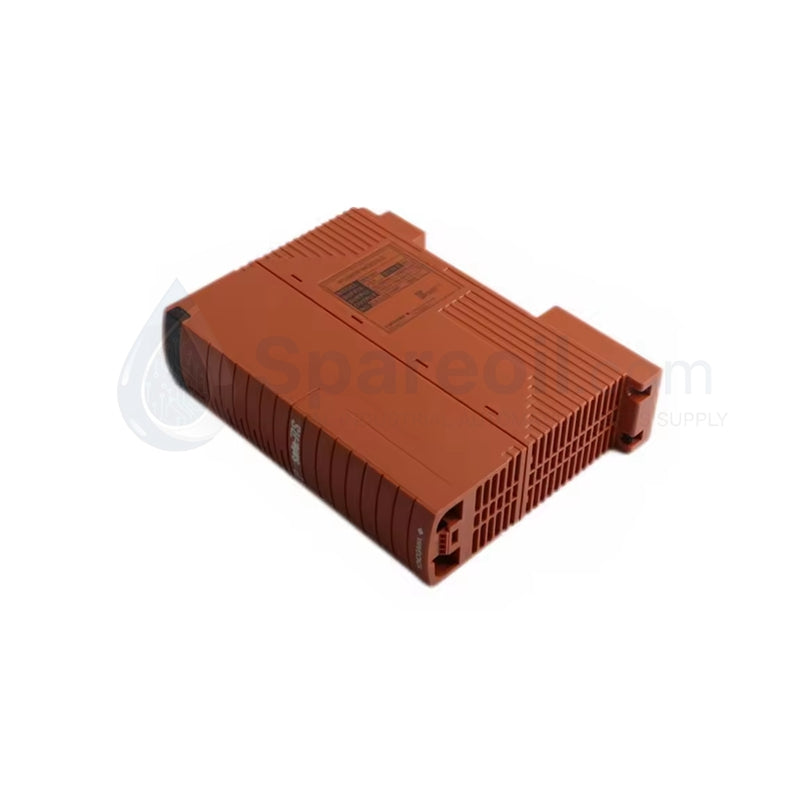

YOKOGAWA SCP461-51 S2 CENTUM VP Communication Processor Module

YOKOGAWA SCP461-51 S2 CENTUM VP Communication Processor Module

Disponibilidad: 99 Quedan en stock

YOKOGAWA SCP461-51 S2 Communication Processor Module Configured for high-speed data exchange within the CENTUM VP FIO subsystem, the YOKOGAWA SCP461-51...

Código: SCP461-51 S2

Manufacturer: Yokogawa
Product No.: SCP461-51 S2
Product Type: CPU Processors
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA SCP461-51 S2 Communication Processor Module

Configured for high-speed data exchange within the CENTUM VP FIO subsystem, the YOKOGAWA SCP461-51 S2 (SCP461 Communication Processor) provides direct electrical execution for Vnet/IP network traffic and system bus management.

Suffix Breakdown & Model Matrix

Model Number	Configuration
SCP461	Base Communication Processor Module
51	51-Series Standard Revision
S2	S2 Hardware Specification

Hardware Specifications

Parameter	Specification
Model	SCP461-51 S2
Brand	YOKOGAWA
Origin	USA
Weight	0.8kg
Dimensions	482.6 mm x 132.5 mm x 3U
Operating Temp	0 deg C to 50 deg C
Power Consumption	0.6 A
Communication	Vnet/IP, Subsystem Bus

System Bus Communication and Data Integrity

The SCP461-51 S2 functions as the primary network interface for Centum VP controllers, enabling deterministic communication across the distributed control network. The module supports backplane bus communication velocity licenses required for high-speed I/O scaling, ensuring that data throughput meets the real-time constraints of industrial process control. To mitigate signal degradation over extended architectures, the module features robust isolation and firmware-level error checking. It acts as a critical link between field control units (FCUs) and the Human Interface Stations (HIS), ensuring packet delivery consistency across Vnet/IP architectures.

Frequently Asked Questions

Q: Does the SCP461-51 S2 support hot-swapping during active system operation?

A: Hot-swapping is permitted if the module is configured as a secondary unit in a redundant processor pair. However, the primary module must remain active to maintain system communication continuity. Always consult the system logs to confirm the standby module is synchronized before removal.

Q: How can I verify firmware compatibility with existing controller modules?

A: Firmware compatibility is determined by the system version of the Field Control Station (FCS). Use the engineering station to perform a version check against the target hardware revision to ensure the module flash memory is compatible with the current system baseline.

Field Installation Guidelines

Power down the I/O node or ensure the specific rack slot is in a maintenance-ready state before module insertion.
Align the module with the backplane guides; verify the connector pins are straight before applying pressure to seat the module fully.
Tighten the captive mounting screws to ensure proper chassis grounding and to prevent vibration-induced signal intermittency.
Connect the Vnet/IP communication cables to the module ports, ensuring the latching mechanism is fully engaged.
Perform an initial system diagnostic test via the engineering station to confirm the module is recognized and the communication status is active.
