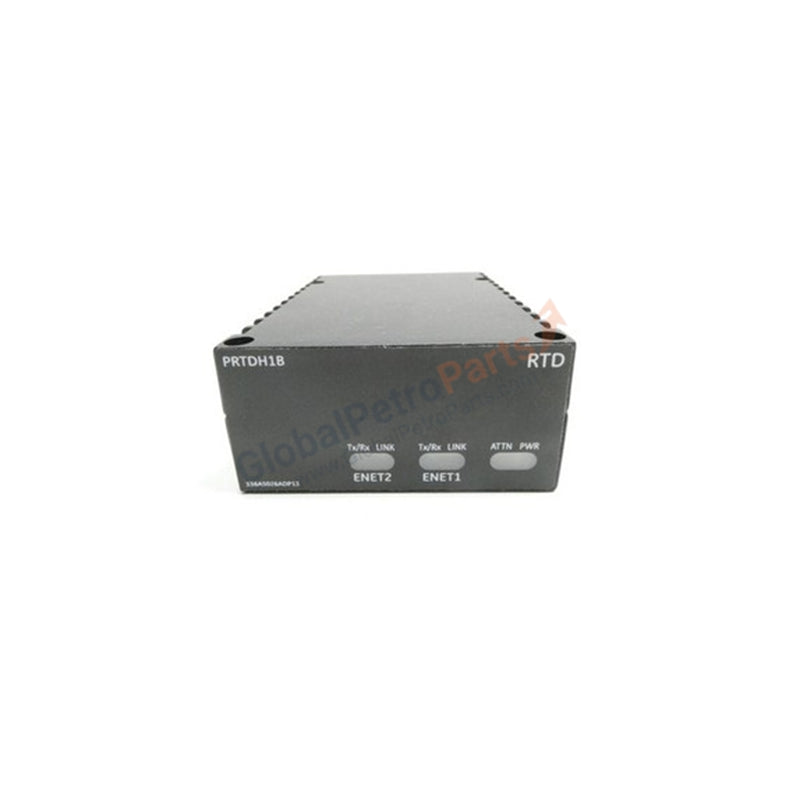

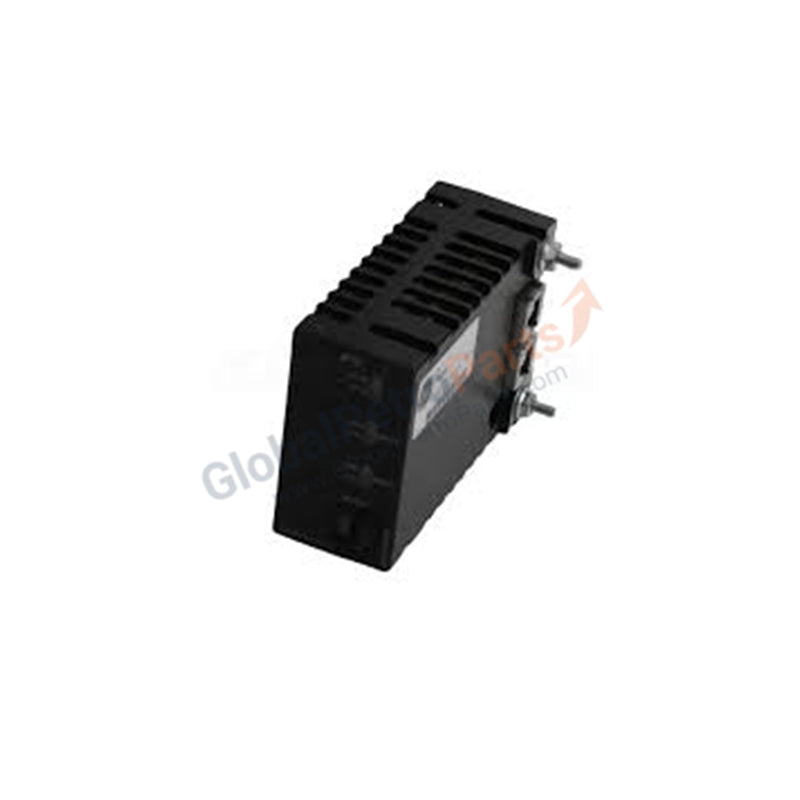

GE IS220PRTDH1B Mark VIe RTD Input Module

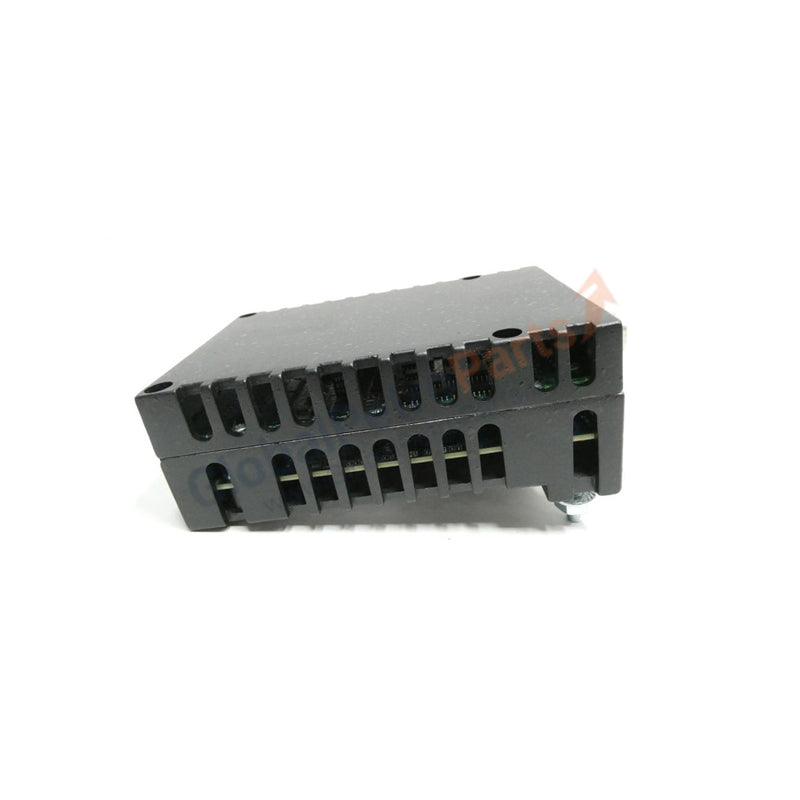

GE IS220PRTDH1B Mark VIe RTD Input Module | Industrial-Grade

Availability: 99 left in stock

Product Description Overview GE IS220PRTDH1B is an RTD (Resistance Temperature Detector) Input Module for the GE Mark VIe turbine control system....

SKU: IS220PRTDH1B

Manufacturer: GE Fanuc
Product No.: IS220PRTDH1B
Product Type: PRTD – RTD Input Pack
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

Overview

GE IS220PRTDH1B is an RTD (Resistance Temperature Detector) Input Module for the GE Mark VIe turbine control system. It interfaces with RTD sensors to measure the temperature of turbine components, bearings, and auxiliary equipment. The module digitizes RTD signals and transmits them via Ethernet to the Mark VIe controller for real-time monitoring and protection. Designed for high-density, mission-critical industrial applications, it ensures accurate, reliable, and safe temperature measurement in power generation, oil & gas, marine propulsion, and heavy industrial systems.

Technical Specifications

Feature	Details
Model Number	IS220PRTDH1B
Type	PRTD – RTD Input Pack
System Compatibility	GE Mark VIe turbine control system
Function	Interfaces with RTD sensors to measure temperature and transmit data to the controller
Input Channels	10 RTD input channels (independent)
Supported Sensors	Platinum (100 Ω, 200 Ω, 500 Ω, 1000 Ω), Nickel, Copper RTDs
Measurement Range	–200°C to +850°C (depending on sensor type)
Accuracy	±0.1% of full scale typical
Resolution	16-bit A/D conversion
Update Rate	10 ms per channel
Common Mode Rejection	>120 dB @ 50/60 Hz
Normal Mode Rejection	>60 dB @ 50/60 Hz
Isolation	1500 VDC isolation between input channels and system logic
Communication	Ethernet connection to Mark VIe controller
Indicators	LED indicators for power, status, and channel activity
Power Supply	28 VDC nominal (range 18–32 VDC)
Power Consumption	12 W
Operating Temperature	–30°C to +65°C
Storage Temperature	–40°C to +85°C
Humidity	5–95% non-condensing
Dimensions	225 × 167 × 55 mm
Weight	0.9–1.0 kg
Mounting	DIN-rail or direct rack mounting within Mark VIe system
Warranty	Typically 12 months (depending on supplier)
