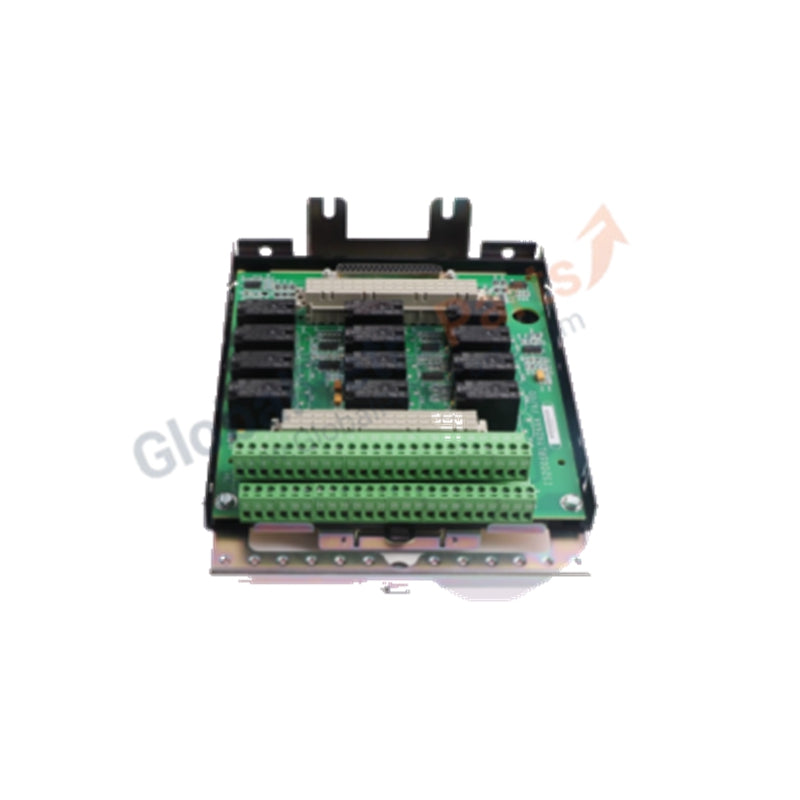

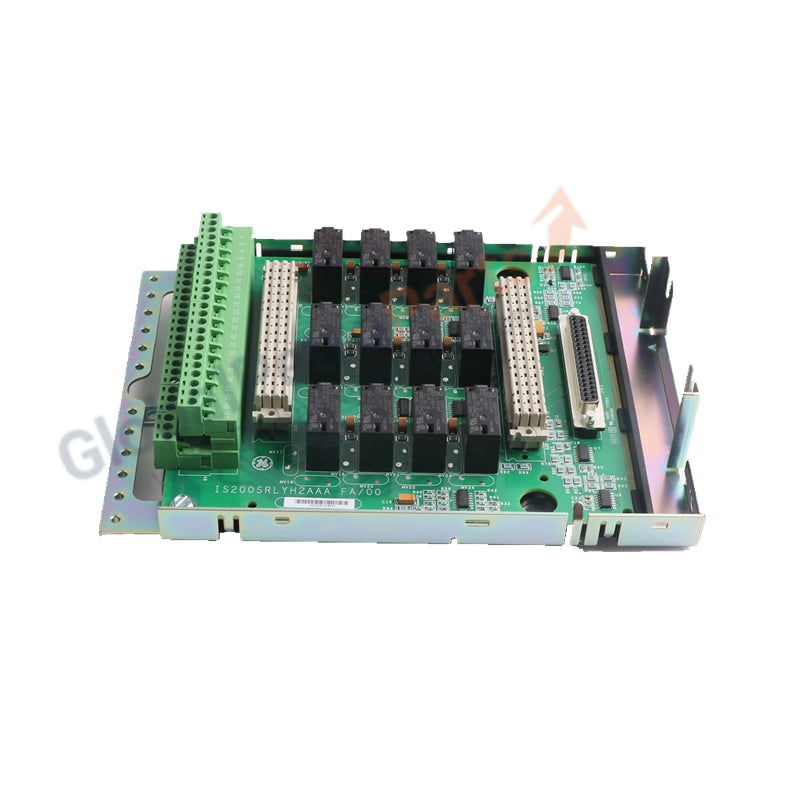

IS230SNRLH2A | GE Fanuc | Mark VIe Servo Node Relay Card

Availability: 10 left in stock

Product Description High-Integrity Relay Control Architecture The GE IS230SNRLH2A (Part Number IS230SNRLH2A) functions as a critical output interface within the Mark VIe distributed...

SKU: IS230SNRLH2A

Manufacturer: GE Fanuc
Product No.: IS230SNRLH2A
Product Type: Digital Out DIN Rail Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

High-Integrity Relay Control Architecture

The GE IS230SNRLH2A (Part Number IS230SNRLH2A) functions as a critical output interface within the Mark VIe distributed control system (DCS). This module is engineered to bridge the gap between low-level control logic and high-power field devices, such as solenoid valves, motor starters, and hydraulic actuators. By utilizing mechanical relay isolation, the IS230SNRLH2A protects the sensitive control electronics from back-EMF and electrical noise common in heavy industrial environments.

As part of the Mark VIe I/O subsystem, the module communicates over the proprietary IONet, an Ethernet-based deterministic network. The unit is specifically configured for DIN rail mounting, allowing for flexible installation within control cabinets or remote I/O enclosures. Its dual-redundant communication paths ensure that control signals remain active even if one network branch is compromised, which is vital for gas and steam turbine safety.

Comprehensive Technical Specifications

The following table summarizes the operational and hardware parameters for the IS230SNRLH2A relay module.

Parameter	Specification
Manufacturer	General Electric (GE)
Model / Part Number	IS230SNRLH2A
System Compatibility	GE Mark VIe / Mark VIeS
Output Type	Electromechanical Relay Outputs
Output Channels	12 to 16 Channels (configuration dependent)
Contact Rating	2 A at 24 V DC / 48 V DC
Input Voltage	28 V DC Nominal (via backplane)
Power Consumption	10 W to 15 W Typical
Isolation	Galvanic Isolation (Channel-to-Bus)
Network Interface	Dual 100Base-TX Ethernet (IONet)
Mounting	Standard 35mm DIN Rail
Operating Temperature	0 °C to +60 °C
Shipping Weight	2.0 kg
