The Bently Nevada 330101-00-08-20-02-05, also cataloged as the 330101 Extension Cable, operates as a dedicated hardware component for signal transmission...

Código: 330101-00-08-20-02-05

Manufacturer: Bently Nevada
Product No.: 330101-00-08-20-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

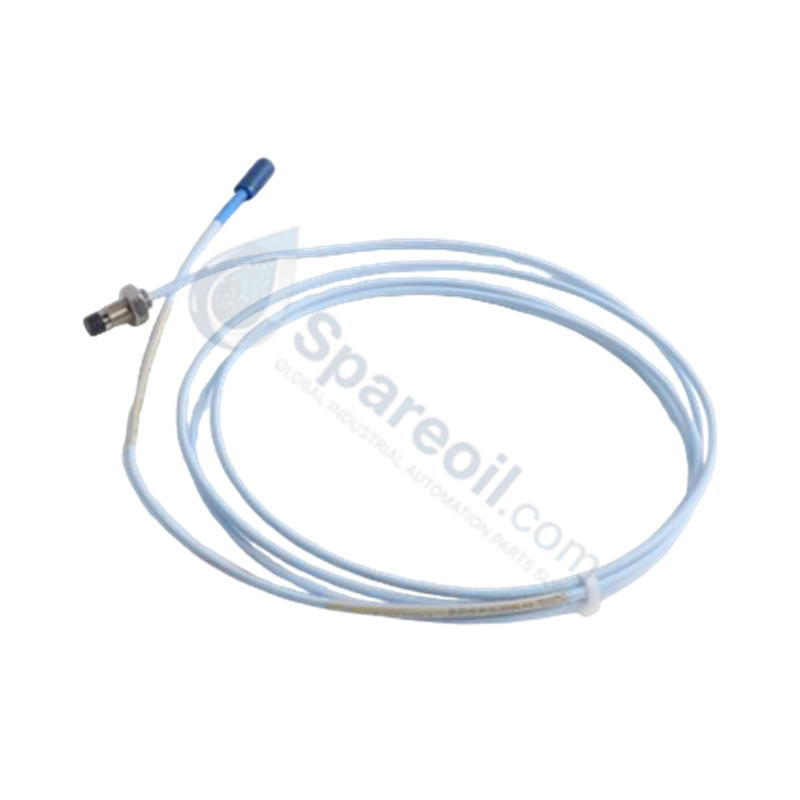

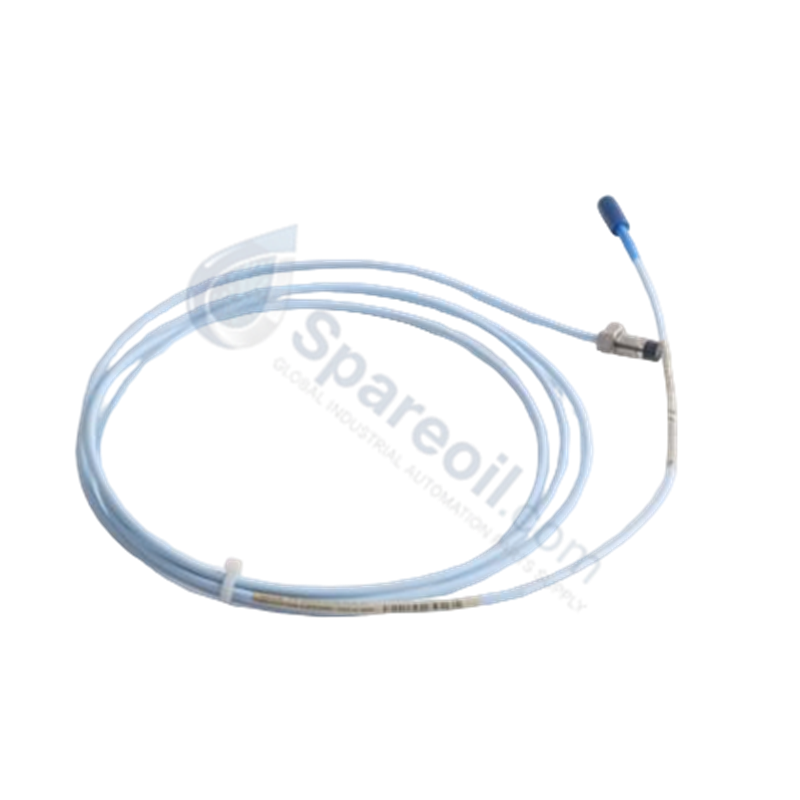

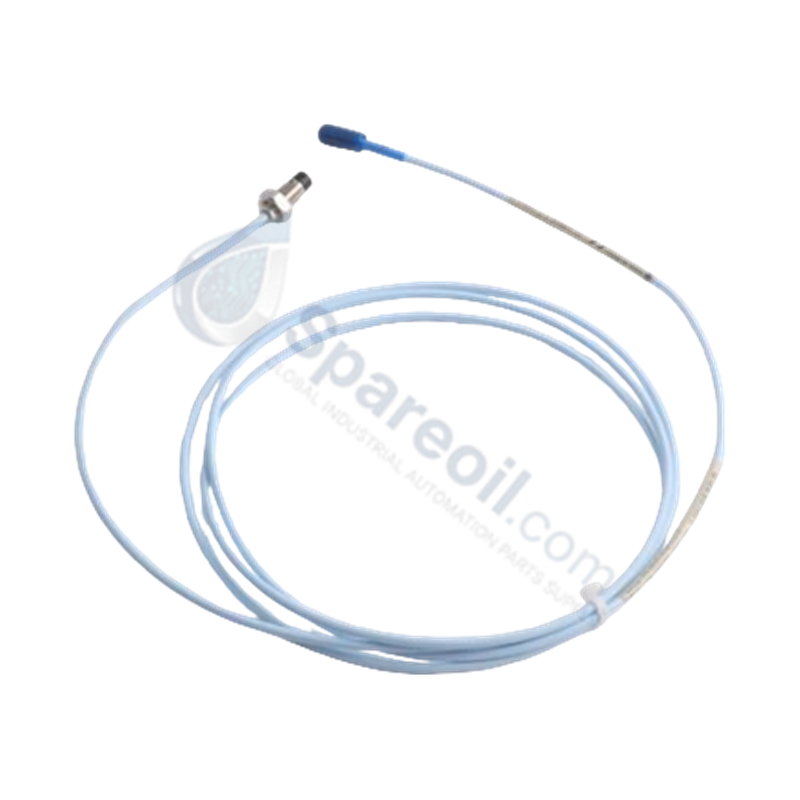

The Bently Nevada 330101-00-08-20-02-05, also cataloged as the 330101 Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and monitoring systems within machine protection networks.

Hardware Specifications

Parameter	Specification
Model	330101-00-08-20-02-05
Brand	Bently Nevada
Origin	USA
Weight	0.1 kg
Dimensions	20 cm x 18 cm x 2 cm
Operating Temp	-51 deg C to +177 deg C
Power Consumption	N/A (Passive component)

Rotor Dynamics and Signal Integrity

The 330101 extension cable is designed to maintain the integrity of the signal path required for precise rotor dynamics monitoring. Proper cable handling is mandatory to prevent changes in parasitic capacitance, which would alter the eddy-current probe scaling and introduce measurement errors. During installation, the cable run must ensure effective cross-talk suppression by maintaining separation from high-voltage AC cabling. Furthermore, when connecting to the monitoring interface, technicians must verify the gap voltage validation (-10 VDC targets) at the transducer output to confirm that the entire signal loop, including the extension cable, conforms to the system's electrical specifications.

Frequently Asked Questions

Q: Can this extension cable be shortened in the field?

A: No. The electrical characteristics of the 3300 XL system are calibrated for specific total cable lengths. Cutting or shortening the cable will induce impedance mismatches and invalidate the system calibration, leading to inaccurate vibration data.

Q: Are the connectors compatible with legacy 3300 series components?

A: The ClickLoc connector interface is designed for the 3300 XL series. Attempting to force a connection with legacy 3300 components may damage the connector pins and degrade signal quality.

Field Installation Guidelines

Route the cable through grounded metallic conduit to provide shielding against electromagnetic interference.
Ensure that the ClickLoc connectors are fully engaged until a distinct click is felt, indicating that the mechanical and electrical connection is secure.
Protect the cable from sharp bends; maintain a minimum bend radius of at least 5 cm to prevent damage to the internal coaxial structure.
Verify continuity of the shield termination at the monitor end to maintain proper ground referencing and prevent noise induction.
