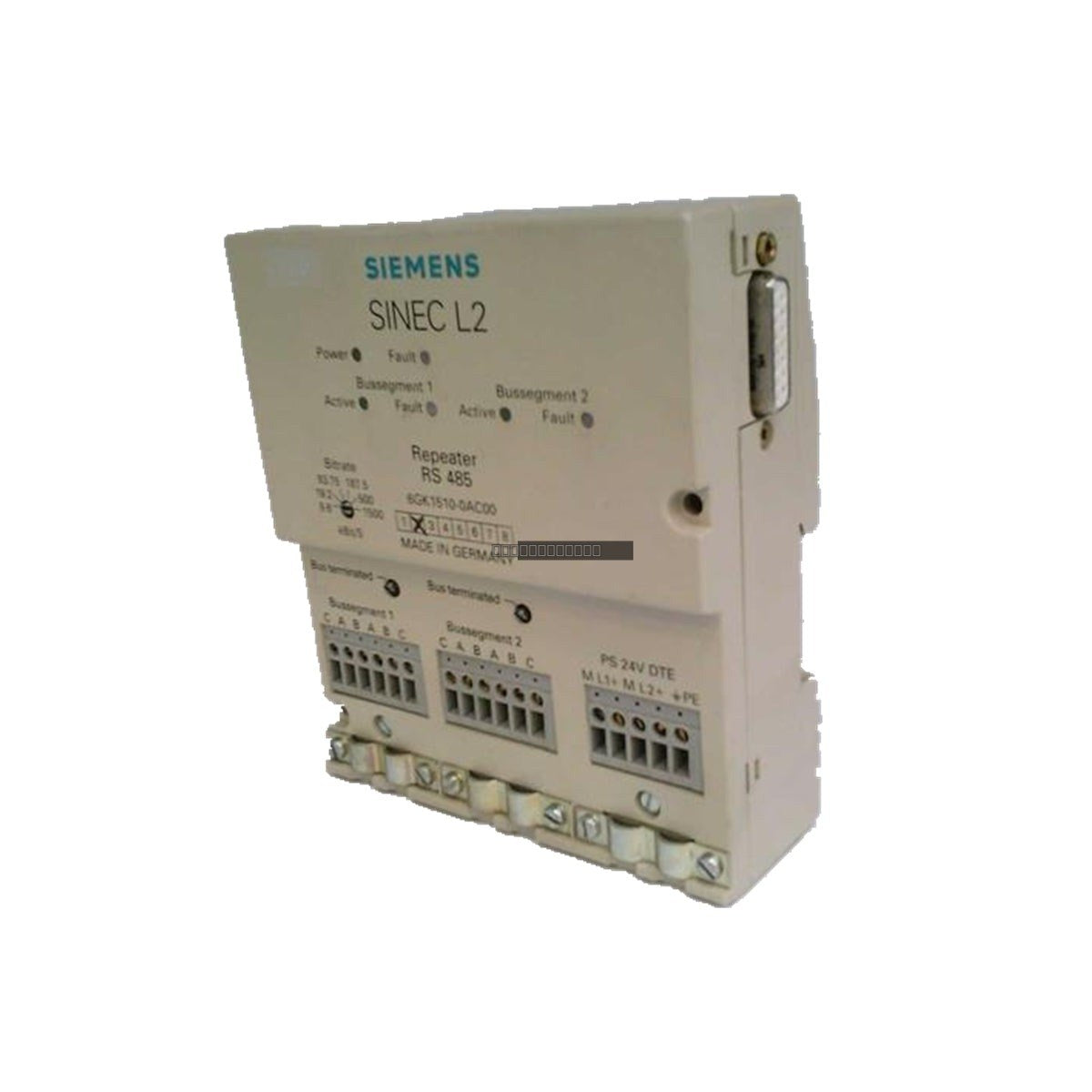

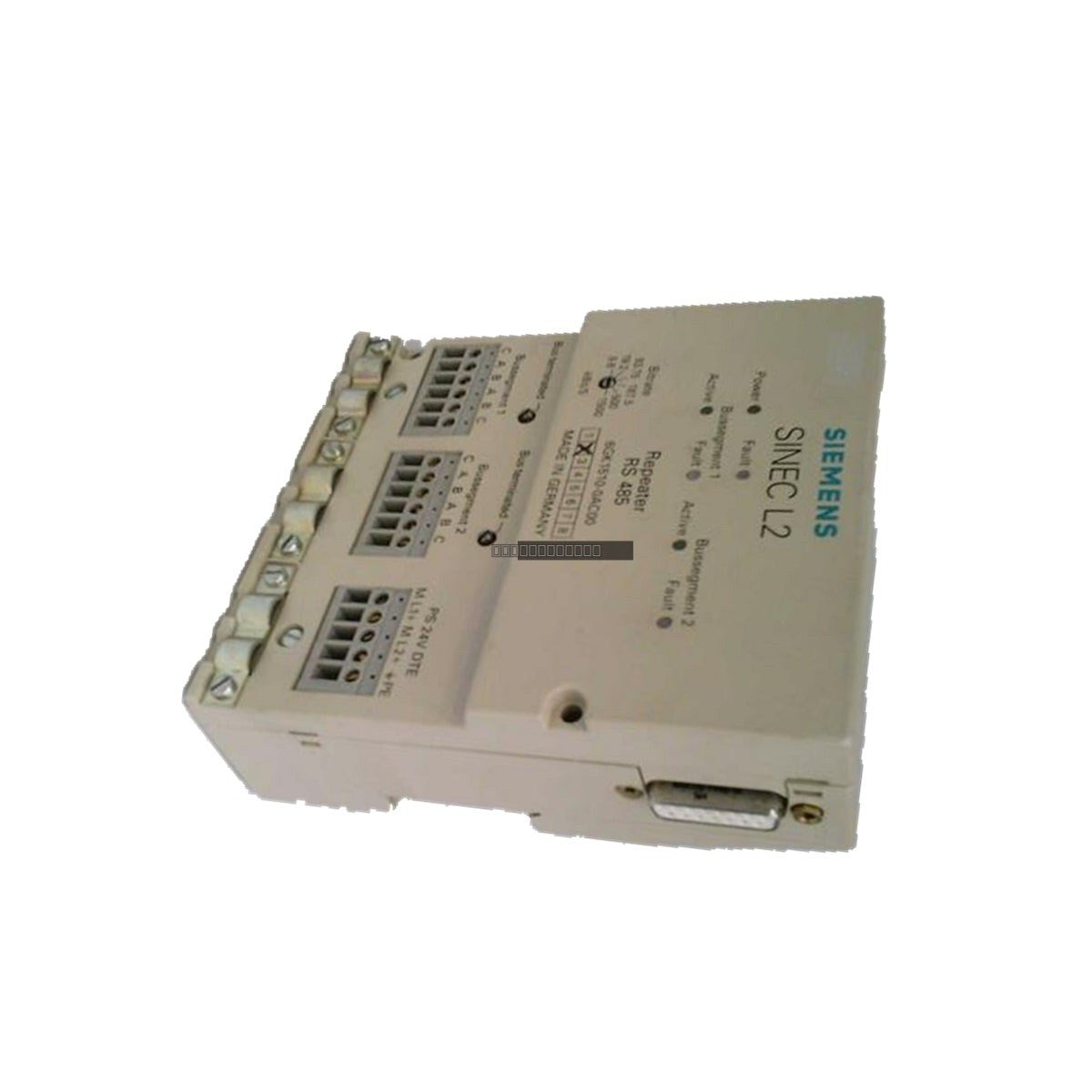

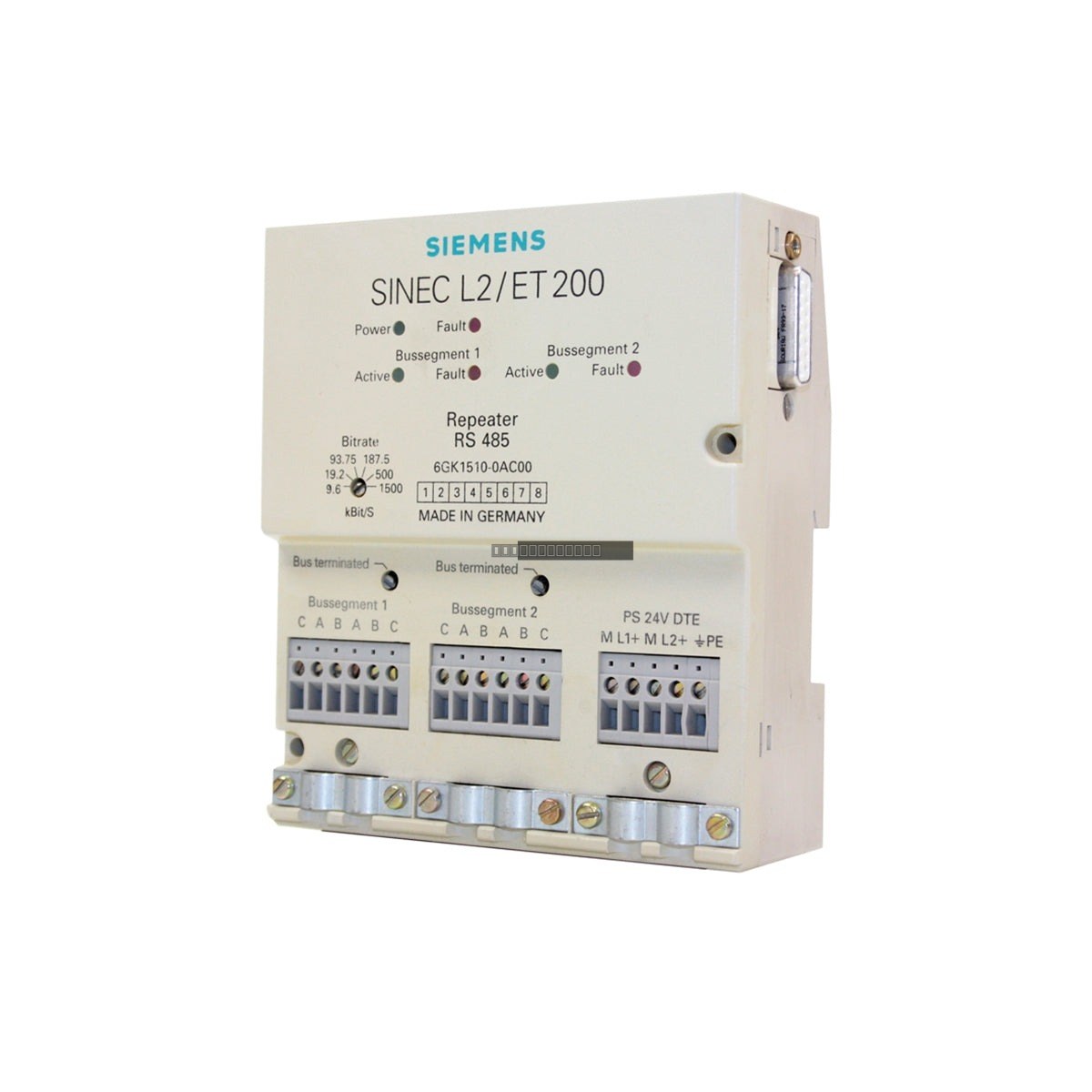

Siemens 6GK1510-0AC00 Simatic Net Repeater Module

Siemens 6GK1510-0AC00 Simatic Net Repeater Module

Disponibilidad: 3 Quedan en stock

The Siemens 6GK1510-0AC00 is an active repeater module engineered for the Simatic Net product family, specifically designed to extend the...

Código: 6GK1510-0AC00

Manufacturer: Siemens
Product No.: 6GK1510-0AC00
Product Type: Repeater Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Siemens 6GK1510-0AC00 is an active repeater module engineered for the Simatic Net product family, specifically designed to extend the reach and reliability of Profibus network segments. This module serves as a critical component in industrial automation environments, providing signal regeneration and amplification to maintain data integrity across extended cable runs. By effectively isolating network segments, it prevents signal attenuation and mitigates the impact of electromagnetic interference in demanding industrial settings.

Features

Signal Regeneration: Actively amplifies and reshapes electrical signals to extend the physical distance of Profibus networks.
Baud Rate Flexibility: Supports automatic detection of transmission speeds ranging from 9.6 kbit/s up to 1500 kbit/s.
Galvanic Isolation: Provides electrical separation between bus segments to protect against ground loops and transient voltage surges.
Diagnostic Indicators: Integrated LED status displays provide immediate visual feedback on bus activity and system health.
Protocol Transparency: Operates at the physical layer, ensuring seamless data transmission without modifying frames or introducing latency.

Applications

This repeater module is widely deployed in large-scale industrial facilities, including thermal power plants, chemical processing units, and mining infrastructure. It is essential for architectures requiring long-distance communication between controllers and remote I/O stations, ensuring consistent network performance in environments prone to electrical noise.

Technical Specifications

Model	6GK1510-0AC00
Brand	Siemens
Series	Simatic Net
Operating Voltage	24 VDC
Data Rates	9.6 kbit/s to 1500 kbit/s (auto-detect)
Power Consumption	2.8 W (typical)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C
Isolation	Galvanic (between segments)

Installation Guidelines

Mounting: Ensure the module is securely mounted on a standard DIN rail to maintain proper thermal dissipation.
Grounding: Maintain proper grounding practices to maximize the effectiveness of the galvanic isolation and surge protection features.
Cable Routing: Keep communication cables separated from high-voltage power lines to minimize induced noise.
Power Supply: Verify that the 24 VDC supply is stable and within the specified range before connecting the module.
Maintenance: Always disconnect power before inserting or removing the module from the bus segment to prevent electrical damage.

FAQ

Does this module require configuration for different baud rates? No, the 6GK1510-0AC00 features automatic baud rate detection and adapts to the network speed without manual intervention.

Can this repeater be used to connect different Profibus segments? Yes, it is designed to extend network segments and provide galvanic isolation, which is ideal for bridging separate areas of a Profibus installation.
