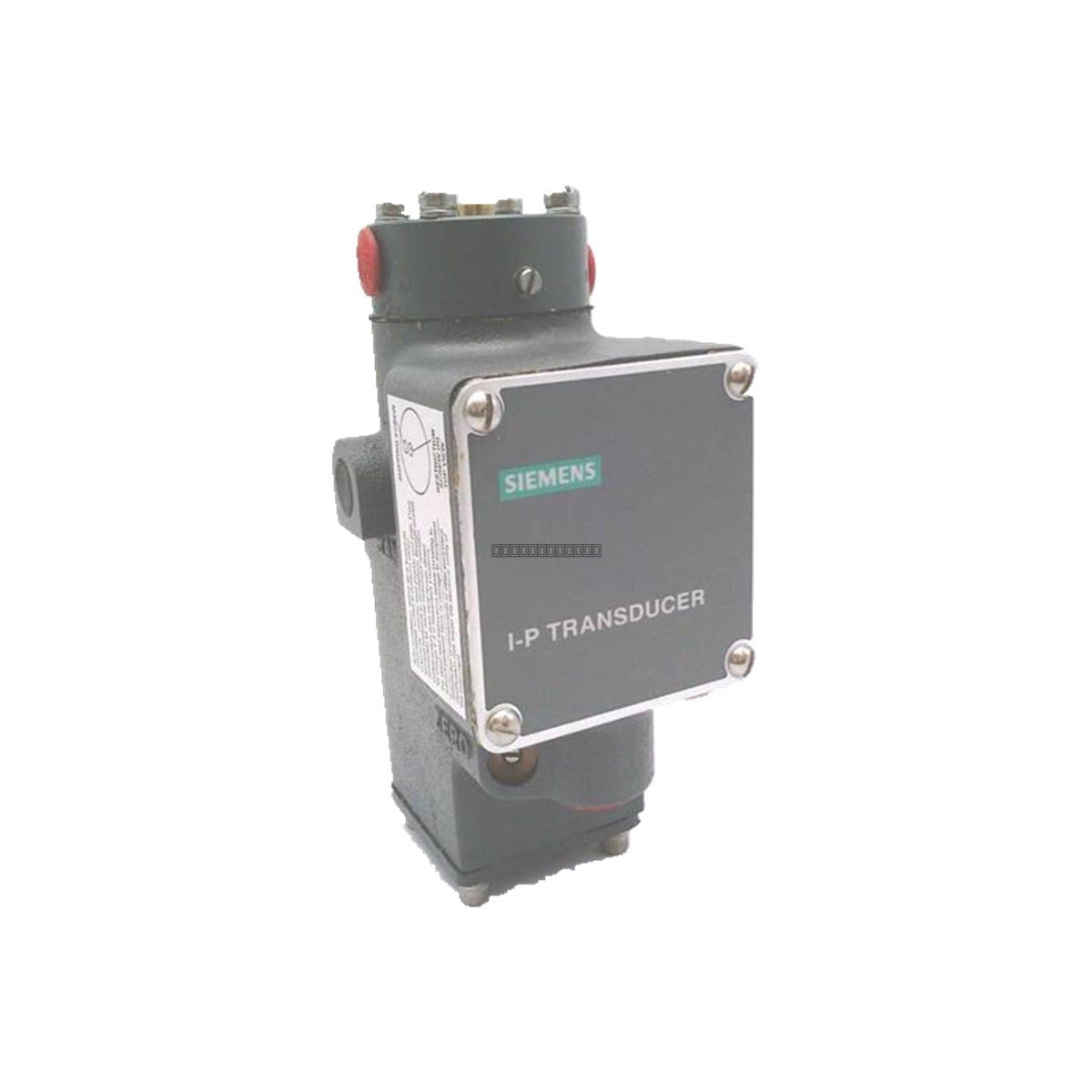

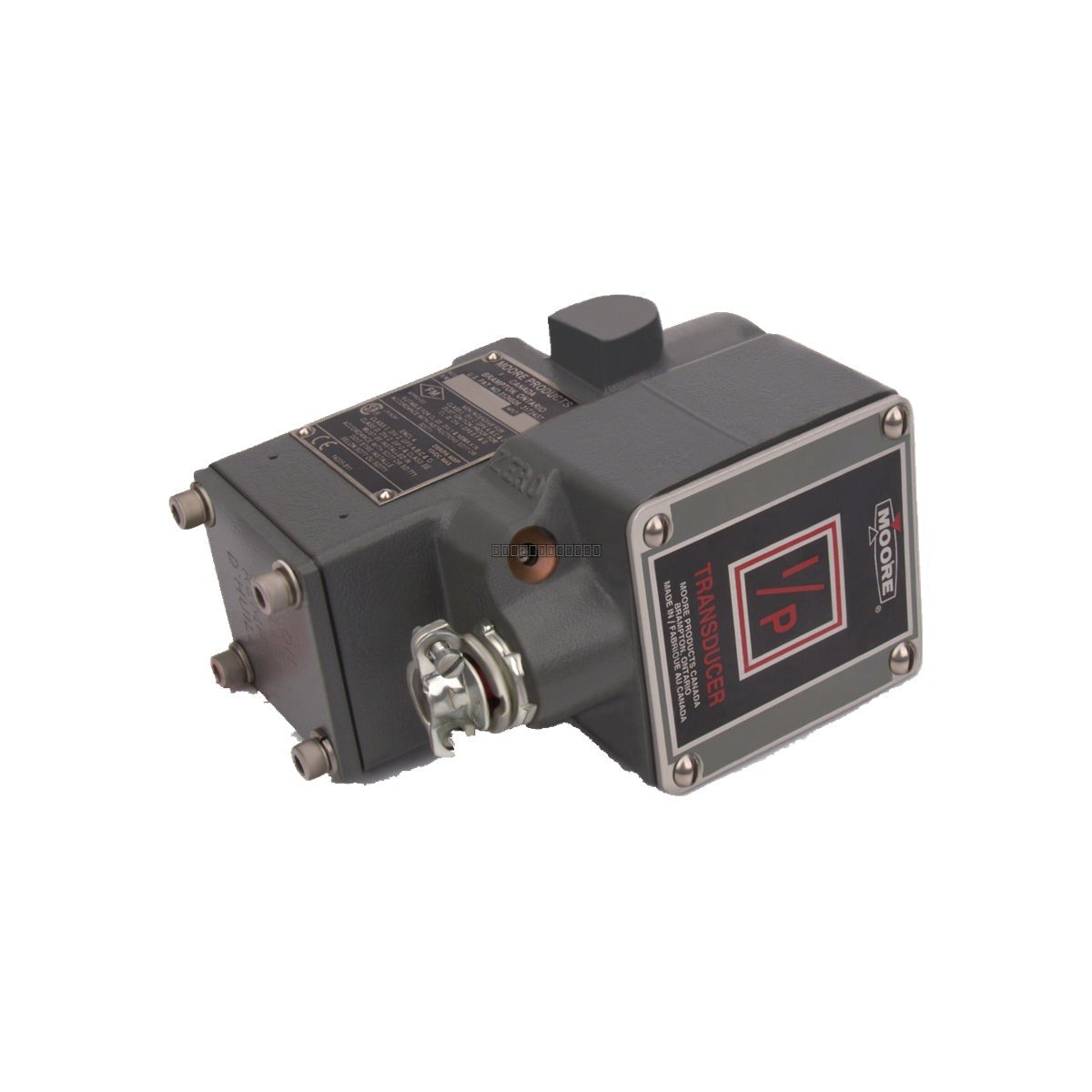

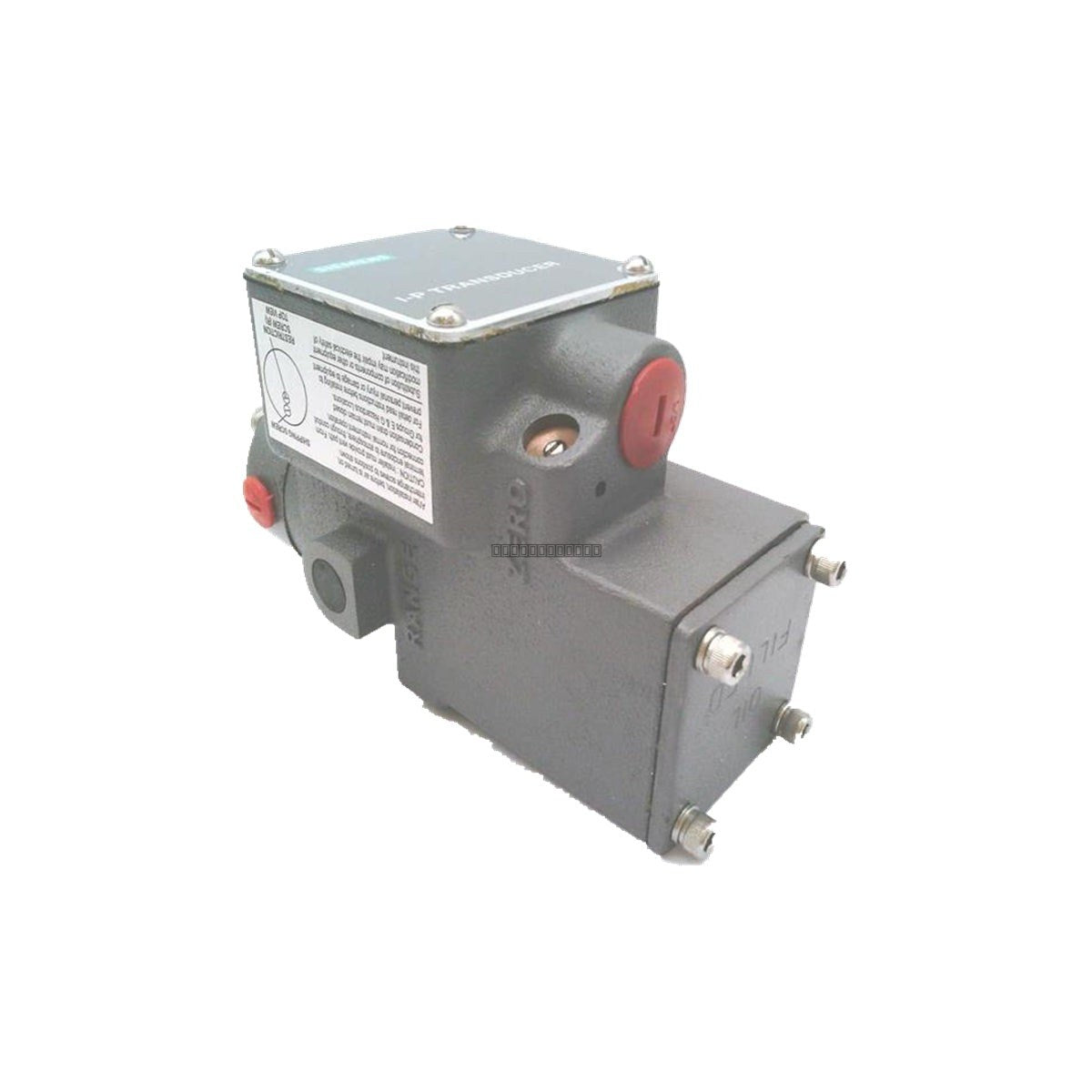

Siemens 771-3STF2 I/P Transducer

Siemens 771-3STF2 Moore Industries Current-to-Pressure (I/P) Transducer

Disponibilidad: 6 Quedan en stock

Description The Siemens 771-3STF2 is a high-precision Current-to-Pressure (I/P) transducer engineered to interface electronic control signals with pneumatic final control...

Código: 771-3STF2

Manufacturer: Siemens
Product No.: 771-3STF2
Product Type: I/P Transducer
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Siemens 771-3STF2 is a high-precision Current-to-Pressure (I/P) transducer engineered to interface electronic control signals with pneumatic final control elements. This unit is designed to translate a 1-5 mA electrical input into a proportional 3-15 PSIG pneumatic output, facilitating the operation of pneumatic valves, dampers, and other actuators. It is a critical component for maintaining legacy process control loops in sectors such as chemical processing, oil and gas, and power generation, where robust pneumatic actuation remains essential for high-torque mechanical control.

Features

Precision Signal Conversion: Utilizes a reliable force-balance mechanism to ensure linear, accurate conversion from electronic signals to pneumatic pressure.
Low Hysteresis: Engineered for minimal hysteresis, supporting stable and repeatable control of field devices.
Rugged Construction: Housed in a durable industrial enclosure designed to withstand vibration and environmental stressors typical of heavy industrial environments.
Legacy Compatibility: Serves as a direct replacement or maintenance component for systems originally utilizing Moore Industries or Siemens instrumentation.

Applications

This transducer is primarily used in process control environments to bridge the gap between DCS or PLC analog output modules and final control elements. It is widely employed for:

Pneumatic valve positioning and modulation.
Control of dampers in HVAC and combustion systems.
Interface between electronic controllers and legacy pneumatic actuators.
Process automation in environments where high-torque pneumatic movement is required.

Technical Specifications

Model	771-3STF2
Alternative ID	K60000-001/SC
Input Signal	1-5 mA DC
Output Pressure	3-15 PSIG
Supply Pressure	20 PSIG (Required)
Pneumatic Connection	1/4 inch NPT
Operating Temperature	-40 to 70 deg C

Installation Guidelines

Mounting: Ensure the unit is mounted in a stable location free from excessive mechanical shock or extreme heat sources.
Pneumatic Lines: Use clean, dry, instrument-grade air to prevent internal nozzle clogging. Ensure all 1/4 inch NPT connections are properly sealed to prevent pressure leaks.
Electrical Wiring: Verify polarity of the 1-5 mA input signal before connection. Ensure wiring is shielded to minimize electromagnetic interference (EMI) in high-noise environments.
Maintenance: Power down the control loop before performing maintenance or replacing the unit to prevent unintended valve movement.

FAQ

Q: What is the primary function of the 771-3STF2?
A: It acts as an interface transducer, converting a 1-5 mA electrical control signal into a 3-15 PSIG pneumatic pressure signal to drive pneumatic actuators.

Q: Is this unit compatible with original Moore Industries equipment?
A: Yes, the 771-3STF2 is designed to be compatible with legacy installations that utilize Moore Industries or Siemens instrumentation of this series.
