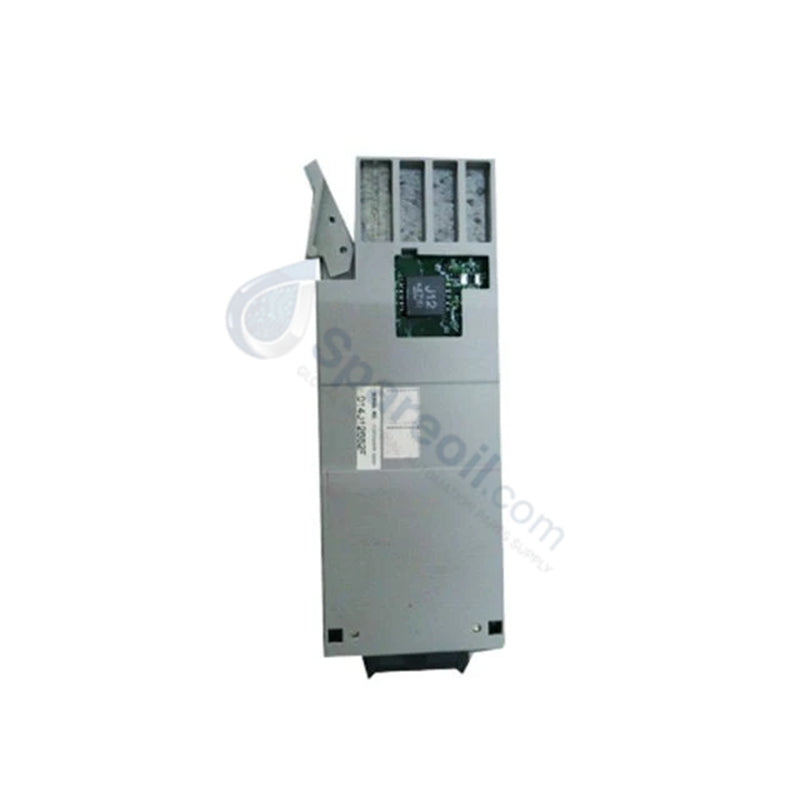

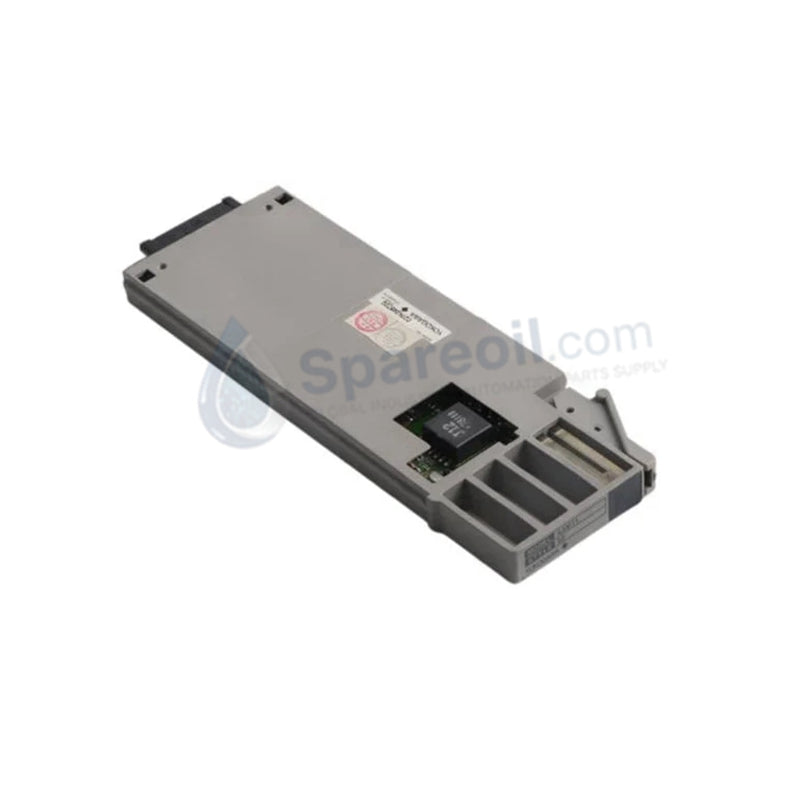

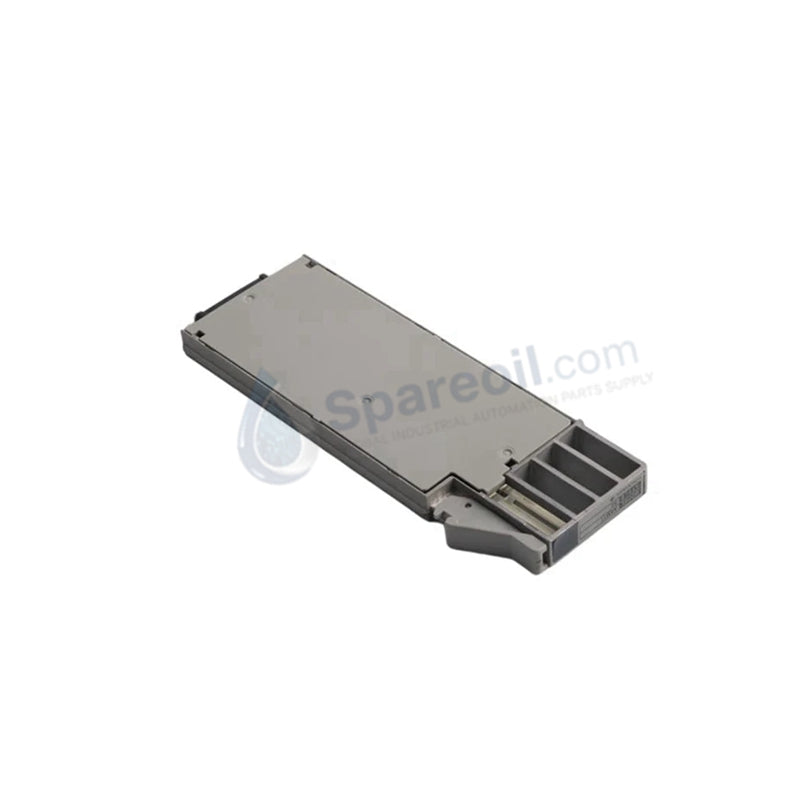

AAM11-S2 YOKOGAWA Analog Input Module

AAM11-S2 YOKOGAWA Analog Input Module Process Control

Disponibilidad: 10 Quedan en stock

YOKOGAWA AAM11-S2 Analog Input Module Configured for high-precision signal acquisition in distributed control systems, the YOKOGAWA AAM11-S2 (AAM11 Analog Input...

Código: AAM11-S2

Manufacturer: Yokogawa
Product No.: AAM11-S2
Product Type: Analog Input Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA AAM11-S2 Analog Input Module

Configured for high-precision signal acquisition in distributed control systems, the YOKOGAWA AAM11-S2 (AAM11 Analog Input Module) provides direct physical/electrical execution of 8-channel analog input monitoring.

Suffix Breakdown & Model Matrix

AAM11: Base model identifier for 8-channel analog current/voltage input functionality.
S2: Style/Revision designation indicating hardware iteration and compatibility standards within the control platform.

Hardware Specifications

Parameter	Specification
Model	AAM11-S2
Brand	YOKOGAWA
Origin	Japan
Weight	0.3 kg
Dimensions	125 × 100 × 30 mm
Operating Temp	-20 deg C to +70 deg C
Power Consumption	Max. 1 W
Input Channels	8 Analog
Signal Range	0-20 mA / 4-20 mA / 0-10 V
Sampling Rate	Up to 1000 samples/sec
Accuracy	+/- 0.1% of reading

DCS Process Control & Isolation Attributes

The AAM11-S2 integrates a high-speed analog-to-digital conversion stage capable of processing 1000 samples per second, ensuring minimal latency for real-time process monitoring. The module features 1500 V DC galvanic isolation between input and output stages, which preserves signal integrity by preventing ground-loop currents and common-mode noise from affecting the measurement loop. Integration with DCS platforms is supported via a standard interface, allowing the module to perform 4-20 mA HART loop protocol handshaking with intelligent field transmitters. To maintain accuracy over varying environmental conditions, the module circuitry compensates for thermal drift, ensuring stable reading values during industrial temperature fluctuations.

Frequently Asked Questions

Q: Does the AAM11-S2 support hot-swapping?

A: Module hot-swapping capability depends on the specific backplane and rack configuration of the host DCS; always confirm local power-up sequences before module extraction to avoid communication bus errors.

Q: How is the input signal range selected?

A: The input range for current (0-20 mA / 4-20 mA) or voltage (0-10 V) is typically configured via the system engineering software; ensure physical wiring matches the software channel assignment to prevent input circuit over-voltage.

Q: Does the module require external excitation for sensors?

A: The module does not provide integrated loop power. Field transmitters must be powered by an independent 24 V DC supply according to the manufacturer's loop wiring requirements.

Field Installation Guidelines

Mounting: Secure the module to the cabinet DIN-rail or rack mount. Ensure the ground terminal is connected to the cabinet common ground to establish a proper reference for the noise immunity circuitry.
Wiring: Utilize shielded twisted-pair cables for all analog signals. Terminate the shield at one end (typically the control cabinet side) to provide an effective path to ground for induced electromagnetic interference.
Isolation: Maintain physical separation between input signal wiring and high-current AC power lines to prevent inductive coupling and ensure compliance with electromagnetic compatibility standards.
Environmental: Although the unit is rated for -20 deg C to +70 deg C, avoid direct exposure to moisture or high-vibration areas to preserve the long-term integrity of the internal components.
