AIP121 S2 Yokogawa CENTUM Series Datasheet & Technical Manual

Analog Input Processor Module Yokogawa AIP121 S2 CENTUM

Analog Input Processor Module Yokogawa AIP121 S2 CENTUM

Disponibilidad: 99 Quedan en stock

Yokogawa AIP121 S2 Analog Input Processor Module The Yokogawa AIP121 S2, also cataloged as the AIP121 Analog Input Module, operates...

Código: AIP121 S2

Manufacturer: Yokogawa
Product No.: AIP121 S2
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

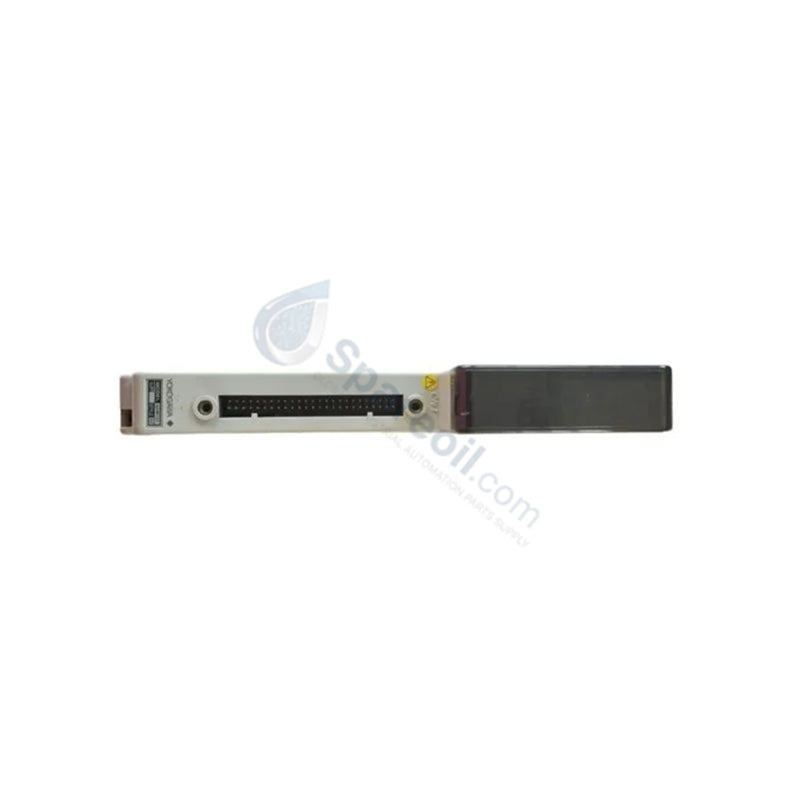

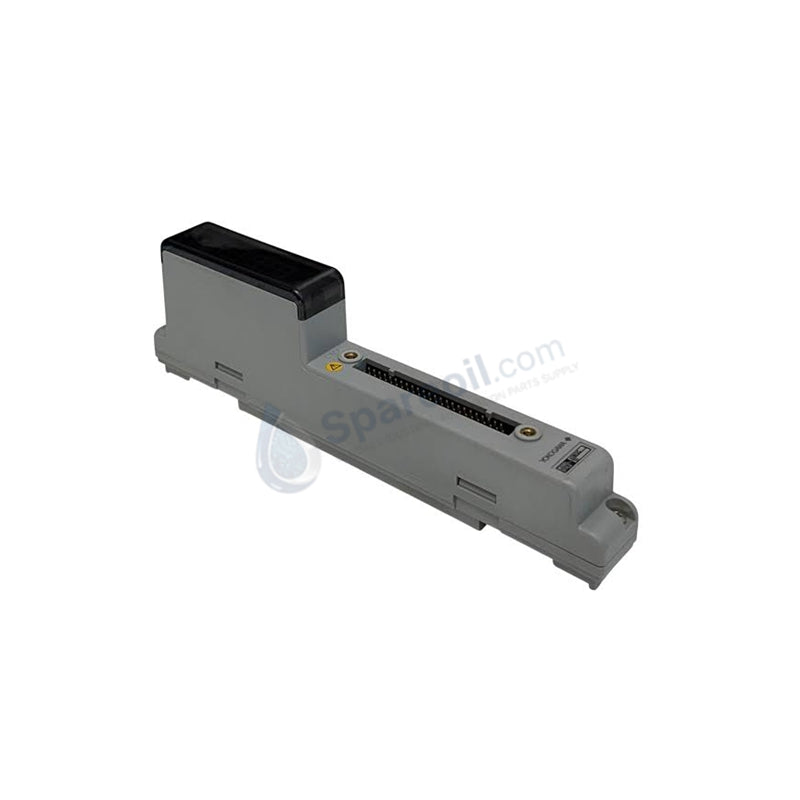

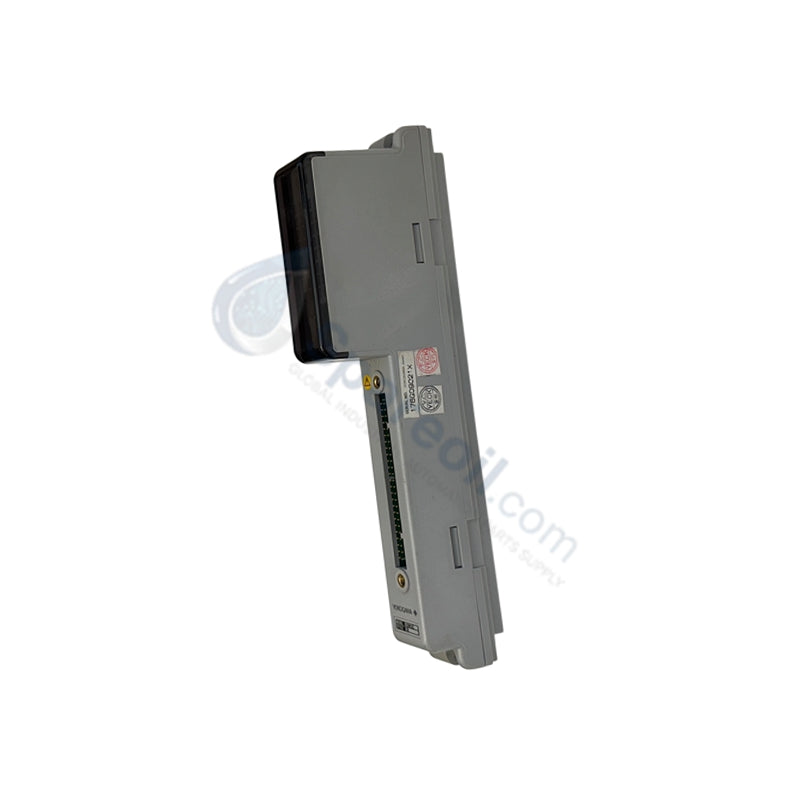

Yokogawa AIP121 S2 Analog Input Processor Module

The Yokogawa AIP121 S2, also cataloged as the AIP121 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within CENTUM VP and CS 3000 distributed control system architectures. The hardware implements direct physical execution of analog-to-digital data conversion, routing field measurement loops through an integrated 16-bit processing stage. The hardware accepts 4-20 mA DC current inputs alongside 0-10 V DC and +/-5 V DC voltage signals from remote field instruments, streaming the digitized values directly across the system backplane network interface.

Hardware Specifications

Parameter	Specification
Model	AIP121 S2
Brand	Yokogawa
Origin	Japan
Weight	0.6 kg
Dimensions	260 mm x 180 mm x 60 mm
Operating Temp	0 to +60 deg C
Power Consumption	Not Specified
Product Type	Analog Input Processor Modules
Channels	8 isolated channels
Resolution	16-bit
Accuracy	+/-0.055% to +/-0.1% of full scale
Input Impedance	250 Ohm current / High impedance voltage
Isolation	Galvanic isolation between channels and system bus
Operating Voltage	24 VDC nominal
Redundancy	Dual redundant configuration supported

Process Control Input Loop Architectures

The analog processor incorporates hardware circuits designed to interface with standard 4-20 mA HART loop protocol parameters across the termination infrastructure. Channel-to-channel galvanic isolation prevents cross-talk and blocks transient voltage surges before they can propagate into the host backplane logic. For temperature loop configurations, internal cold junction compensation (CJC) circuits track ambient terminal temperature shifts to maintain stable mathematical scaling over the configured measurement span.

Frequently Asked Questions

Q: How does the module handle signal degradation during a field wire break condition on a 4-20 mA current loop?

A: The onboard 16-bit analog-to-digital converter continuously tracks input thresholds. When an open-loop condition causes the signal to drop below the live-zero value (less than 4 mA), the card sets a channel fault bit on the backplane bus to alert the central processing unit.

Q: Is online hot-swap replacement permitted for the module while the field station remains powered?

A: Hot-swapping depends entirely on the design constraints of the specific system chassis slot. Field engineers must verify that the active backplane sub-rack configuration supports online extraction to avoid causing communication disruption on adjacent operational nodes.

Q: What action initiates role switching in a dual-redundant hardware installation?

A: The active card transmits periodic health signals over the backplane network. If internal diagnostics detect a field-side power failure or a component fault, the card stops transmitting the health signal, causing the secondary card to instantly assume execution control over the process loops.

Field Installation Guidelines

Enclosure Earth Bonding: Install the module firmly into the rack framework. Ensure the hardware mounting brackets maintain clean, unpainted contact with the cabinet metal structure to establish a low-impedance path to the main instrumentation ground bus.
Cable Shielding Matrix: Connect all external twisted-pair signal cable shields directly to the dedicated cabinet shield ground bar. Do not ground the cable shield at both the field device and the cabinet to prevent the creation of ground loops.
Structural Separation: Route low-voltage analog input wiring through dedicated wire ducts, keeping them a minimum distance of 200 mm away from high-power AC distribution cables and motor drive loops.
Terminal Interface Security: Tighten all front-panel retention screws and terminal blocks to factory specifications to eliminate intermittent physical contact variations that induce measurement noise.
