AO3481 S2 TRICONEX Analog Output Module

AO3481 S2 TRICONEX Automate PLC Processor Module

AO3481 S2 TRICONEX Automate PLC Processor Module

Disponibilidad: 10 Quedan en stock

TRICONEX AO3481 S2 PLC Processor Module Configured for Converting digital control signals into precise analog current outputs for field devices...

Código: AO3481 S2

Manufacturer: Triconex
Product No.: AO3481 S2
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

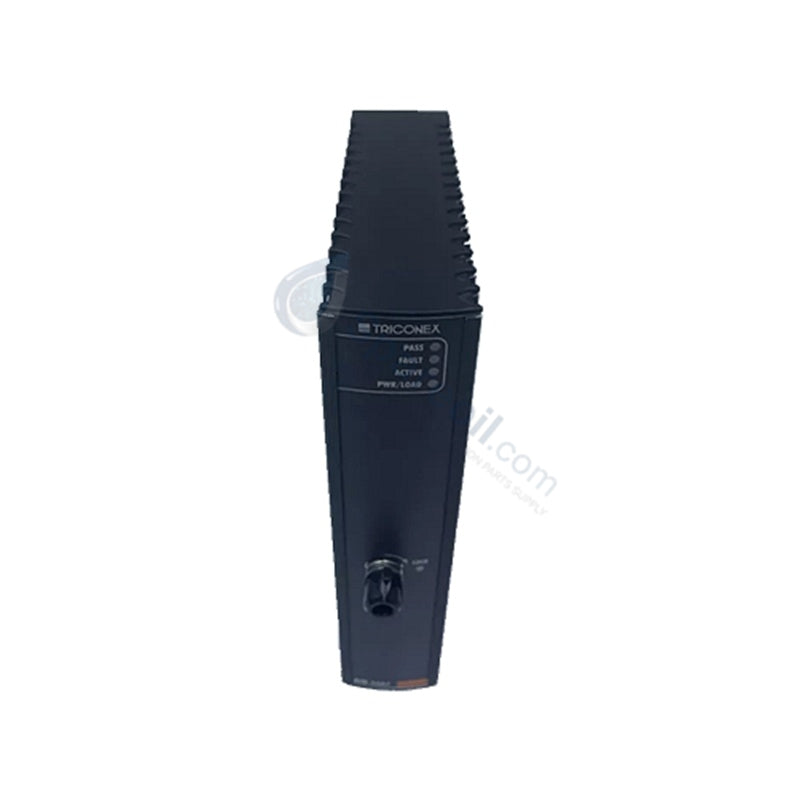

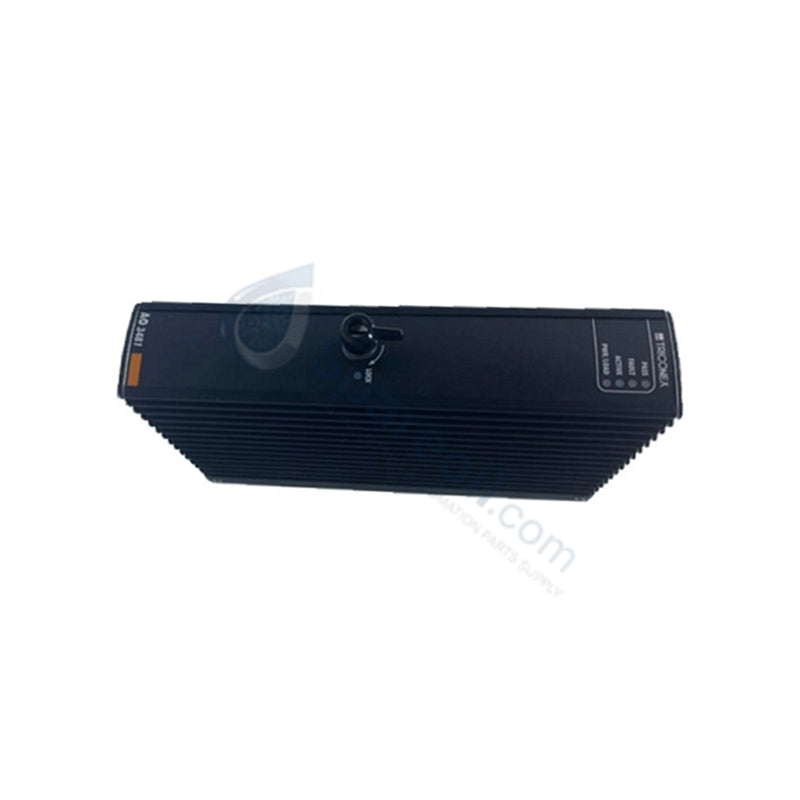

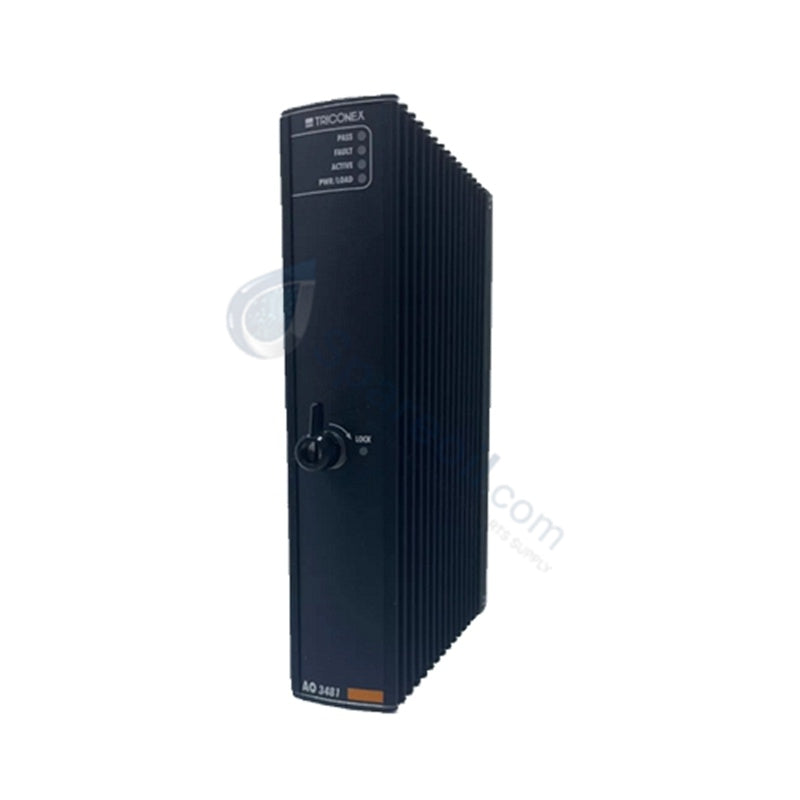

TRICONEX AO3481 S2 PLC Processor Module

Configured for Converting digital control signals into precise analog current outputs for field devices in Tricon SIS platforms, the TRICONEX AO3481 S2 (TRICONEX AO3481) PLC Processor Module provides direct physical/electrical execution. This hardware element converts digital control commands into triple-redundant analog current signals to actuate final control elements. The architecture executes physical voter logic across independent channels to maintain loop integrity under fault conditions.

Hardware Specifications

Parameter	Specification
Model	AO3481 S2
Brand	TRICONEX (Schneider Electric)
Origin	USA / Mexico
Weight	1.5 kg (3 lbs 3.2 oz)
Dimensions	4.4 cm x 21.6 cm x 19.1 cm (1.8 in x 8.5 in x 7.5 in)
Operating Temp	0 deg C to +60 deg C
Power Consumption	Nominal 24 VDC loop power
Channels	4 analog output points, DC-coupled, common return
Output Range	0-22 mA (standard), 4-20 mA (controlled), over-range up to 44 mA
Resolution	12 bits
Accuracy	Less than 0.25% of full scale (FSR) from 0-50 deg C
Switch Time on Fault	1-3 ms typical
Loop Load Capability	Supports loads up to 1,500 Ohm
Baseplate Compatibility	Model 2481, Model 2483/2483A, External Termination Baseplate 9863-610
Safety Certification	IEC 61508 SIL3, TÜV approved

Triple Modular Redundancy & Safety Execution

The module operates within a Triple Modular Redundancy (TMR) architecture to execute safety仪表系统 (SIS) functions up to SIL3 thresholds. Three separate internal channels receive isolated digital data from the main processors. Internal voter circuitry continuously cross-checks output commands across all three paths. If a single channel deviates, the internal diagnostics register the variance, actuate local fault indicators, and isolate the discrepant path using a galvanic isolation switch within 1-3 ms. The remaining non-driving channels are shunted automatically to prevent loop interruption or unauthorized signal drops to critical field devices like emergency shutdown valves.

Frequently Asked Questions

Q: Does this module support hot-spare replacement during live process operations?

A: Yes. The module supports hot-spare functionality when installed on a compatible dual baseplate. Inserting a secondary module allows online synchronization and diagnostic validation without interrupting the active 4-20 mA loop outputs or shutting down the system.

Q: What happens to the analog loop if the external 24 VDC loop power experiences a reverse-voltage event?

A: The module contains dedicated reverse-voltage protection circuitry. An accidental polarity reversal on the external loop power supply triggers the isolation barriers, blocking reverse current paths to safeguard the internal TMR voting logic and components.

Field Installation Guidelines

Baseplate Engagement: Ensure complete physical alignment with Model 2481 or Model 2483/2483A baseplates. Seat the module firmly into the backplane connectors until the mechanical locking mechanisms lock into position to prevent intermittent signal contact.
Wiring and Isolation: Maintain distinct separation between field loop wiring and low-voltage digital backplane lines. External termination wiring for hazardous locations must utilize the 9863-610 baseplate to maintain intrinsic safety limits.
Shielding and Grounding: Terminate all analog cable shields at the dedicated instrument ground bus on the baseplate assembly. Do not ground the shield at both ends to prevent ground loops from corrupting the 12-bit analog signal resolution.
Loop Power Sizing: Verify the external 24 VDC supply accommodates the combined current draw of all 4 channels at maximum over-range conditions (up to 44 mA per channel) while considering the maximum 1,500 Ohm loop resistance constraint.
