330103-00-05-05-02-00 Bently Nevada Series Datasheet & Technical Manual

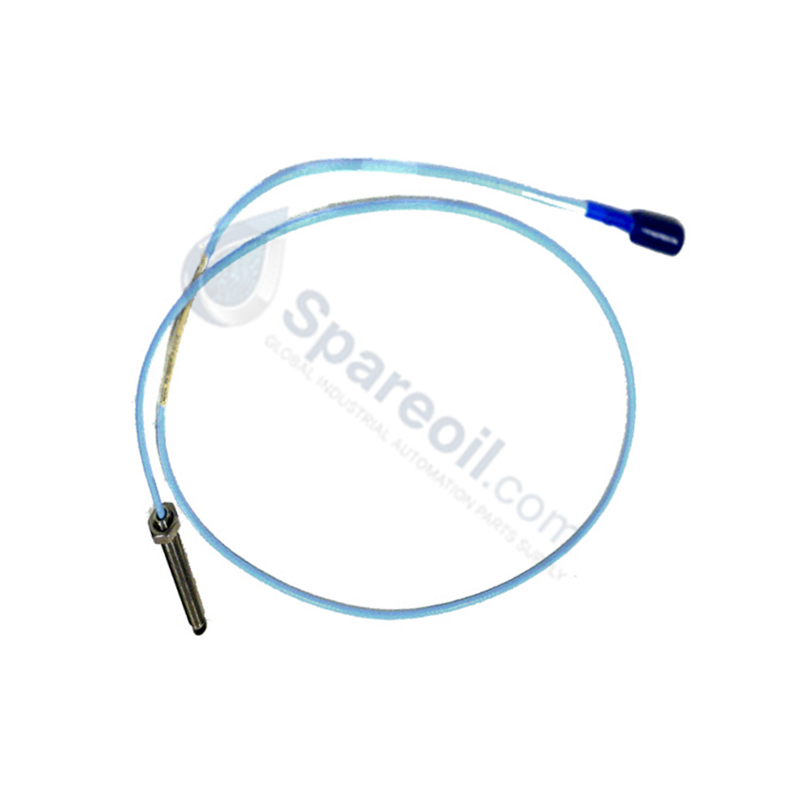

Bently Nevada 330103-00-05-05-02-00 3300 XL Series Proximity Probe

Bently Nevada 330103-00-05-05-02-00 3300 XL Series Proximity Probe

Disponibilidad: 10 Quedan en stock

Configured for vibration and displacement monitoring in 3300 XL Transducer System platforms, the Bently Nevada 330103-00-05-05-02-00 (330103 Proximity Probe) provides...

Código: 330103-00-05-05-02-00

Manufacturer: Bently Nevada
Product No.: 330103-00-05-05-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for vibration and displacement monitoring in 3300 XL Transducer System platforms, the Bently Nevada 330103-00-05-05-02-00 (330103 Proximity Probe) provides direct physical/electrical execution. This passive hardware component uses high-frequency radio frequency modulation to capture spatial gap changes between its unarmored 8 mm probe tip and a moving conductive target shaft, transmitting proportional electrical signals over an unarmored standard coaxial interface without mechanical surface contact.

Hardware Specifications

Parameter	Specification
Model	330103-00-05-05-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.323 kg
Dimensions	8 mm probe tip diameter, 50 mm case length, M10 x 1 metric thread
Operating Temp	+18 deg C to +27 deg C (Standard calibration tracking spectrum)
Power Consumption	Passive sensor driven via external Proximitor loop supply
Nominal Gap	1.27 mm (50 mils)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Sealing Component	Viton O-ring (differential pressure boundary)
Connector Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The transducer requires strict matching to a verified target metallurgy to sustain linear eddy-current probe scaling accuracy across the measured spectrum. During mechanical commissioning, field engineers must execute a gap voltage validation protocol, adjusting the physical depth of the metric body until the quiescent DC level measures exactly -10 VDC at the geometric center of the linear calibration envelope. Proper physical alignment tracks real-time rotor dynamics under high velocity while filtering thermal errors. Cross-talk suppression is maintained via continuous internal coaxial shielding braid, mitigating electrical interference when multiple probe channels route through close-proximity machine penetrations.

Frequently Asked Questions

Q: What is the primary physical function of the integrated Viton O-ring inside the probe assembly?

A: The Viton O-ring establishes a dynamic fluid seal to prevent process lubricants or gases from migrating through the differential pressure boundary between the polyphenylene sulfide (PPS) tip and the stainless steel case.

Q: Can this 0.5 metre total length probe module bypass an extension cable and wire straight to the rack terminal?

A: No. The probe is an inductive element requiring an impedance-matched 3300 XL extension cable to form a complete 5.0 or 9.0 metre balanced transmission line tuned to the excitation frequency of the host Proximitor Sensor.

Q: How does a layer of non-conductive synthetic oil on the probe tip impact the linear calibration range?

A: Because the probe tip material is non-conductive, presence of clean, non-conductive lubrication oils does not interfere with the high-frequency eddy-current path or alter the physical gap measurements.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded penetration, ensuring the interface is free of residual drilling metal, old sealants, or carbon scale.
Thread the stainless steel probe body into the mounting hole by hand to eliminate cross-threading hazards.
Hook an external digital multimeter up to the Proximitor loop test points to watch active voltage output during final depth adjustment.
Rotate the probe barrel slowly until the gap voltage validation matches the baseline index of -10 VDC, corresponding to the nominal 1.27 mm gap.
Lock the external hex nut firmly against the machine structural wall to preserve the verified air gap under constant operating vibration, and seal the coaxial junction against moisture using self-fusing insulation tape.
