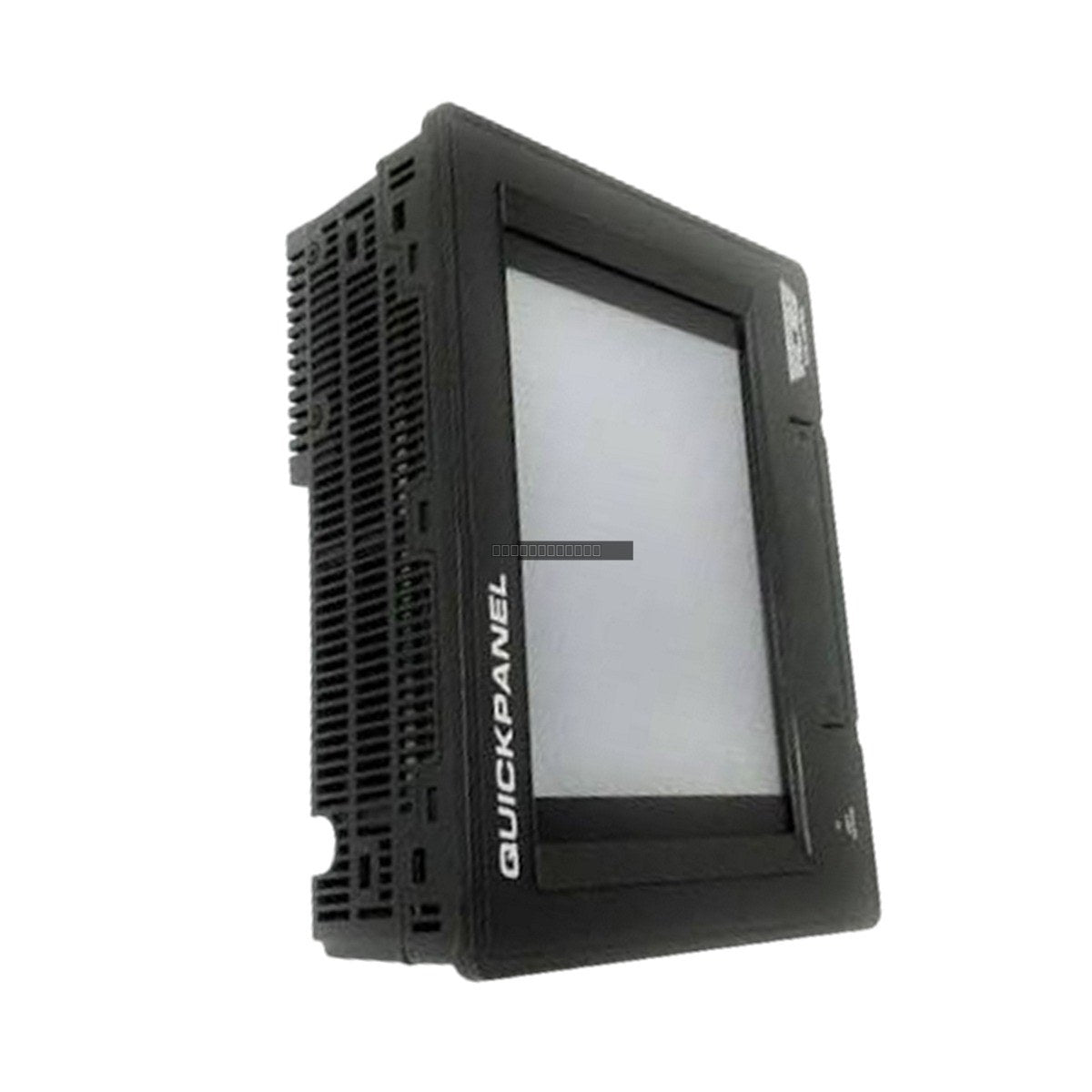

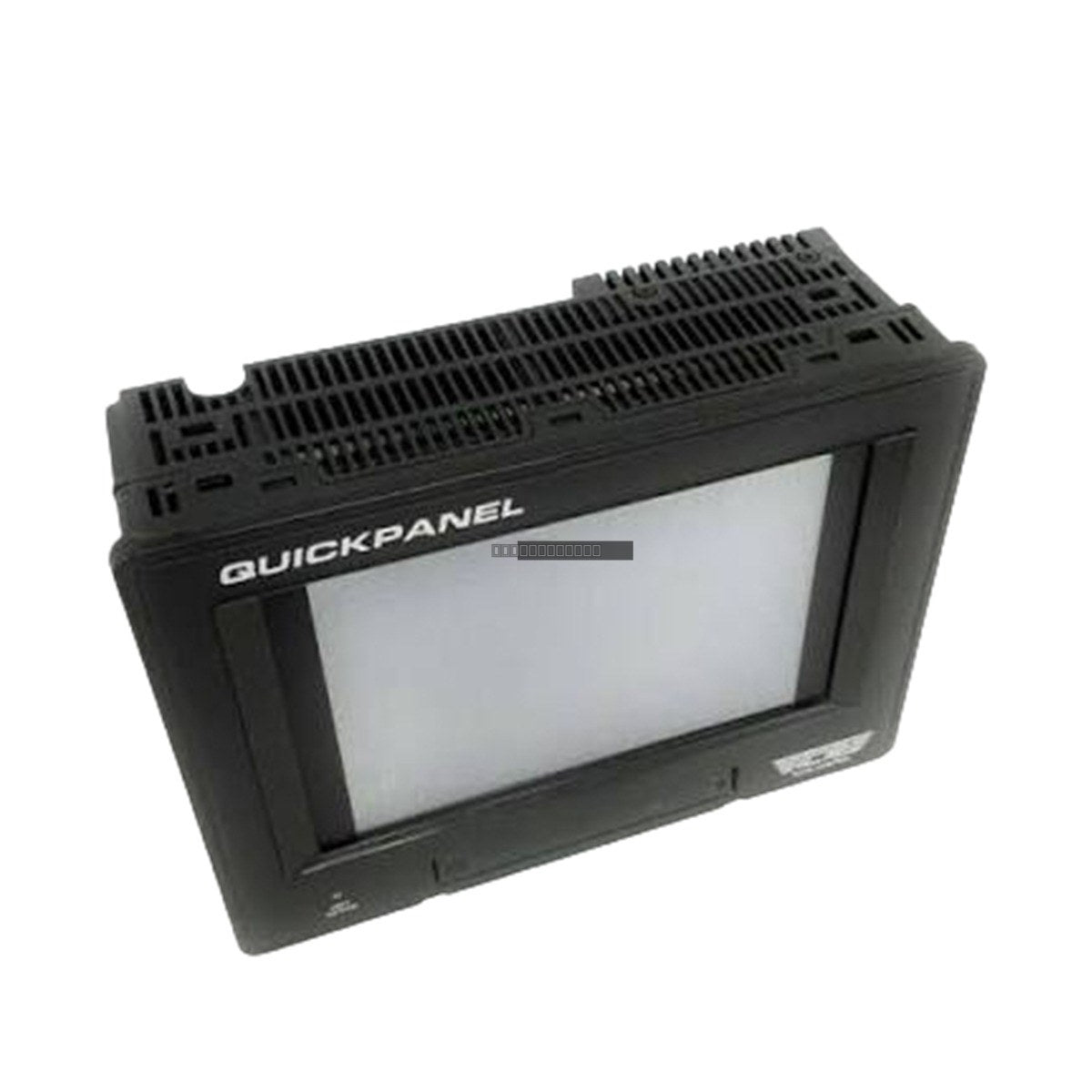

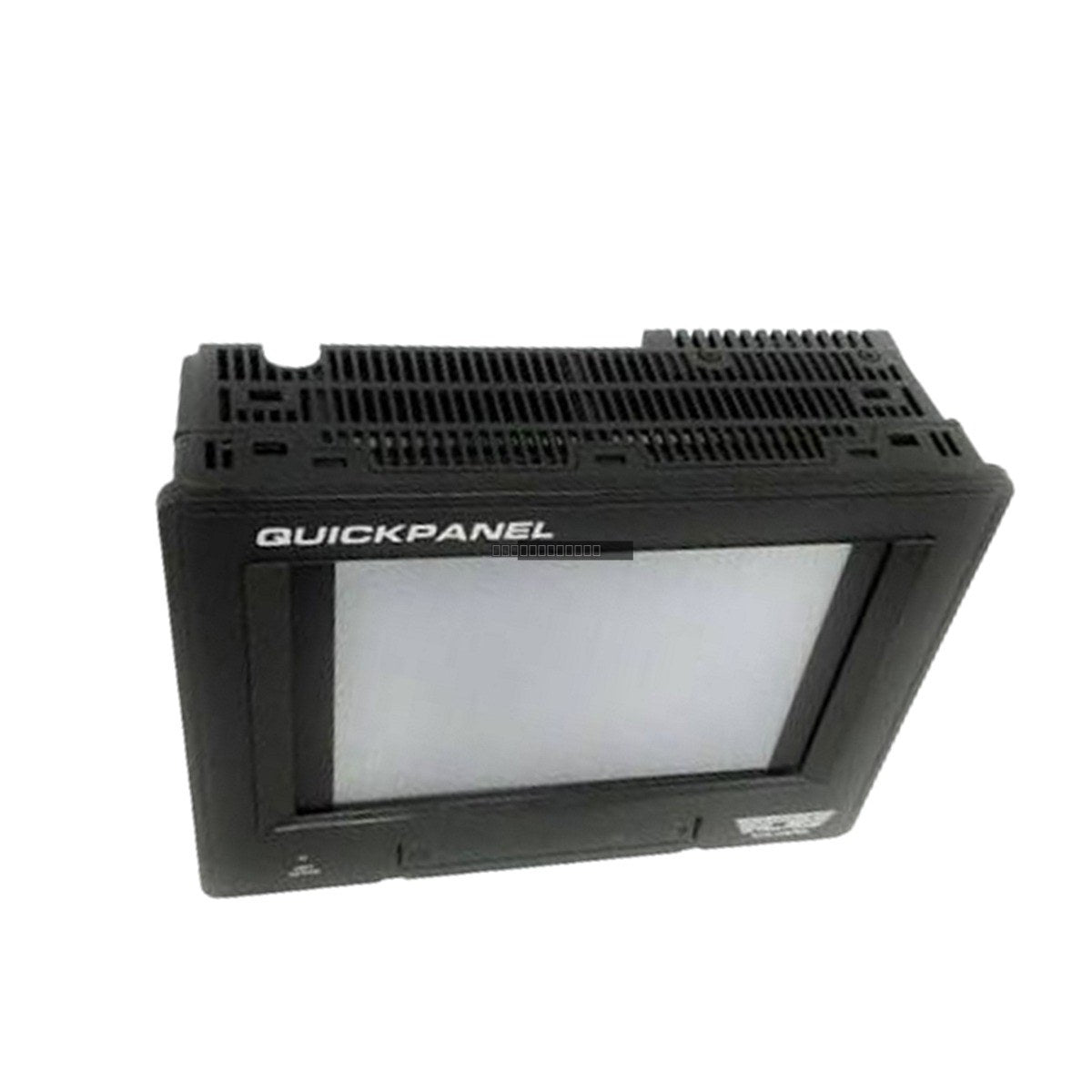

GE Fanuc QPICTAE0000 QuickPanel HMI Module

GE Fanuc QPICTAE0000 QuickPanel Operator Interface Module

Disponibilidad: 9 Quedan en stock

DescriptionThe QPICTAE0000 is a 10.4-inch industrial human-machine interface (HMI) from the GE Fanuc Total Control QuickPanel series. Designed for demanding...

Código: QPICTAE0000

Manufacturer: GE FANUC
Product No.: QPICTAE0000
Product Type: Operator Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2800g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The QPICTAE0000 is a 10.4-inch industrial human-machine interface (HMI) from the GE Fanuc Total Control QuickPanel series. Designed for demanding environments such as power generation, mining, and oil refinery applications, this unit provides a robust, buttonless touch-screen interface. By utilizing a high-contrast TFT color display, the module enables operators to visualize complex diagnostic data and control processes efficiently. The device is built to minimize mechanical failure points by replacing physical buttons with a durable touch membrane, ensuring long-term reliability in industrial settings.

Features

Display Technology: 10.4-inch TFT color LCD with 640 x 480 VGA resolution.
Memory: 4 MB integrated Flash EPROM for application storage.
Connectivity: Includes a 10BaseT Ethernet port, dual serial ports, and a parallel printer port for local logging.
Auxiliary Interfaces: Supports external alarm monitoring, remote hardware reset, and integrated buzzer/audio output.
Environmental Protection: NEMA 4X/12 and IP65 rated enclosure, providing protection against dust and low-pressure water ingress.

Technical Specifications

Model	QPICTAE0000
Display Size	10.4 inches
Resolution	640 x 480 Pixels (VGA)
Memory	4 MB Flash EPROM
Input Voltage	85 to 132 VAC (120 VAC nominal)
Frequency	47 to 63 Hz
Operating Temperature	0 to 50 deg C
Storage Temperature	-20 to 60 deg C
Software	QuickDesigner 3.7 or higher

Installation Guidelines

Powering: Ensure the supply voltage is within the 85-132 VAC range before connection. Always verify polarity and ground connections to prevent electrical damage.
Mounting: The unit is designed for panel mounting. Ensure the gasket is properly seated to maintain the NEMA 4X/IP65 seal against the enclosure surface.
Environment: Maintain adequate ventilation around the rear chassis to prevent heat buildup. Avoid installing in areas with excessive vibration or direct exposure to corrosive chemicals.
Handling: Use ESD-safe practices when handling the unit. Ensure the system is powered down before connecting or disconnecting communication cables.

FAQ

What software is required to program the QPICTAE0000?

This module requires QuickDesigner software, version 3.7 or higher, for project development and configuration.

Is this unit suitable for outdoor use?

The unit features an IP65/NEMA 4X rating, meaning it is dust-tight and protected against water jets. However, it is primarily intended for industrial control panels; please ensure it is installed in an appropriate enclosure if exposed to extreme weather conditions.

Can I connect a printer to this HMI?

Yes, the module includes a dedicated parallel printer port, allowing for the generation of local data logs and alarm reports directly from the interface.
