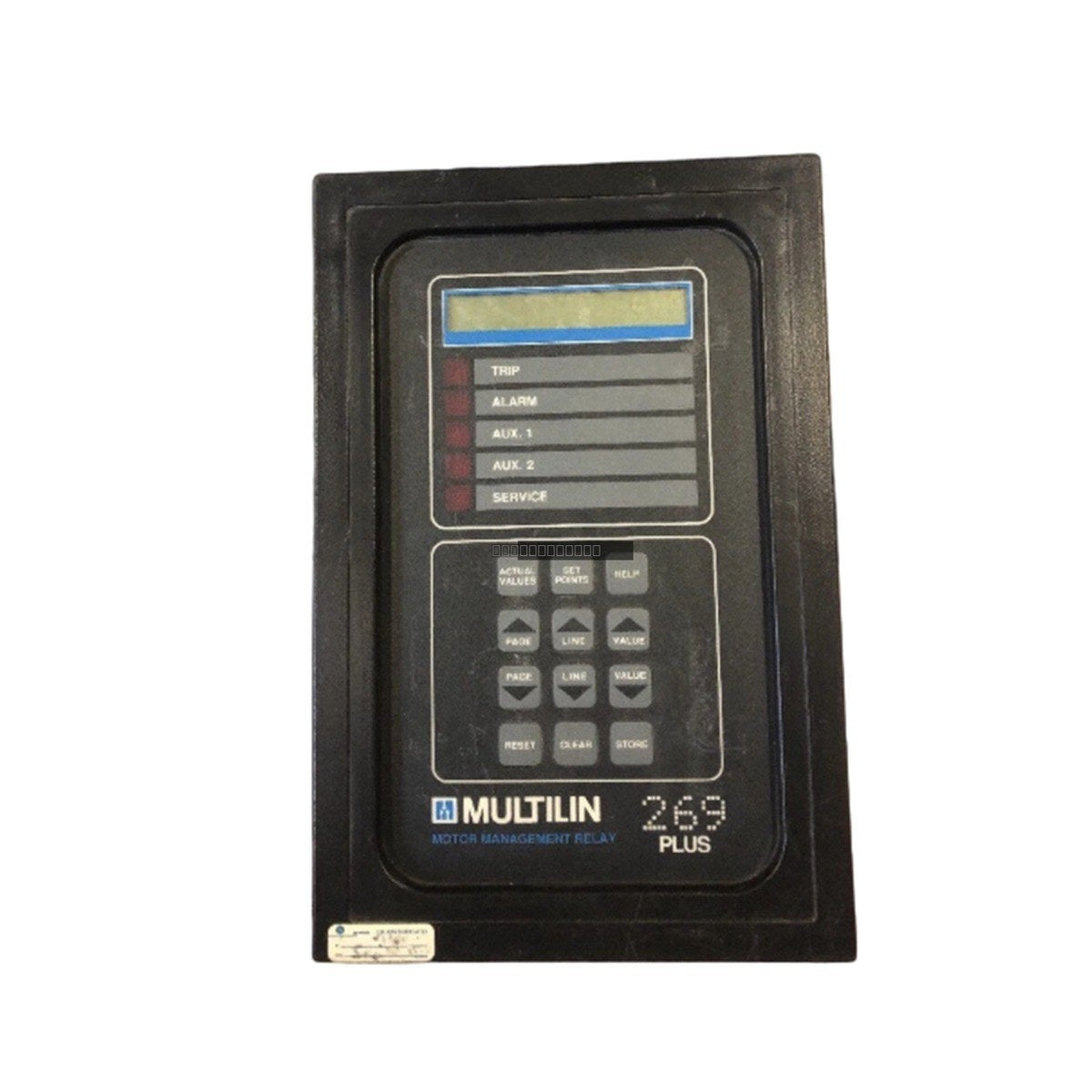

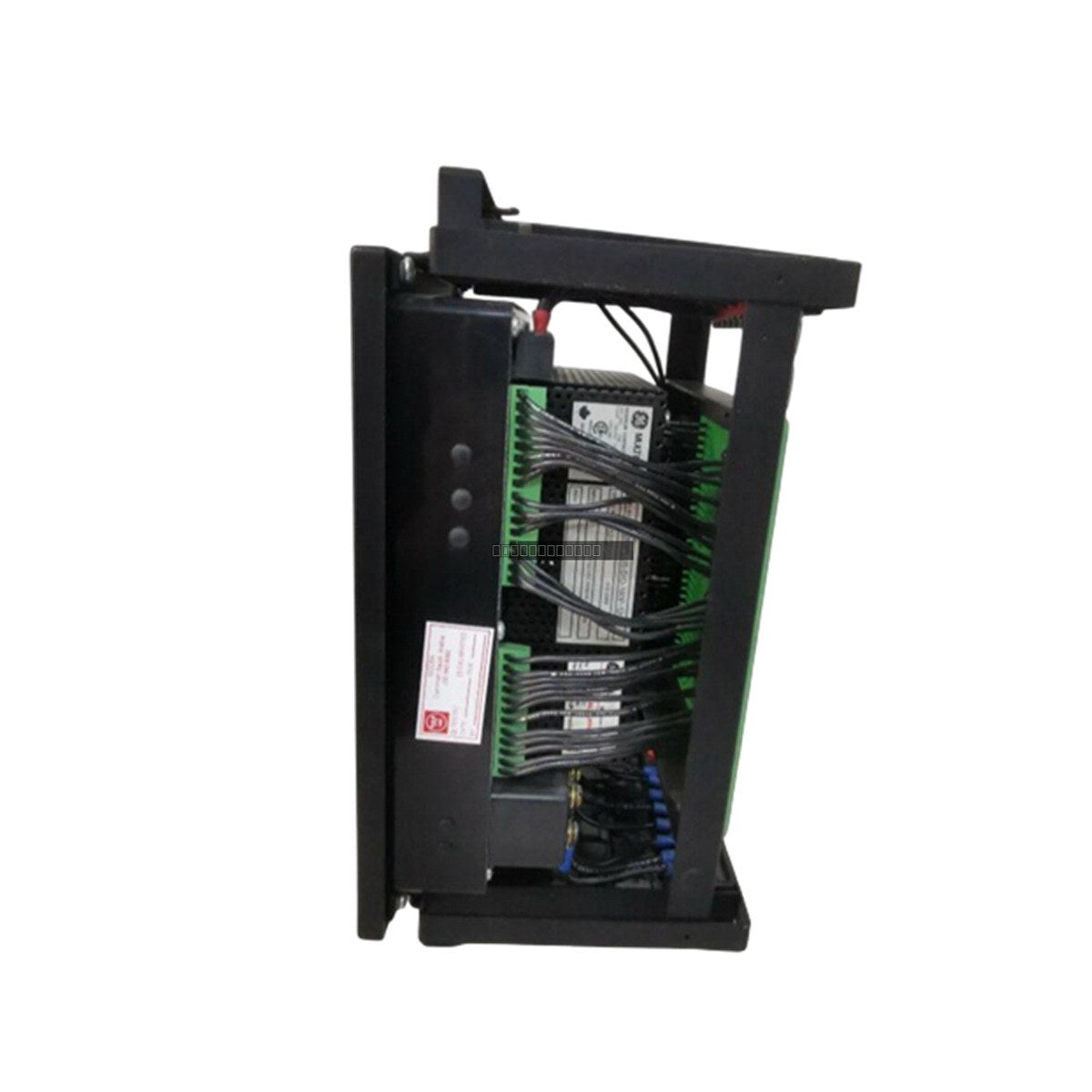

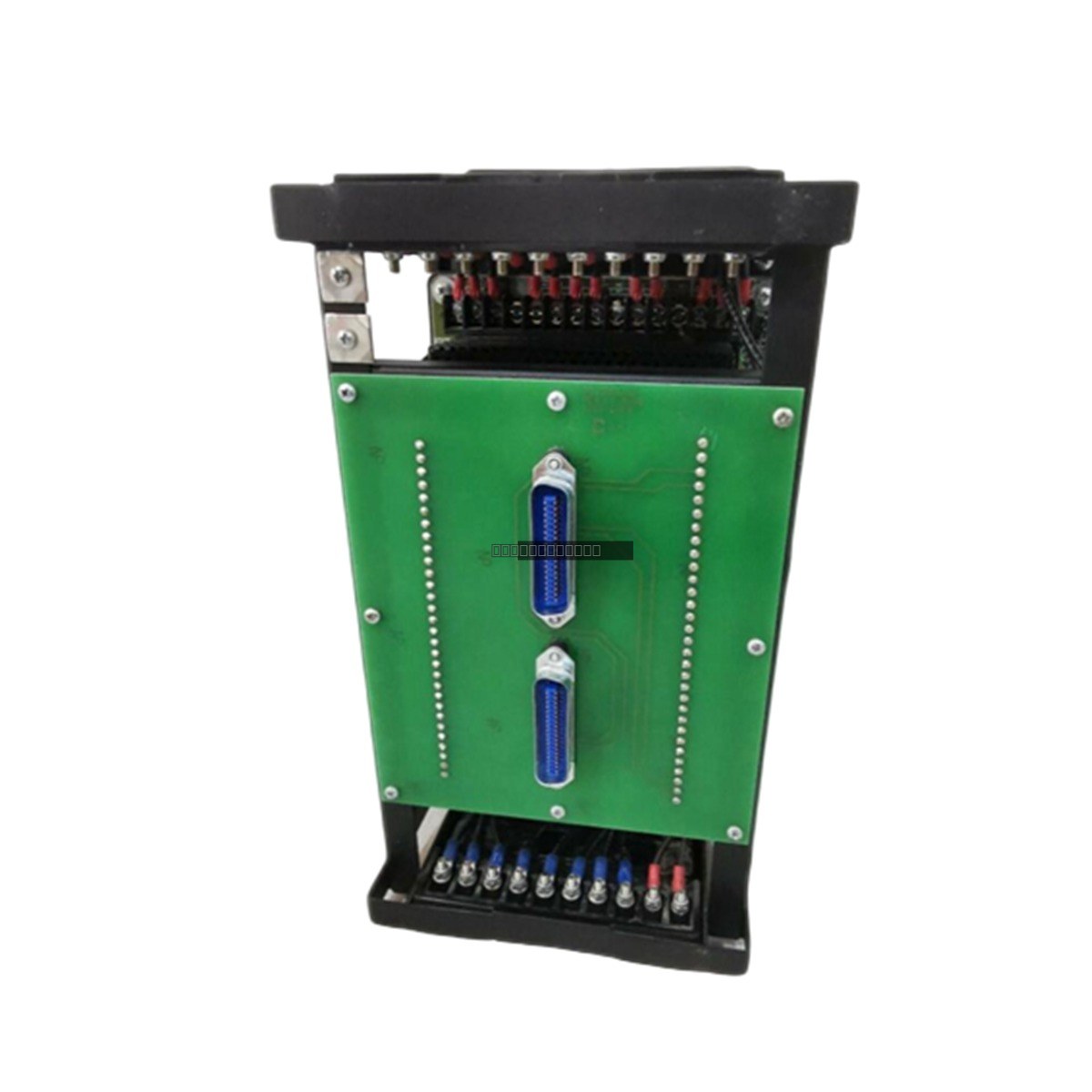

General Electric 269PLUS-100P-120 Multilin Motor Management Relay

Disponibilidad: 7 Quedan en stock

The General Electric Multilin 269PLUS-100P-120 is a robust motor management relay designed to provide comprehensive protection and monitoring for industrial...

Código: 269PLUS-100P-120

Manufacturer: General Electric
Product No.: 269PLUS-100P-120
Product Type: Motor Management Relay
Product Origin: USA
Payment:T/T, Western Union
Weight: 2800g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The General Electric Multilin 269PLUS-100P-120 is a robust motor management relay designed to provide comprehensive protection and monitoring for industrial motor systems. This unit is engineered to ensure operational reliability by integrating advanced sensing capabilities with precise control logic.

Features

Designed for 100 Ohm Platinum RTD temperature monitoring.
Supports 120 V AC / 125 V DC control voltage inputs.
Equipped with 4 relay connections for versatile control and signaling configurations.
Integrated motor management functions for enhanced system diagnostics.
Maximum power consumption rating of 20 VA.
Reliable operation with a 100 ms holdup time.

Technical Specifications

Model	269PLUS-100P-120
Series	Multilin 269 Plus
Input Voltage	120 V AC / 125 V DC
RTD Type	100 Ohm Platinum
Setpoint Range	0 to 200 degC
Operating Temperature	-25 degC to +60 degC
Humidity	Up to 95%, non-condensing
Maximum Power	20 VA

Installation Guidelines

Ensure the device is installed in a clean, dry, and vibration-free environment to maintain sensor accuracy.
Verify that all control voltage inputs match the specifications before applying power.
Use appropriate shielded cabling for RTD connections to minimize electromagnetic interference.
Strictly follow standard industrial ESD handling procedures during installation and maintenance.
Ensure all relay terminal connections are tightened to specified torque requirements to prevent loose contact.
Always disconnect power before inserting or removing the module from the control panel.

FAQ

What is the primary function of the 269PLUS-100P-120?
This device serves as a motor management relay, providing protection and thermal monitoring for motors using 100 Ohm Platinum RTD inputs.

What is the operating temperature range for this relay?
The relay is designed to operate reliably within a temperature range of -25 degC to +60 degC.
