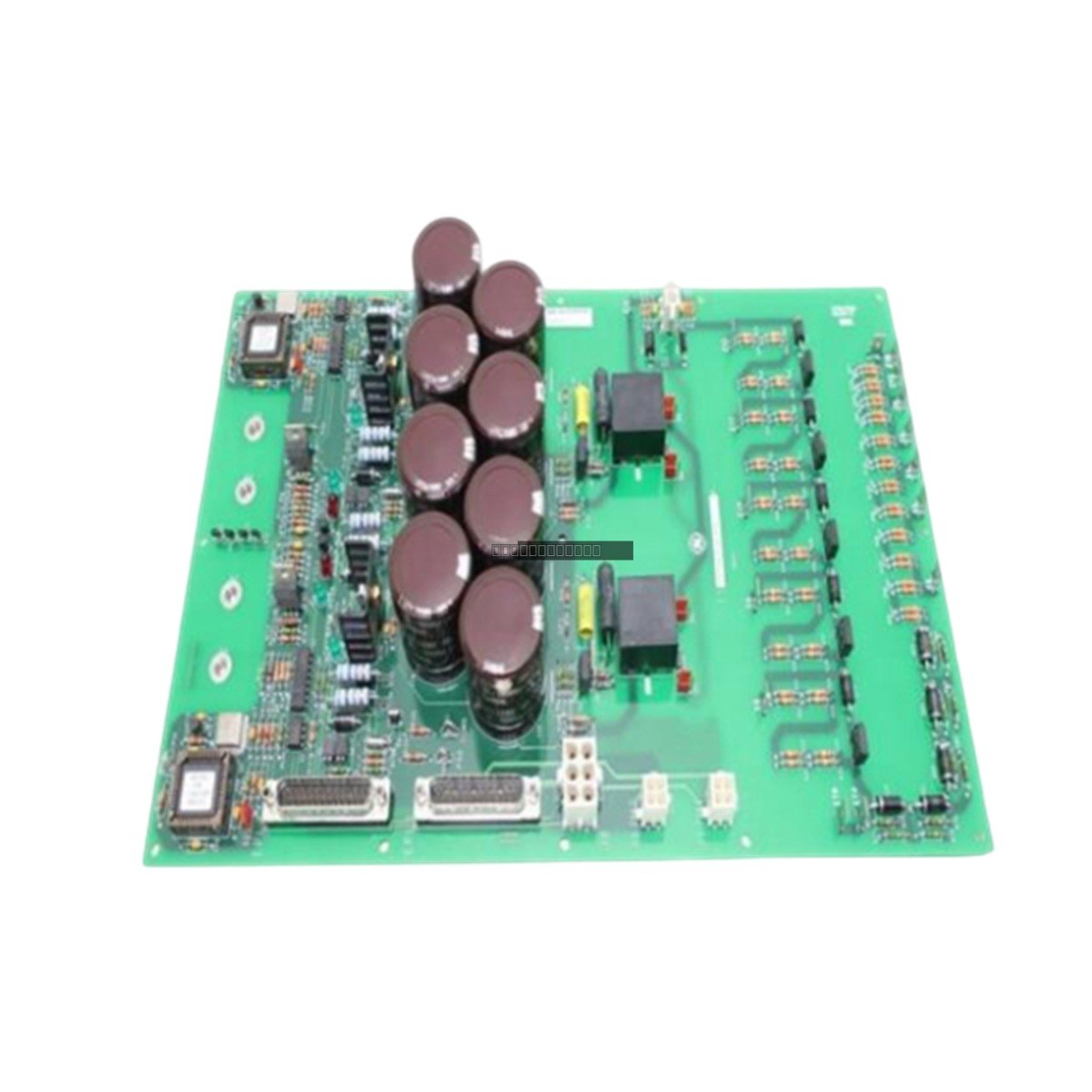

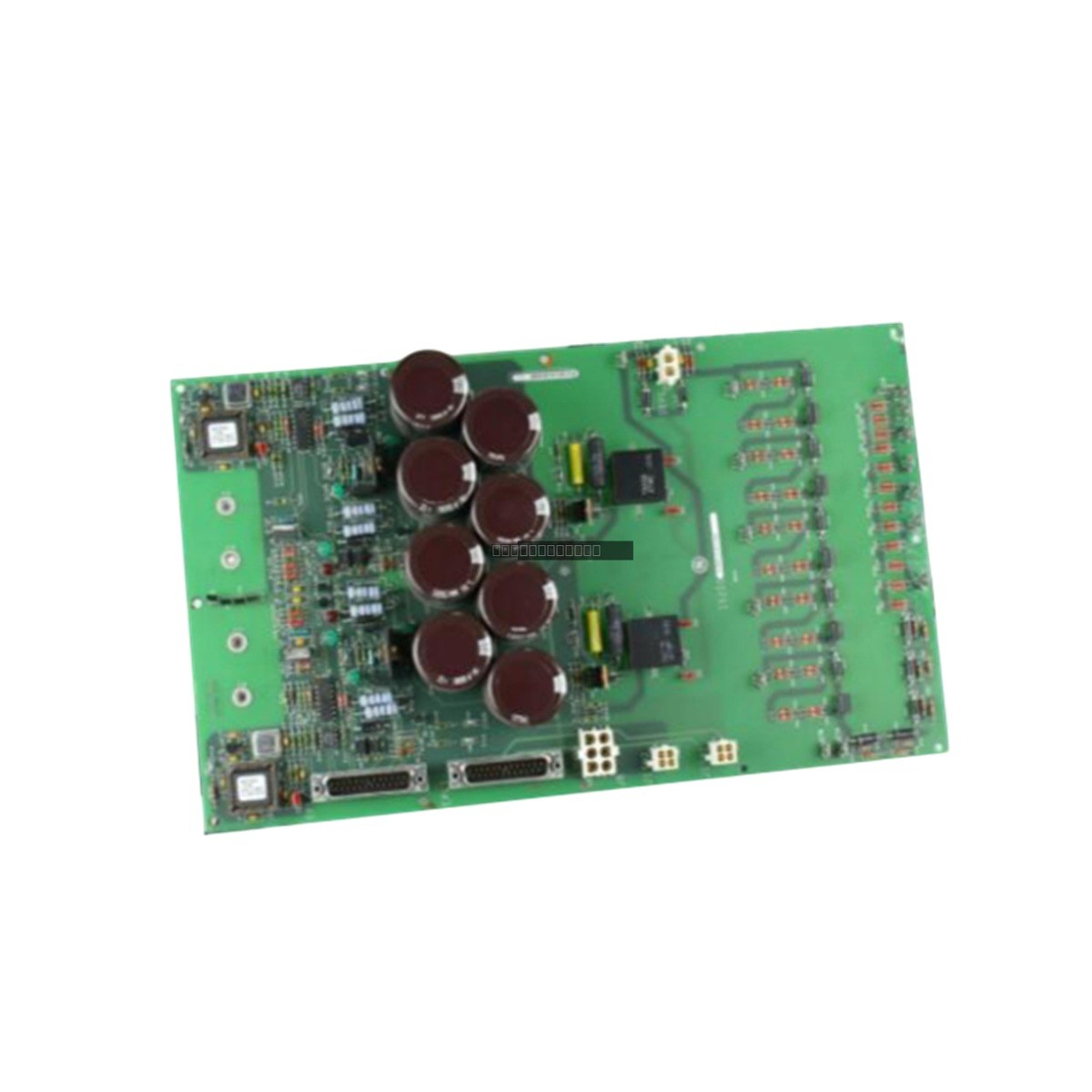

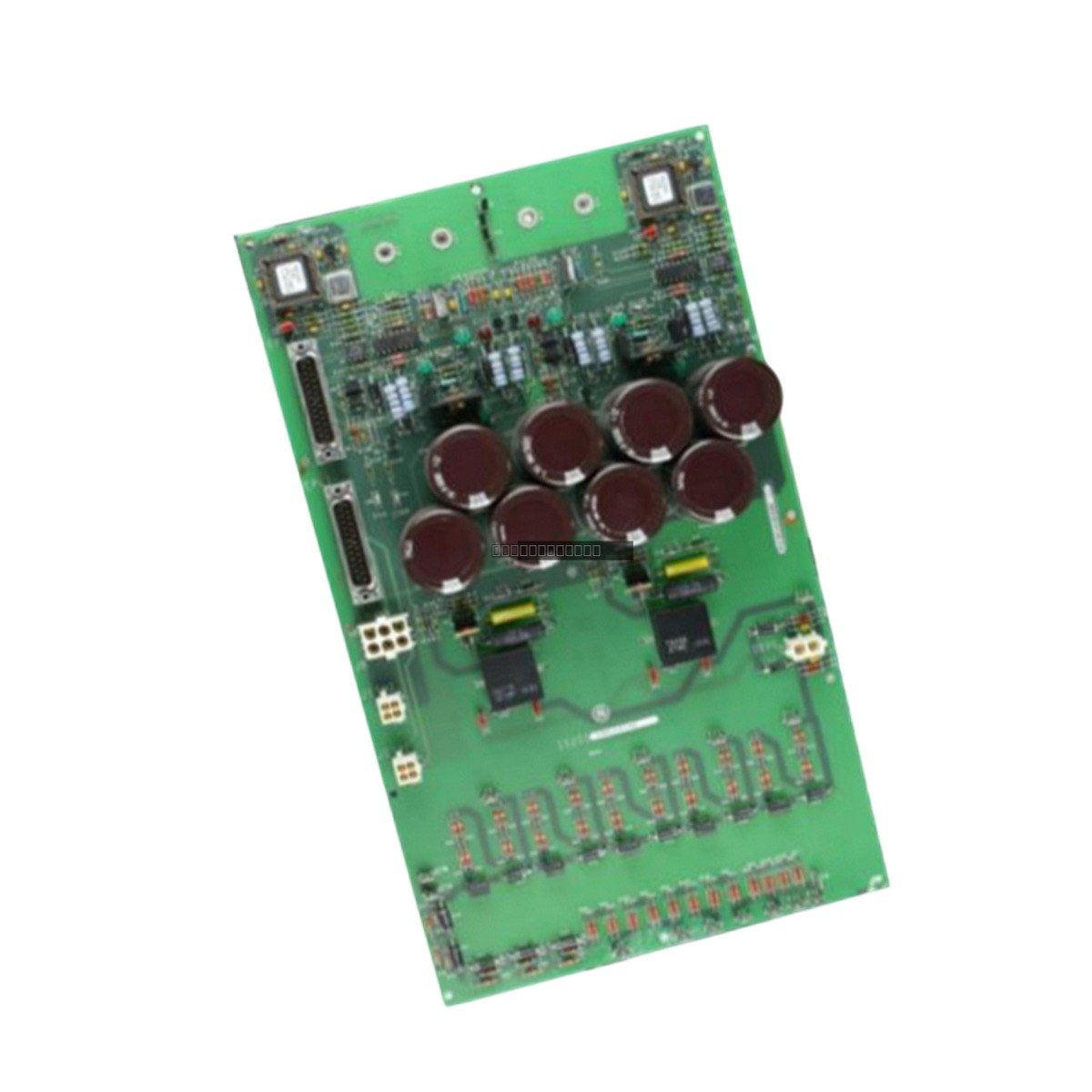

GE IS200EDEXG1A Exciter De-Excitation Board

General Electric IS200EDEXG1A Exciter De-Excitation Board

Disponibilidad: 3 Quedan en stock

DescriptionThe General Electric IS200EDEXG1A is a specialized De-Excitation Board designed for integration within the EX2100 Excitation Control System. This component...

Código: IS200EDEXG1A

Manufacturer: General Electric
Product No.: IS200EDEXG1A
Product Type: Exciter De-Excitation Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 660g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The General Electric IS200EDEXG1A is a specialized De-Excitation Board designed for integration within the EX2100 Excitation Control System. This component serves a critical role in the management of generator excitation, facilitating the controlled removal of field current during shutdown or fault conditions. It is engineered to maintain high reliability within industrial power generation environments, ensuring precise control over the de-excitation process.

Features

Designed specifically for the GE EX2100 series excitation control architecture.
Supports robust field de-excitation functions for generator protection.
Optimized for integration within complex power control cabinets.
High-performance circuitry to manage gate drive and isolation requirements.

Technical Specifications

Model Number	IS200EDEXG1A
Manufacturer	General Electric
System Series	EX2100
Power Input	24 V DC
Current Draw	≤ 0.5 A @ 24 V
Gate Drive Voltage	+125 V DC
Isolation Rating	500 V DC
Operating Temperature	-40 degC to +85 degC
Storage Temperature	-55 degC to +90 degC
Relative Humidity	5 to 95 % RH (non-condensing)

Installation Guidelines

Ensure the control system is fully de-energized before attempting to install or remove this board.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to internal components.
Verify that all terminal connections are secure and conform to the system wiring diagrams provided in the original EX2100 technical manual.
Maintain adequate ventilation within the cabinet to ensure the board operates within its specified temperature range.
Avoid routing signal cables near high-voltage power lines to minimize potential EMI interference.

FAQ

What is the primary function of the IS200EDEXG1A?

This module acts as a de-excitation board within the EX2100 control system, managing the safe discharge of field energy during generator de-excitation sequences.

Is this board compatible with other GE systems?

The IS200EDEXG1A is specifically designed for the EX2100 Excitation Control System. It is not intended for use in non-compatible legacy GE platforms.

What environmental conditions are required for this unit?

The board is built for industrial environments, supporting an operating temperature range of -40 degC to +85 degC and non-condensing humidity levels up to 95%.
