IS200BPAIH1ACB GE Analog I/O Processor Board

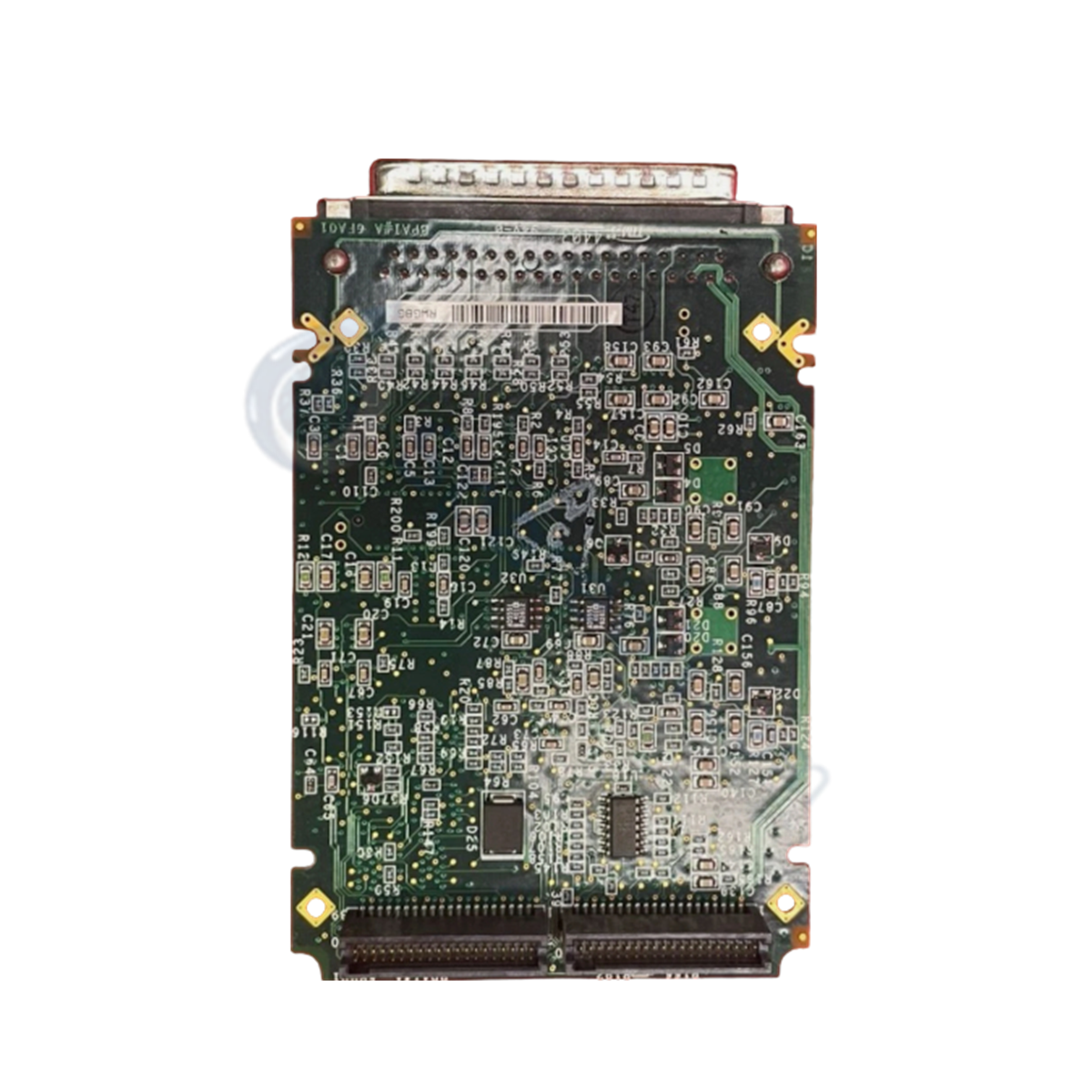

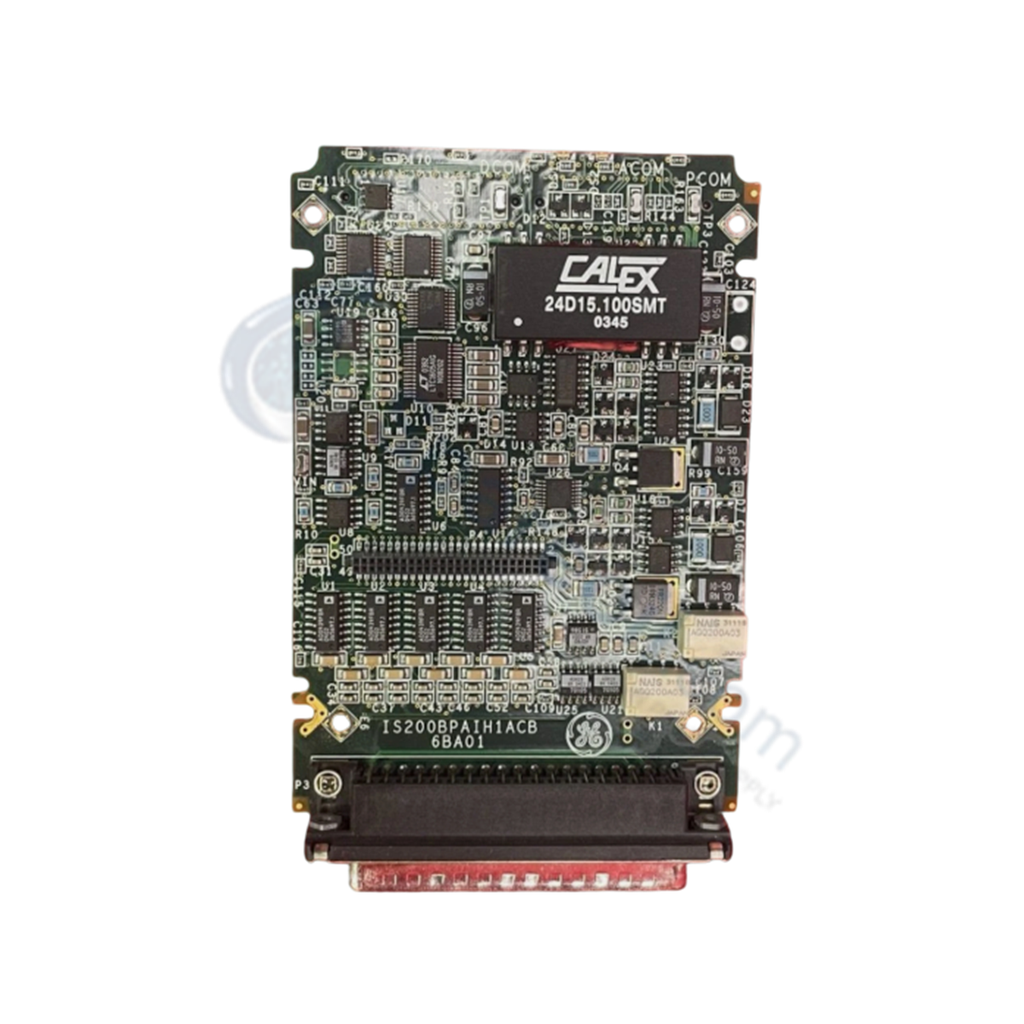

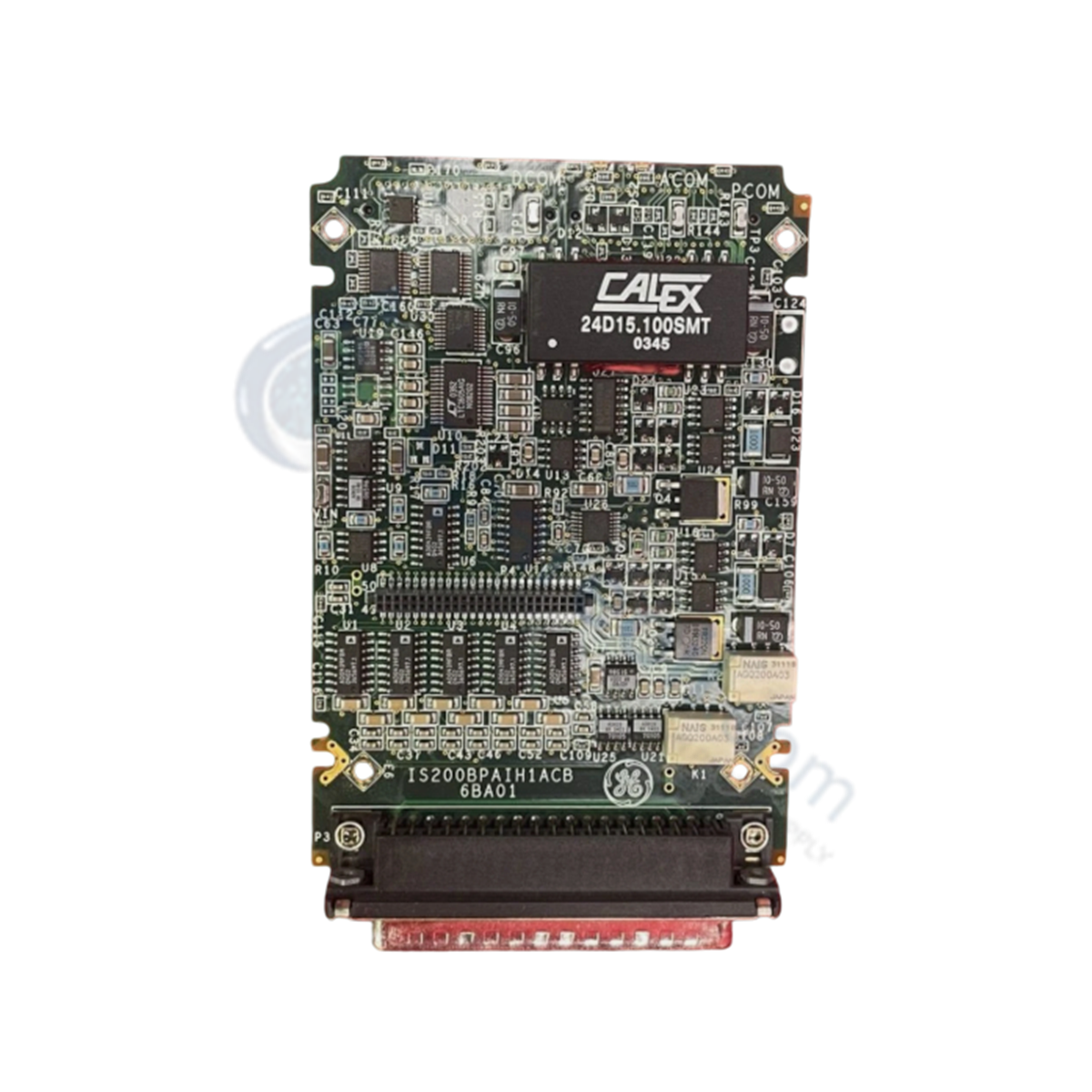

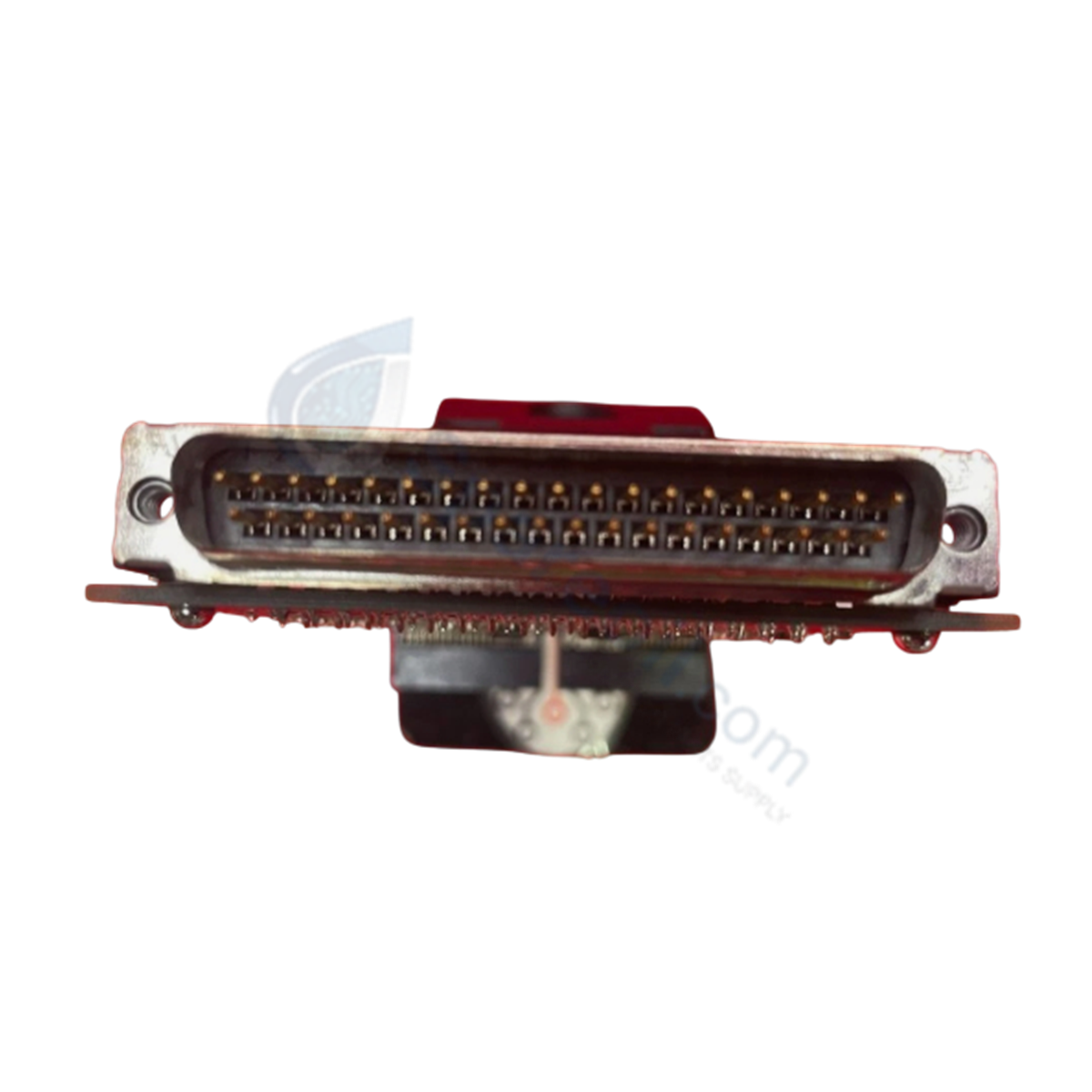

GE IS200BPAIH1ACB Mark VI Analog I/O Processor Board

GE IS200BPAIH1ACB Mark VI Analog I/O Processor Board

Disponibilidad: 10 Quedan en stock

The GE IS200BPAIH1ACB, also cataloged as the IS200BPAI Analog I/O Processor Board, operates as a dedicated hardware component for analog...

Código: IS200BPAIH1ACB

Manufacturer: General Electric
Product No.: IS200BPAIH1ACB
Product Type: Analog Input Modules
Product Origin: China
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE IS200BPAIH1ACB, also cataloged as the IS200BPAI Analog I/O Processor Board, operates as a dedicated hardware component for analog signal processing within GE Mark VI Speedtronic control system platforms. The card handles physical signal conditioning, analog-to-digital conversion, and scaling for field I/O channels before transmitting data over the system backplane.

Hardware Specifications

Parameter	Specification
Model	IS200BPAIH1ACB
Brand	General Electric
Origin	USA
Weight	0.65 kg
Dimensions	Standard 6U VME Form Factor
Operating Temp	-30 to +65 deg C
Power Consumption	12 W (VME backplane power bus)
System Compatibility	GE Mark VI Speedtronic Control System
Signal Types	Analog Current (4-20 mA) and Voltage Signals
Circuit Protection	Conformal PCB Coating
Configuration Support	Simplex and Triple Modular Redundant (TMR) Systems

Backplane Communication Velocity and Process Integration

The IS200BPAIH1ACB maintains high backplane bus communication velocity across the VME chassis to stream digitized analog values directly to main controller process loops. Onboard firmware flash compatibility enables deterministic sampling across high-density I/O configurations. Integrated noise filtering and transient voltage suppression prevent channel interference, allowing precise analog loop regulation across gas and steam turbine control architectures.

Frequently Asked Questions

Q: What primary function does the IS200BPAIH1ACB serve in a Mark VI system?

A: The card converts and conditions field analog input/output signals (voltage and 4-20 mA current loops) for real-time processing by the central system controller.

Q: Can the IS200BPAIH1ACB be installed in redundant control architectures?

A: Yes. The board supports both simplex and Triple Modular Redundant (TMR) Mark VI system configurations.

Q: Is hot-swapping supported for the IS200BPAIH1ACB board?

A: No. The VME rack power supply must be completely isolated prior to inserting or removing the board from the chassis to prevent pin arcing and signal disruption.

Field Installation Guidelines

Mount the IS200BPAIH1ACB in its assigned 6U VME rack slot within the Mark VI enclosure, verifying proper pin alignment along the backplane connector before applying firm pressure to seat the card. Fasten the top and bottom panel retention screws to ensure chassis frame grounding. Route analog input cabling using shielded twisted-pair conductors, keeping signal wires isolated from high-voltage AC cables. Terminate signal shields at a single point on the enclosure ground bus bar.
