IS420UCSCS2A GE Safety Controller Module

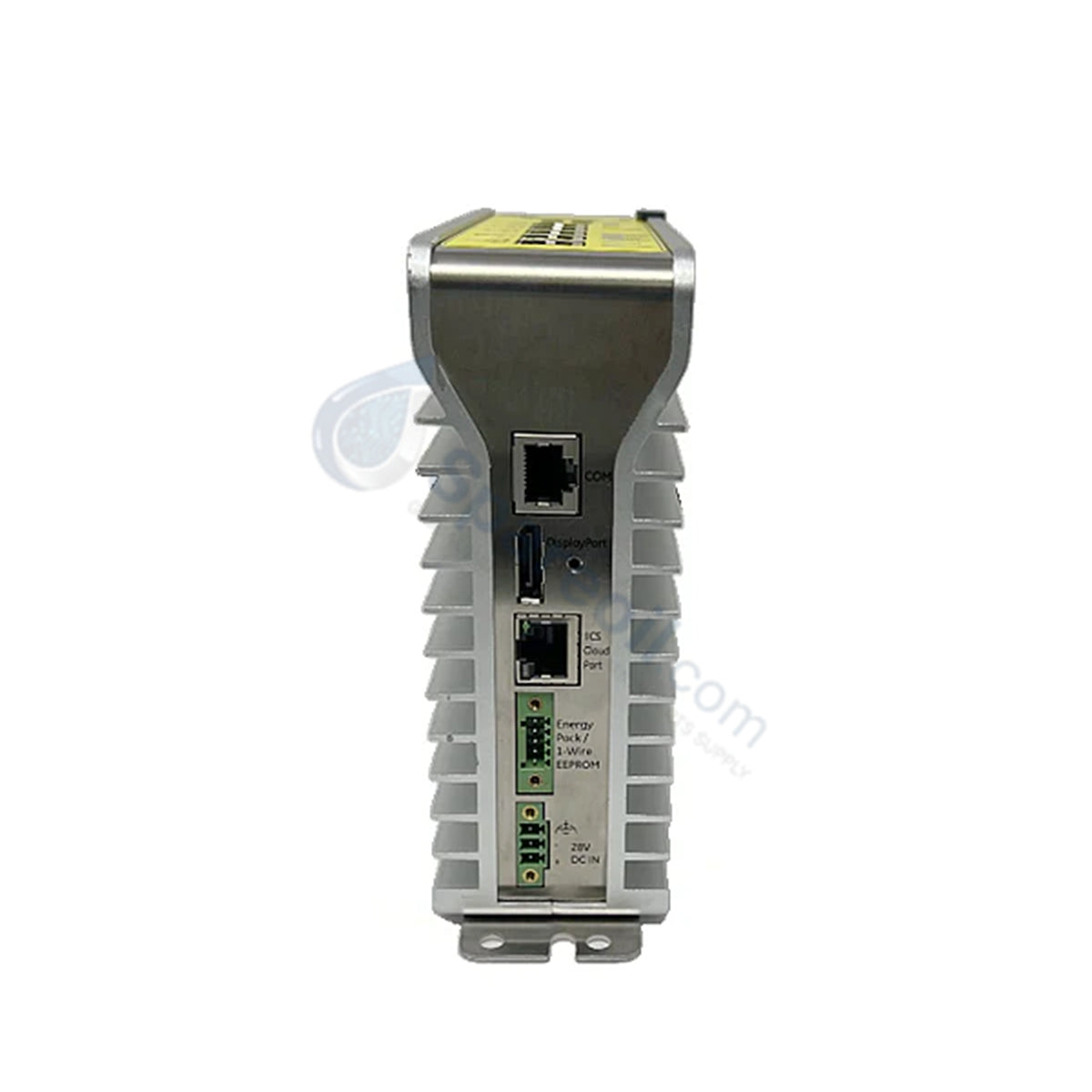

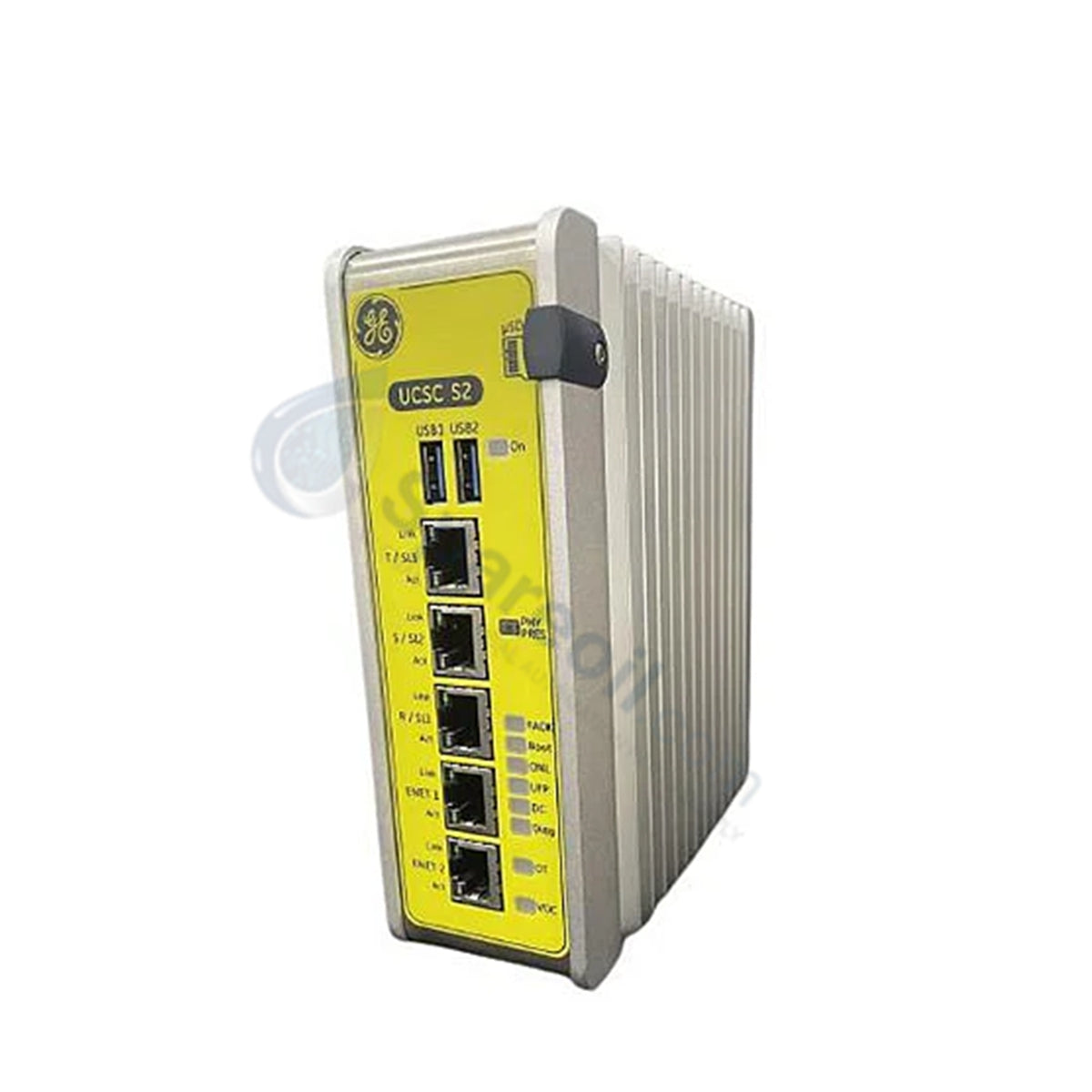

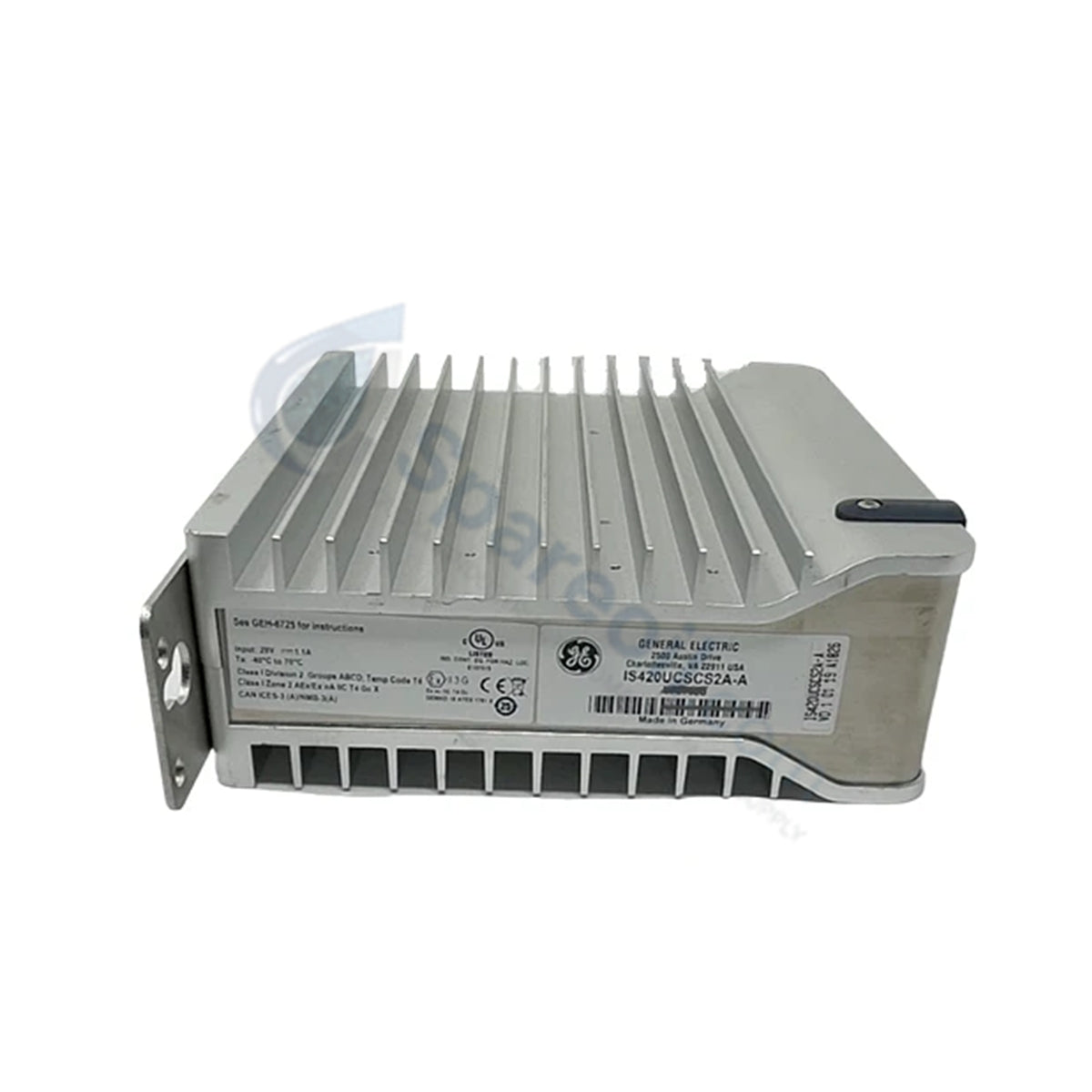

GE IS420UCSCS2A Mark VIeS Dual Core Safety Controller Module

GE IS420UCSCS2A Mark VIeS Dual Core Safety Controller Module

Disponibilidad: 10 Quedan en stock

Configured for SIL2 and SIL3 functional safety loop execution in Mark VIeS Safety platforms, the GE IS420UCSCS2A (IS420UCSC Dual Core...

Código: IS420UCSCS2A

Manufacturer: General Electric
Product No.: IS420UCSCS2A
Product Type: Safety Controllers
Product Origin: China
Payment:T/T, Western Union
Weight: 1327g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for SIL2 and SIL3 functional safety loop execution in Mark VIeS Safety platforms, the GE IS420UCSCS2A (IS420UCSC Dual Core Controller Module) provides direct physical/electrical execution. Running on the QNX Neutrino real-time operating system, this unit operates as a standalone safety processing engine without internal battery requirements or moving cooling components.

Hardware Specifications

Parameter	Specification
Model	IS420UCSCS2A
Brand	General Electric
Origin	United States
Weight	1,327 g
Dimensions	168 x 150 x 55 mm
Operating Temp	-40 to 70 deg C
Power Consumption	28 VDC nominal (18-32 VDC range)
Microprocessor	Dual core 1.6 GHz AMD G-Series
System Memory	2 GB DDR3-1066 SDRAM
Memory Storage	128 GB Flash Storage
Redundancy	Simplex, Dual, TMR (Triple Modular Redundancy)
Mounting	DIN-rail mounting
Input Span	-8 mV to +45 mV
Software Requirement	ControlST V07.02 or higher

Mark VIeS Deterministic Network Integration

The IS420UCSCS2A manages high-density logic execution across deterministic backplane networks, maintaining tight control cycle synchronization over on-board I/O network (IONet), PROFINET, and High-Speed Serial Link (HSSL) interfaces. Backplane bus communication velocity and determinism allow real-time firmware flash updates without interrupting ongoing processing loops. Up to seven additional I/O ports can be integrated to expand field interface capabilities without degrading scan-time performance.

Frequently Asked Questions

Q: How is thermal heat managed given the fanless enclosure design?

A: Heat dissipation is managed entirely through conduction and natural convection through the chassis housing. The internal architecture utilizes low-power dual-core processing components, eliminating moving mechanical parts and supporting an operational range from -40 to 70 deg C.

Q: Does the IS420UCSCS2A require an internal backup battery for volatile memory retention?

A: No. The unit is designed with onboard flash memory (128 GB) and non-volatile system memory structures, completely eliminating the need for an internal lithium battery or periodic maintenance cycles.

Field Installation Guidelines

Mount the module vertically onto standard industrial DIN-rail within an IP54 or better protective enclosure to prevent environmental contamination. Ensure the primary 28 VDC power distribution loop complies with the 18-32 VDC input envelope and is connected using shielded, low-impedance copper conductors. Shield cabling for Ethernet (IONet / PROFINET) and serial links must be grounded at the enclosure entry point via standard grounding clamps to mitigate high-frequency electromagnetic noise. Always ensure proper field wiring strain relief before applying main power.
