Honeywell 51304754-150 High Level Analog Input Processor

Disponibilidad: 0 Quedan en stock

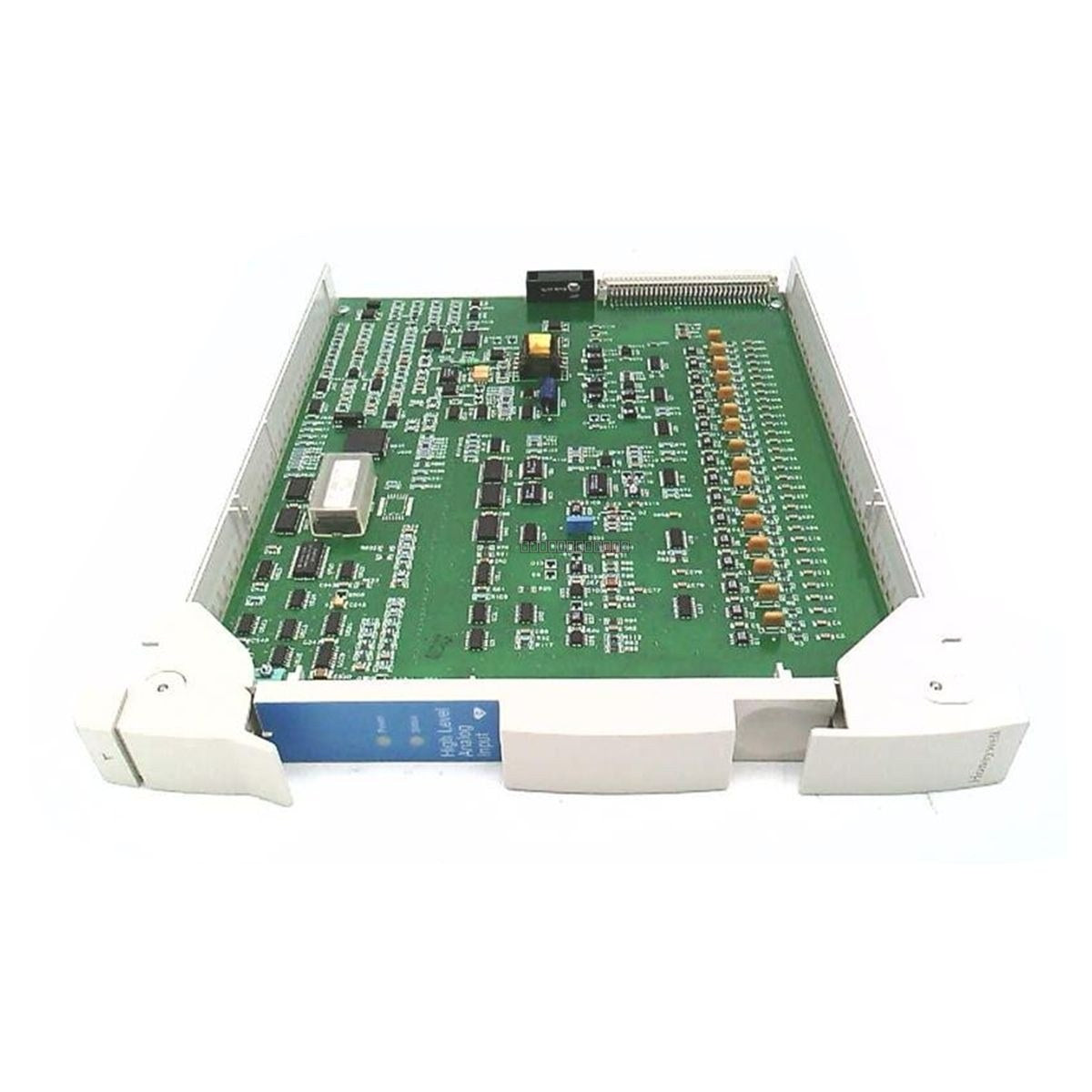

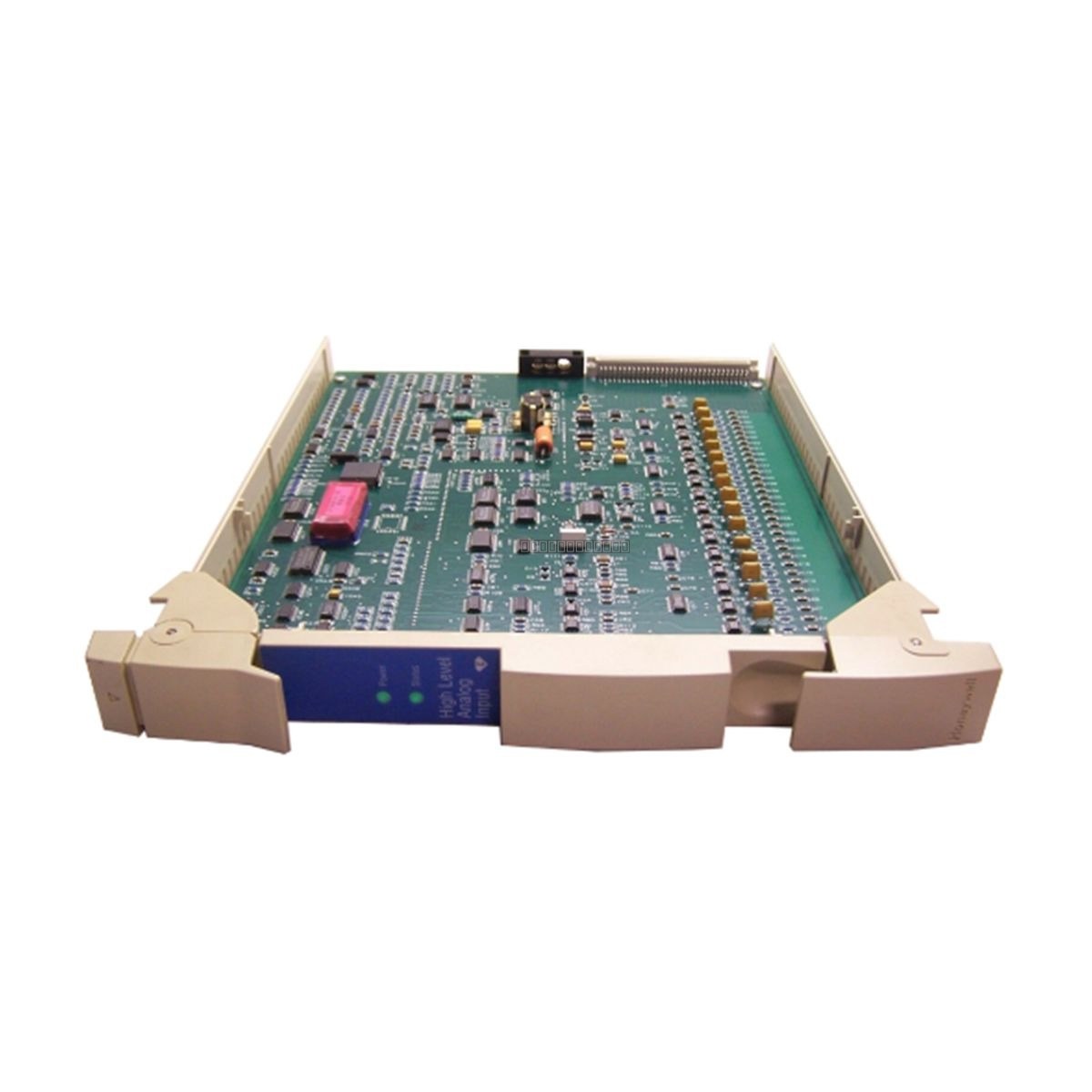

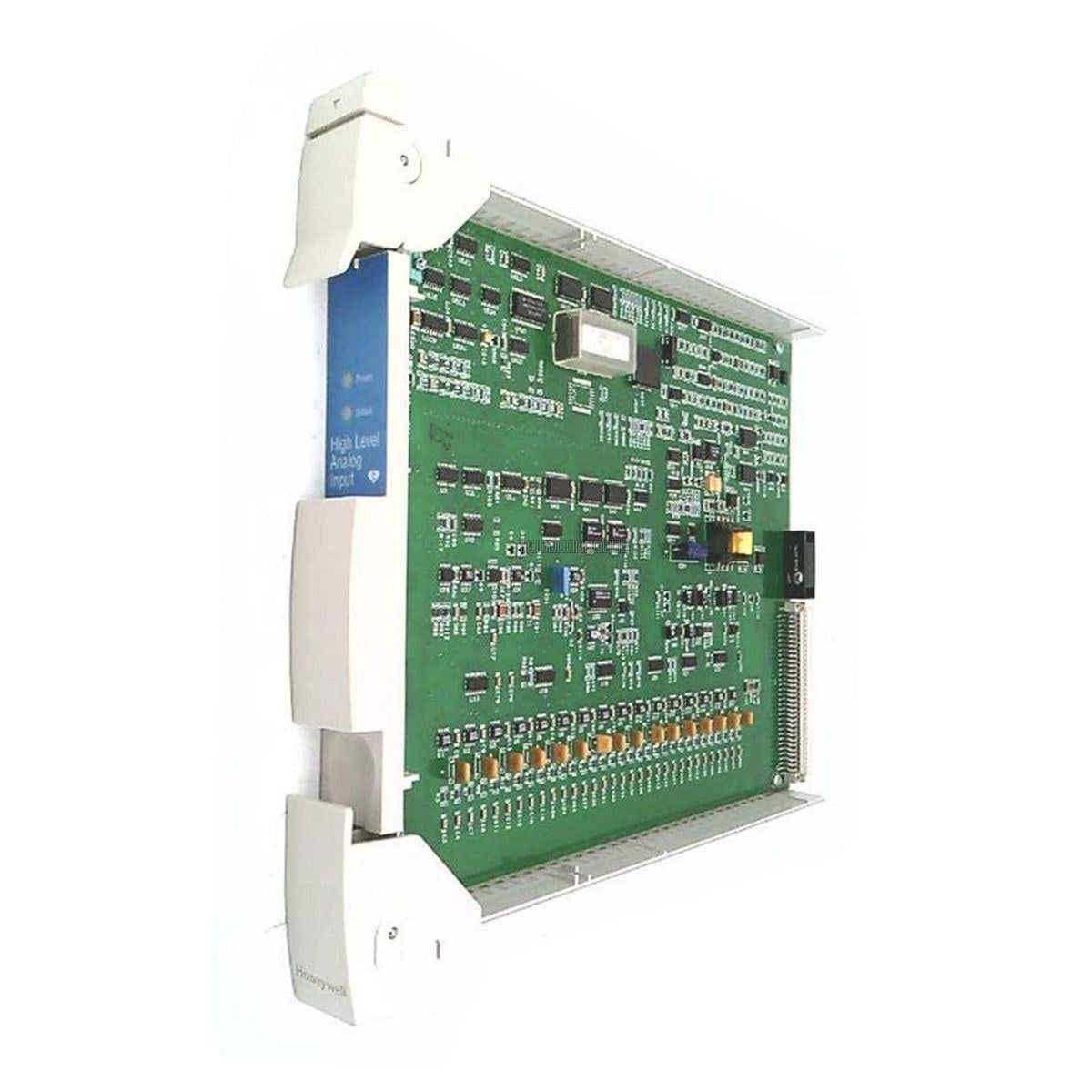

DescriptionThe Honeywell 51304754-150 is a 16-channel High Level Analog Input Processor designed for integration into distributed process control systems. This...

Código: 51304754-150

Manufacturer: Honeywell
Product No.: 51304754-150
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Honeywell 51304754-150 is a 16-channel High Level Analog Input Processor designed for integration into distributed process control systems. This module provides high-accuracy signal conditioning and reliable field data conversion for critical industrial applications, including refineries, power plants, and chemical processing facilities. It is engineered to accept voltage and current inputs from both 2-wire and self-powered transmitters, converting these process signals into high-resolution digital data for controller processing. The module's robust architecture minimizes signal distortion and ensures stable operation in electrically noisy industrial environments.

Features

16 differential input channels with independent signal conditioning.
High common mode rejection (70 dB) for superior noise immunity.
16-bit A/D conversion with 14-bit effective resolution.
Synchronized channel scanning with a 250 ms update window.
Integrated single-pole RC filtering with a -3 dB cutoff at 1 Hz.
Surge protection compliant with ANSI/IEEE C37.90.1-1978 standards.

Applications

This processor is suitable for continuous process control loops where stable analog measurement is required. It is commonly utilized in data acquisition systems for monitoring pressure, flow, temperature, and level transmitters in heavy industrial automation environments.

Technical Specifications

Model	51304754-150
Input Channels	16 Differential
Input Ranges	0-5 V, 1-5 V, 0.4-2 V, 4-20 mA
A/D Resolution	16-bit (14-bit effective)
Input Impedance	> 10 M ohm (voltage)
Scan Rate	4 samples/sec per channel (250 ms window)
Accuracy	+/- 0.075% FS (ref), +/- 0.15% FS (0-50 deg C)
FTA Compatibility	MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62
Operating Temperature	0 to 50 deg C

Installation Guidelines

Ensure the system power is disconnected before installing or removing the module from the rack.
Use appropriate ESD protection when handling the module to prevent damage to internal electronic components.
Ensure proper grounding of the Field Termination Assembly (FTA) to maintain signal integrity and safety.
Route signal cables away from high-voltage power lines and sources of high EMI to minimize noise interference.
Verify that all field wiring is properly terminated and that current loop resistors are correctly installed for 4-20 mA inputs.

FAQ

What is the primary function of the 51304754-150 module?

The module acts as a high-level analog input processor that converts analog signals from field transmitters into digital data for use in Honeywell distributed control systems.

Does this module support 4-20 mA inputs?

Yes, the module supports 4-20 mA current loops when used with an external 250 ohm resistor for signal conversion.

What is the required operating temperature range?

The module is rated for operation between 0 and 50 deg C, with peak accuracy maintained at 23.5 +/- 2 deg C.
