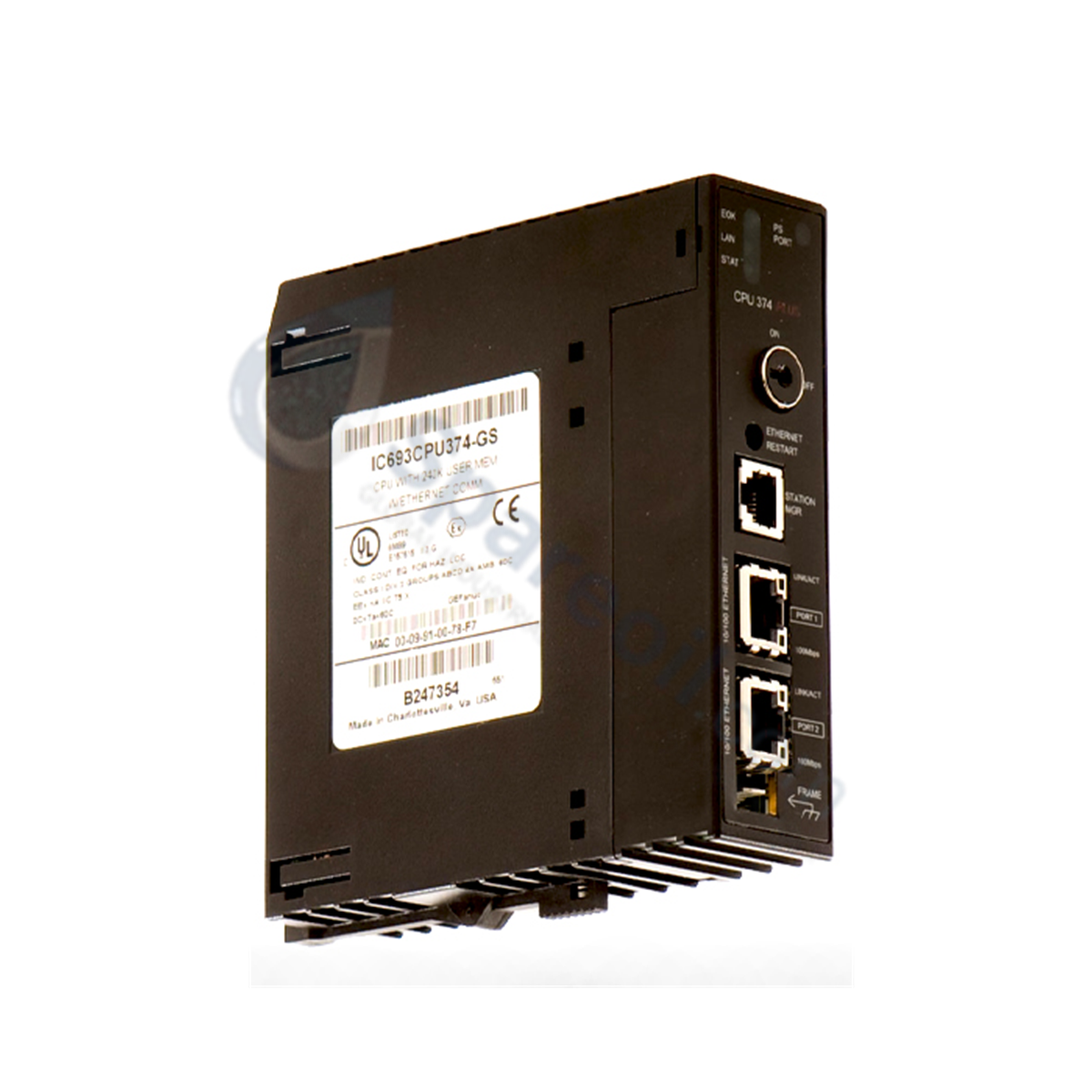

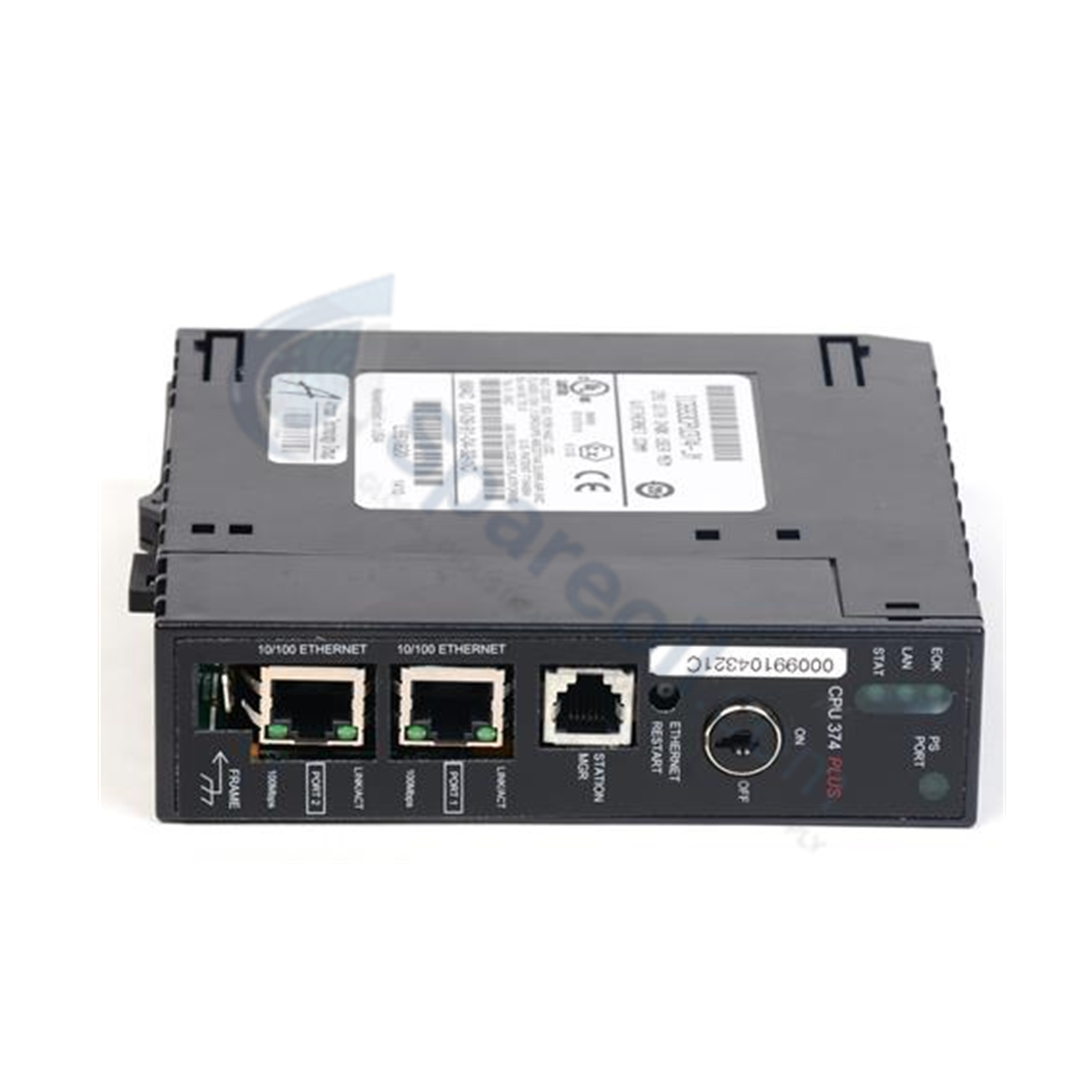

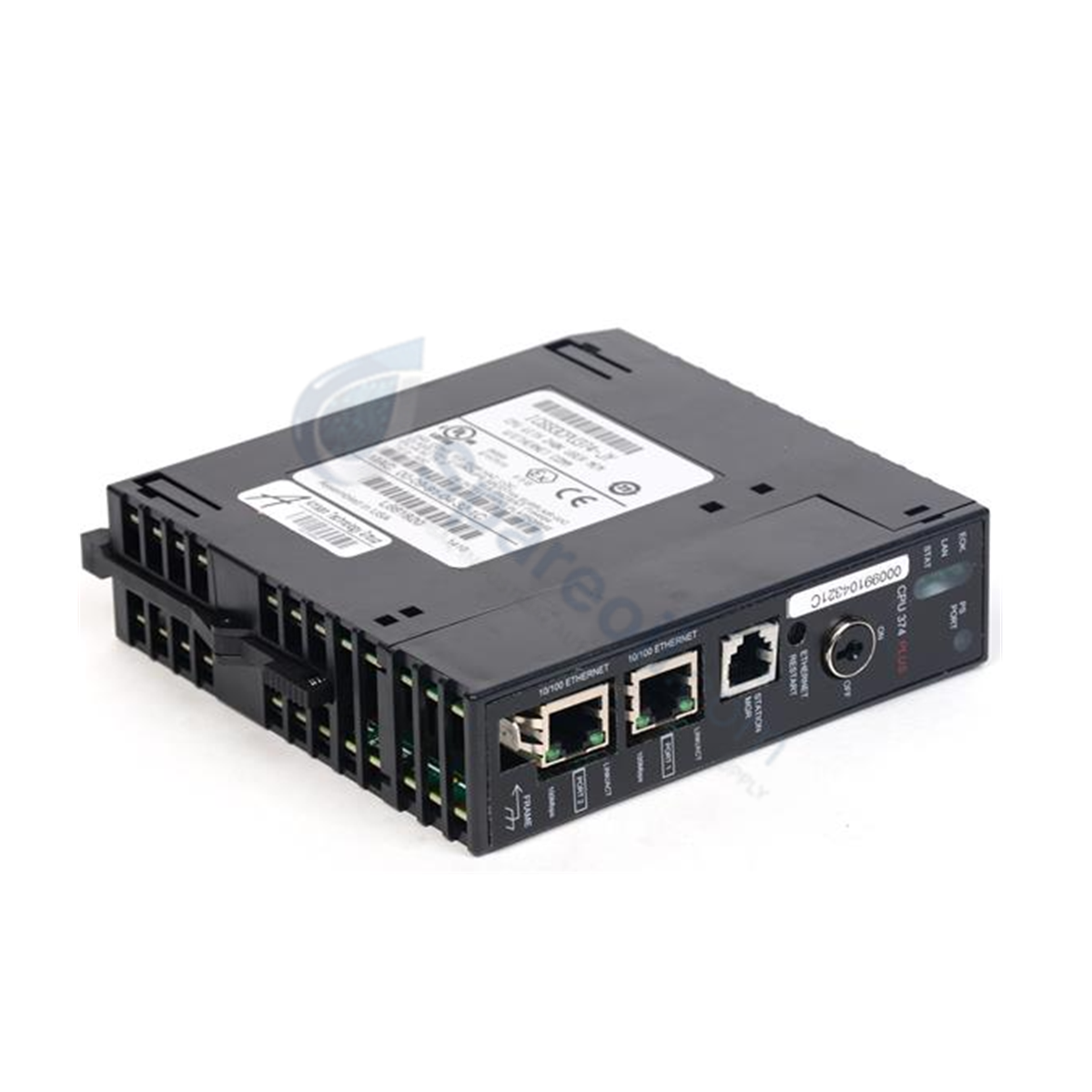

IC693CPU374 GE Fanuc Series 90-30 CPU Module

IC693CPU374 GE Fanuc Series 90-30 CPU Module

Disponibilidad: 10 Quedan en stock

The GE Fanuc IC693CPU374, also cataloged as the IC693CPU374 CPU Module with Communication Interface, operates as a dedicated hardware component...

Código: IC693CPU374

Manufacturer: GE Fanuc
Product No.: IC693CPU374
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 510g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE Fanuc IC693CPU374, also cataloged as the IC693CPU374 CPU Module with Communication Interface, operates as a dedicated hardware component for logic processing and network communication management within Series 90-30 platforms.

Hardware Specifications

Parameter	Specification
Model	IC693CPU374
Brand	GE Fanuc Emerson
Origin	United States
Weight	0.51 kg (1.13 lbs)
Dimensions	Standard single slot width
Operating Temp	Industry standard 0 to 60 deg C (ambient)
Power Consumption	Industry standard for Series 90-30 CPU modules
Ethernet Processor Speed	200 MHz
Ethernet Connectors	2x RJ45 interfaces
Network Capability	1 IP address configuration
Embedded Ethernet Switch	Yes (internal hardware layer)
Serial Port Interface	1x RS-232 DCE port
Serial Transmission Speed	1200 to 115200 bps
Network Topology Support	Daisy chaining for Ethernet nodes
Engineering Support	PLC programming and configuration services

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The module incorporates an embedded Ethernet switch layer to maintain synchronous data throughput over Profinet / EtherNet/IP deterministic networks without external hardware components. It utilizes high-efficiency backplane bus logic to process periodic data exchange and diagnostic tracking while executing local control loops. This onboard dual-port structure allows seamless daisy chaining of network infrastructure, ensuring consistent memory synchronization and accurate troubleshooting routines during extreme I/O density scaling.

Frequently Asked Questions

Q: How many IP addresses can be bound to the dual RJ45 ports on this module?

A: The embedded Ethernet switch layer acts on a single hardware controller interface, allowing the configuration of exactly 1 IP address for both physical RJ45 ports. This enables local daisy chaining of network segments without requiring separate IP subnets.

Q: Can the RS-232 DCE serial port operate concurrently with the integrated Ethernet interface?

A: Yes. The serial port operates on dedicated UART circuitry supporting asynchronous communication from 1200 up to 115200 bps, running independently of the 200 MHz Ethernet processor communication channels.

Field Installation Guidelines

Disconnect all primary power feeding the Series 90-30 baseplate prior to inserting or extracting the CPU module to prevent permanent electrical damage to the logic pins.
Align the module housing into the dedicated CPU slot (Slot 1) of the baseplate, ensuring the underlying gold-finger connectors mesh cleanly with the backplane reception tracks.
Ensure the chassis latch is pushed down completely to secure the unit against environmental vibrations.
When utilizing the integrated ports for daisy chaining, choose category 5e or better shielded industrial Ethernet cables, grounding the overall shield wire at the entry point of the metal panel cabinet to maintain isolation integrity.
