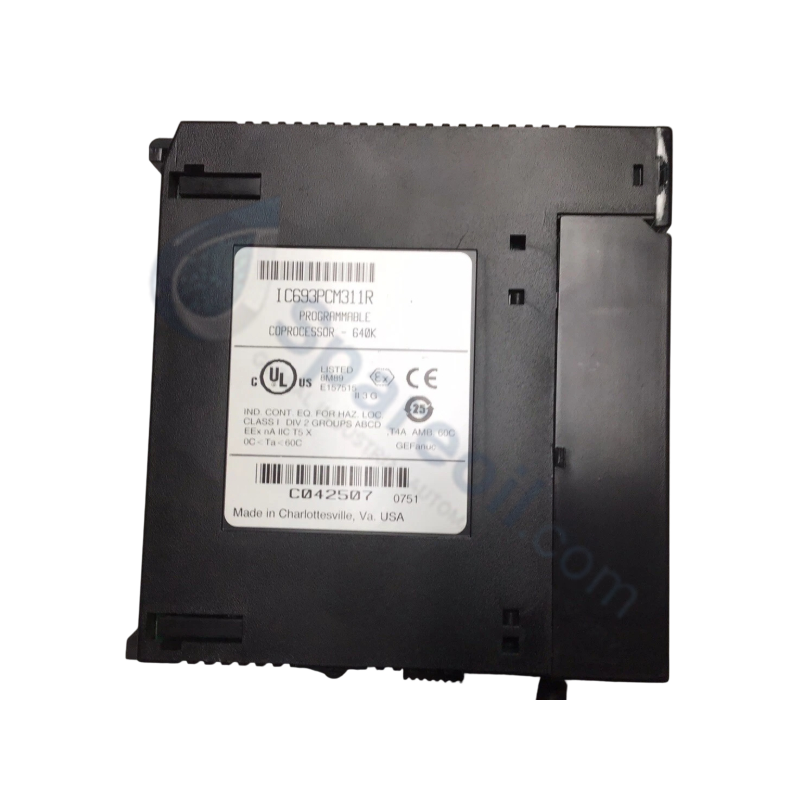

IC693PCM311 GE Fanuc Programmable Coprocessor Module

IC693PCM311 GE Fanuc Programmable Coprocessor Module

Disponibilidad: 10 Quedan en stock

The GE Fanuc IC693PCM311, also cataloged as the IC693PCM311 Programmable Coprocessor Module, operates as a dedicated hardware component for serial...

Código: IC693PCM311

Manufacturer: GE Fanuc
Product No.: IC693PCM311
Product Type: Coprocessor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE Fanuc IC693PCM311, also cataloged as the IC693PCM311 Programmable Coprocessor Module, operates as a dedicated hardware component for serial protocol processing and high-level language execution within Series 90-30 PLC platforms.

Hardware Specifications

Parameter	Specification
Model	IC693PCM311
Brand	GE Fanuc Emerson
Origin	USA
Weight	1.00 lbs (0.45 kg)
Dimensions	Single-slot Series 90-30 module width
Operating Temp	0 to 60 deg C
Power Consumption	2.0 Watts (400 mA at 5 VDC backplane supply)
Total Memory	640 KB total (190 KB allocated for MegaBasic)

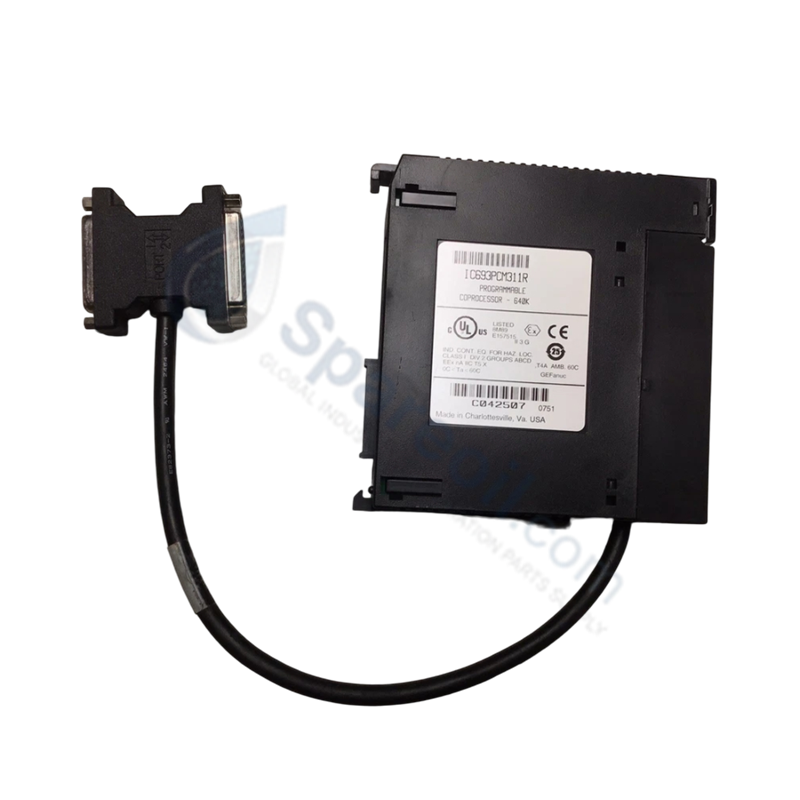

Serial Interfaces	2 physical serial ports via single high-density DB-style connector
Supported Protocols	Modbus RTU (Master/Slave) and GE Fanuc CCM
Operational Modes	Program Mode and Run Mode
Diagnostic Display	3 LED status indicators
Memory Protection	Lithium battery back-up
Operating Altitude	Up to 1000 m maximum
PLC Compatibility	GE Fanuc Series 90-30 rack system

Backplane Bus Communication Velocity & Firmware Processing

The IC693PCM311 offloads specialized communication and data parsing tasks from the primary PLC CPU to optimize total backplane bus communication velocity. The module draws 400 mA from the internal 5 VDC rack supply to power its onboard processor, 640 KB memory bank, and dual serial interface hardware. Firmware flash compatibility and deterministic data interchange across the Series 90-30 backplane allow real-time register transfers between MegaBasic program execution routines and CPU memory blocks. Non-volatile retention of loaded execution tasks and communication configuration parameters during power isolation is secured through an integrated lithium backup battery.

Frequently Asked Questions

Q: What are the backplane power loading specifications for the IC693PCM311 coprocessor?

A: The module draws up to 400 mA of current strictly from the 5 VDC internal backplane power supply bus.

Q: Which communication protocols are supported on the physical serial interfaces?

A: The two physical serial ports support Modbus RTU protocol in both Master and Slave modes, as well as GE Fanuc CCM protocols via the single high-density DB-style connection.

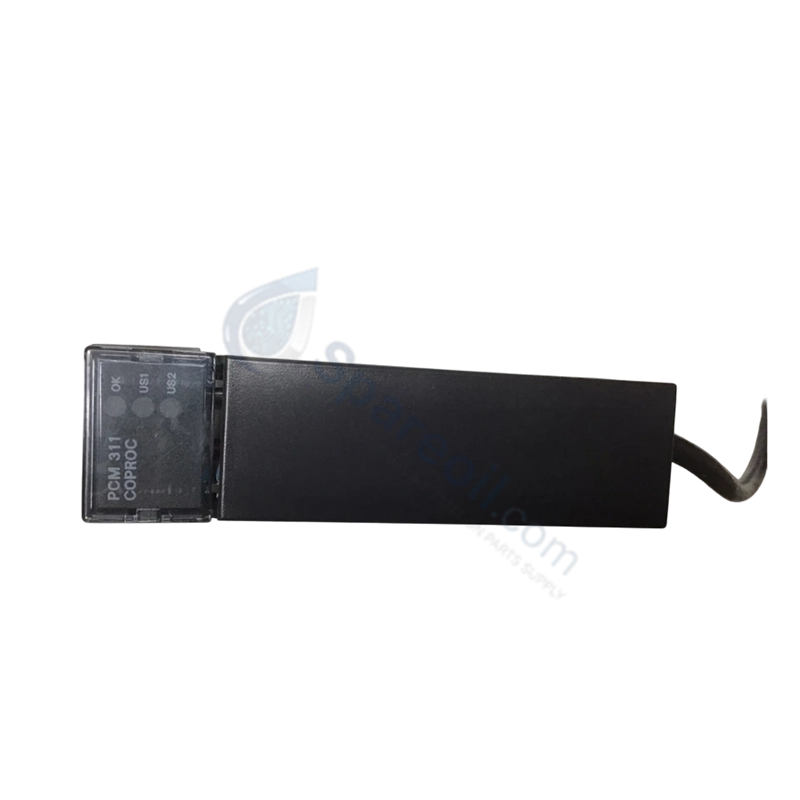

Q: How is program execution state monitored on the module front panel?

A: Real-time operational feedback and hardware status are reported via three front-panel LED indicators displaying active status across Program Mode and Run Mode execution states.

Field Installation Guidelines

De-energize the Series 90-30 rack power supply and tag out incoming line voltage before attempting hardware insertion or removal.
Verify that the lithium backup battery is connected correctly to preserve memory retention prior to module mounting.
Align the module housing with the card guides of any open slot in the Series 90-30 baseplate, pushing firmly until the backplane connector seats completely.
Tighten the retaining screw at the top of the module to establish chassis ground continuity and prevent movement under operational vibration.
Connect field communication wiring to the high-density DB-style port using shielded cables, keeping signal cables separated from high-voltage motor circuits to reduce electrical noise.
