IC695CBL001 GE Fanuc RX3i Datasheet & Technical Manual

IC695CBL001 PACSystems RX3i CPU Energy Cable | GE Fanuc

IC695CBL001 PACSystems RX3i CPU Energy Cable | GE Fanuc

Disponibilidad: 10 Quedan en stock

The GE Fanuc IC695CBL001, also cataloged as the IC695CBL001 Energy Pack Cable, operates as a dedicated hardware component for linking...

Código: IC695CBL001

Manufacturer: GE Fanuc
Product No.: IC695CBL001
Product Type: PLC Cable Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 60g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

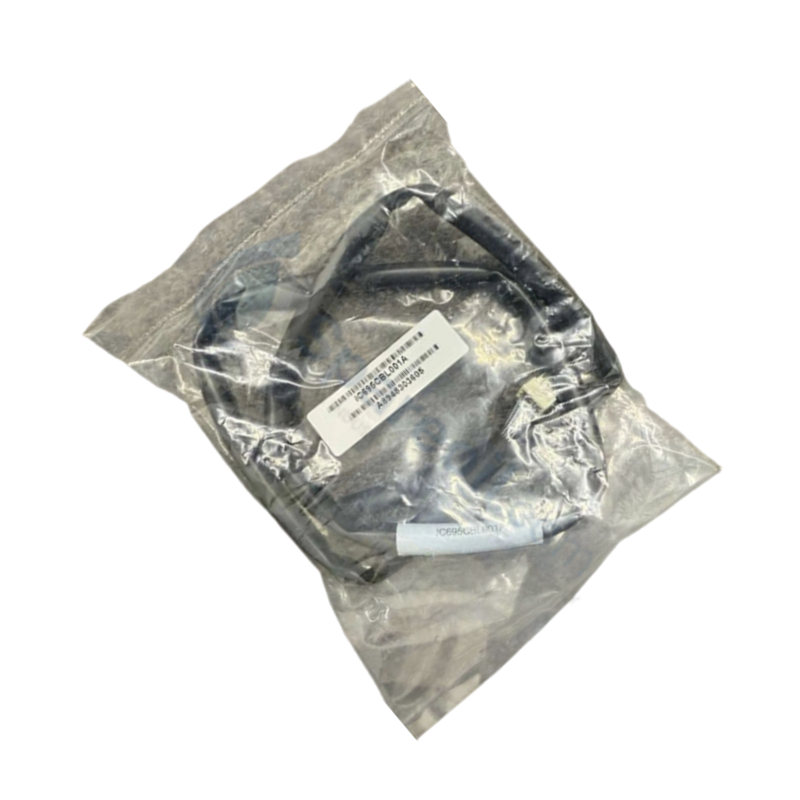

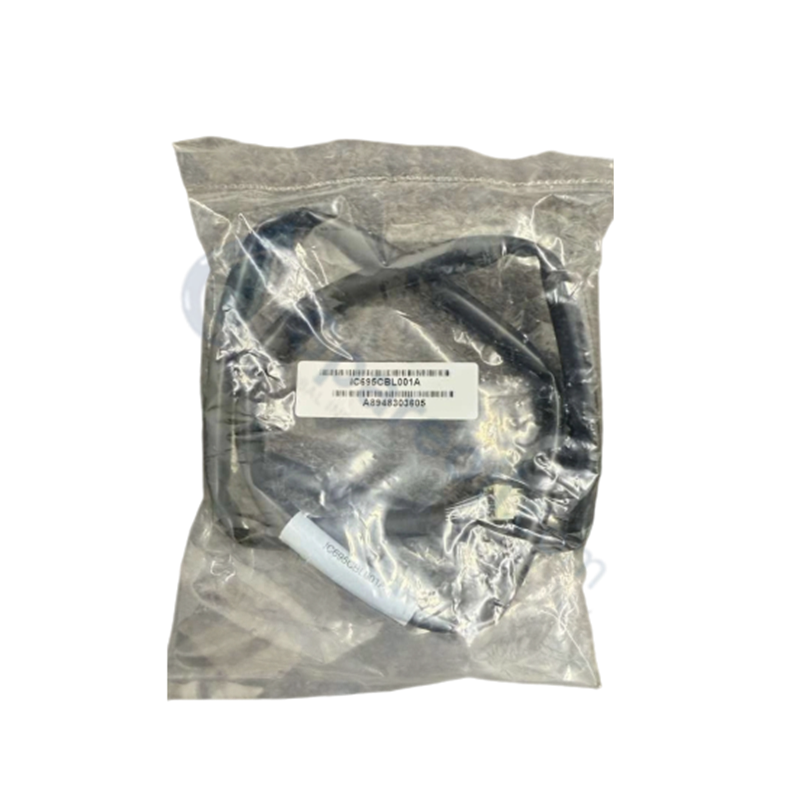

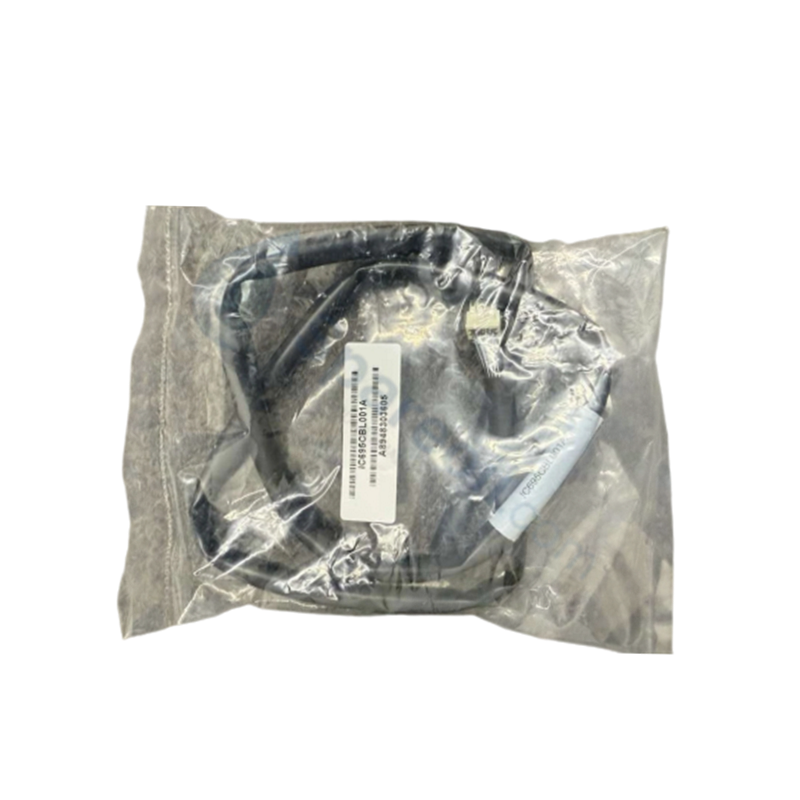

The GE Fanuc IC695CBL001, also cataloged as the IC695CBL001 Energy Pack Cable, operates as a dedicated hardware component for linking energy pack backup power units to CPU modules within PACSystems RX3i platforms.

Hardware Specifications

Parameter	Specification
Model	IC695CBL001
Brand	GE Fanuc Emerson
Origin	United States
Weight	0.13 lbs (0.06 kg)
Dimensions	0.91 m (3 ft) length
Operating Temp	0 to 60 deg C (32 to 140 deg F)
Power Consumption	Passive physical link
Cable Type	Dedicated energy pack connection cable
Wiring Architecture	Straight-through end-to-end wiring with termination resistors
Energy Pack Compliance	EU RoHS Directive 2011/65/EU
Compatible CPUs	PACSystems RX3i CPE302, CPE305, CPE310
System Operating Voltages	24 VDC, 125 VDC, 120/240 VAC systems
Target Device Dimensions	Energy Pack: 140 x 124 x 25.4 mm (5.5 x 4.8 x 1.0 in)

Backplane Bus Communication Velocity and System Data Preservation

During system power failure conditions, the IC695CBL001 provides low-impedance power delivery from the Energy Pack directly to the CPU logic board. This auxiliary power hold-up allows the CPU to complete volatile-to-non-volatile memory transfers without disrupting processing execution or corrupting memory tables. The straight-through wiring layout with built-in termination resistors maintains signal fidelity and prevents voltage drops across the connection interface, upholding deterministic operational recovery upon power restoration while maintaining full firmware flash compatibility across RX3i control systems.

Frequently Asked Questions

Q: Which CPU models are compatible with the IC695CBL001 connection cable?

A: The IC695CBL001 cable connects the RX3i Energy Pack to PACSystems RX3i CPU models including the CPE302, CPE305, and CPE310 units.

Q: What is the primary function of the cable during a power loss event?

A: The cable transfers power from the energy pack module to the CPU long enough for the processor to flash volatile configuration files and user RAM data into non-volatile memory before full system shutdown.

Q: Where are the cable connection ports located on the hardware?

A: The interconnecting ports are located at the bottom of the RX3i Energy Pack and the bottom header of the target CPU module.

Field Installation Guidelines

Disconnect main line power to the PACSystems RX3i baseplate and field power distribution blocks before servicing the CPU or energy pack.
Mount the RX3i Energy Pack adjacent to the CPU module according to rack clearance and dimensional guidelines.
Align the IC695CBL001 cable connectors with the designated receptacle ports located at the bottom of the CPU and Energy Pack modules.
Insert both cable ends straight into the ports until the locking latches engage securely to prevent accidental disconnects under vibration.
Apply main power to the rack chassis and verify that the CPU power status and Energy Pack diagnostic LEDs indicate proper charging and readiness.
