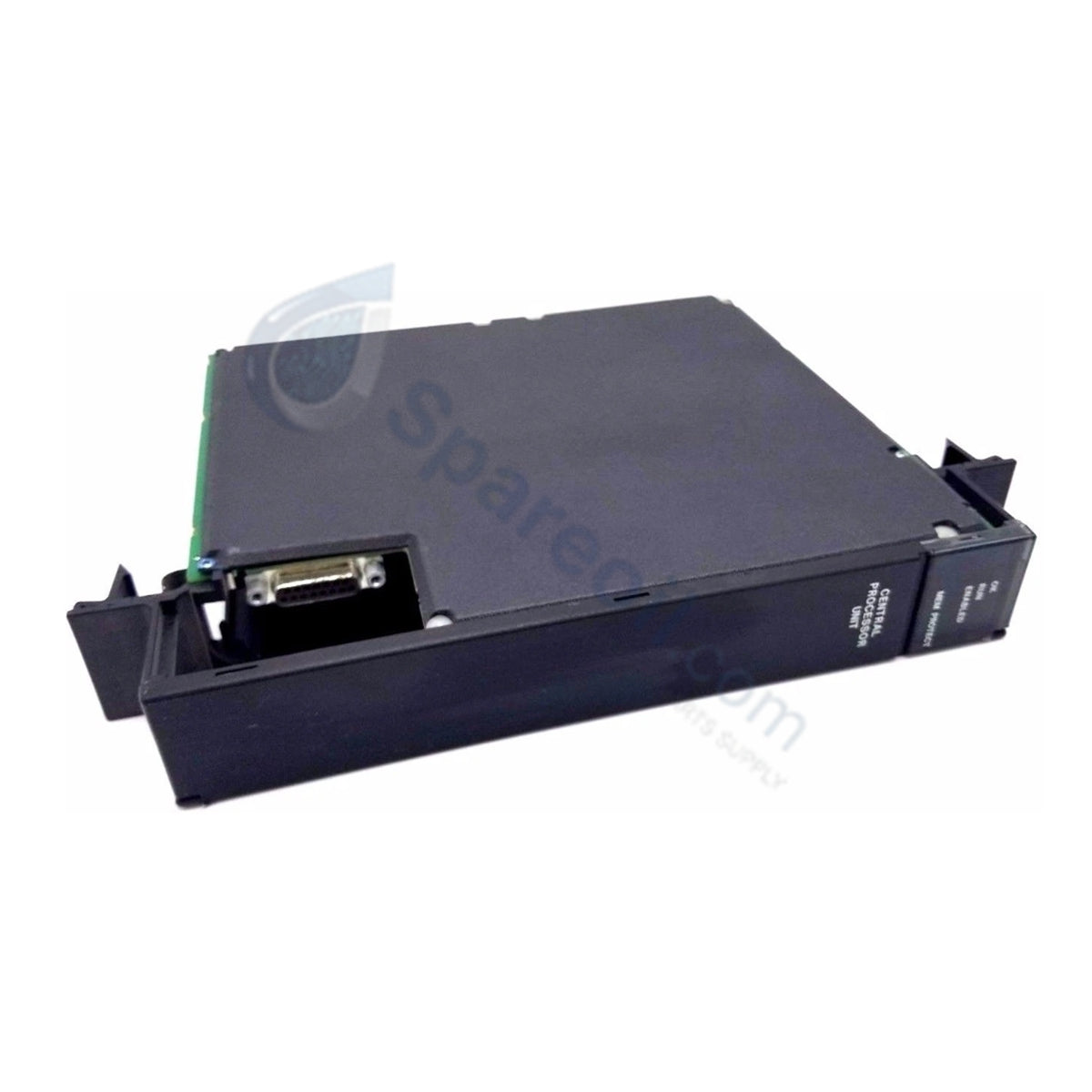

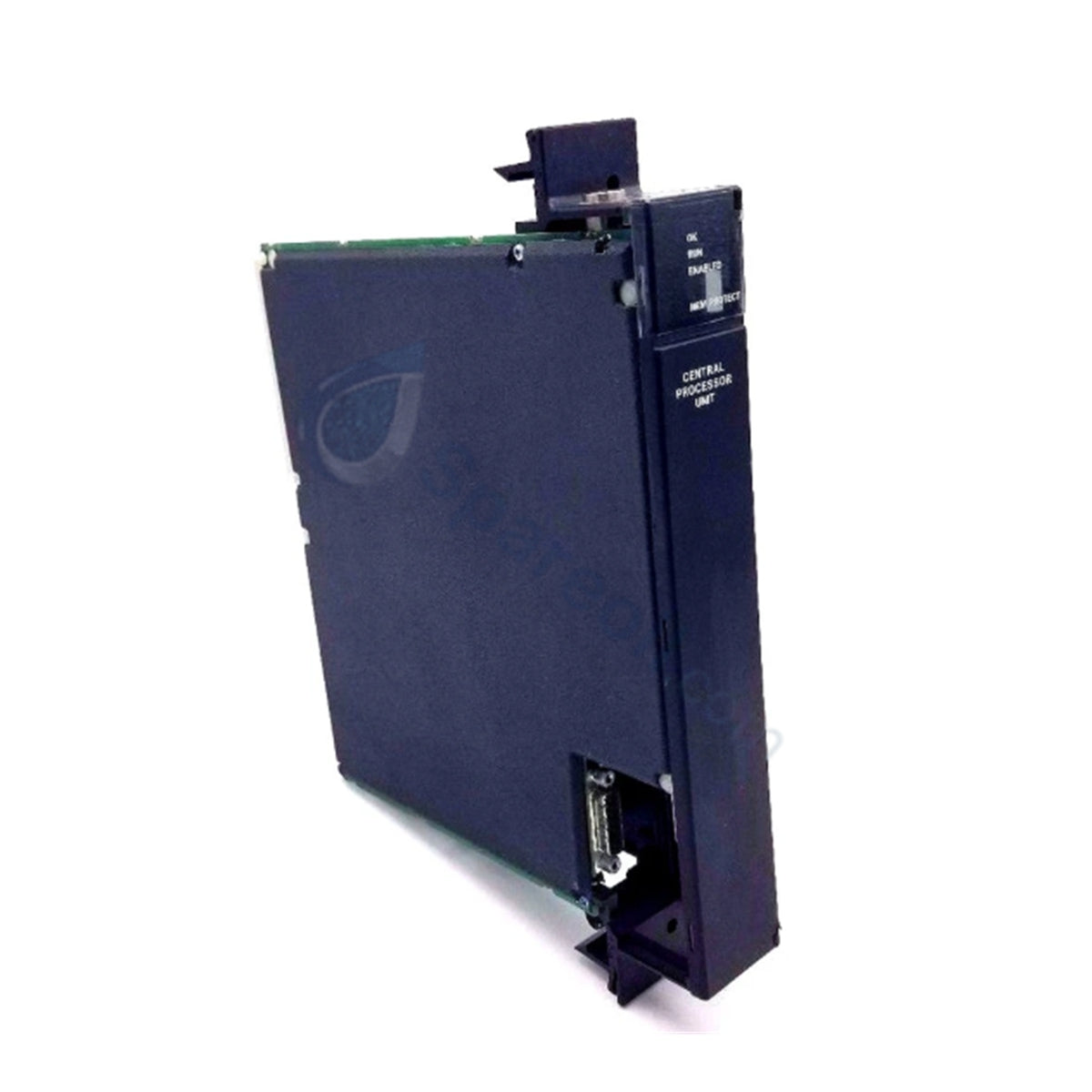

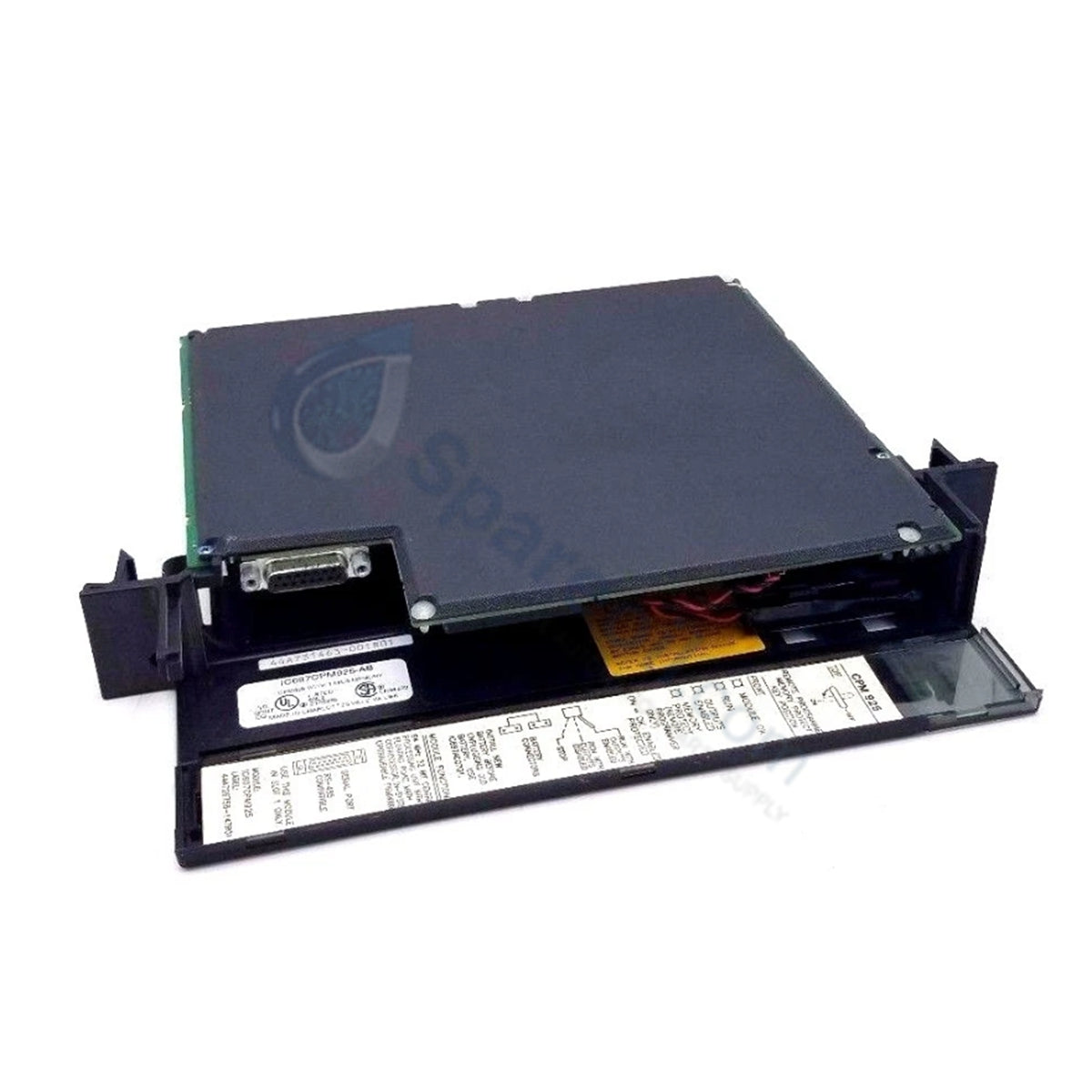

IC697CPM925 GE Fanuc CPU Module | New & Original Stock

IC697CPM925 Series 90-70 Central Processing Unit | GE

IC697CPM925 Series 90-70 Central Processing Unit | GE

Disponibilidad: 10 Quedan en stock

The GE IC697CPM925 serves as the primary IC697CPM925 Central Processing Unit utilized to execute high-speed industrial logic and arithmetic operations...

Código: IC697CPM925

Manufacturer: GE Fanuc
Product No.: IC697CPM925
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE IC697CPM925 serves as the primary IC697CPM925 Central Processing Unit utilized to execute high-speed industrial logic and arithmetic operations across Series 90-70 platforms.

Hardware Specifications

Parameter	Specification
Model	IC697CPM925
Brand	GE Fanuc Emerson
Origin	United States
Weight	0.82 kg (1.81 lbs)
Dimensions	Standard single-slot Series 90-70 module footprint
Operating Temp	0 to 60 deg C
Power Consumption	Sourced from backplane bus
Processor Frequency	64 MHz
Processing Architecture	32-bit floating-point
User Memory Capacity	1 Mbyte
Discrete I/O Capacity	12 K discrete inputs/outputs

Firmware Flash Compatibility & I/O Density Scaling

The IC697CPM925 handles complex system configurations by facilitating extensive I/O density scaling, managing up to 12 K discrete I/O points over standard bus channels. Real-time calculations are governed by its integrated 64 MHz 32-bit floating-point processor. The system architecture supports modular updates via direct firmware flash compatibility, allowing integration with co-processors and communication cards across the rack backplane without demanding supplementary communication velocity licenses.

Frequently Asked Questions

Q: How is the 1 Mbyte user memory on the CPU module protected from volatile data loss?

A: Data preservation during power outages is maintained by the backup battery located on the system power supply module, which distributes trickle current to the RAM through the backplane bus.

Q: Does the IC697CPM925 support hot-swap insertion or removal?

A: No. The module must be installed or removed only when the rack power supply is completely switched off to prevent transient voltage spikes from damaging the internal bus connection pins.

Field Installation Guidelines

Slot Allocation: The CPU module must be installed in Slot 1 of the primary Series 90-70 rack chassis.
Electrostatic Grounding: Maintain continuous grounding via an ESD wrist strap during installation to prevent damage to the CMOS microprocessor components.
Bus Connection: Align the module side card guides and press firmly until the backplane connector is fully seated, then engage the top and bottom chassis locking tabs.
Battery Check: Verify that the power supply backup battery is connected and active prior to transferring logic programs to prevent volatile memory clears on subsequent power cycles.
