AP3101 Triconex SIS Series Datasheet & Technical Manual

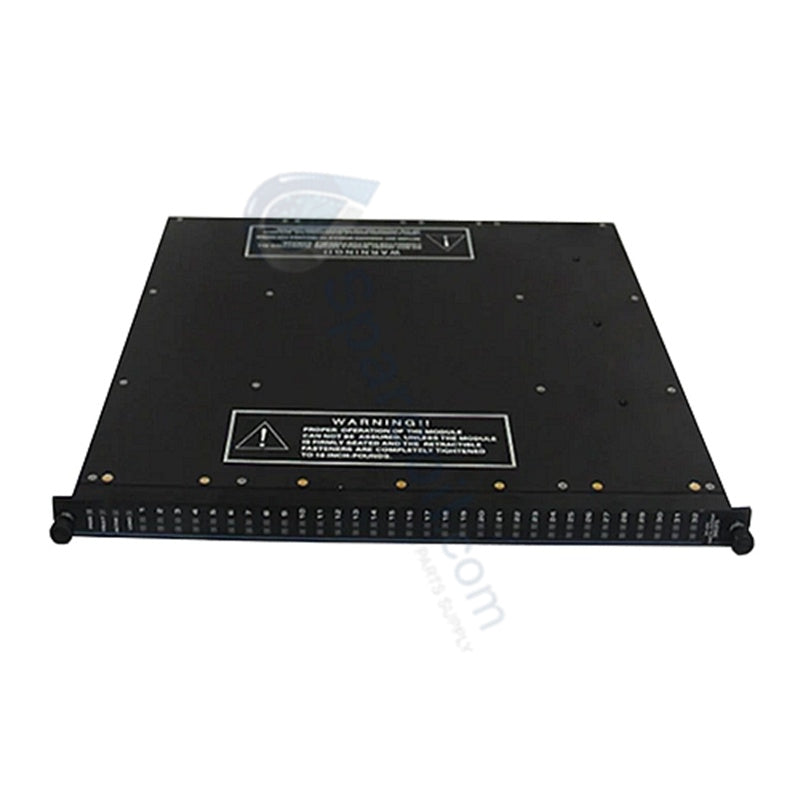

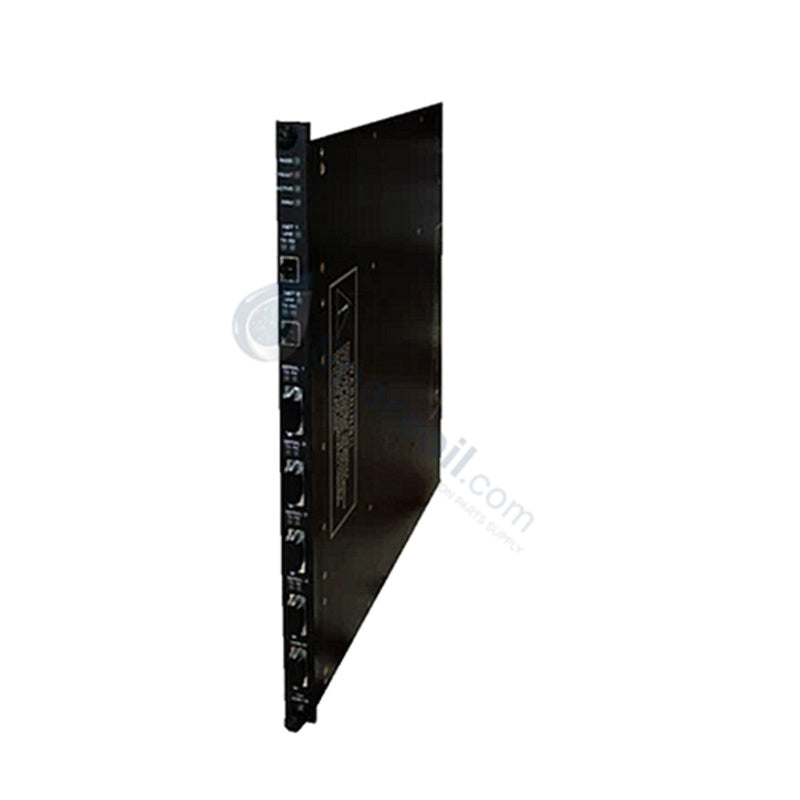

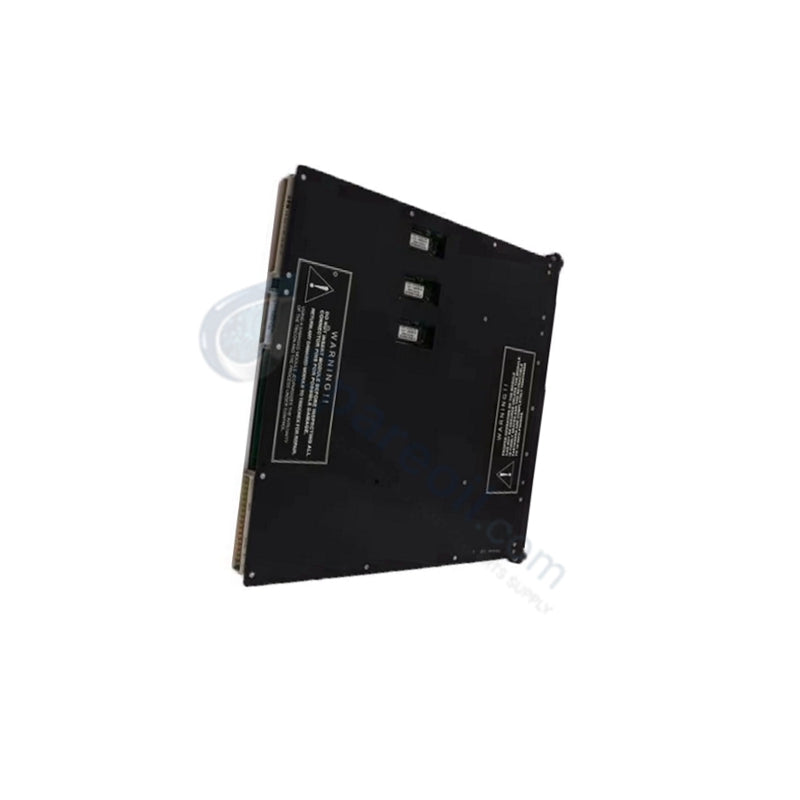

ICS Triconex AP3101 TMR Main Processor Module

ICS Triconex AP3101 TMR Main Processor Module

Disponibilidad: 20 Quedan en stock

Triconex AP3101 Main Processor Module The Triconex AP3101, also cataloged as the AP3101 Main Processor Module, serves as the primary...

Código: AP3101

Manufacturer: ICS Triplex
Product No.: AP3101
Product Type: Main Processor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Triconex AP3101 Main Processor Module

The Triconex AP3101, also cataloged as the AP3101 Main Processor Module, serves as the primary AP3101 Main Processor Module utilized to execute safety logic computations and coordinate peripheral I/O modules across Triconex SIS platforms.

Hardware Specifications

Parameter	Specification
Model	AP3101
Brand	Triconex
Origin	Industrial Standard Specification
Weight	1.5 - 2.3 kg
Dimensions	228 mm × 160 mm × 75 mm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	8 W max
Application Processor (SX)	Motorola MPC860, 32-bit, 50 MHz
Input/Output Processor (IOX)	Motorola MPC860, 32-bit, 50 MHz
System Memory	6 MB Flash PROM, 16 MB DRAM, 8 KB NVRAM
Diagnostic Bus	2 Mbps HDLC

Triple Modular Redundancy and Fail-Safe Execution

The Triconex AP3101 incorporates a triple modular redundancy (TMR) 2oo3 architecture to satisfy rigorous IEC 61508 SIL 3 functional safety requirements. The hardware infrastructure employs three internal, independent processing channels executing parallel application code paths synchronously. Hardware-based voting logic evaluates all digital states and backplane bus operations at the clock cycle level. When a data discrepancy occurs in one channel, the majority voters isolate the affected execution path to maintain uninterrupted plant protection without causing false trips. Internal galvanic isolation barriers prevent electrical field faults or power surges from crossing over to the system processing core. This setup enforces deterministic, fail-safe state execution under defined component failure modes, preventing internal faults from migrating outside the local processing boundary.

Frequently Asked Questions

Q: Does the AP3101 support hot-swapping during active process operations?

A: Yes, the AP3101 permits hot-swap online replacement. Technicians can extract a faulted module and insert a replacement unit directly into the active rack without bringing down the system safety loop or clearing the running logic program.

Q: How is memory protected against data corruption within the processing components?

A: The 6 MB Flash PROM and the 8 KB NVRAM are continuously monitored using Cyclic Redundancy Checks (CRC), whereas the 16 MB DRAM and the 128 KB shared communication memory utilize byte parity verification to isolate bit errors.

Field Installation Guidelines

Chassis Insertion: Align the AP3101 module with the guide rails of the designated Triconex rack slot. Slide the module straight backward until the high-density backplane pins seat into the multi-channel connector, then lock the retention fasteners.
Shielding Protocols: Connect all external serial and network communication lines using high-density shielded cables. Terminate the cable shielding directly to the primary low-impedance cabinet earth ground bar at the point of entry.
Thermal Control: Ensure the environmental ambient air surrounding the enclosure does not exceed the certified -40 deg C to +70 deg C operating range, maintaining open convection airflow channels above the rack assembly.
Power Checking: Verify that the incoming 24 VDC system supply voltage stays within the formal 18-32 VDC operational window prior to initializing the processor module to protect against voltage regulator anomalies.
