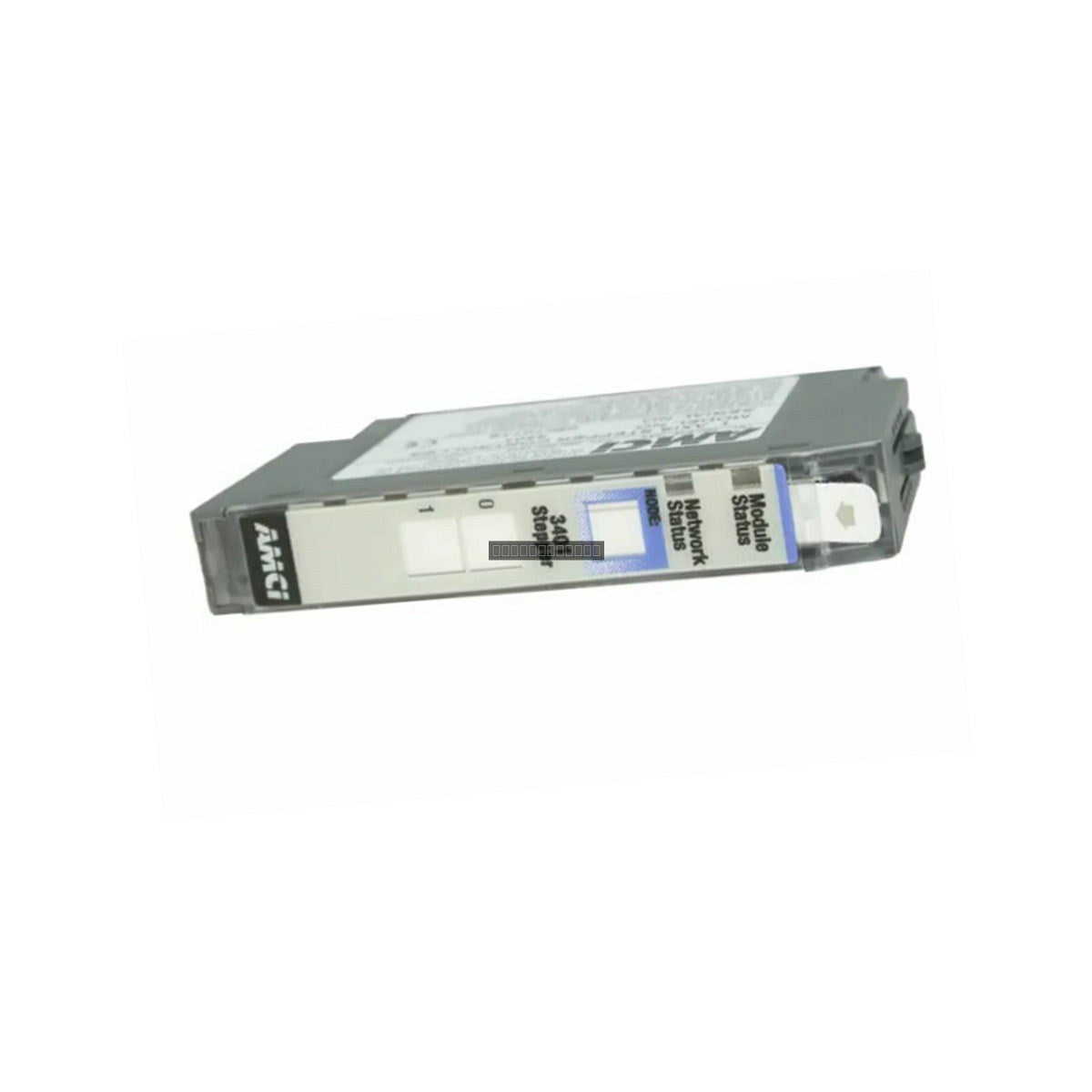

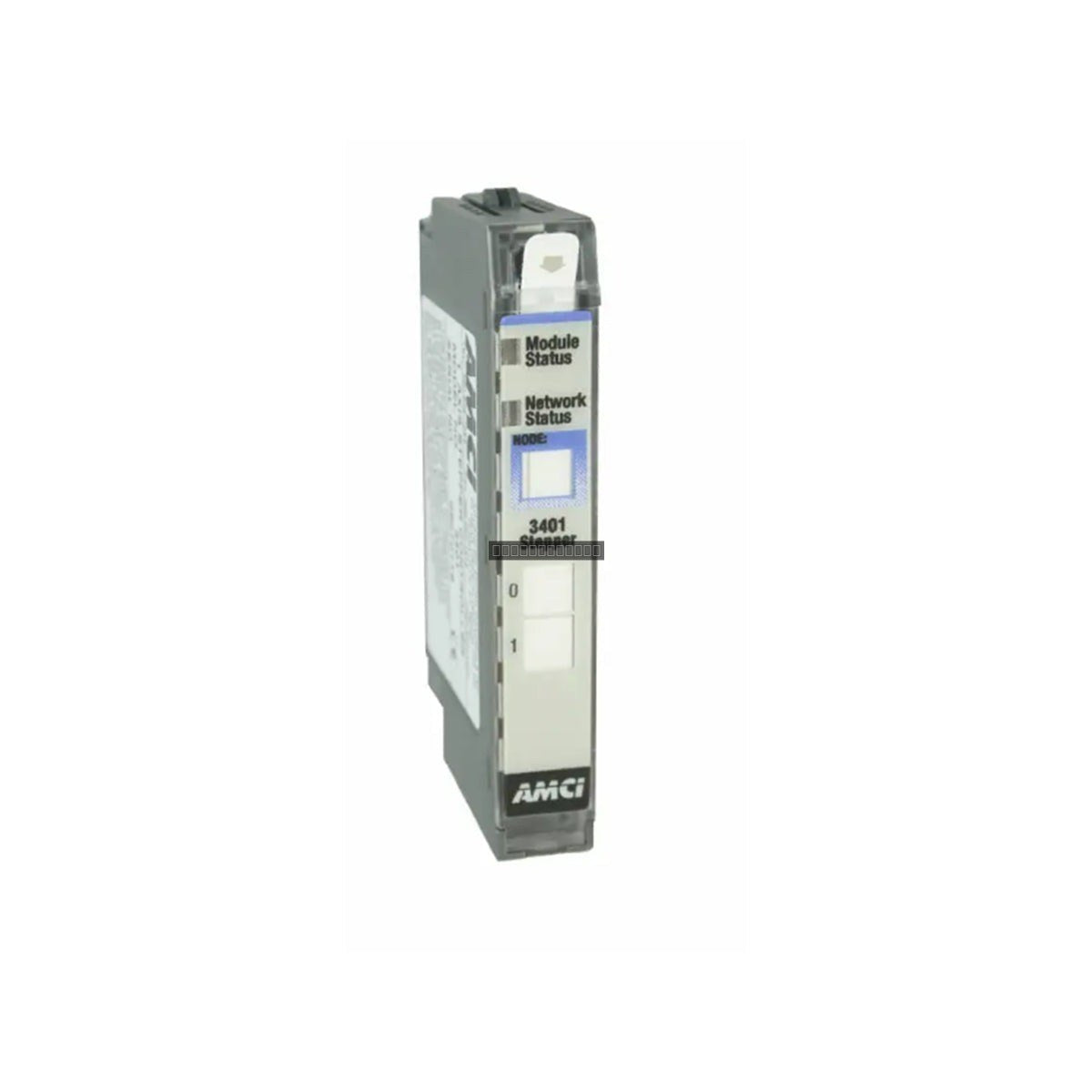

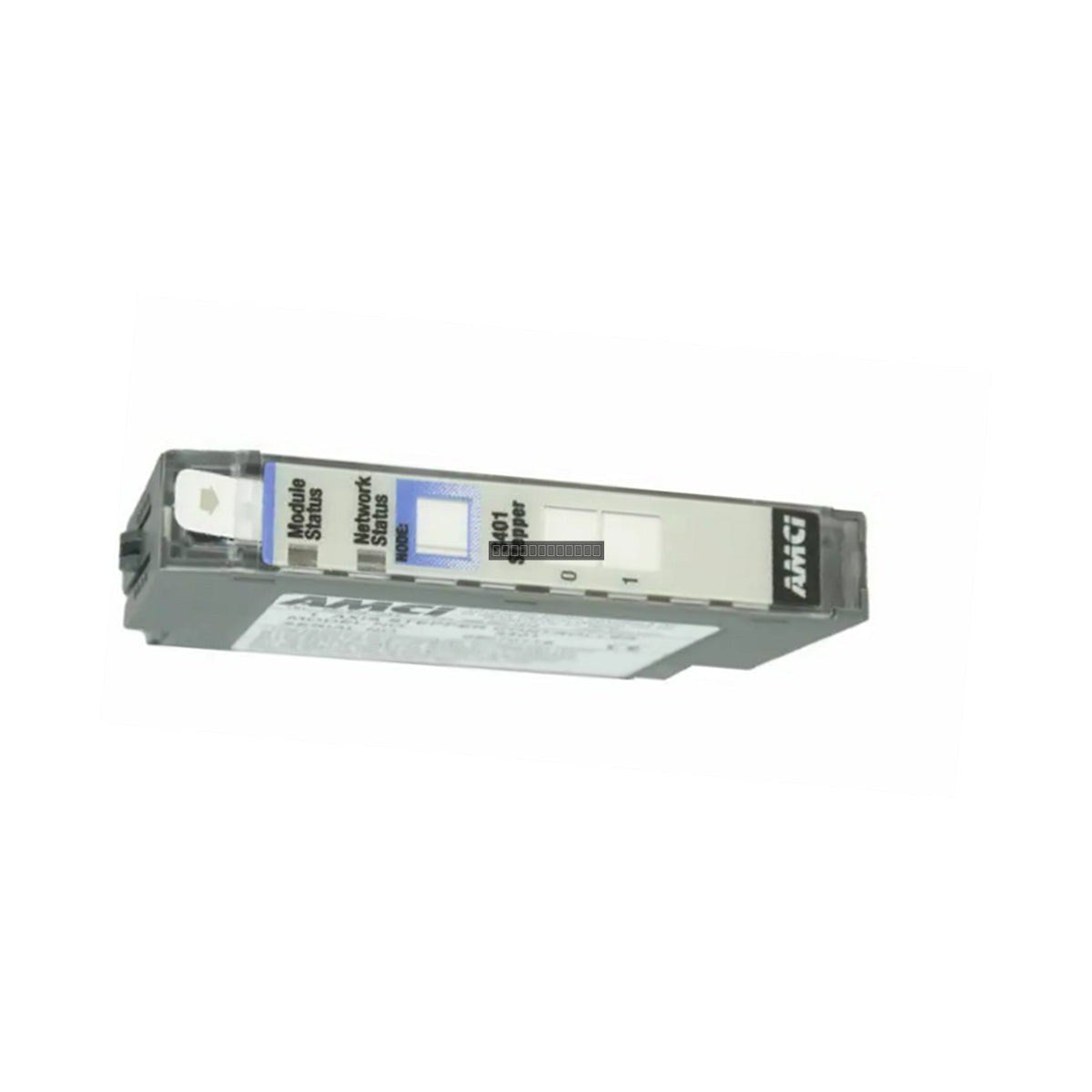

Invensys Triconex 3401 Stepper Controller Module

Invensys Triconex 3401 Stepper Controller Motion Control Module

Disponibilidad: 0 Quedan en stock

DescriptionThe Invensys Triconex 3401 is a specialized single-axis stepper controller module designed for the 1734 POINT I/O platform. This module...

Código: 3401

Manufacturer: 数据库
Product No.: 3401
Product Type: Motion Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Invensys Triconex 3401 is a specialized single-axis stepper controller module designed for the 1734 POINT I/O platform. This module provides high-speed, deterministic pulse-train outputs, allowing for precise open-loop motion control in automated industrial systems. By handling step and direction logic locally, the 3401 reduces CPU load and minimizes communication latency, providing a reliable solution for high-speed assembly, packaging, and manufacturing applications.

Features

Single-axis motion control capability.
Deterministic pulse-train output ranging from 200 kHz up to 1 MHz.
Optimized for open-loop control systems without the necessity of external encoder feedback.
Hot-swappable design compatible with 1734 POINT I/O backplanes.
Low power consumption profile for efficient thermal management.
Robust signal generation suitable for micro-stepping drive interfaces.

Applications

The 3401 module is frequently employed in decentralized motion control architectures. Typical applications include semiconductor processing equipment, pharmaceutical packaging lines, and high-speed automated assembly machines where precise, repeatable positioning is required without the complexity of closed-loop feedback.

Technical Specifications

Model	3401
Brand	Invensys Triconex
Series	1734 POINT I/O
Module Type	Stepper Controller (1 Axis)
Pulse Output	200 kHz to 1 MHz
Control Mode	Open Loop
Power Requirements	85 mA @ 5 VDC
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C

Installation Guidelines

Ensure the 1734 POINT I/O backplane is powered down before inserting or removing the module.
Verify that the module is securely seated on the backplane to ensure proper electrical contact.
Maintain proper grounding practices for the control cabinet to minimize electrical noise interference with high-frequency pulse signals.
Ensure adequate ventilation within the enclosure to maintain an ambient operating temperature between 0 and 60 deg C.
Use shielded cabling for signal connections to maintain signal integrity in electrically noisy industrial environments.

FAQ

What type of feedback does the 3401 support?

The 3401 is designed for open-loop control applications and does not require or interface with external encoder feedback.

Is this module hot-swappable?

Yes, the 3401 is designed for the 1734 POINT I/O system and supports hot-swappable installation, allowing for maintenance without requiring a full system shutdown.
