4000098-510 INVENSYS Cable Assembly

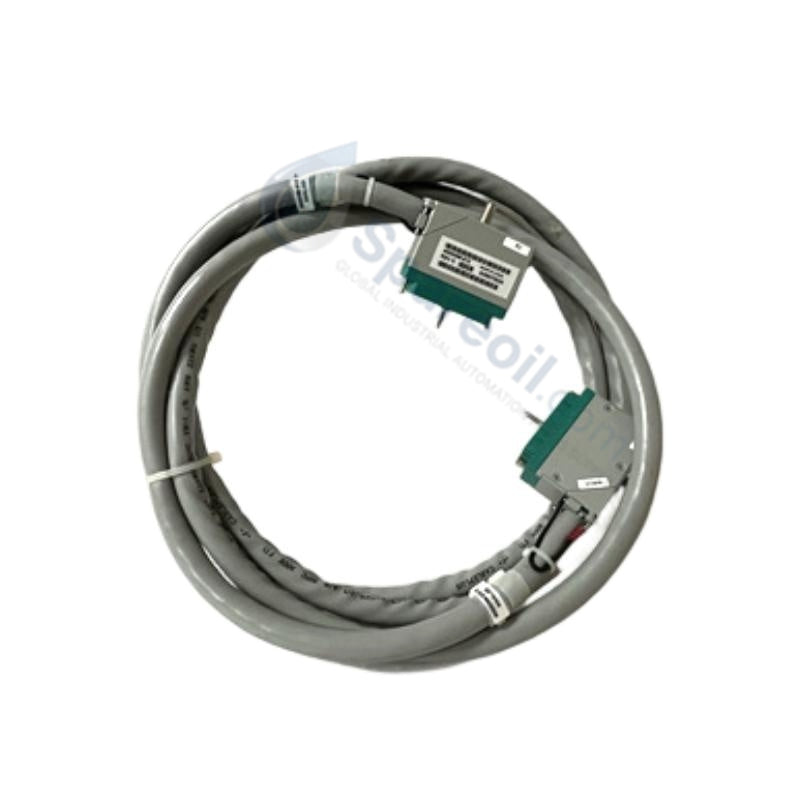

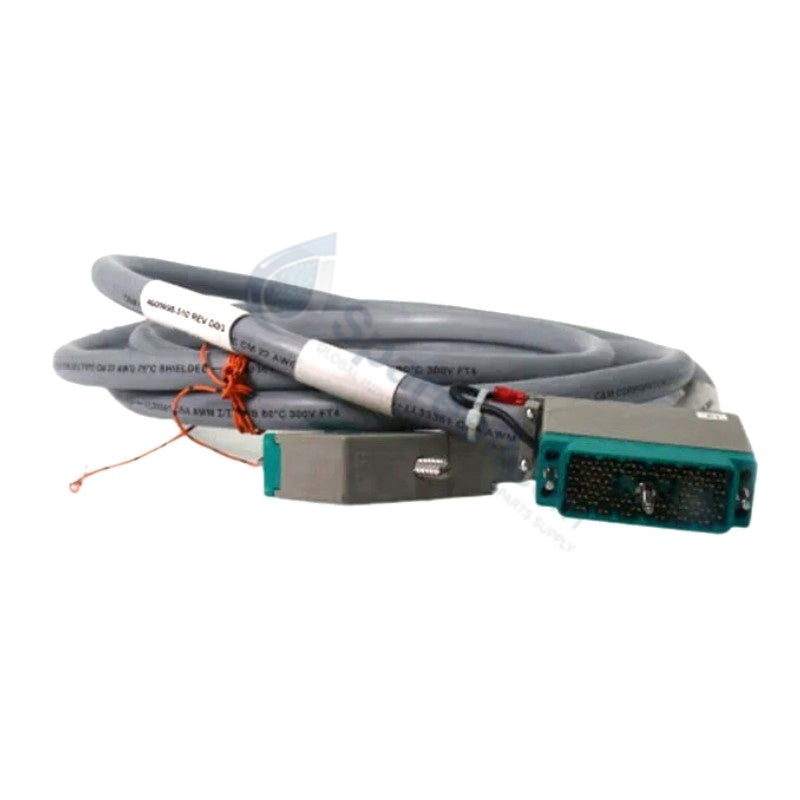

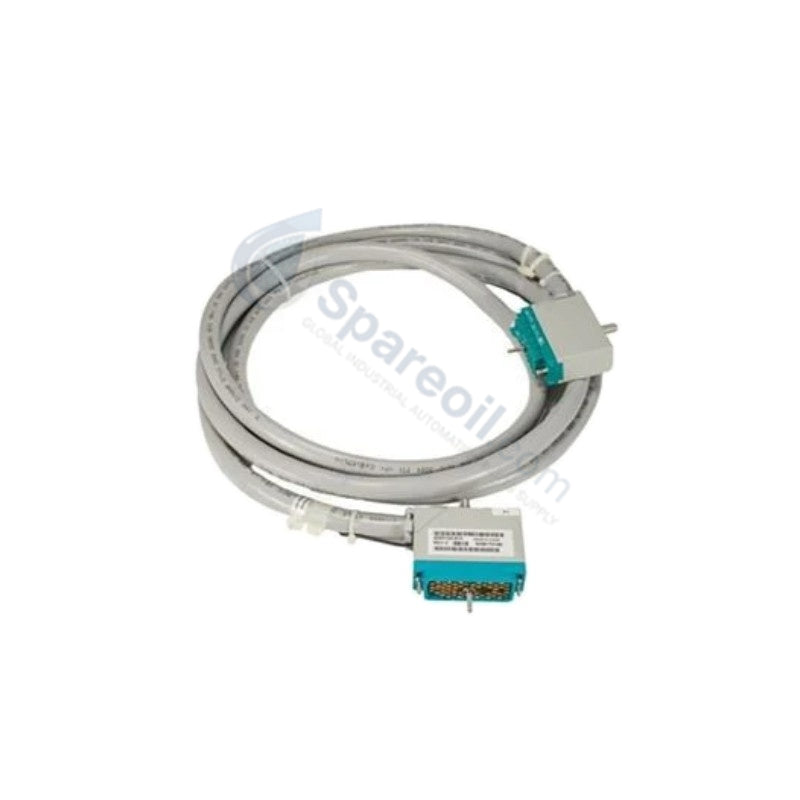

Invensys Triconex 4000098-510 10ft TMR Interconnect Cable Assembly

Invensys Triconex 4000098-510 10ft TMR Interconnect Cable Assembly

Disponibilidad: 10 Quedan en stock

INVENSYS 4000098-510 Cable Assembly The INVENSYS 4000098-510, also cataloged as the INVENSYS 4000098-510 Cable Assembly, operates as a dedicated hardware...

Código: 4000098-510

Manufacturer: Triconex
Product No.: 4000098-510
Product Type: Termination Panels
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

INVENSYS 4000098-510 Cable Assembly

The INVENSYS 4000098-510, also cataloged as the INVENSYS 4000098-510 Cable Assembly, operates as a dedicated hardware component for interfacing field wiring with Triconex I/O modules within Tricon 3000 Series SIS racks. The assembly routes physical signaling paths between distributed marshalling barriers and the central processing backplane architecture. It executes electrical line termination tasks across specialized industrial safety loops.

Hardware Specifications

Parameter	Specification
Model	4000098-510
Brand	INVENSYS (Schneider Electric / Triconex)
Origin	USA
Weight	0.5-1.0 kg (Data variation: 1.4 kg / 3.20 lbs total bulk shipping weight envelope)
Dimensions	160 mm x 40 mm x 230 mm (Cable dimensions: 0.2 cm x 2.5 cm x 25.4 cm / Length: 10 feet)
Operating Temp	-20 deg C to +60 deg C
Power Consumption	2 W typical loop load
System Role	Termination panel and interconnect assembly for digital/analog I/O modules
Connector Type	Phoenix Contact screw terminals (Supports 14-22 AWG wire conductors)
Voltage Support	Nominal 24 VDC
Isolation Capacity	Greater than 1500 VDC isolation boundaries
Safety Certification	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Redundancy Support & Signal Isolation

Configured to sustain high-availability safety networks, the interconnection assembly links field instruments directly with Triple Modular Redundancy (TMR) I/O module processing tracks. The system architecture channels signals through discrete copper runs embedded inside the 10-foot shielded physical jacket, maintaining uniform signal levels over standard distances. Galvanic separation boundaries exceeding 1500 VDC insulate sensitive internal rack logic components from sudden voltage irregularities, inductive kickbacks, or localized field shorts. The termination module relies on heavy-duty Phoenix Contact screw connectors to ensure gas-tight wiring terminations, keeping signal distortion low during simultaneous multi-loop operations.

Frequently Asked Questions

Q: Can this cable assembly be swapped online while the corresponding Tricon safety loops are actively running?

A: No. Unlike active electronic cards, this passive termination assembly is not hot-swappable. Because removing the cable disconnects the field loop circuit paths, replacing the unit requires a scheduled maintenance window or bypassing active loops to prevent sudden emergency shutdowns.

Q: How do the internal line properties affect low-current analog loops or millivolt sensor signals?

A: The 10-foot cable assembly is built with balanced, low-impedance copper conductors that keep voltage drops under typical load minimums. The integrated shielding prevents electromagnetic field coupling, making it suitable for both 24 VDC digital channels and sensitive analog lines.

Field Installation Guidelines

Shield Grounding Matrix: Connect the cable assembly outer copper braided shield to the designated technical safety ground point at the Triconex enclosure chassis side only, keeping the field junction terminal floating to prevent ground loops.
Mechanical Strain Relief: Secure the 10-foot cable body within cabinet wire trays using nylon ties. Do not exceed the minimum bend-radius parameters to avoid internal wire fatigue or conductor separation.
Terminal Torque Limits: Secure all field connections into the Phoenix Contact screw blocks using a calibrated instrument screwdriver, tightening 14-22 AWG wires to the correct torque specs to prevent loose connections from vibration.
Module Matching Check: Verify that the part number matches the assigned analog or digital I/O slot layout specified in the project engineering prints before attaching the multi-pin connector end to the backplane baseplate.
