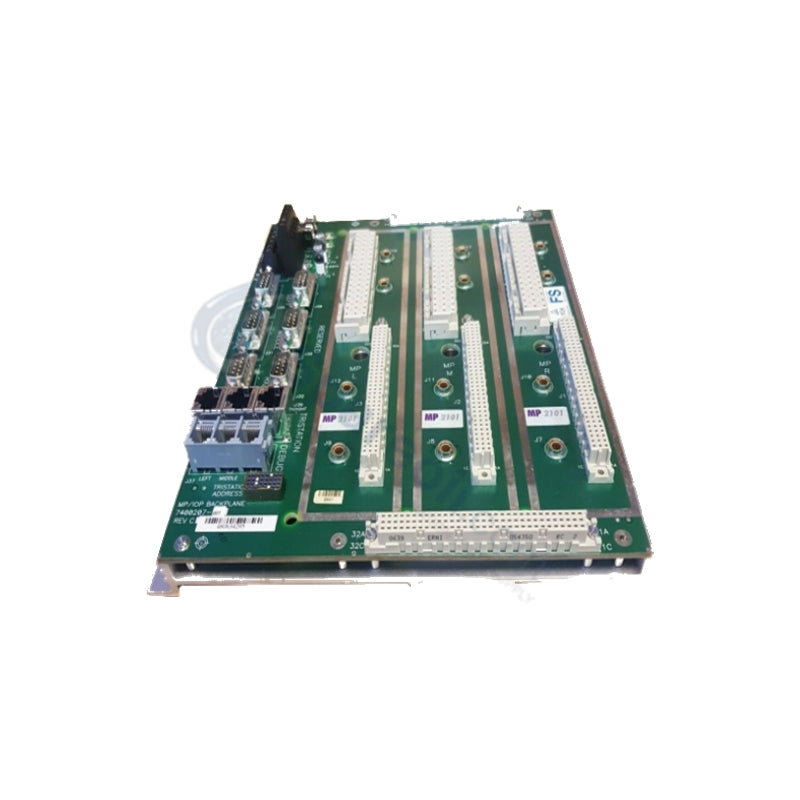

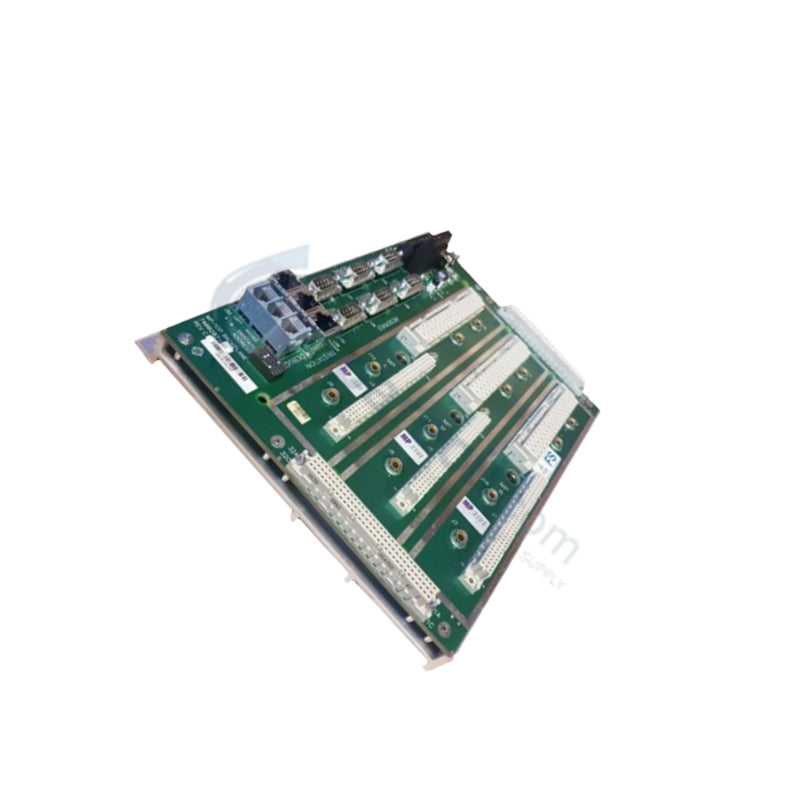

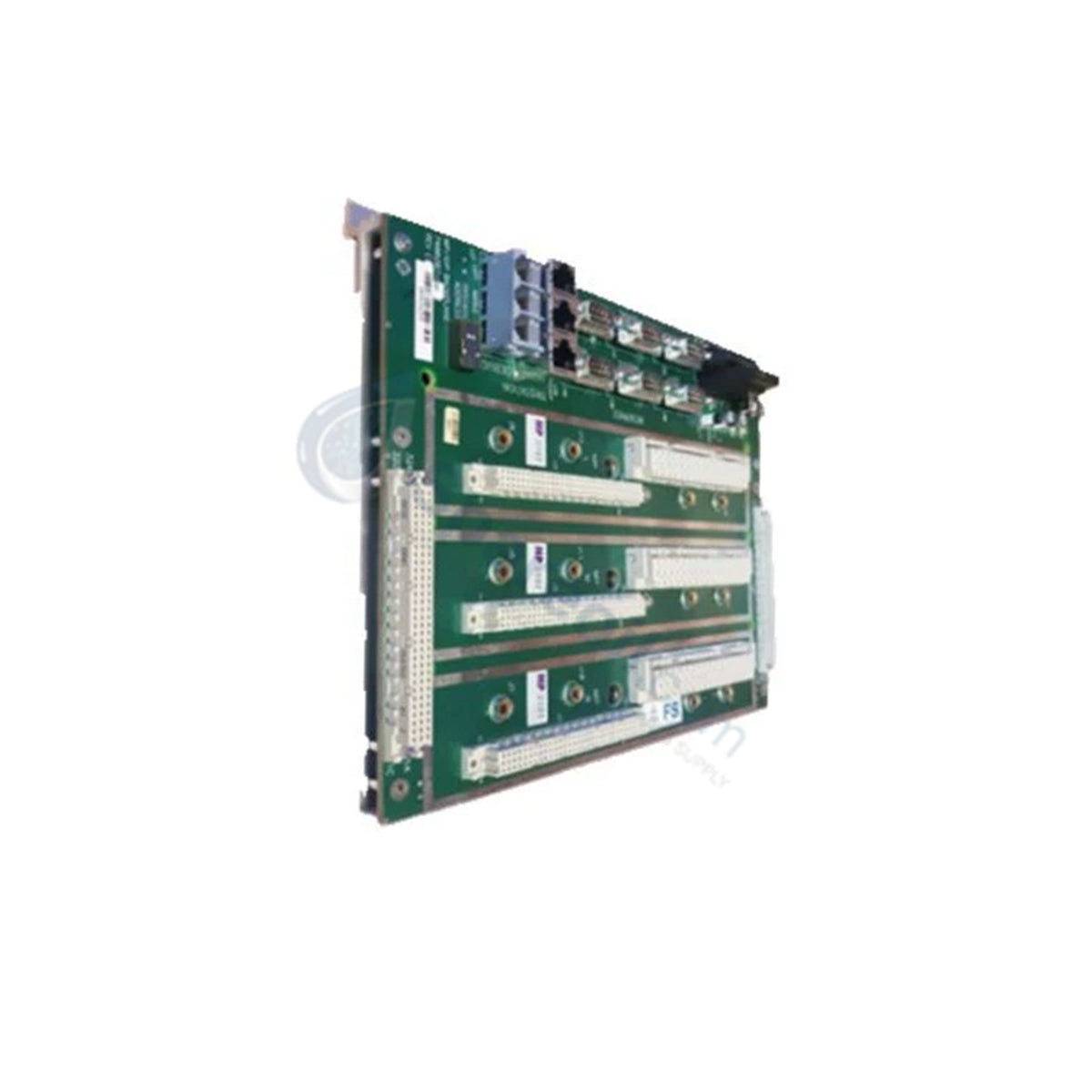

7400207-001 Triconex Main Processor Module

Main Processor Module | Triconex 7400207-001 MP2101

Main Processor Module | Triconex 7400207-001 MP2101

Disponibilidad: 10 Quedan en stock

Triconex 7400207-001 MP2101 Main Processor Module The Triconex 7400207-001, also cataloged as the MP2101 Main Processor Module, operates as a...

Código: MP2101 7400207-001

Manufacturer: Triconex
Product No.: MP2101 7400207-001
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Triconex 7400207-001 MP2101 Main Processor Module

The Triconex 7400207-001, also cataloged as the MP2101 Main Processor Module, operates as a dedicated hardware component for safety logic execution and I/O module management within Triconex TMR Safety Instrumented Systems. The unit utilizes a 32-bit RISC architecture running at a deterministic 66 MHz clock speed to evaluate application logic and coordinate peer-to-peer and supervisory data exchanges over integrated industrial network layers.

Hardware Specifications

Parameter	Specification
Model	7400207-001 MP2101
Brand	Triconex
Origin	United States
Weight	1.4 kg
Dimensions	4.5 x 18.8 x 20.8 cm
Operating Temp	-40 to +70 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	~20 W
Processor Architecture	32-bit RISC with TMR redundancy
Clock Speed	66 MHz
Memory	16 MB RAM, 8 MB Flash, battery-backed NVRAM
I/O Capacity	Up to 16 chassis and 960 I/O modules
Communication Interfaces	Ethernet (10/100 Mbps), RS-232, RS-485
Protocols Supported	Modbus TCP/IP, OPC, TriStation 1131, peer-to-peer
Diagnostics	Built-in self-test (BIST), watchdog timers, error logging
Power Supply	24 VDC nominal (18 to 30 VDC range)
Hot-Swappable	Yes
Certifications	IEC 61508 SIL 3, TUV, UL, CE

Triple Modular Redundant Safety Control

The engineering framework is built upon a certified triple modular redundancy (TMR) 2oo3 architecture to safeguard processing tracks against single-point physical or software faults. The module executes internal calculations via three independent internal channels that constantly synchronize and cross-examine code status using continuous hardware-level voting mechanisms. System logic relies on strict galvanic isolation boundaries to contain electrical failures, forcing deterministic fail-safe state execution across the local I/O network whenever data discrepancies occur. This validation architecture maintains full compliance with SIL3 certification parameters during operations.

Frequently Asked Questions

Q: Can the main processor undergo an online hot-swap procedure without causing an involuntary system shutdown or interruption to the 2oo3 voting process?

A: Yes. Technicians replace the module while the redundant processor pairs maintain active control loops. The online hot-swap action shifts control execution seamlessly to the adjacent hardware without perturbing active runtime functions or safety logic.

Q: How does the memory subsystem retain application logic and configuration parameters during a complete loss of the external 24 VDC power supply?

A: The hardware incorporates 8 MB of Flash memory for permanent firmware and logic storage alongside a battery-backed NVRAM structure. The NVRAM retains volatile operational registers, error logs, and system states through power decay cycles.

Field Installation Guidelines

Chassis Alignment and Insertion Mechanics: Insert the processor into its assigned slot on the primary chassis backplane using the integrated top and bottom extraction levers. Ensure the module seats completely into the rear pin connectors to establish stable low-impedance connections before securing the retention screws.
Network Shielding and Earthing Requirements: Terminate all communications cables—including RS-485 serial runs and Ethernet links—using high-density shielded cabling. Connect cable shields directly to the chassis frame ground terminal to minimize electromagnetic noise entry into the high-speed signaling circuits.
Thermal Performance and Environmental Maintenance: Verify that ventilation paths around the processor chassis remain clear of debris. Airflow through the enclosure must maintain local temperature variables between -40 and +70 deg C to protect internal components from premature thermal breakdown.
