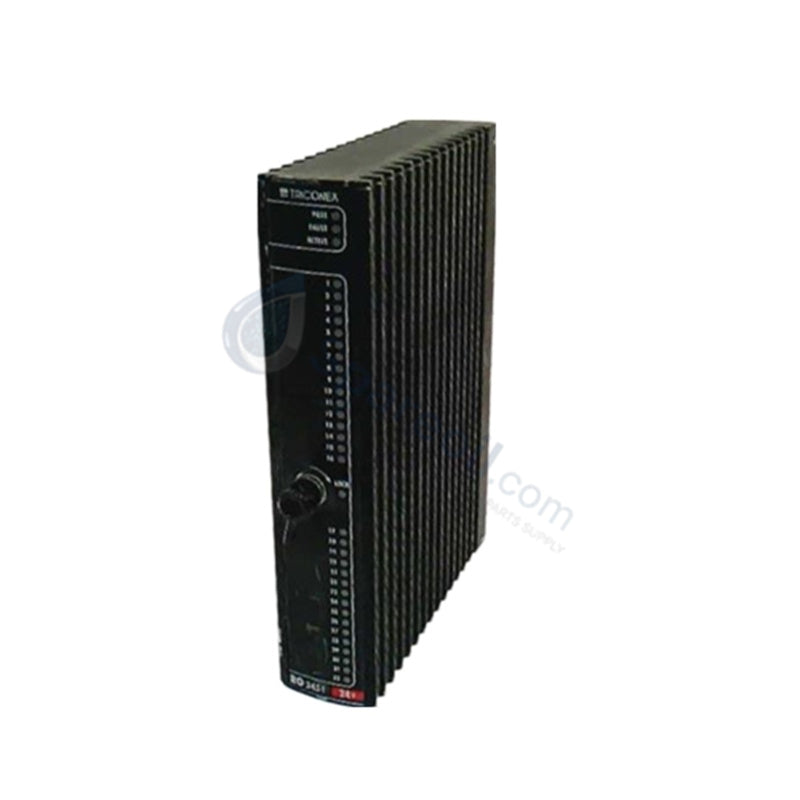

Triconex RO3451 Relay Output Module

The Triconex RO3451, also cataloged as the RO3451 Relay Output Module, operates as a dedicated hardware component for safety-critical field execution within Triconex safety instrumented system networks. Configured as a plug-in module with a dedicated base, the unit provides direct physical switching execution for inductive loads, valve actuators, and isolation circuits. The module translates digital logic commands into isolated physical contact states within a response latency of less than 10 ms, ensuring immediate processing of real-time safety actions under extreme operational conditions.

Hardware Specifications

Parameter Specification
Model RO3451 (RO3451 S2)
Brand Triconex
Origin United States / Sweden
Weight 1.2 kg
Dimensions 20 cm x 25.3 cm x 6.8 cm
Operating Temp -40 to +70 deg C
Power Consumption Standard backplane powered layout
Output Channels Multi-channel solid-state relay matrix
Response Time Less than 10 ms switching latency
Service Life 15+ years engineering lifecycle
Safety Compliance IEC 61508 SIL 3, TÜV Rheinland

Triple Modular Redundancy (TMR) 2oo3 Architecture

The module features solid-state contact circuitry fully integrated with a triple modular redundancy (TMR) 2oo3 hardware voting matrix to ensure continuous fault tolerance. Internal diagnostics execute sub-millisecond loop monitoring routines to mask single-channel processing failures instantly, preventing false trips or latent non-tripping states. The galvanically isolated design utilizes active noise filtering, built-in debouncing arrays, and high-capacity surge suppression to protect the core controller logic from inductive kickbacks and transient ground spikes generated by large field valves.

Frequently Asked Questions

Q: What operational protocols are required when hot-swapping the RO3451 module?

A: The hardware fully supports active, online single-slot hot-swapping without interrupting the state of active field loops. When a replacement module is firmly seated into its dedicated plug-in base, the TMR processors automatically verify the module type, validate firmware flash compatibility, and sync it to the logic matrix.

Q: How does the solid-state architecture improve execution over mechanical relay boards?

A: The solid-state design eliminates all mechanical moving components, completely mitigating electrical arcing, contact pitting, and physical wear. This layout ensures millions of continuous switching cycles without path degradation or contact resistance escalation.

Q: What fault conditions are covered by the module's comprehensive diagnostics?

A: The internal testing subroutines continuously monitor the loop integrity to detect field wiring faults, including open circuits and shorted field conditions. Status changes and specific faults are flagged in the logic solver and instantly mirrored via channel-specific diagnostic LEDs on the hardware faceplate.

Field Installation Guidelines

  1. Align the plug-in module with the matching keyways of the dedicated structural base unit and slide it firmly forward until the locking mechanism fully snaps into place.
  2. Terminate the field actuator or valve control loops at the dedicated base terminal blocks, keeping within the rated maximum voltage and current limits of the solid-state outputs.
  3. Keep all high-energy inductive load power lines separated from low-voltage digital and analog sensor cables inside the marshalling enclosure to prevent crosstalk.
  4. Verify that the system low-impedance copper instrumentation ground is tied directly to the module chassis frame using standard earthing links.
  5. Check that surrounding airflow channels are completely clear to maintain internal module temperatures within the operational range of -40 to +70 deg C.
