TRICONEX 3006 EMPII Datasheet & Technical Manual

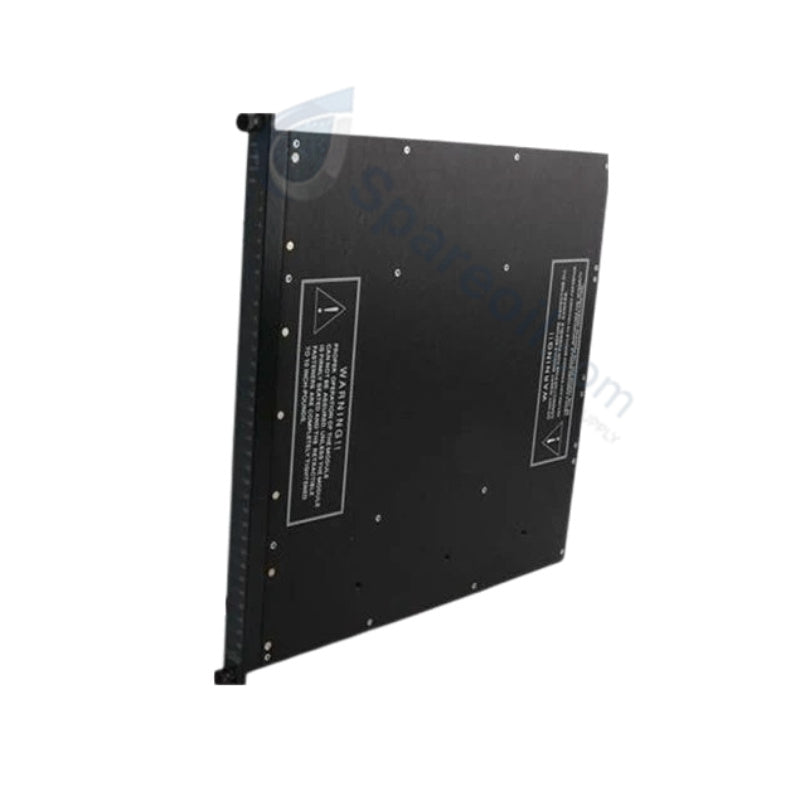

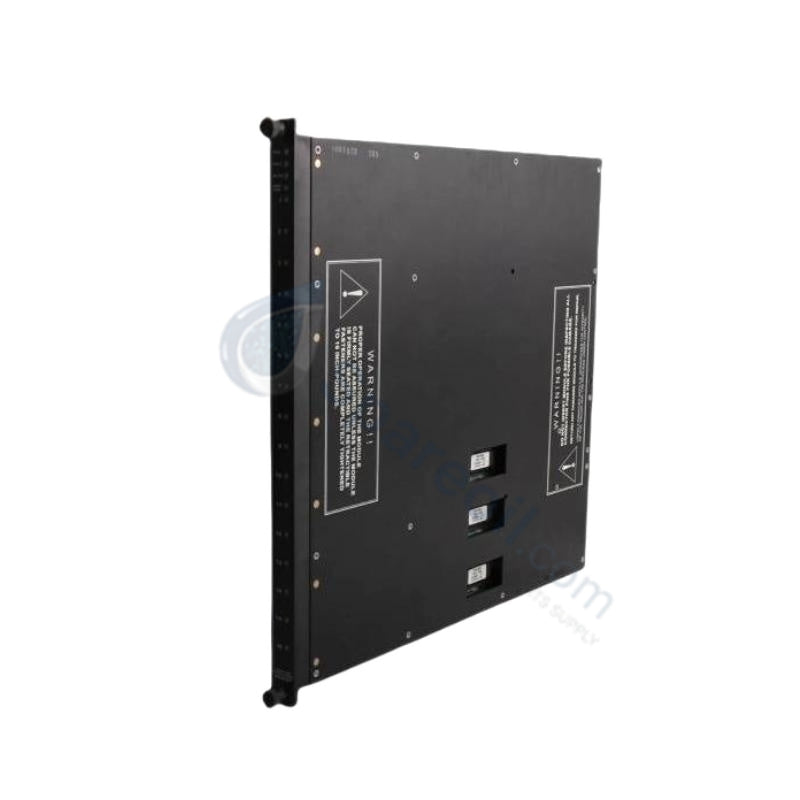

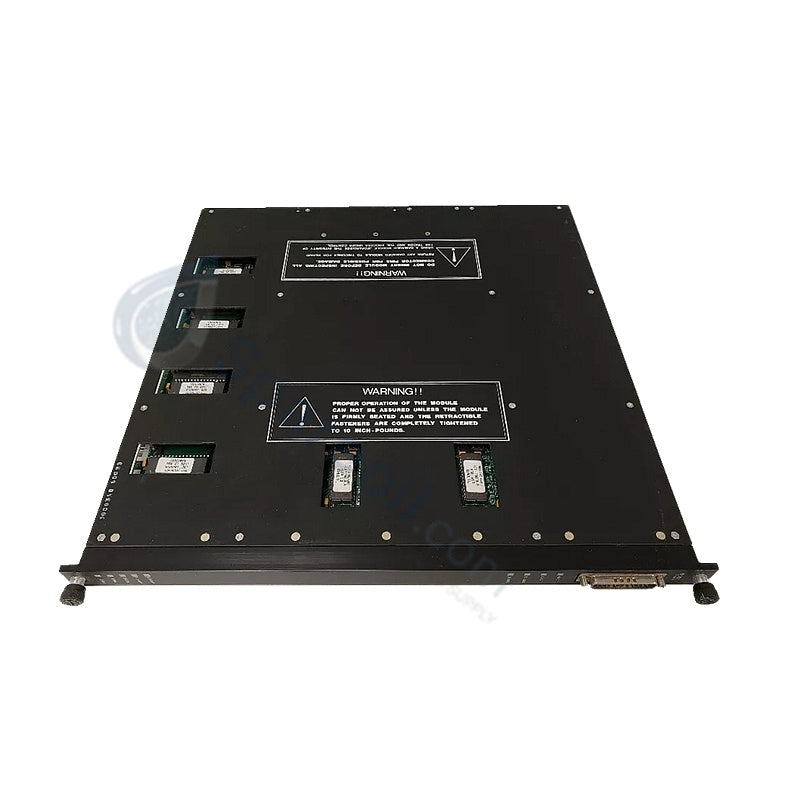

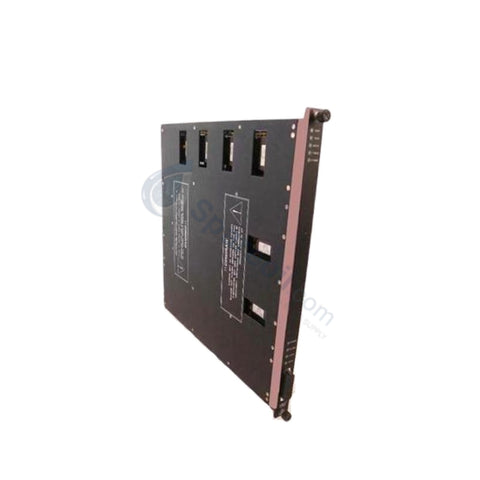

Triconex 3006 Processor Module II Enhanced Main Processor

Triconex 3006 Processor Module II Enhanced Main Processor

Disponibilidad: 10 Quedan en stock

TRICONEX 3006 Main Processor Module The TRICONEX 3006, also cataloged as the TRICONEX 3006 Main Processor Module, operates as a...

Código: 3006

Manufacturer: Triconex
Product No.: 3006
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 2900g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

TRICONEX 3006 Main Processor Module

The TRICONEX 3006, also cataloged as the TRICONEX 3006 Main Processor Module, operates as a dedicated hardware component for executing safety logic within Tricon 3000 TMR Safety Instrumented System platforms. This hardware subassembly manages automated I/O scanning and driving tasks while maintaining strict deterministic bus control over backplane sub-networks. The device processes safety-critical logic programs and communicates peer-to-peer over dedicated fault-tolerant links.

Hardware Specifications

Parameter	Specification
Model	3006 (Processor Module II Enhanced / EMPII)
Brand	TRICONEX (Schneider Electric)
Origin	USA
Weight	2.9 kg (Shipping weight 4.0 kg)
Dimensions	49.0 cm x 45.3 cm x 6.8 cm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Max 150 W draw, 24 VDC via backplane
Architecture	Triple Modular Redundancy (TMR) with 2oo3 voting
Processor Type	Three independent 32-bit RISC cores @ 25 MHz
Memory Capacity	128 MB ECC RAM, 2 MB Flash, 2 MB SRAM
Logic Scan Time	10-50 ms depending on program size
Internal Diagnostics	Greater than 99% coverage
Communication	TriBus high-speed backplane protocol
Enclosure Protection	IP20

Triple Modular Redundancy & Fail-Safe State Execution

The hardware utilizes a Triple Modular Redundancy (TMR) 2oo3 architecture consisting of three discrete 32-bit RISC processor channels operating in parallel. Each channel executes the safety logic independently and cross-checks data bits through high-speed TriBus synchronization. If one core encounters an internal fault, the hardware invokes built-in diagnostics to isolate the damaged processing path. The voting logic switches to a 2oo2 state to sustain continuous plant protection without interrupting I/O tracking. Complete galvanic isolation across communication paths prevents physical faults from crossing channels, forcing an orderly fail-safe state execution if redundant thresholds drop below minimum tolerances.

Frequently Asked Questions

Q: What are the strict population constraints required to establish TMR voting on the chassis backplane?

A: The rack architecture requires exactly three 3006 modules populated concurrently within the main processor slot area. Running the system with fewer than three modules causes immediate system faults, halts the 2oo3 voting synchronization, and prevents the system from entering a normal execution mode.

Q: How does the module handle hot-swap replacement without interrupting the execution of the active safety logic?

A: The backplane design fully supports live online hot-swapping. You can extract a single faulted module while the remaining two processors maintain full 2oo2 logic execution. Inserting the replacement unit initiates automated firmware validation and memory synchronization across the TriBus link without dropping the process outputs.

Field Installation Guidelines

Chassis Ground Alignment: Verify that the main 19-inch rack chassis connects to a dedicated low-impedance instrument ground bus. Proper electrical grounding provides essential mitigation against high-frequency electromagnetic interference that can distort logic scan synchronization.
Firmware Baseline Matching: Ensure that the replacement module contains the precise firmware version currently running on the other two active processors. Discrepancies between firmware versions or TriStation configuration baselines prevent the newly inserted module from completing online synchronization.
Backplane Connector Inspection: Inspect the high-density pin assembly on the rear of the module before insertion. Insert the unit straight into the designated guide rails using continuous, even pressure to prevent pin deformation and ensure solid seat contact with the 24 VDC backplane power feed.
Environmental Clearance: Maintain clear ventilation paths around the top and bottom extraction areas of the enclosure. The 150 W heat signature requires uninhibited airflow patterns within the cabinet to prevent thermal accumulation from exceeding the +60 deg C continuous operating threshold.
