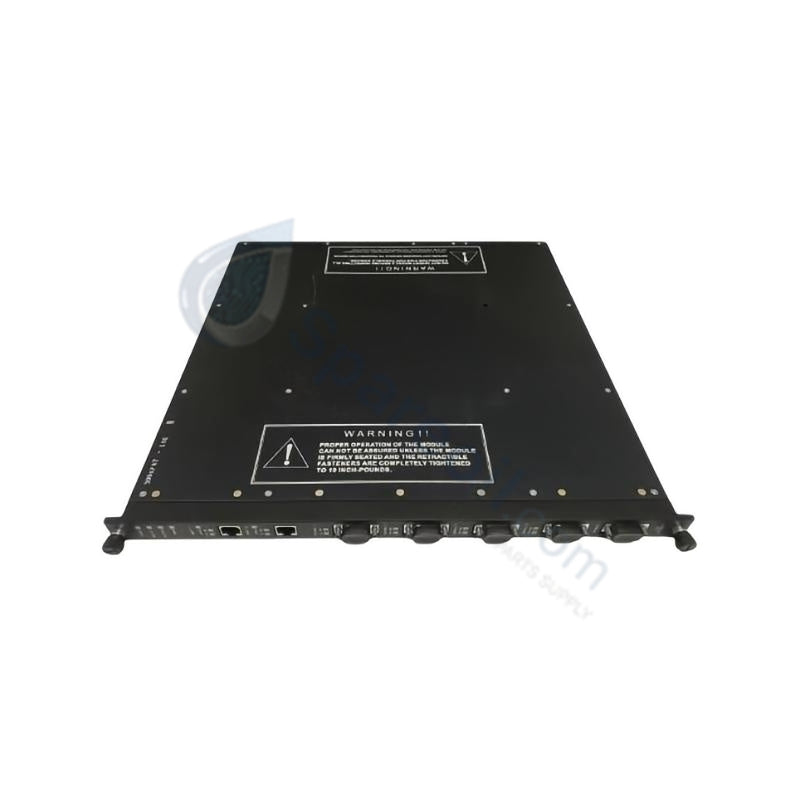

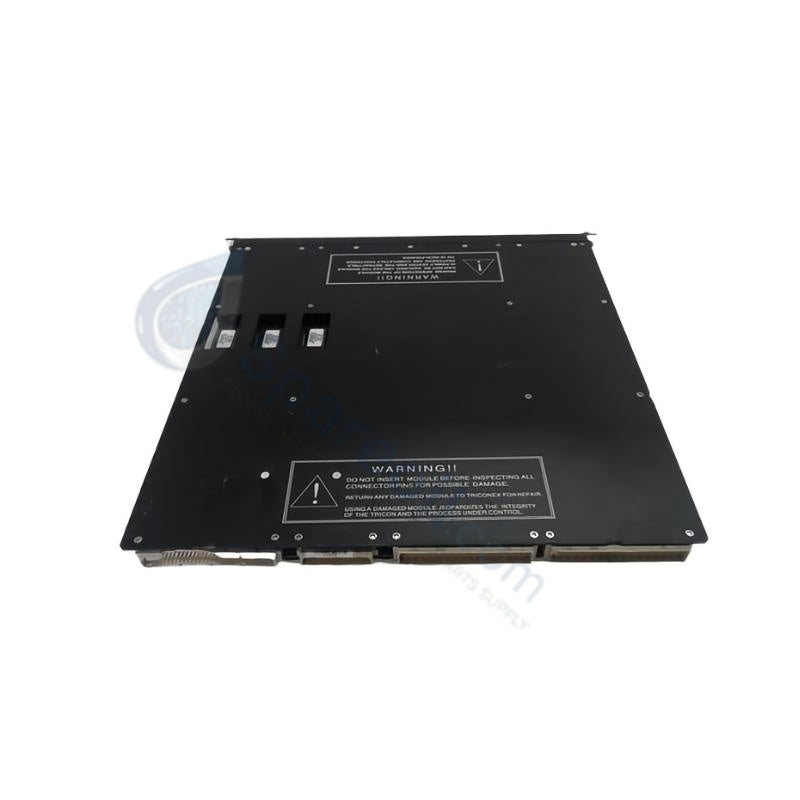

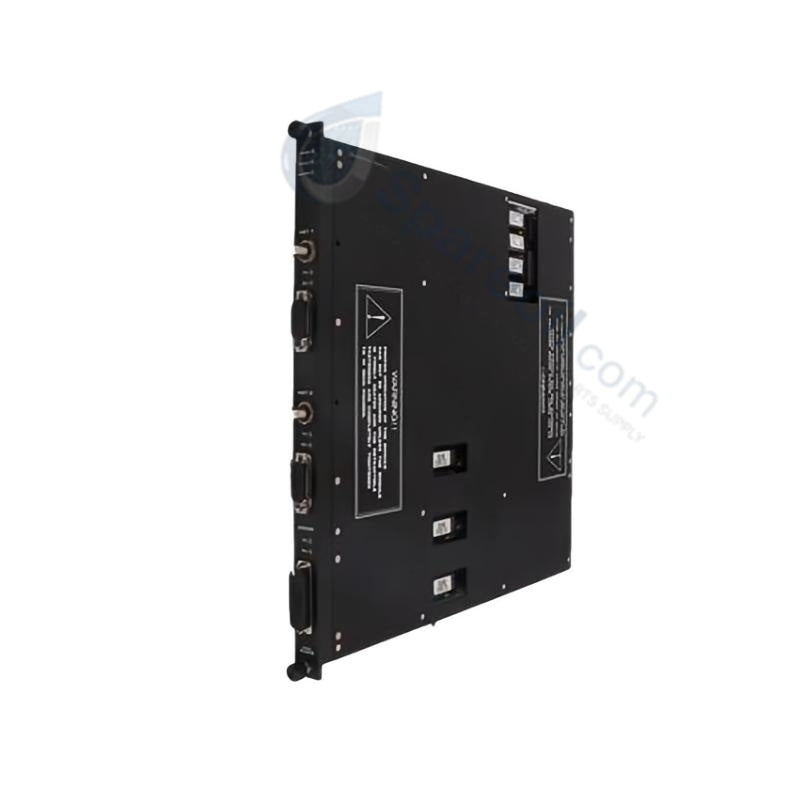

TRICONEX 3515 Tricon 3000 Series CPU Processors

Disponibilidad: 10 Quedan en stock

TRICONEX 3515 Tricon 3000 Series Module The TRICONEX 3515 operates as a dedicated hardware component for safety logic execution within...

Código: 3515

Manufacturer: Triconex
Product No.: 3515
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

TRICONEX 3515 Tricon 3000 Series Module

The TRICONEX 3515 operates as a dedicated hardware component for safety logic execution within Tricon 3000 Series SIS platforms. The assembly features three independent processing legs that execute application code concurrently, coordinating deterministic control choices directly via a high-speed backplane matrix to drive safety loops.

Hardware Specifications

Parameter	Specification
Model	3515
Brand	TRICONEX (Schneider Electric)
Origin	United States
Weight	0.8kg
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 to +60 deg C
Power Consumption	18 W typical
Processor Architecture	Triple Modular Redundancy (TMR) with three independent CPUs
Clock Speed	33 MHz (per CPU)
Memory	16 MB DRAM, 4 MB Flash for program storage
Backplane Interface	High-speed TriBus communication with I/O modules
Operating Voltage	5 VDC via backplane
Communication Ports	RS-232/RS-485, Ethernet (via communication modules)
Diagnostics	Continuous self-test, watchdog timers, LED indicators (PASS, FAIL, ACTIVE)
Safety Integrity Level	SIL3 (IEC 61508 / IEC 61511)
Storage Temp	-40 to +85 deg C
Humidity Range	5% to 95% non-condensing
Certifications	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Safety Integrity

The processing sub-assembly utilizes a triple modular redundancy (TMR) 2oo3 architecture consisting of three isolated hardware legs running parallel safety logic paths. Internal signal verification mechanisms depend on the high-speed TriBus backplane interface to execute continuous cross-leg voting and data synchronization. If a hardware fault occurs within a single CPU core, the remaining two execution legs identify the discrepant state, isolate the failed processing lane, and maintain deterministic fail-safe state execution across the system loop. This continuous hardware voting and isolated topology secure system operation under strict IEC 61508 SIL3 safety parameters.

Frequently Asked Questions

Q: What are the online hot-swap constraints when extracting this main processor module?

A: The module supports online hot-swap capabilities inside the designated rack allocation. Technicians can replace the unit while the backplane remains energized without stopping the system logic solver execution or causing process interruption on the remaining active modules.

Q: How does the system handle firmware synchronization during a hot-swap operation?

A: Upon insertion of the replacement module, the remaining active processors utilize the TriBus interface to verify firmware flash compatibility and copy the active safety program into the new unit's 16 MB DRAM. Redundancy must be verified via the TriStation interface following physical replacement.

Field Installation Guidelines

Align and insert the module vertically into the specific slots of the Tricon 3000 Series SIS chassis. Verify full mechanical seating with the backplane pin assembly before engaging the front panel locking mechanisms. Ensure the configuration is deployed using the correct version of TriStation software to maintain compatibility with the 33 MHz processor clock profile. Ground the overall chassis grounding loops directly to a low-impedance master instrument ground bus to minimize electromagnetic interference (EMI). Route all data cables connected to front or side communication ports through dedicated wireways separated from high-current AC power cables.
