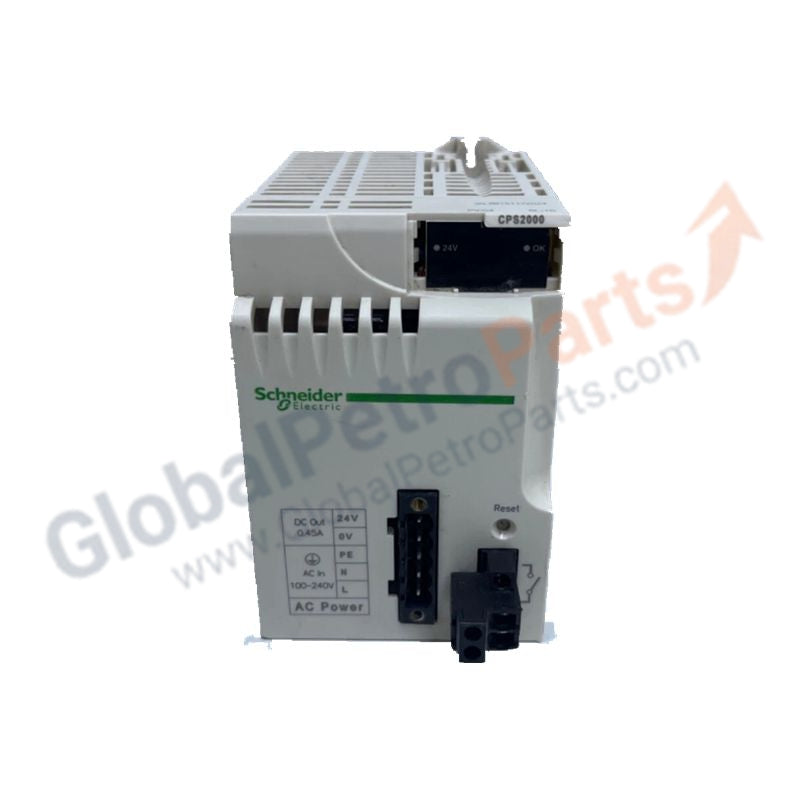

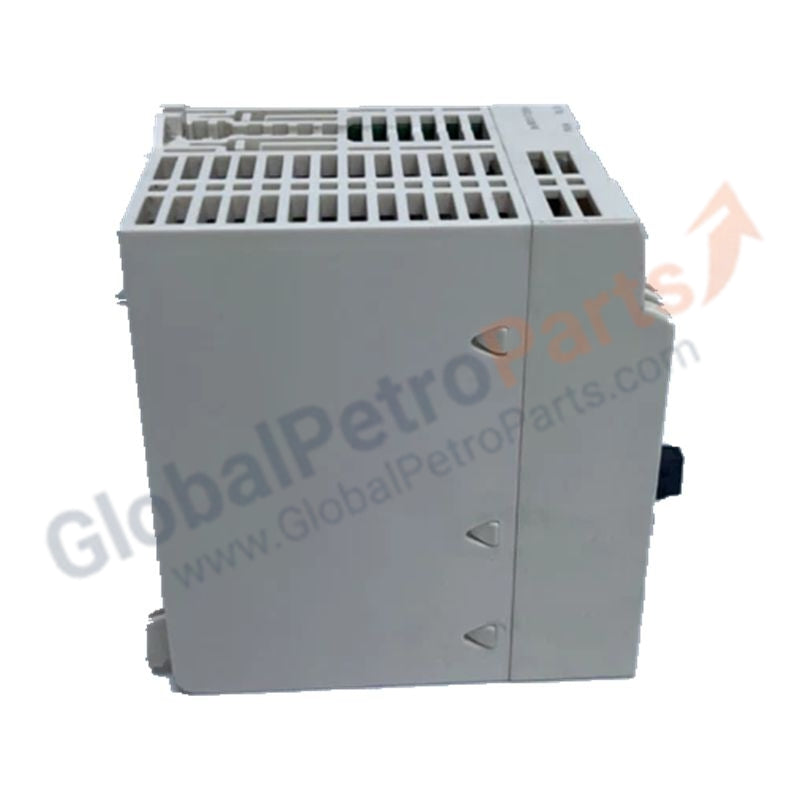

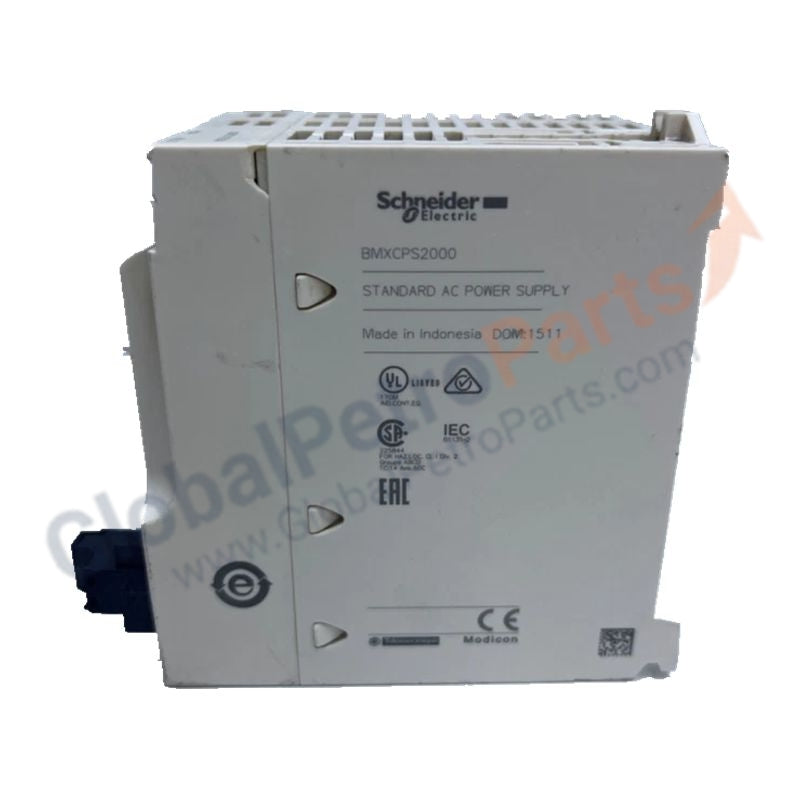

BMXCPS2000 Schneider Power Supply Module

Availability: 94 left in stock

Product Description The BMXCPS2000 is the primary power supply module for the Schneider Electric Modicon X80 platform, supporting M340 and M580 automation systems. It converts wide-range AC input...

SKU: BMXCPS2000

Manufacturer: Schneider
Product No.: BMXCPS2000
Product Type: Power Supply Module
Product Origin: France
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The BMXCPS2000 is the primary power supply module for the Schneider Electric Modicon X80 platform, supporting M340 and M580 automation systems. It converts wide-range AC input into regulated DC for the backplane, powering processors, I/O modules, and field devices, while filtering noise and handling voltage fluctuations in industrial environments.

Technical Specifications

Item	Specification
Input Voltage	100–240 V AC (85–264 V AC limits)
Frequency	50/60 Hz (47–63 Hz)
Total Output Power	20 W
3.3 V DC (Backplane)	8.3 W (logic power)
24 V DC (Backplane)	16.8 W (I/O & processor)
24 V DC Sensor Power	10.8 W (external devices)
Inrush Current	30 A @ 120 V AC / 60 A @ 240 V AC
Input Protection	Internal 2 A fuse
Power Dissipation	≤ 8.5 W
Isolation	> 100 MΩ @ 500 V DC (primary to secondary)
Status Monitoring	Alarm relay contact (NC)
Operating Temperature	0–60 °C

Typical Applications

Standard Modicon X80 racks in industrial automation
Small to medium PLC racks for manufacturing
Pump control stations in water utilities
Building management systems (BMS)
Industrial HVAC control panels

Notes

Comparison: BMXCPS2000 = 20 W, BMXCPS3500 = 36 W (high-power racks)
Redundancy: For M580, use BMXCPS4002 (AC) or BMXCPS4022 (DC) modules
