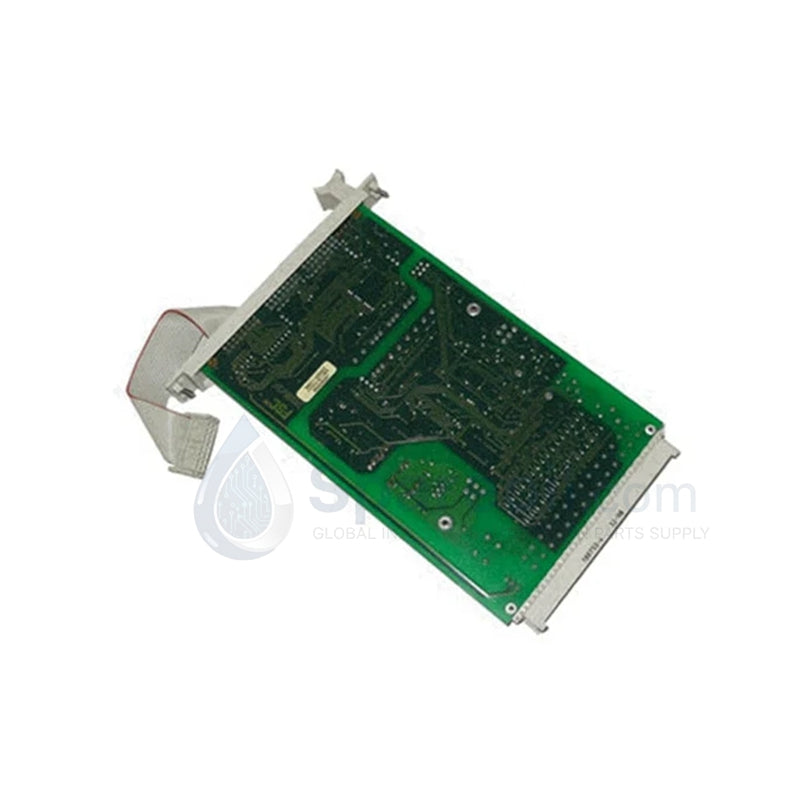

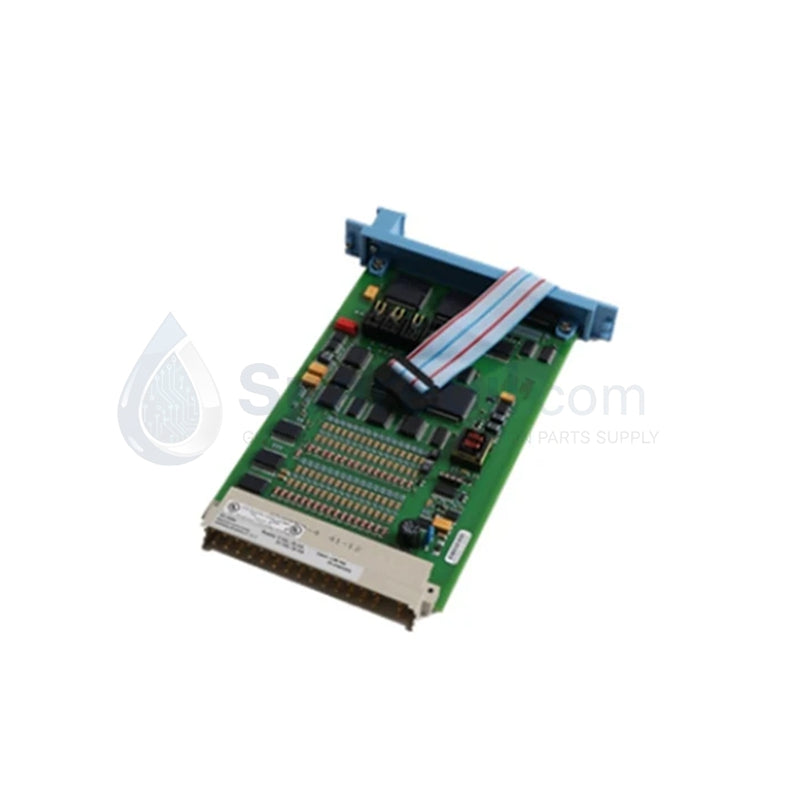

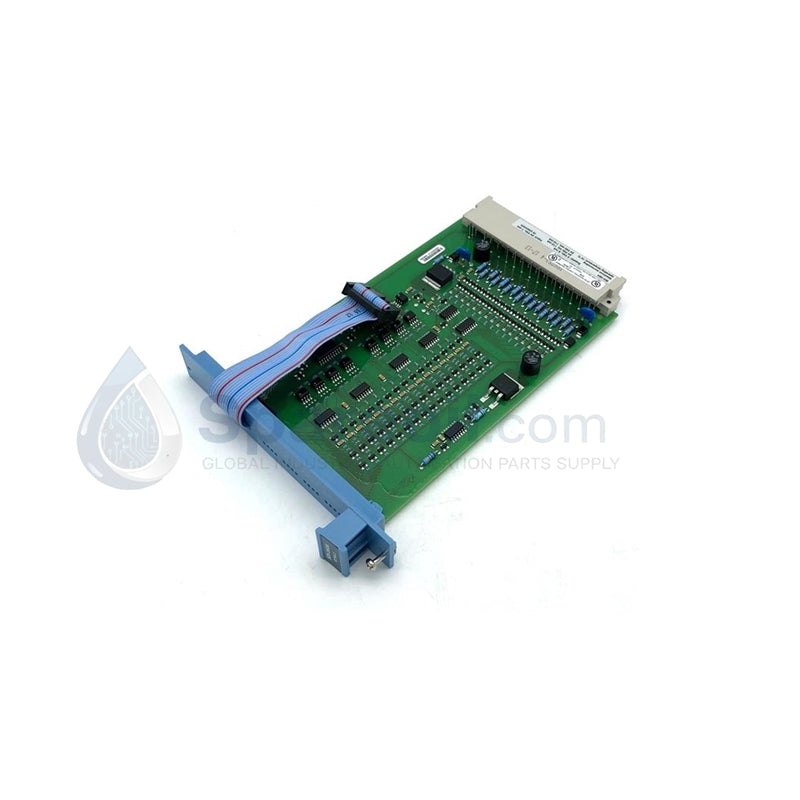

FC-SDI-1624 | Honeywell | 16-Port Safety Manager Input Card

Availability: 99 left in stock

Product Description High-Integrity Digital Input Acquisition The Honeywell FC-SDI-1624 (also referred to as FCSDI1624) is a professional-grade Safe Digital Input Module designed for...

SKU: FC-SDI-1624

Manufacturer: Honeywell
Product No.: FC-SDI-1624
Product Type: Safe Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

High-Integrity Digital Input Acquisition

The Honeywell FC-SDI-1624 (also referred to as FCSDI1624) is a professional-grade Safe Digital Input Module designed for the Honeywell Fail-Safe Control (FSC) and Safety Manager systems. This module features 16 independent input channels rated for 24 VDC nominal operation. Engineered for high-availability and safety-critical environments, the FC-SDI-1624 serves as the primary interface between field-mounted safety devices—such as emergency stop buttons, limit switches, and flame detectors—and the central safety logic solver.

Advanced Safety and Self-Diagnostics

Designed to meet SIL 3 requirements according to IEC 61508, the FC-SDI-1624 incorporates continuous self-test routines and comprehensive line monitoring. It is capable of detecting internal hardware discrepancies as well as external field wiring faults, including open circuits and short circuits. With a rapid response time of $\leq 10$ ms and a wide operating temperature range from –40 °C to +70 °C, this module provides the rugged reliability necessary for offshore platforms, refineries, and chemical processing facilities. The module draws its operating power directly from the system backplane, ensuring simplified installation and reduced field wiring complexity.

Technical Specifications Table

Feature	Specification Details
Manufacturer	Honeywell
Model Number	FC-SDI-1624 / FCSDI1624
Product Series	Fail-Safe Control (FSC) / Safety Manager
Module Type	Safe Digital Input (DI)
Input Voltage	24 VDC (Nominal)
Number of Channels	16 Channels
Current Consumption	7 mA per channel (Input); 110 mA (Backplane)
Response Time	$\leq 10$ ms
Safety Integrity Level	SIL 3 Capable (IEC 61508)
Operating Temperature	–40 °C to +70 °C
Isolation	Channel-to-channel and channel-to-system
Diagnostics	Short circuit, open circuit, and signal integrity
Dimensions	Standard Honeywell FSC Rack Module
Shipping Weight	2.0 kg (4.4 lbs)
