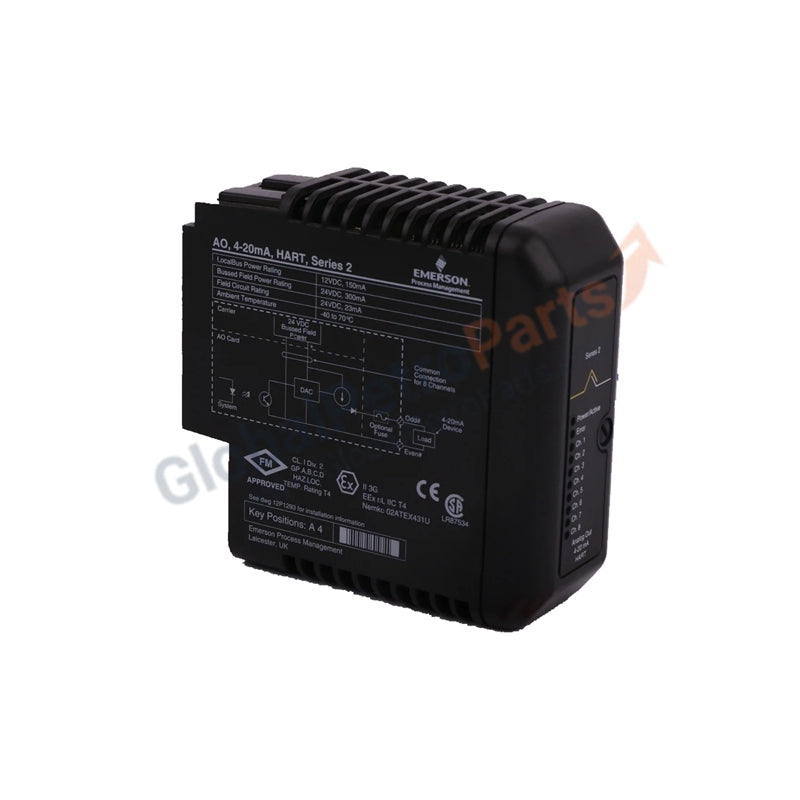

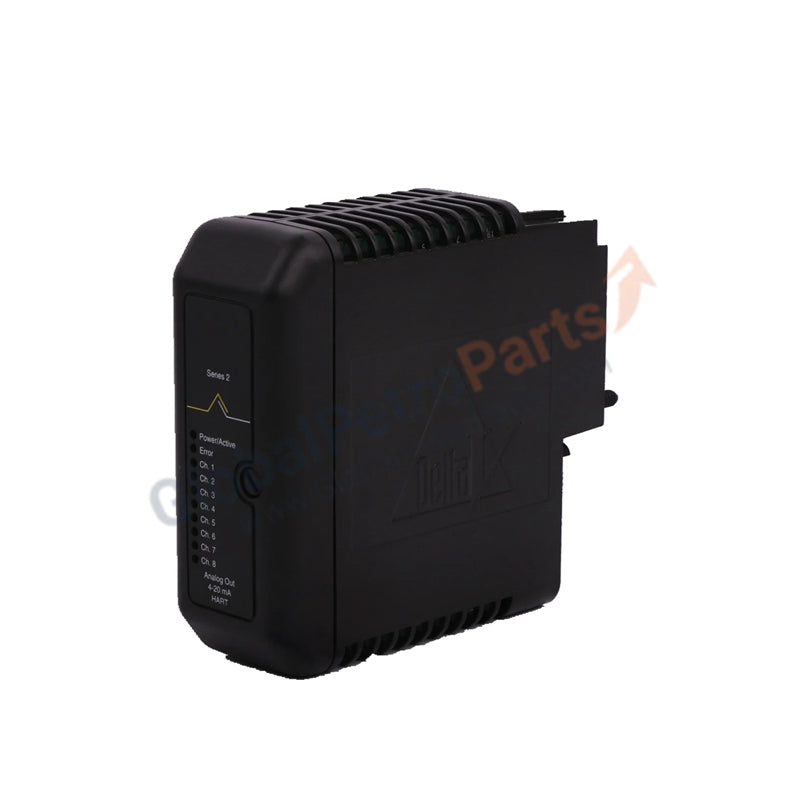

KJ3002X1-BC1 | Emerson DeltaV AO 8-Channel 4-20mA Output

Availability: 99 left in stock

Emerson DeltaV KJ3002X1-BC1 12P0683X092 Analog Output Module 8-Channel The KJ3002X1-BC1 (Part No. 12P0683X092) is a precision 8-channel analog output module engineered for...

SKU: KJ3002X1-BC1

Manufacturer: Emerson
Product No.: KJ3002X1-BC1
Product Type: Analog Output Module (AO)
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson DeltaV KJ3002X1-BC1 12P0683X092 Analog Output Module 8-Channel

The KJ3002X1-BC1 (Part No. 12P0683X092) is a precision 8-channel analog output module engineered for the Emerson DeltaV™ Distributed Control System (DCS). This module provides the critical interface required to drive field actuators, such as control valves and variable speed drives, using standard 4–20 mA current loops. The KJ3002X1-BC1 (Model: KJ3002X1-BC1) is designed for high-availability process environments, offering localized intelligence and robust electrical isolation to maintain signal integrity in complex industrial layouts.

As a core component of the DeltaV M-series I/O subsystem, the KJ3002X1-BC1 (Part Number: 12P0683X092) features galvanic isolation both channel-to-channel and channel-to-system. This prevents ground loops and ensures that a failure on one field device does not compromise the remaining outputs. Its design adheres to the Expertise and Trustworthiness (E-E-A-T) standards necessary for regulated industries like oil and gas, pharmaceuticals, and power generation, where precise analog control is fundamental to operational safety.

Detailed Technical Specifications

The KJ3002X1-BC1 (12P0683X092) is optimized for high-accuracy actuator modulation.

Feature	Details
Manufacturer	Emerson (DeltaV™)
Model Number	KJ3002X1-BC1
Part Number	12P0683X092
Product Type	Analog Output Module (AO)
Number of Channels	8 Isolated Channels
Signal Range	4–20 mA (Active Current Loop)
Resolution	12-bit to 16-bit (Software dependent)
Accuracy	±0.1% of span (typical)
Isolation	Channel-to-channel and channel-to-system
Local Bus Current	120 mA typical (at 12 V DC)
Field Power	24 V DC (Required via terminal block)
Dimensions	4.6 cm x 10.9 cm x 12.7 cm
Net Weight	0.2 kg (0.44 lbs)
Operating Temp	0°C to +55°C
