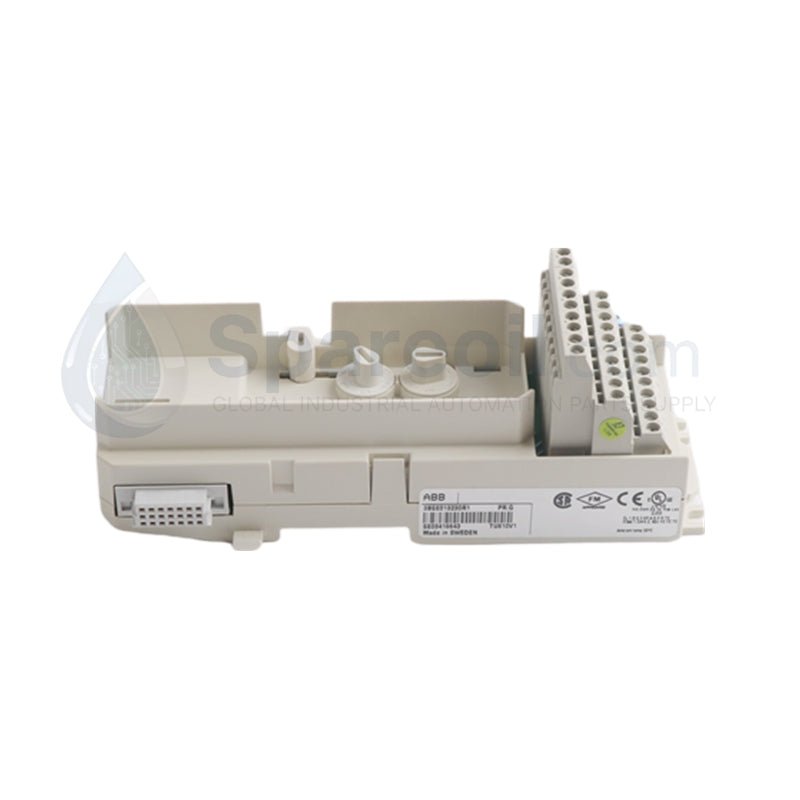

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit 50V
Product Overview
The ABB TU810V1 (Part Number: 3BSE013230R1) is a high-density, Compact Module Termination Unit (MTU) designed for the S800 I/O system within ABB AC 800M controller architectures. Serving as the primary physical interface, the TU810V1 allows I/O modules to be securely mounted and connected to field wiring. This unit features a 2x8 signal terminal configuration, accommodating up to 16 channels with a rated isolation voltage of 50V. Its compact, space-saving design is engineered for efficiency in crowded control cabinets, providing a reliable bridge between field process signals and Symphony Plus or System 800xA control platforms. Manufactured in Sweden, it adheres to rigorous industrial standards for performance and thermal resilience.
Technical Specifications
Detailed technical parameters for the TU810V1 are outlined below:
| Parameter | Specification Details |
| Model Number | TU810V1 |
| Product ID | 3BSE013230R1 |
| Manufacturer | ABB (Sweden) |
| Product Type | Compact Module Termination Unit (MTU) |
| Number of Channels | 16 Channels |
| Voltage Rating | 50 V |
| Signal Terminals | 2 x 8 Screw Terminals |
| Process Power Conn. | 2 x 2 Process Power; 5 x 2 Process Power (0 V) |
| Rated Isolation | 50 V |
| Mounting Orientation | Horizontal or Vertical DIN Rail |
| Operating Temp (Horiz) | -20 °C to +55 °C (131 °F) |
| Operating Temp (Vert) | -20 °C to +40 °C (104 °F) |
| Dimensions (WxHxD) | 58.5 mm x 170 mm x 64 mm |
| Weight | 0.32 kg (Net) / 1.3 kg (Shipping) |
| Tariff Code | 8537109060 |
