Product Overview

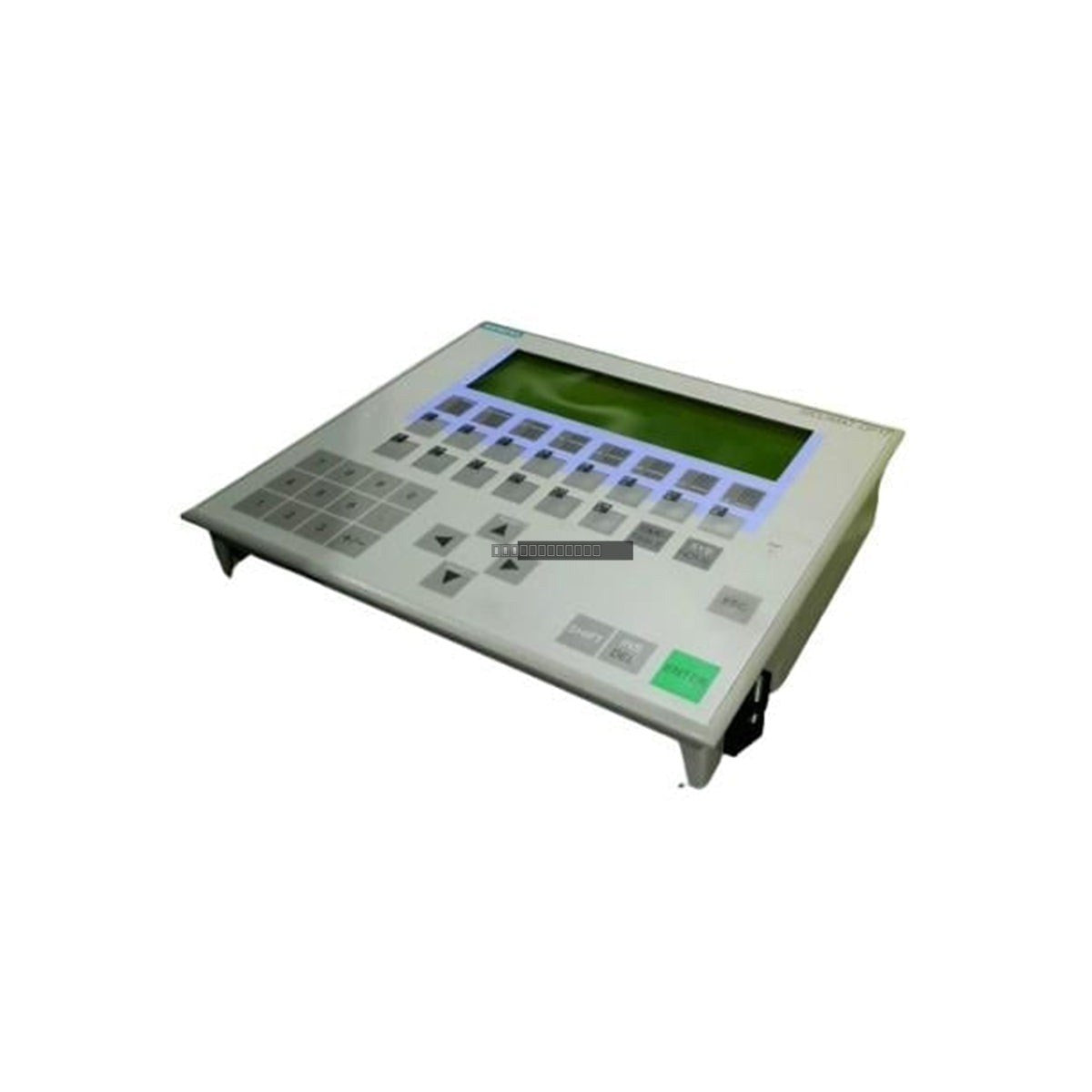

The Siemens 6AV3617-5BB00-0AE0 is a dedicated operator interface terminal designed for the Siclimat building automation and control ecosystem. This ruggedized HMI provides essential local monitoring and control functions, allowing facility operators to visualize system performance, acknowledge alarms, and modify setpoints directly from the plant floor or control room cabinet. Its robust design ensures reliable operation in demanding environments, including district heating facilities, HVAC infrastructure, and industrial climate control systems.
Features
- Designed specifically for integration with the Siemens Siclimat automation series.
- High-contrast backlit liquid crystal display for clear data visibility in varied lighting conditions.
- Tactile membrane keyboard interface engineered for durability and high-frequency usage.
- Front panel provides IP65-rated protection against dust and moisture ingress.
- Supports high-integrity serial communication for reliable data exchange with host automation controllers.
- Compact, panel-mount form factor optimized for standard control cabinet integration.
Applications
This operator panel is intended for use in building management systems (BMS) where local parameter adjustment and diagnostic feedback are required. It is commonly deployed in district heating plants, large-scale commercial HVAC systems, and manufacturing environments that require precise control over environmental setpoints and system monitoring.
Technical Specifications
| Model Number | 6AV3617-5BB00-0AE0 |
| Brand | Siemens |
| Series | Siclimat |
| Display Technology | LC Display with Backlight |
| Input Method | Membrane Keyboard |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 to 50 deg C |
| Storage Temperature | -20 to 60 deg C |
| Ingress Protection | IP65 (Front) |
Installation Guidelines
- Ensure the control cabinet cutout dimensions meet the manufacturer specifications for a secure, flush-mount fit.
- Use appropriate gasket seals to maintain the IP65 front panel integrity during installation.
- Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
- Route communication cables away from high-voltage power lines to maintain signal integrity.
- Handle the unit with standard ESD precautions to prevent damage to internal circuitry.
- Power down the system before connecting or disconnecting the communication interface cables.
FAQ
What is the primary function of this panel?
The OP17 is an operator interface used to monitor and manage parameters within a Siemens Siclimat automation system.
Is this unit suitable for outdoor use?
While the front panel is rated IP65, this unit is intended for indoor industrial or control room environments. It should be mounted within an enclosure if exposed to harsh outdoor weather conditions.
What communication protocols are supported?
The unit utilizes standard serial interfaces such as RS232, RS422, or TTY to communicate with the host PLC or automation substation.
