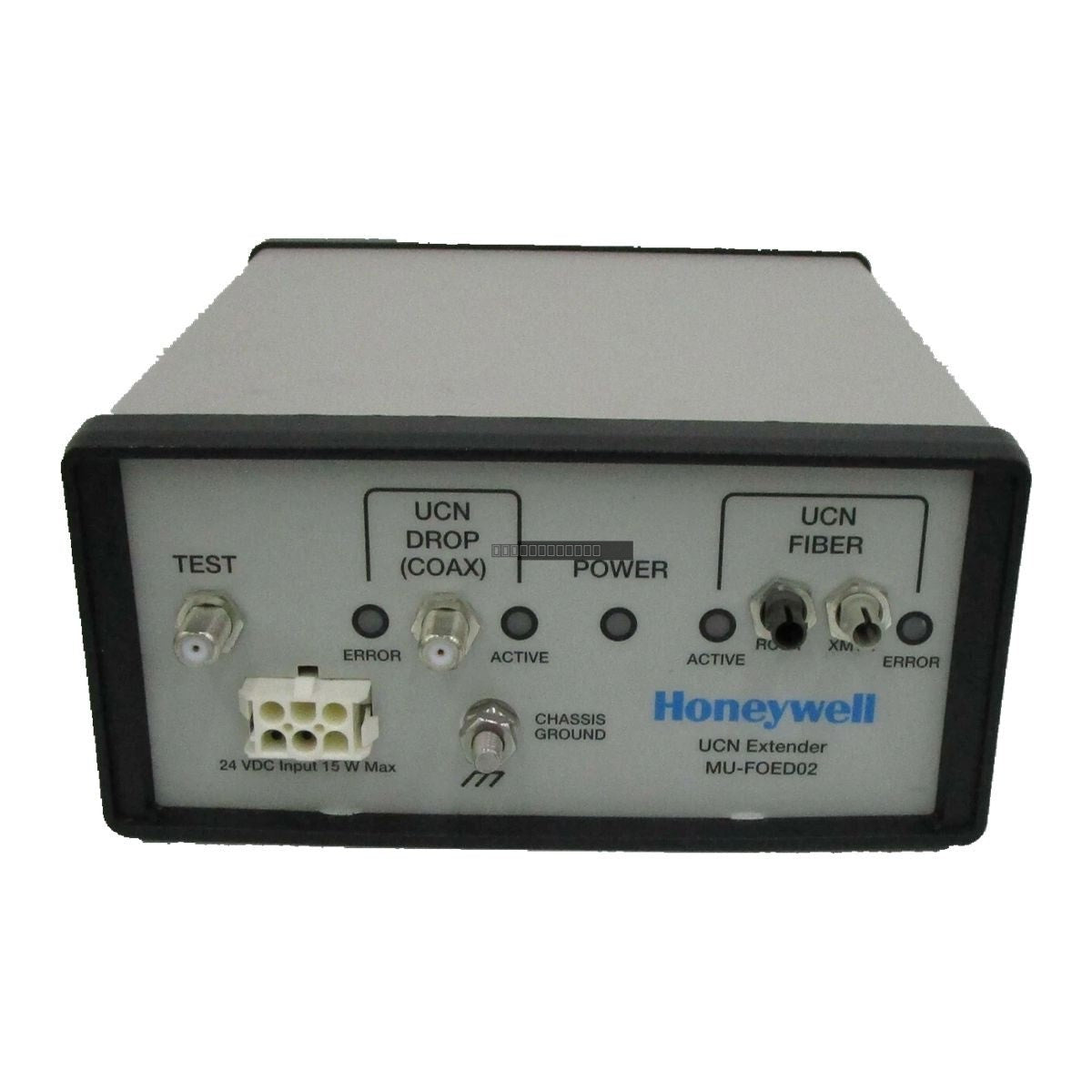

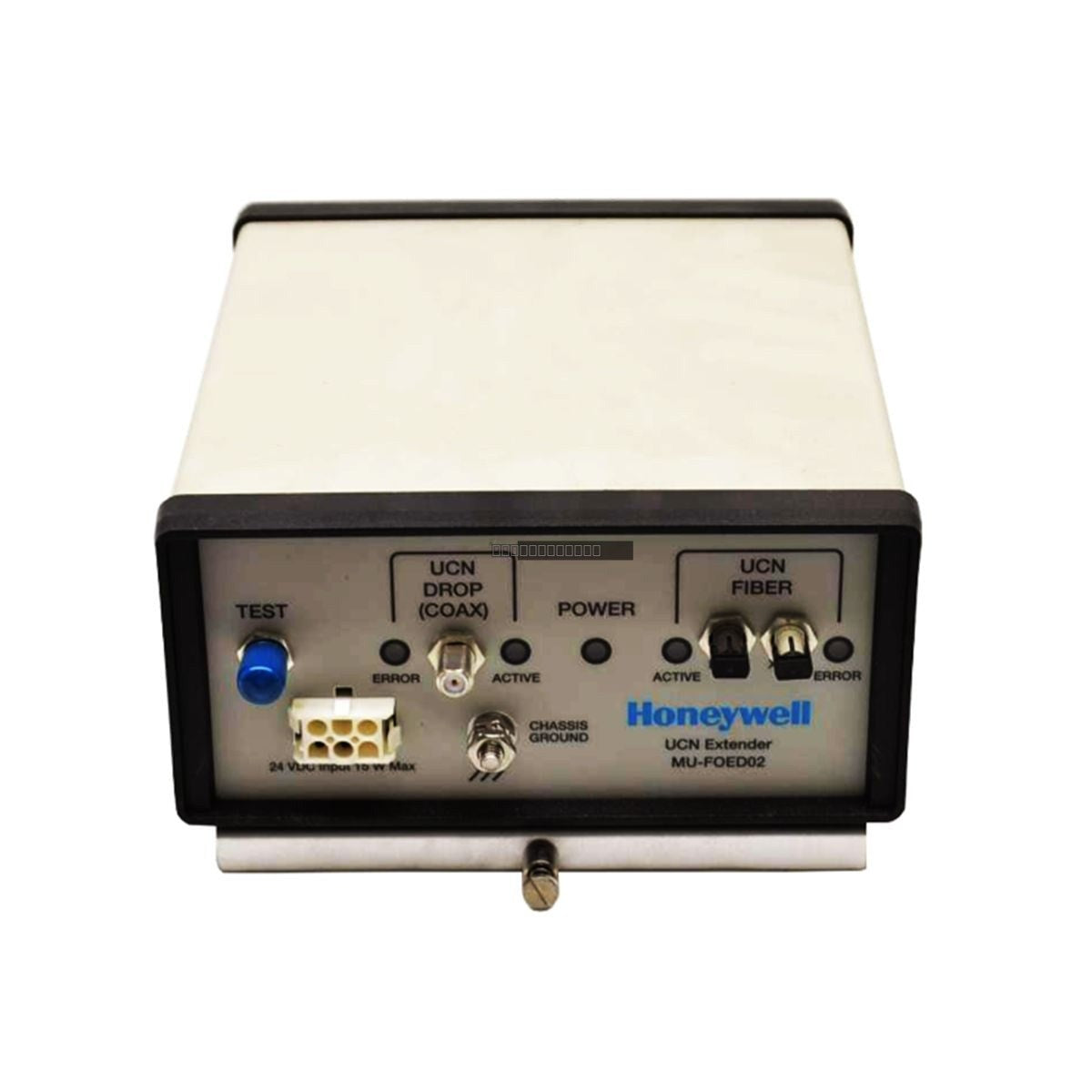

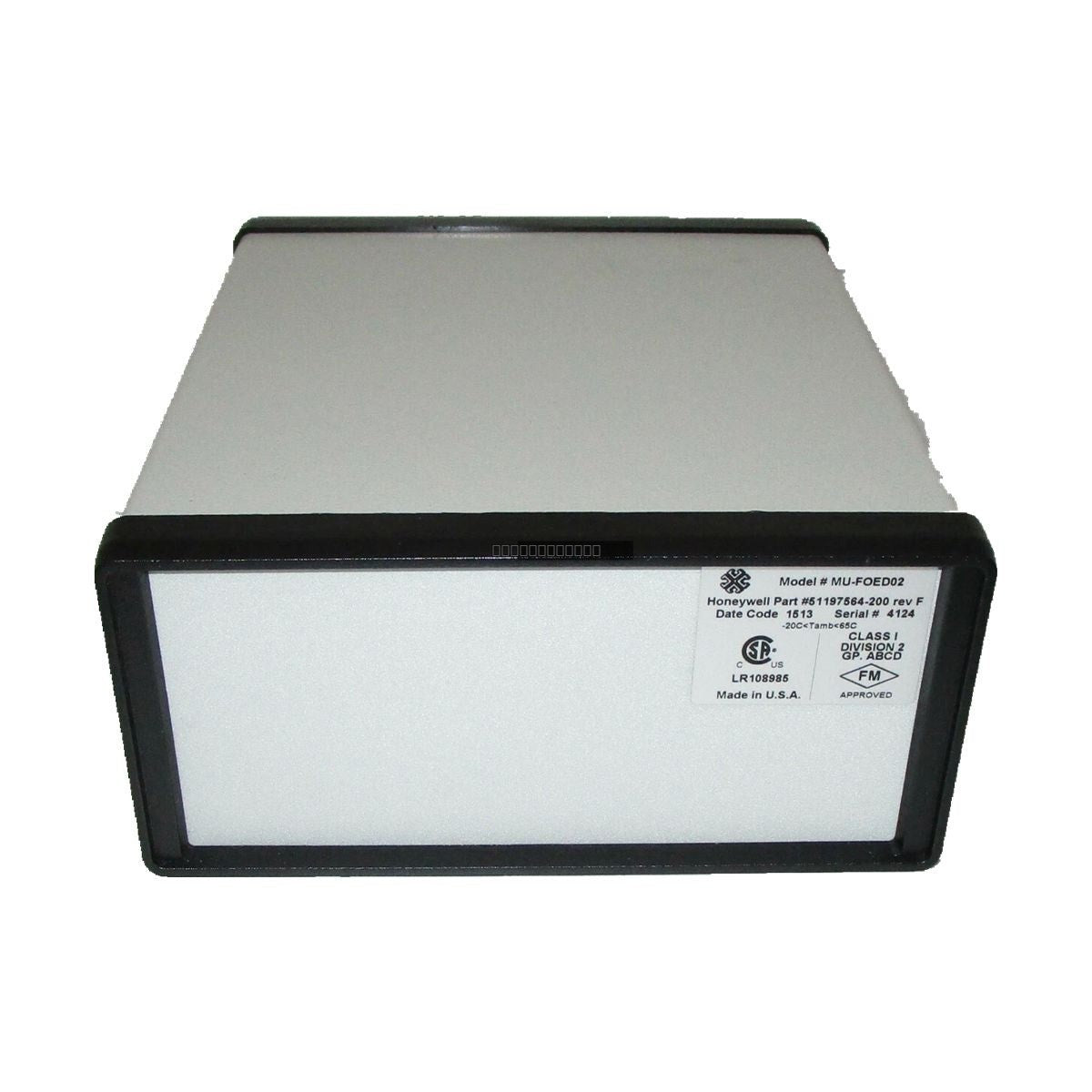

Honeywell 51197564-200 MU-FOED02 UCN Fiber Optic Extender

التوفر: 9 متوفر في المخزون

DescriptionThe Honeywell 51197564-200, also identified as the MU-FOED02, is a specialized communication interface module engineered to extend the reach of...

رمز المنتج: 51197564-200

Manufacturer: Honeywell
Product No.: 51197564-200
Product Type: Fiber Optic Extender Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2860g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Honeywell 51197564-200, also identified as the MU-FOED02, is a specialized communication interface module engineered to extend the reach of the Universal Control Network (UCN) within Honeywell Distributed Control Systems (DCS). This module facilitates reliable data transmission over fiber optic media, effectively bridging communication gaps between geographically dispersed control cabinets and process nodes. By utilizing optical transmission, the device provides inherent immunity to electromagnetic interference (EMI), making it a critical component for maintaining deterministic communication in large-scale industrial environments such as petrochemical refineries and power generation facilities.

Features

Extends UCN connectivity up to 2 km via fiber optic infrastructure.
Provides robust galvanic and optical isolation between network segments.
Minimizes signal degradation and latency for stable process control.
Designed for seamless integration into existing Honeywell UCN architectures.
Optimized for operation in high-EMI industrial environments where copper cabling is susceptible to noise.

Applications

The MU-FOED02 is primarily deployed in large-scale industrial automation systems requiring long-distance communication between DCS nodes. It is ideal for facilities where process control cabinets are separated by significant distances or where hazardous environments necessitate optical signal transmission to ensure data integrity and safety.

Technical Specifications

Model	MU-FOED02
Part Number	51197564-200
Manufacturer	Honeywell
Module Type	UCN Fiber Optic Extender
Power Requirements	24 VDC
Communication Distance	Up to 2 km
Isolation	Optical signal isolation
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the control cabinet is properly grounded before installing the module to prevent electrical discharge.
Power down the UCN segment before inserting or removing the module to prevent potential damage to the backplane or transceiver circuitry.
Verify that fiber optic cables are clean and properly terminated to minimize signal loss.
Route fiber optic cables away from high-voltage power lines to avoid physical damage and ensure long-term reliability.
Maintain adequate ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.

FAQ

What is the primary purpose of the MU-FOED02? The module is designed to convert UCN electrical signals into fiber optic signals, allowing for reliable, interference-free communication over distances up to 2 km within a Honeywell DCS.

Does this module require external power? Yes, the unit operates on a 24 VDC power supply, which must be provided according to your system's cabinet wiring standards.
