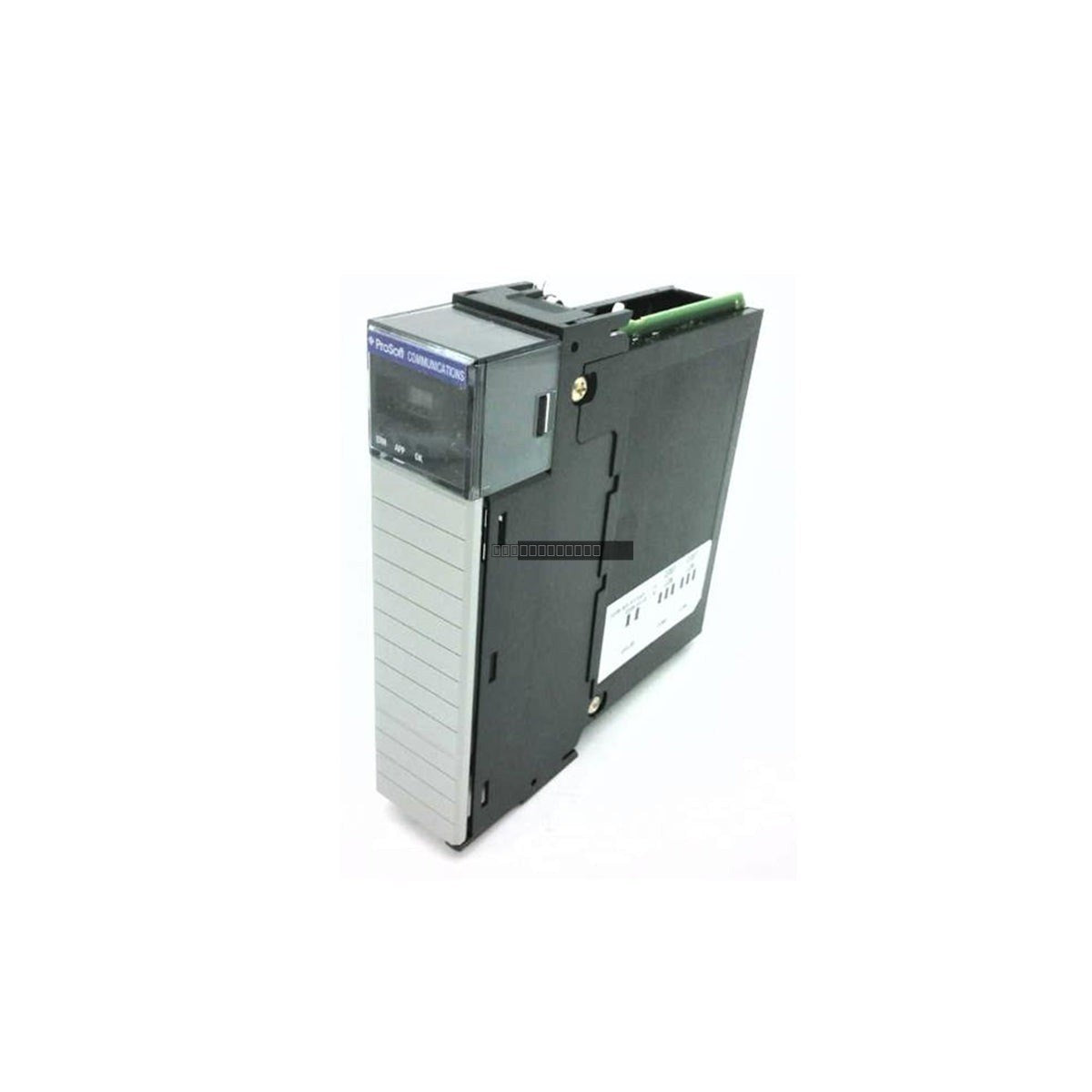

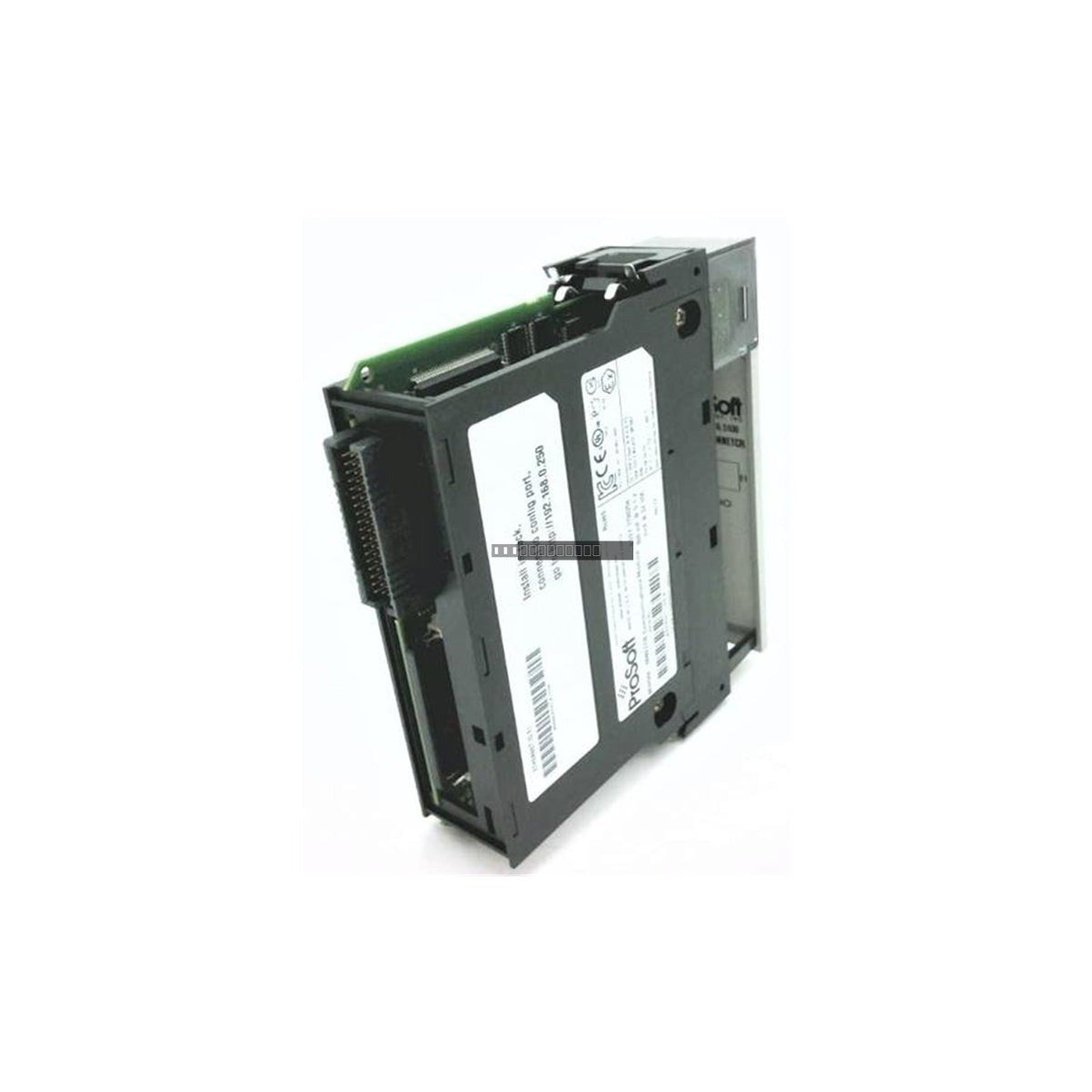

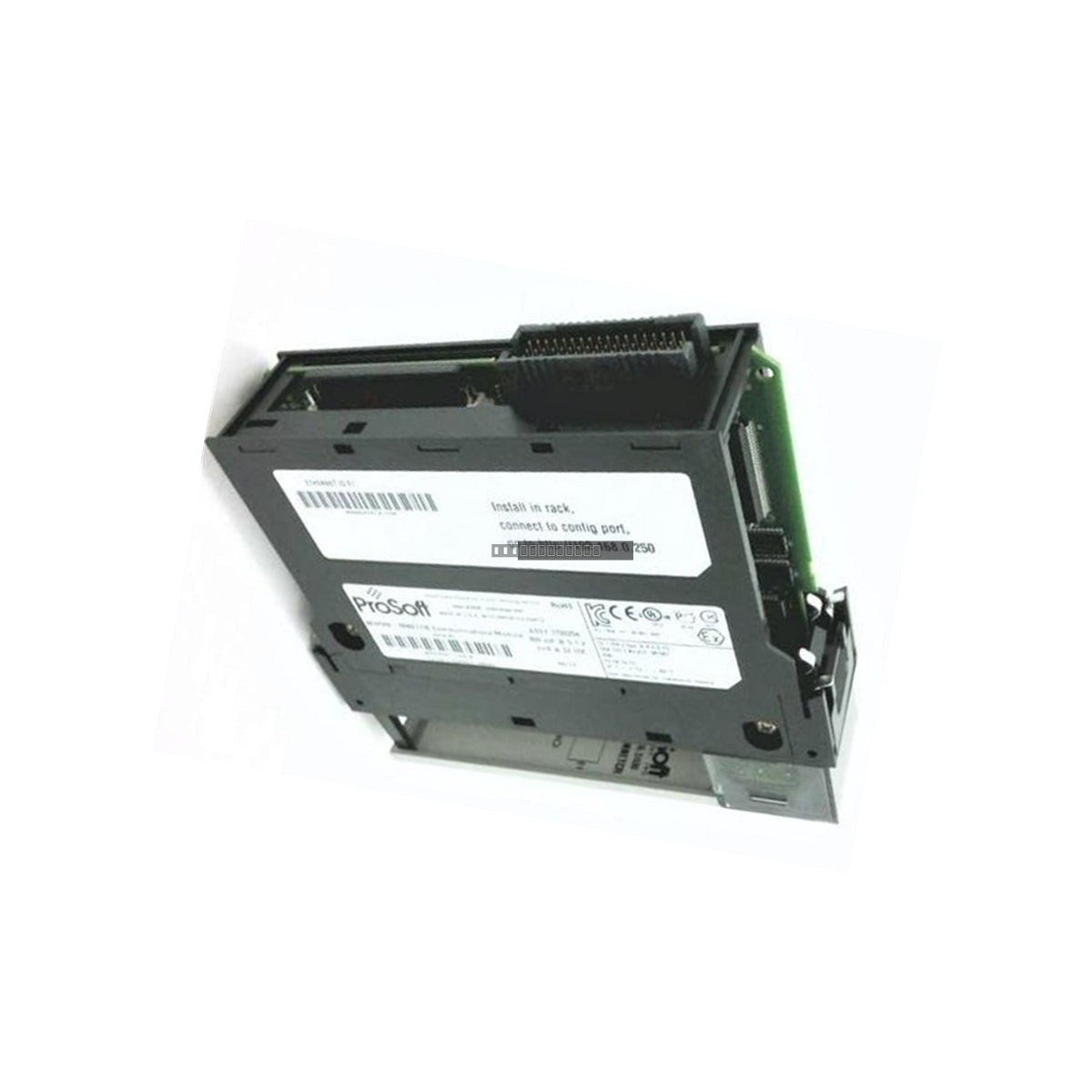

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Module

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

التوفر: 1 متوفر في المخزون

DescriptionThe ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix...

رمز المنتج: MVI56E-MNETCR

Manufacturer: Prosoft
Product No.: MVI56E-MNETCR
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with up to 30 simultaneous client connections and 20 server connections over an Ethernet network. The 'CR' designation signifies a reduced data block version, specifically optimized for high-speed I/O data exchange. It is a critical component for bridging high-level controllers with field devices such as power meters, variable frequency drives, and remote I/O in power generation, water treatment, and large-scale manufacturing environments.

Features

Supports 30 Client and 20 Server connections for robust Modbus TCP/IP communication.
Optimized 100-word reduced data block interface to minimize backplane traffic.
Integrated web server for remote configuration, module monitoring, and diagnostics.
Native support for Studio 5000 Add-On Instructions (AOI) for rapid deployment.
10/100 Mbps RJ45 Ethernet port for high-speed network connectivity.
Compatible with standard ControlLogix chassis backplane power.

Applications

This module is widely used in industrial automation for connecting ControlLogix systems to third-party Modbus TCP/IP devices. Common applications include data acquisition from power monitoring equipment, integration of variable frequency drives (VFDs), and interfacing with remote I/O stations in SCADA-managed architectures.

Technical Specifications

Model	MVI56E-MNETCR
Module Type	Modbus TCP/IP Enhanced Network Interface (Reduced Block)
Backplane Current	800 mA @ 5 VDC; 3 mA @ 24 VDC
Ethernet Port	1 x RJ45 10/100 Base-T
Modbus Connections	30 Client, 20 Server
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5% to 95% (non-condensing)
Configuration	Web interface or ProSoft Configuration Builder (PCB)

Installation Guidelines

Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Seat the module firmly into the designated slot in the ControlLogix rack and secure the top and bottom retaining screws.
Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
Maintain proper ventilation within the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Does this module require special software for configuration?

The MVI56E-MNETCR can be configured via its integrated web server or using the ProSoft Configuration Builder (PCB) software. It also supports Add-On Instructions (AOI) within the Studio 5000 environment for simplified integration.

What does the CR suffix indicate?

The 'CR' suffix indicates that the module uses a reduced data block interface (100 words), which is specifically optimized for high-speed I/O data exchange and reduced backplane loading.
