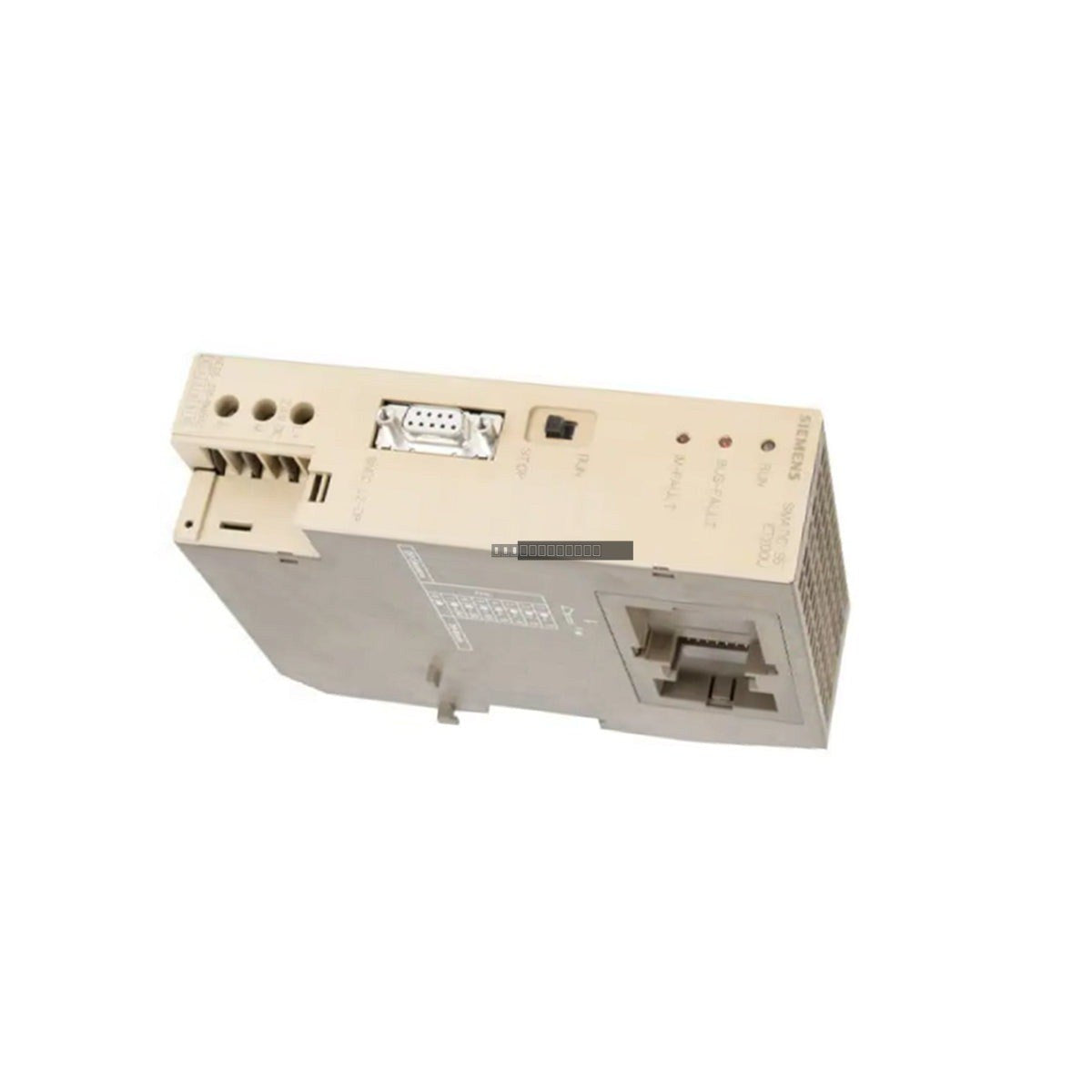

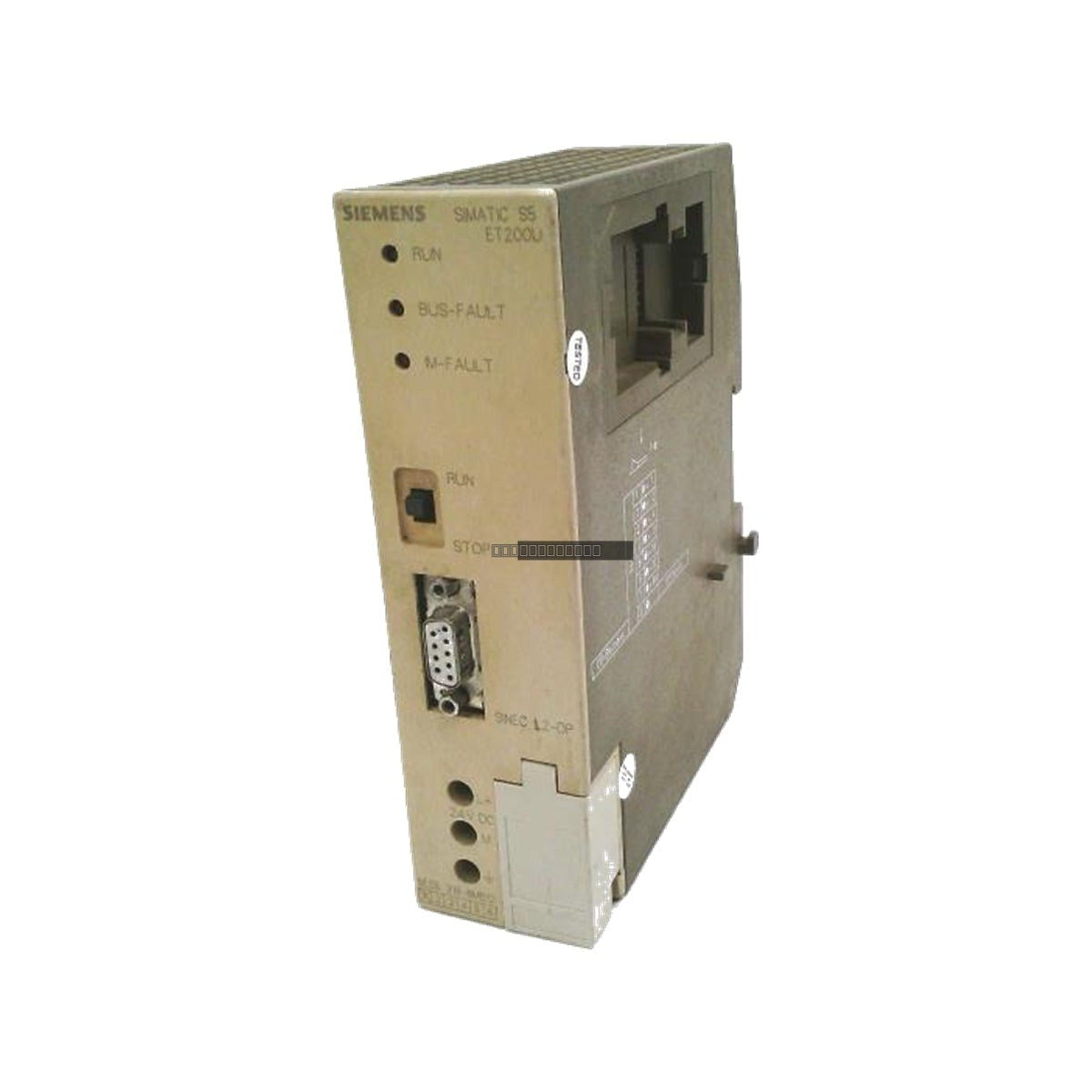

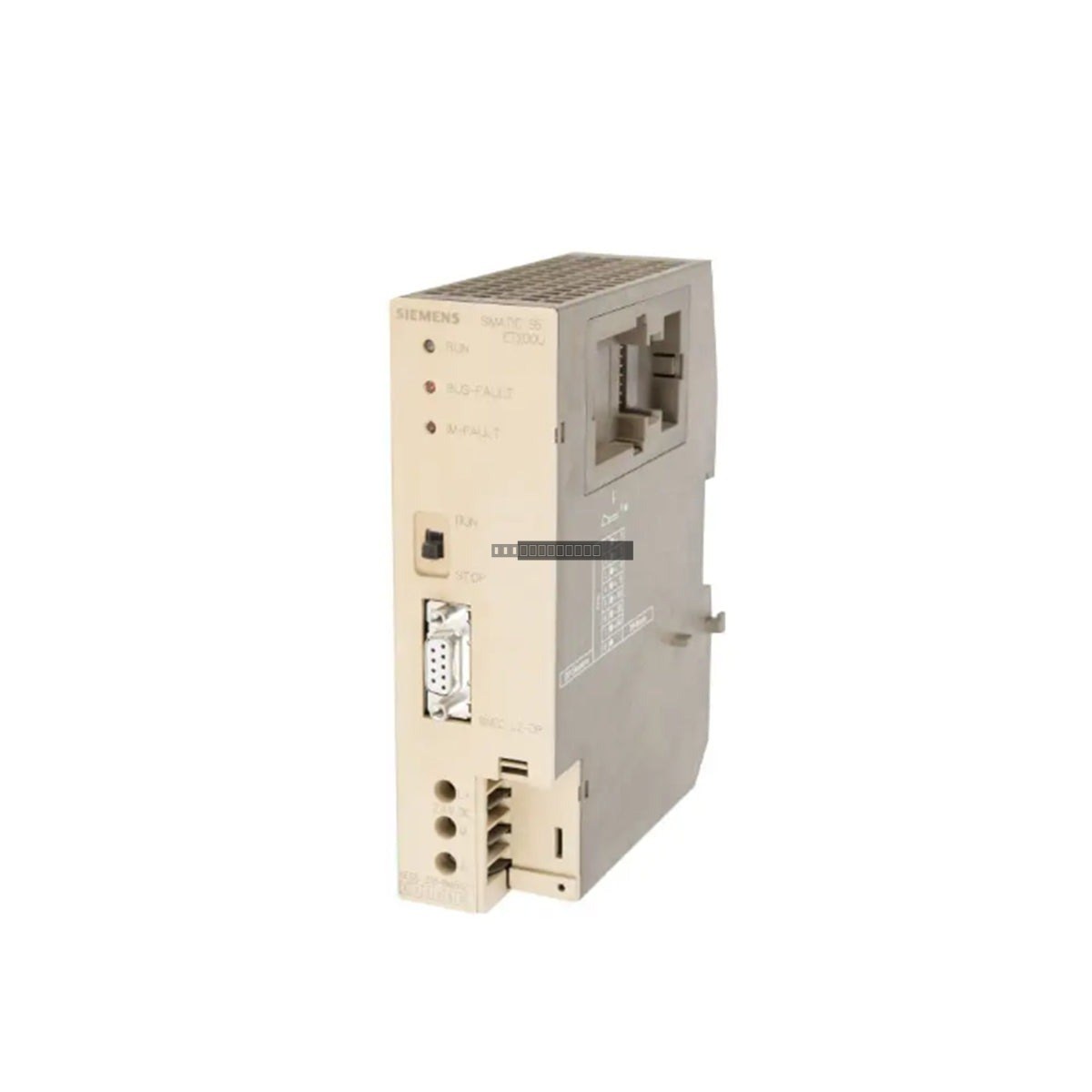

Siemens 6ES5318-8MB12 ET 200U Profibus DP Interface Module

التوفر: 2 متوفر في المخزون

DescriptionThe Siemens 6ES5318-8MB12 is a dedicated Profibus DP slave interface module engineered for the ET 200U distributed I/O system. This...

رمز المنتج: 6ES5318-8MB12

Manufacturer: Siemens
Product No.: 6ES5318-8MB12
Product Type: Profibus DP Interface Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Siemens 6ES5318-8MB12 is a dedicated Profibus DP slave interface module engineered for the ET 200U distributed I/O system. This interface facilitates reliable, high-speed communication between a central automation master and remote I/O racks, serving as a critical component in legacy Simatic S5 control environments. By offloading communication tasks from the local processor, it ensures deterministic data exchange and efficient diagnostic monitoring in demanding industrial settings such as power generation, water treatment, and material handling systems.

Features

Supports standard Profibus DP network integration for distributed I/O expansion.
Integrated ASIC-based protocol handling for high-speed, low-latency cyclic data exchange.
RS485 physical interface via a standard 9-pin Sub-D connector.
Galvanic isolation protects internal backplane circuitry from field-side electrical noise and surges.
Manual station addressing via front-mounted rotary switches for simplified commissioning.
Supports automatic baud rate detection from 9.6 kbps up to 1.5 Mbps.

Applications

This module is frequently utilized in distributed control architectures where localized I/O gathering is required to minimize complex field cabling. Typical installations include continuous process monitoring, conveyor system control, and industrial water treatment automation where robust, noise-immune communication is mandatory.

Technical Specifications

Model	6ES5 318-8MB12
Series	Simatic S5 / ET 200U
Protocol	Profibus DP (RS485)
Voltage	9-24 VDC
Current Consumption	0.5-0.7 A
Data Transmission	9.6 kbps to 1.5 Mbps
Station Addresses	Up to 125
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C

Installation Guidelines

Ensure the system power is disconnected before installing or removing the module from the ET 200U rack to prevent electrical damage.
Verify that the station address is correctly set via the rotary switches before powering up the bus segment.
Use high-quality, shielded Profibus-certified cables and ensure proper grounding to maintain signal integrity, especially in high-EMI industrial environments.
Maintain adequate clearance around the module to allow for proper convective cooling during operation.
Follow standard ESD precautions when handling the module to protect sensitive internal logic components.

FAQ

Is this module compatible with modern Profibus masters?

Yes, the 6ES5318-8MB12 adheres to the standard Profibus DP protocol, allowing it to communicate with most standard DP masters, provided the appropriate GSD file is configured in the master station's engineering software.

How is the station address configured?

The station address is set manually using the rotary switches located on the front panel of the module. Ensure the chosen address is unique within the Profibus network segment.
