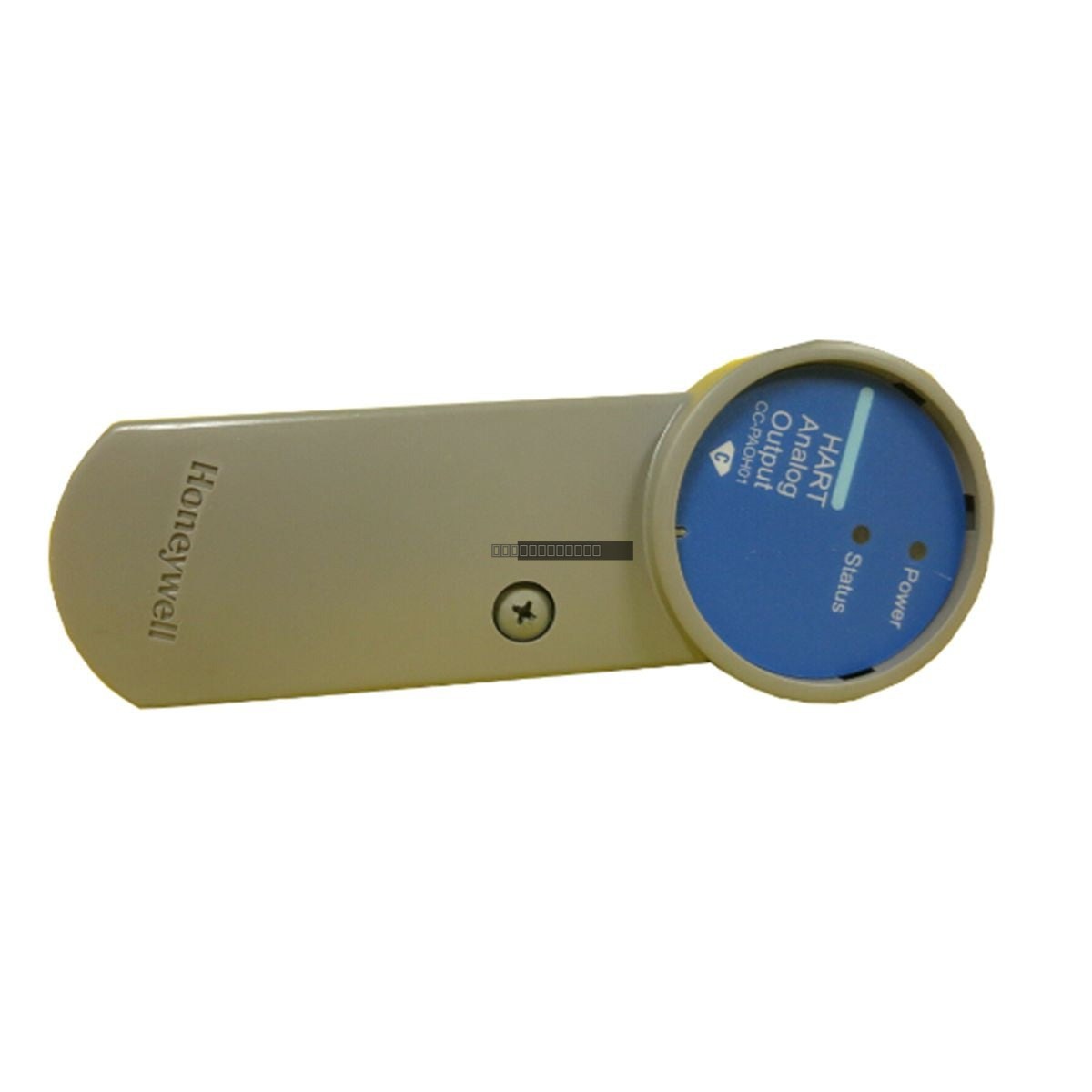

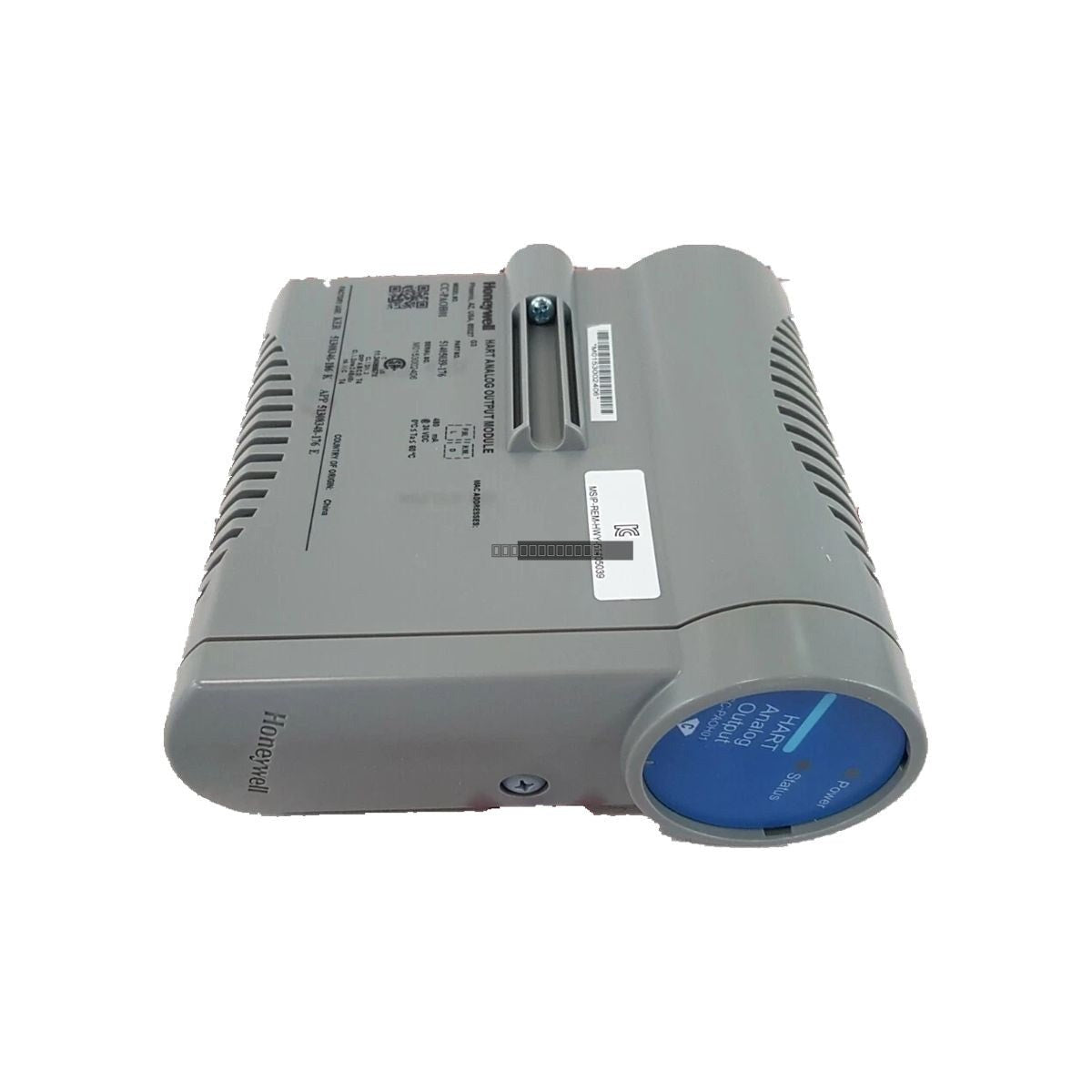

Honeywell CC-PAOH01 51405039-175 HART Analog Output Module

Honeywell CC-PAOH01 51405039-175 Analog Output Module

التوفر: 6 متوفر في المخزون

The Honeywell CC-PAOH01 (51405039-175) is a 16-channel high-level analog output module engineered for the Experion PKS Series C I/O platform....

رمز المنتج: CC-PAOH01 51405039-175

Manufacturer: Honeywell
Product No.: CC-PAOH01 51405039-175
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Honeywell CC-PAOH01 (51405039-175) is a 16-channel high-level analog output module engineered for the Experion PKS Series C I/O platform. This module provides precise 4-20 mA current signals and integrates HART communication capabilities, allowing for seamless management of intelligent field devices such as smart valves and actuators.

Features

16-channel high-level analog output configuration.
Integrated HART communication for advanced device diagnostics and multivariable data collection.
Configurable FAILOPT settings allow for per-channel safe-state behavior (Hold Last Value or Shed to Safe Value).
Enhanced reliability with output read-back and automatic alarm annunciation on channel discrepancy.
Extensive self-diagnostic routines to ensure process integrity.
Supports redundant configurations to minimize process downtime during switchovers.

Applications

Actuator and valve positioning for precise process flow regulation.
Variable speed drive control for motor and pump management.
Integration with smart HART-enabled field instrumentation.
Sequential and combustion control in power and energy sectors.
Heavy industrial manufacturing, including steel production and smelting.

Technical Specifications

Model	CC-PAOH01 (51405039-175)
Output Channels	16
Output Range	0 mA, 2.9 mA to 21.1 mA
Resolution	+/- 0.05% of Full Scale
Calibrated Accuracy	+/- 0.35% of Full Scale (at 25 degC)
Max Resistive Load	800 ohms
Max Compliance Voltage	16 V
Output Ripple	< 100 mV peak-to-peak
Operating Temperature Drift	0.005% of Full Scale/degC

Installation Guidelines

The CC-PAOH01 is designed for use with a dedicated Series C Input/Output Termination Assembly (IOTA). Ensure the IOTA is securely mounted before installing the module.
Always power down the IOTA before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
Ensure proper grounding of the IOTA to reduce electromagnetic interference (EMI) and protect signal integrity.
Route field wiring in accordance with local electrical codes, keeping signal cables separated from high-voltage power lines.
Verify that the module is fully seated and the locking mechanism is engaged to ensure a stable connection to the IOTA.

FAQ

What is the primary function of the CC-PAOH01?

The CC-PAOH01 is a 16-channel analog output module designed to convert digital control signals into 4-20 mA current outputs for field devices, with added HART protocol support for smart communication.

What is the role of the IOTA?

The IOTA (Input/Output Termination Assembly) serves as the base for the Series C module, providing the necessary field wiring terminals and power distribution, eliminating the need for separate marshalling hardware.

How does the module handle signal failures?

The module features configurable FAILOPT parameters. In the event of an IOM electronics failure, the output will transition to a pre-configured safe state to maintain process safety.
