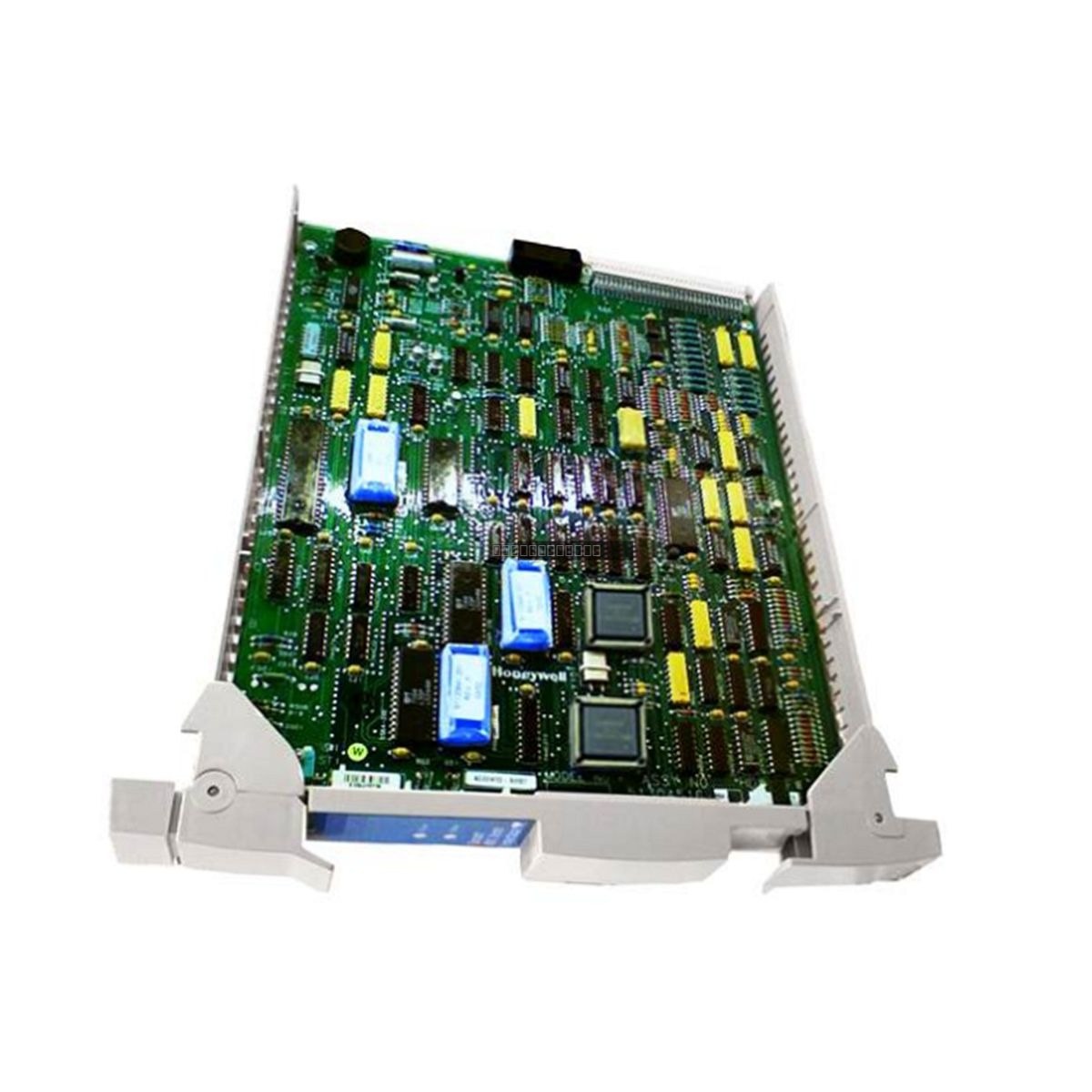

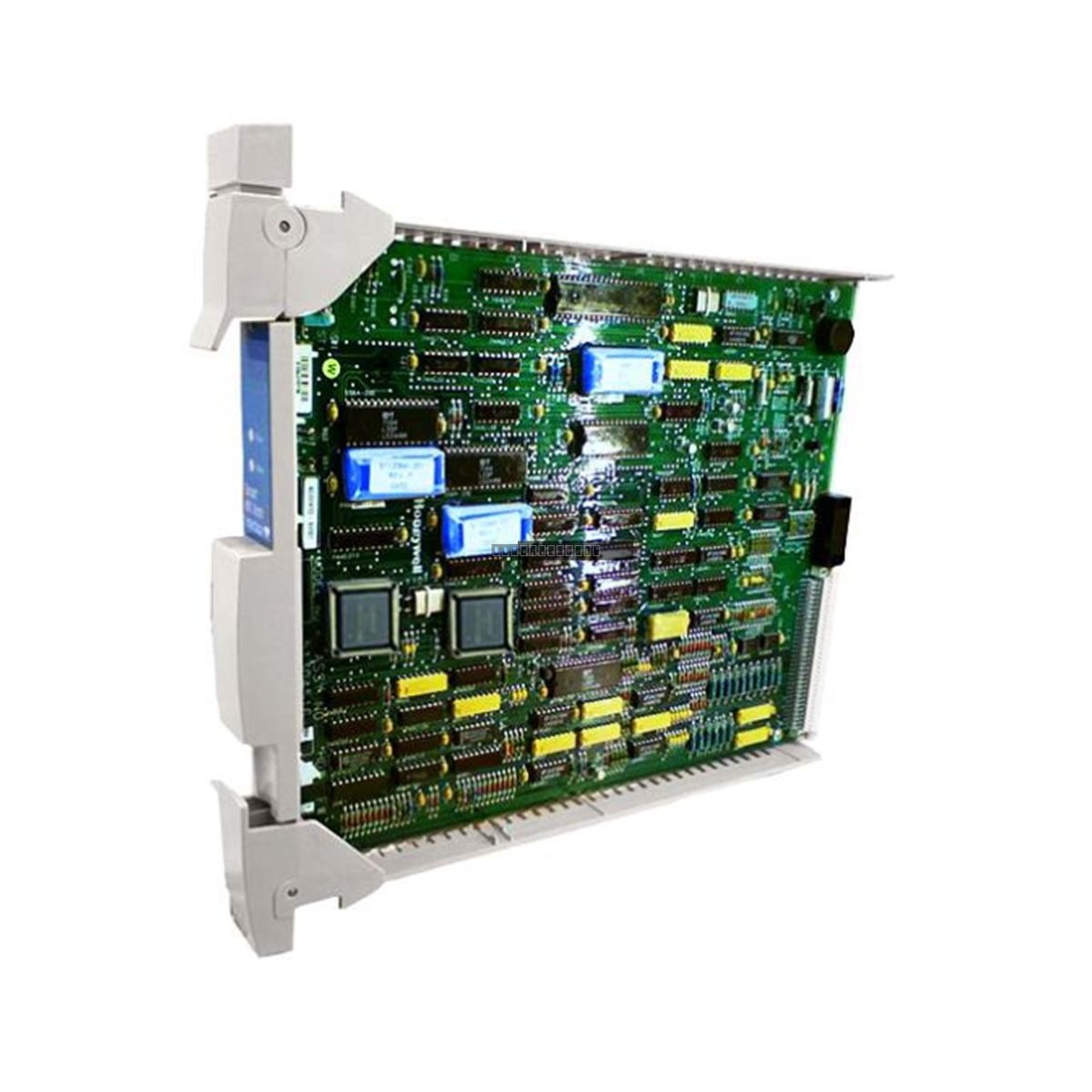

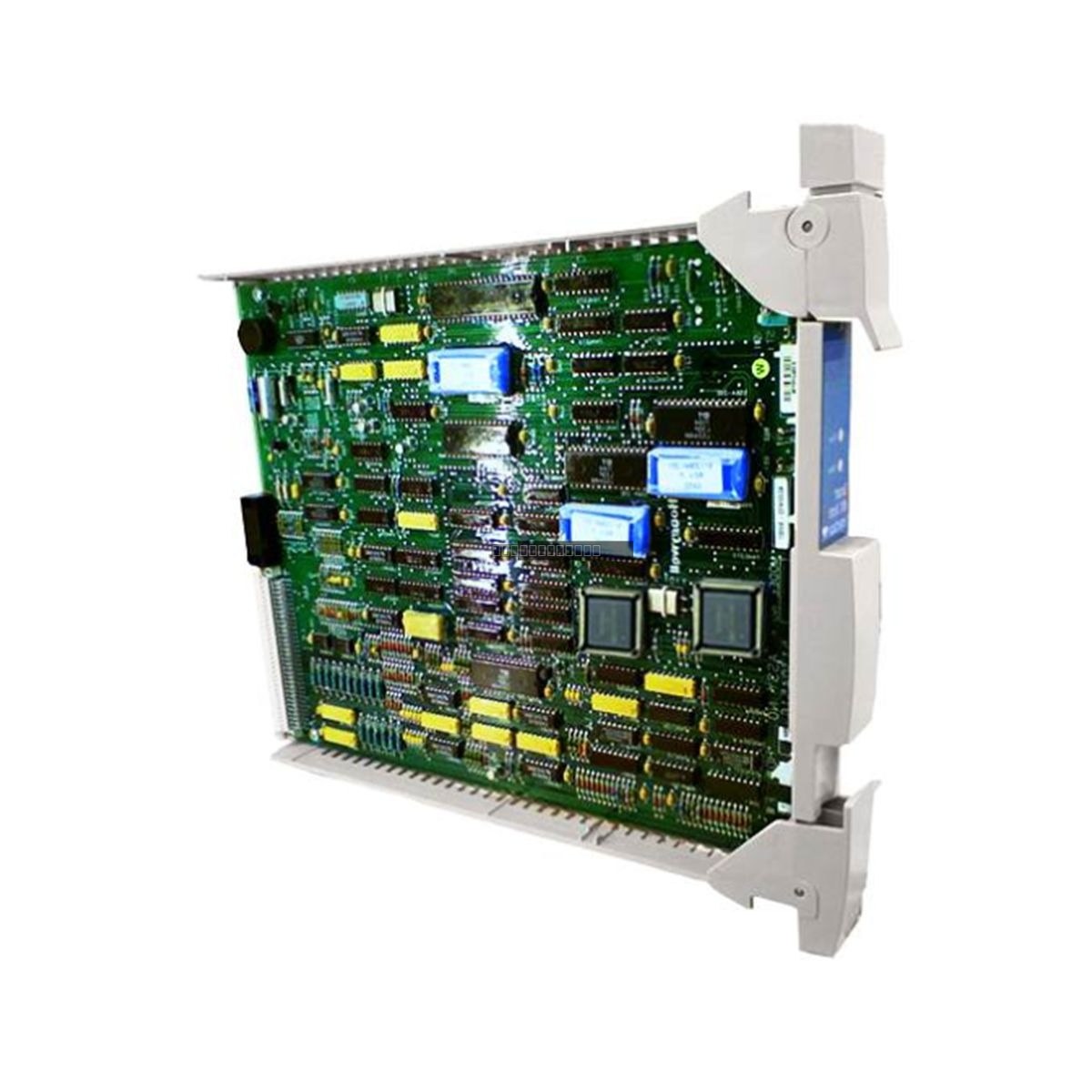

Honeywell 51304516-250 MC-PSTX03 Smart Transmitter Interface

Honeywell 51304516-250 MC-PSTX03 Smart Transmitter Interface Multivariable Module

التوفر: 1 متوفر في المخزون

DescriptionThe Honeywell 51304516-250 is a high-performance MC-PSTX03 Smart Transmitter Interface Multivariable (STIM) module, engineered to serve as a robust communication...

رمز المنتج: 51304516-250

Manufacturer: Honeywell
Product No.: 51304516-250
Product Type: Smart Transmitter Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Honeywell 51304516-250 is a high-performance MC-PSTX03 Smart Transmitter Interface Multivariable (STIM) module, engineered to serve as a robust communication gateway between intelligent field transmitters and Honeywell distributed control systems. This processor assembly is designed to handle up to 16 input channels, facilitating the integration of multivariable transmitter data into advanced process control loops. By enabling the acquisition of both primary process variables and diagnostic information, the module enhances controller-level visibility and diagnostic accuracy in demanding industrial environments, including petrochemical, refinery, and power generation facilities.

Features

Supports up to 16 smart transmitter input channels for high-density signal processing.
CE-compliant architecture featuring advanced electromagnetic compatibility (EMC) protections.
Enhanced signal integrity through filtered IOP backpanel connectors.
Improved shielding continuity via dedicated IOP grounding panels.
Rear backpanel shield structure to minimize interference in electrically noisy zones.
Conformal coated circuitry to provide superior resistance against humidity and airborne industrial contaminants.
Optimized for deterministic communication and long-term operational stability.

Technical Specifications

Model	MC-PSTX03
Part Number	51304516-250
Module Type	Smart Transmitter Interface Multivariable (STIM)
Input Capacity	16 Channels
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Compliance	CE Compliant (Enhanced EMC)
Protection	Filtered IOP connectors, grounding panels, rear shield
Coating	Conformal coated

Installation Guidelines

To ensure optimal performance and system longevity, observe the following installation protocols:

Ensure the control system backplane is powered down before inserting or removing the module.
Verify that the module is correctly seated within the designated slot to ensure proper backplane connection.
Utilize the integrated grounding panels to maintain shielding continuity; ensure the rear shield is correctly installed to meet EMC requirements.
Route signal cables away from high-voltage lines and sources of significant electromagnetic interference (EMI).
Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified 0 to 60 deg C range.
Handle the unit using ESD-safe practices to prevent damage to internal electronic components.

FAQ

What is the primary function of the 51304516-250 module?
This module acts as a communication interface between smart field transmitters and the Honeywell control system, allowing for the processing of multivariable data and device diagnostics.

What distinguishes the 51304516-250 from non-CE versions?
The 51304516-250 includes specific EMC enhancements, such as filtered IOP connectors, grounding panels, and a rear backpanel shield, which provide superior protection against electromagnetic interference in industrial settings.

Is this module suitable for harsh environments?
Yes, the module features conformal coating, which provides protection against humidity and airborne contaminants typically found in industrial plant environments.
