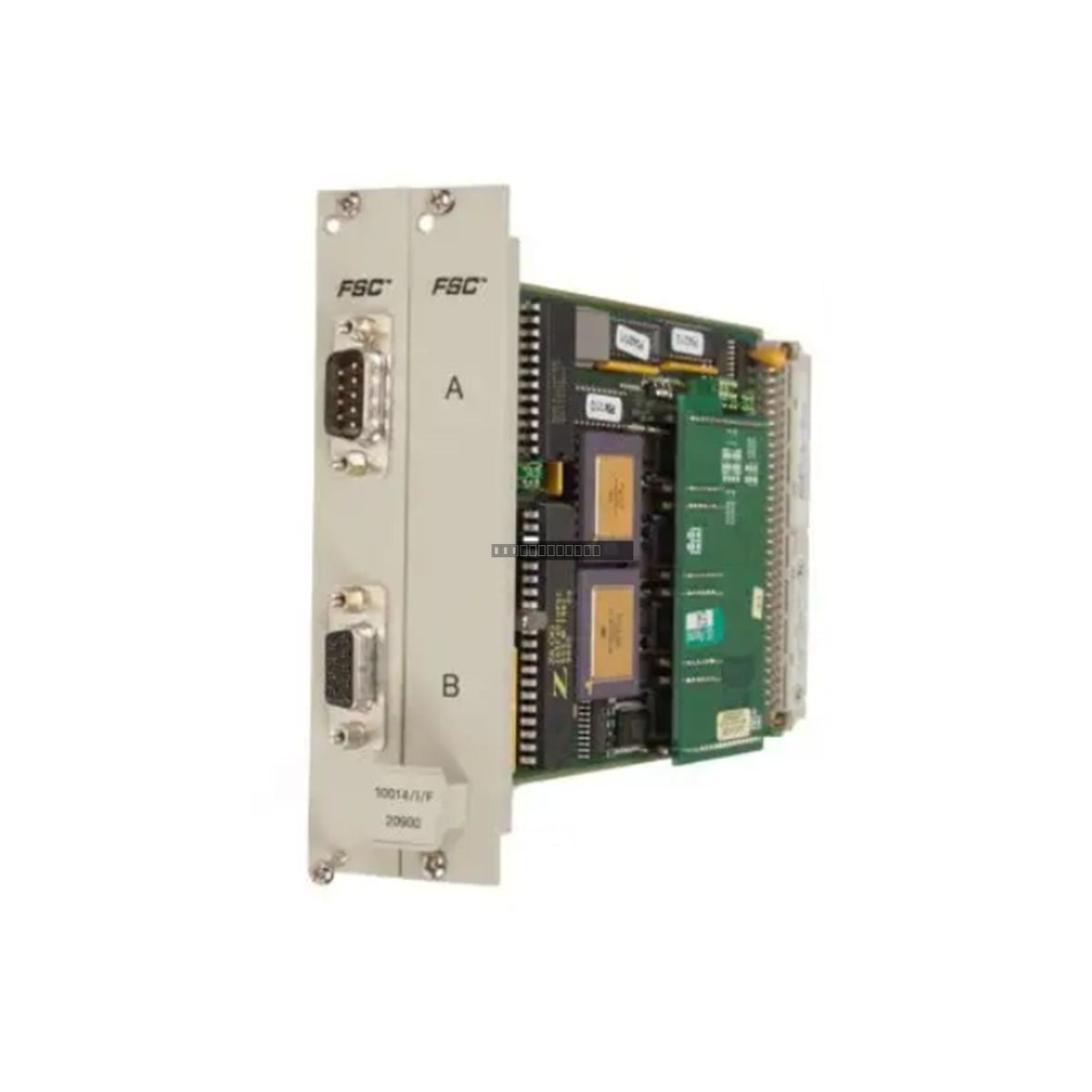

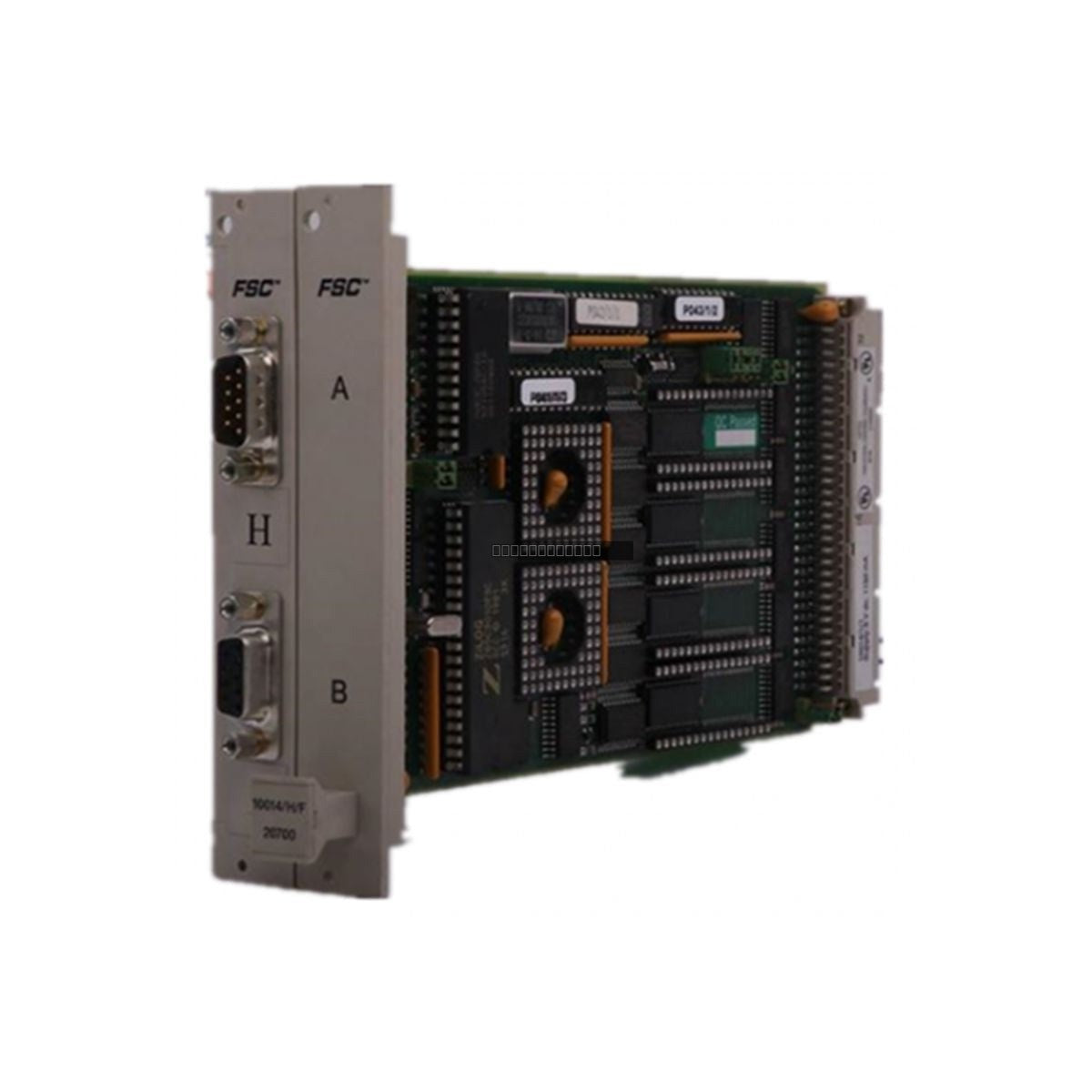

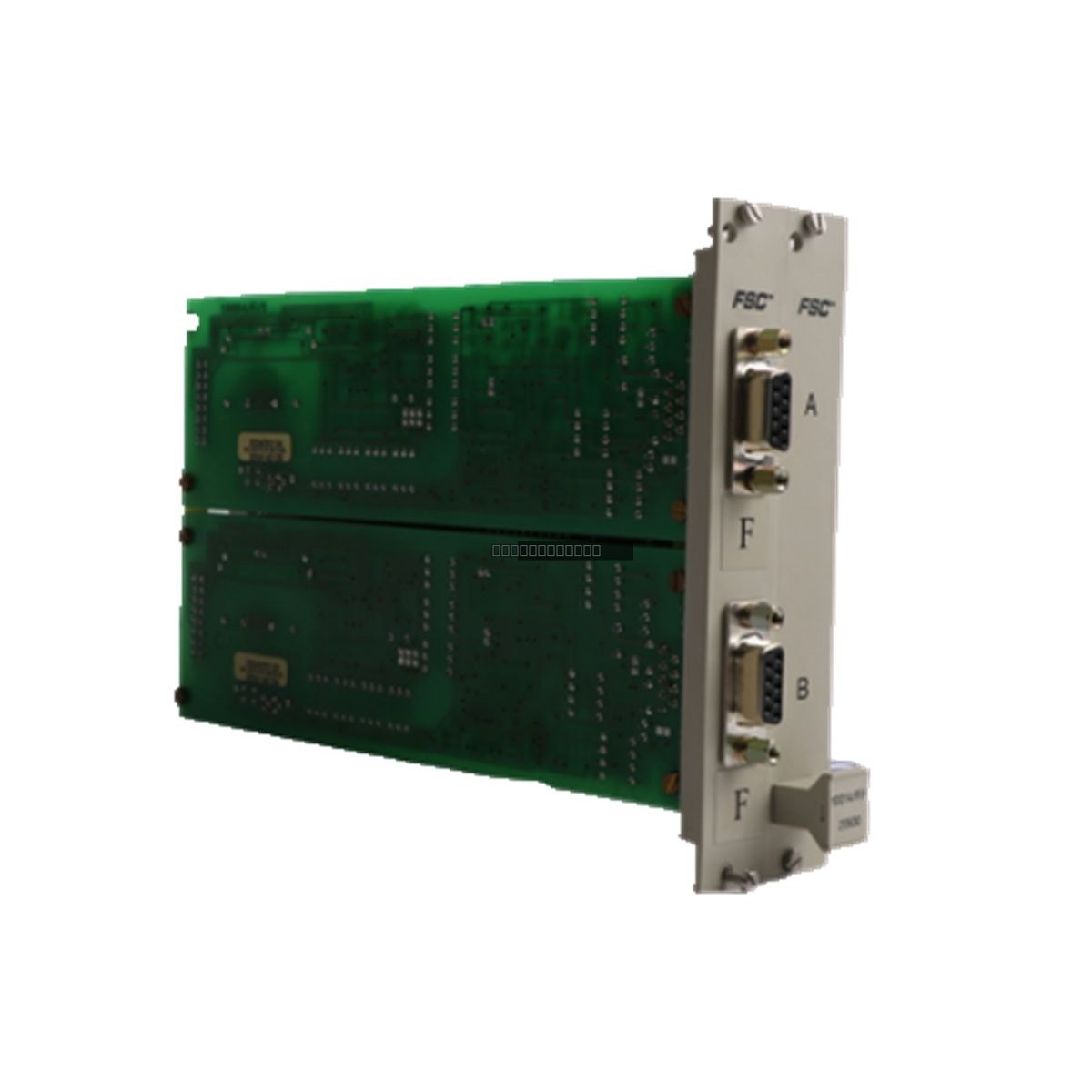

Honeywell 10014/I/F Fail Safe Digital Output Module

التوفر: 9 متوفر في المخزون

DescriptionThe Honeywell 10014/I/F is a specialized fail-safe digital output module engineered for integration into high-integrity Safety Instrumented Systems (SIS). This...

رمز المنتج: 10014/I/F

Manufacturer: Honeywell
Product No.: 10014/I/F
Product Type: Fail Safe Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Honeywell 10014/I/F is a specialized fail-safe digital output module engineered for integration into high-integrity Safety Instrumented Systems (SIS). This module provides 8 isolated 24 VDC solid-state output channels, specifically designed to transition to a de-energized safe state upon the detection of an internal fault or loss of power. By employing solid-state switching technology, the unit avoids the mechanical wear associated with traditional relays, providing a deterministic and rapid response necessary for critical shutdown sequences in industrial environments such as chemical processing, power generation, and oil refineries.

Features

8 independent sourcing output channels with integrated electrical isolation.
Fail-safe design ensures outputs de-energize during system faults or power interruptions.
Solid-state architecture provides high-speed switching and extended operational lifespan.
Direct compatibility with standard field actuators, including solenoids, shutdown valves, and secondary relays.
Rack-mount design optimized for standard Honeywell safety backplanes, ensuring robust signal integrity and EMI suppression.

Technical Specifications

Model	10014/I/F
Output Channels	8 Isolated Digital Outputs
Output Type	Solid-state Sourcing
Rated Voltage	24 VDC
Output Current	550 mA per channel
Max Lamp Load	120 mA (approx. 2.9 W)
Max Load Capacitance	1 uF
Voltage Drop	< 2.0 V at 500 mA
Off-State Leakage	< 0.1 mA
Power Consumption	3 W - 5 W (typical)
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the system power is completely disconnected before attempting to insert or remove the module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to internal circuitry.
Verify that the backplane connector pins are clean and free of debris before seating the module.
Ensure that wiring to field devices is routed away from high-voltage AC lines to minimize electromagnetic interference (EMI).
Confirm that the load connected to each channel does not exceed the maximum current rating of 550 mA to prevent thermal stress on the output drivers.

FAQ

What does the fail-safe design mean for this module?

The 10014/I/F is designed to automatically de-energize its outputs if an internal fault is detected or if power is lost. This ensures that the connected safety-critical field devices, such as shutdown valves, return to their predefined safe state without requiring external intervention.

Is this module suitable for high-vibration industrial environments?

The module is designed for standard industrial rack-mount applications. While it lacks mechanical moving parts, ensure that the rack itself is properly secured and that all terminal connections are tightened according to standard site practices to maintain signal continuity.
